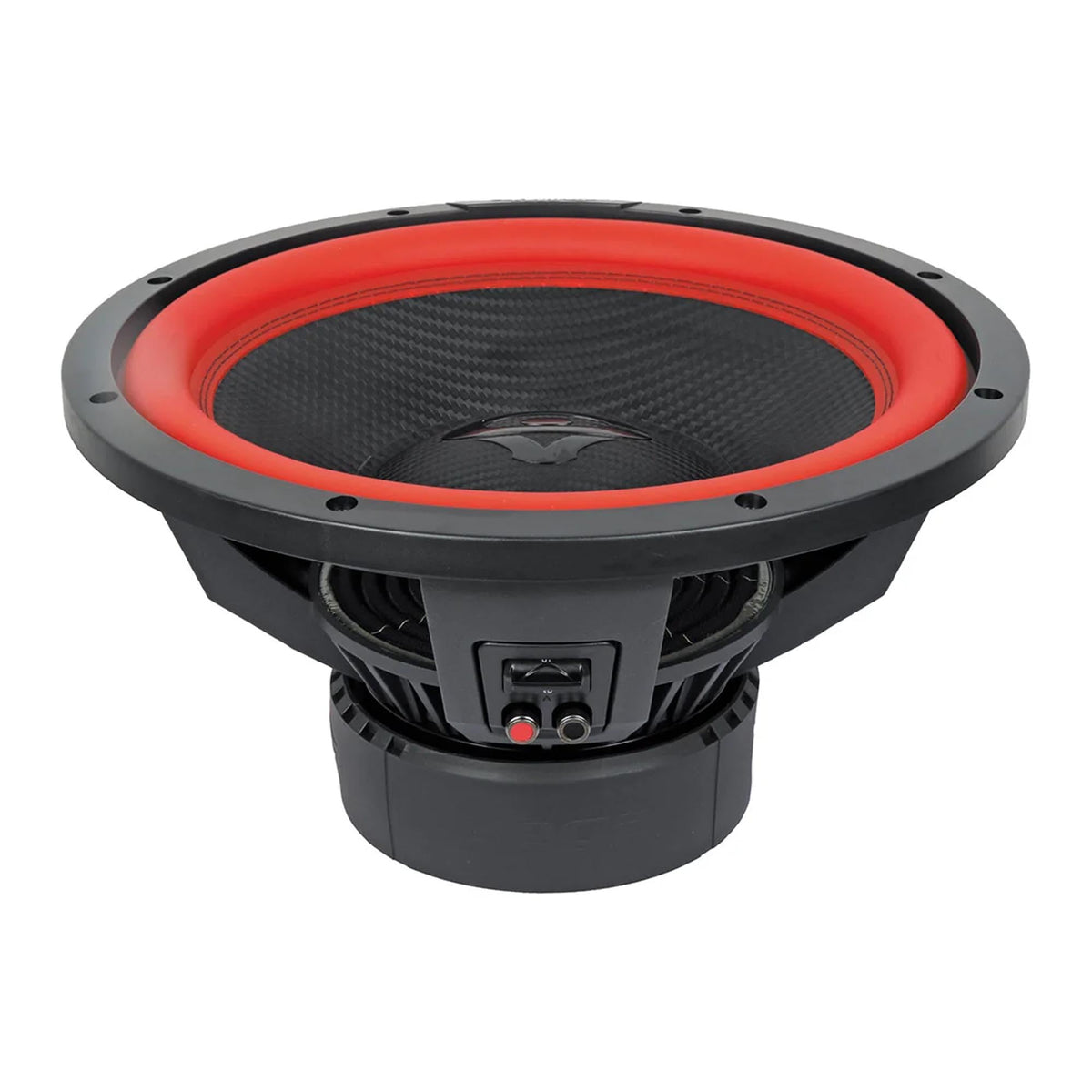

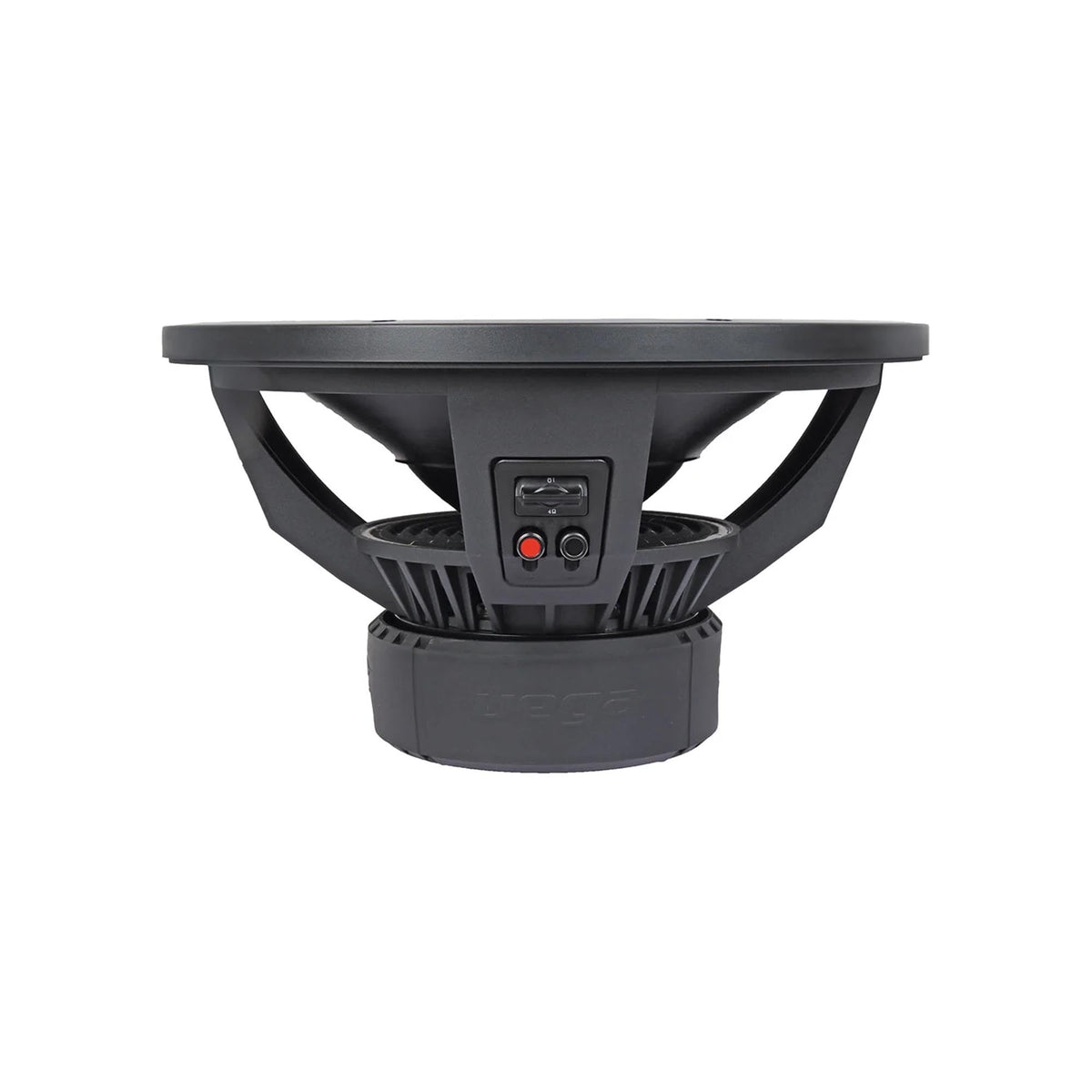

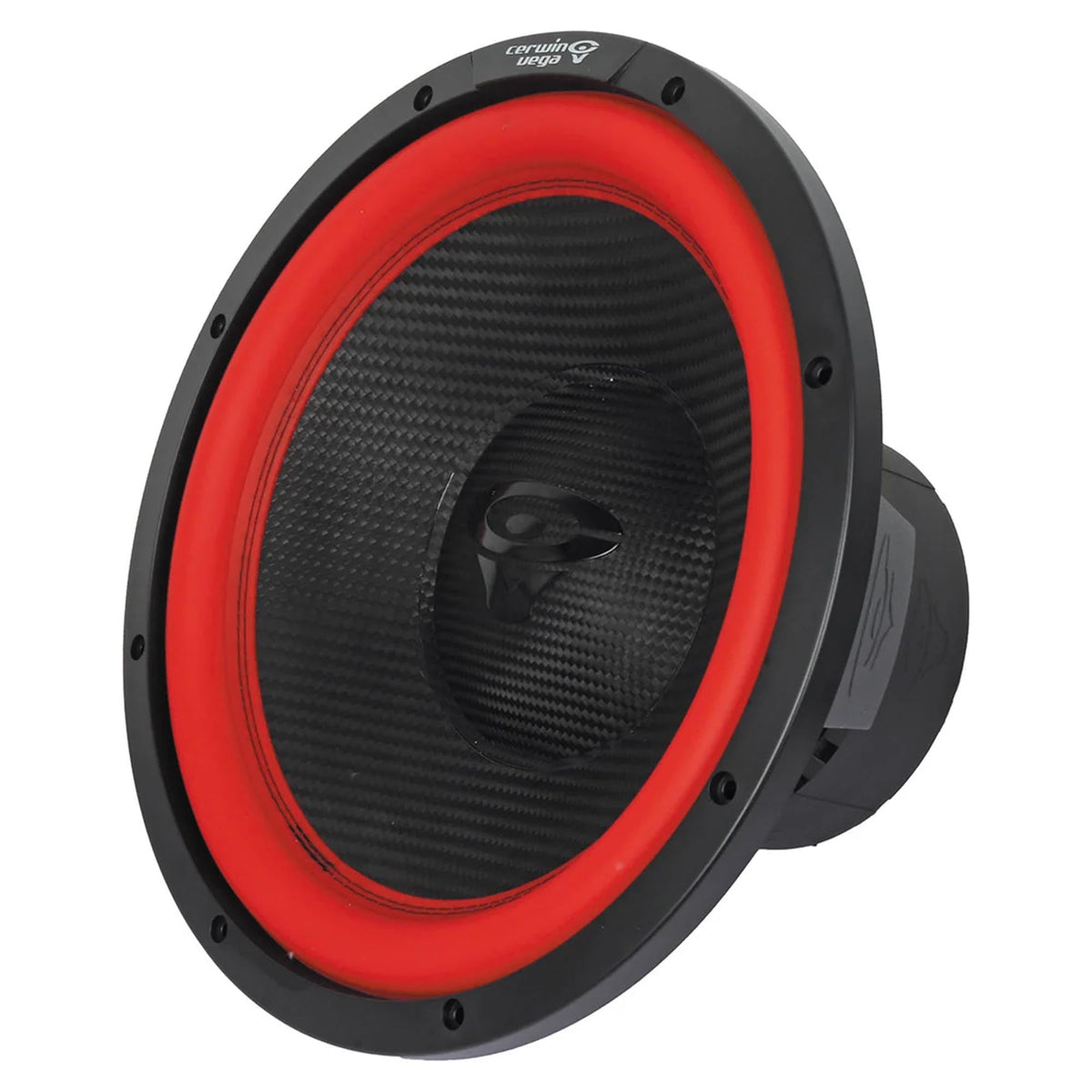

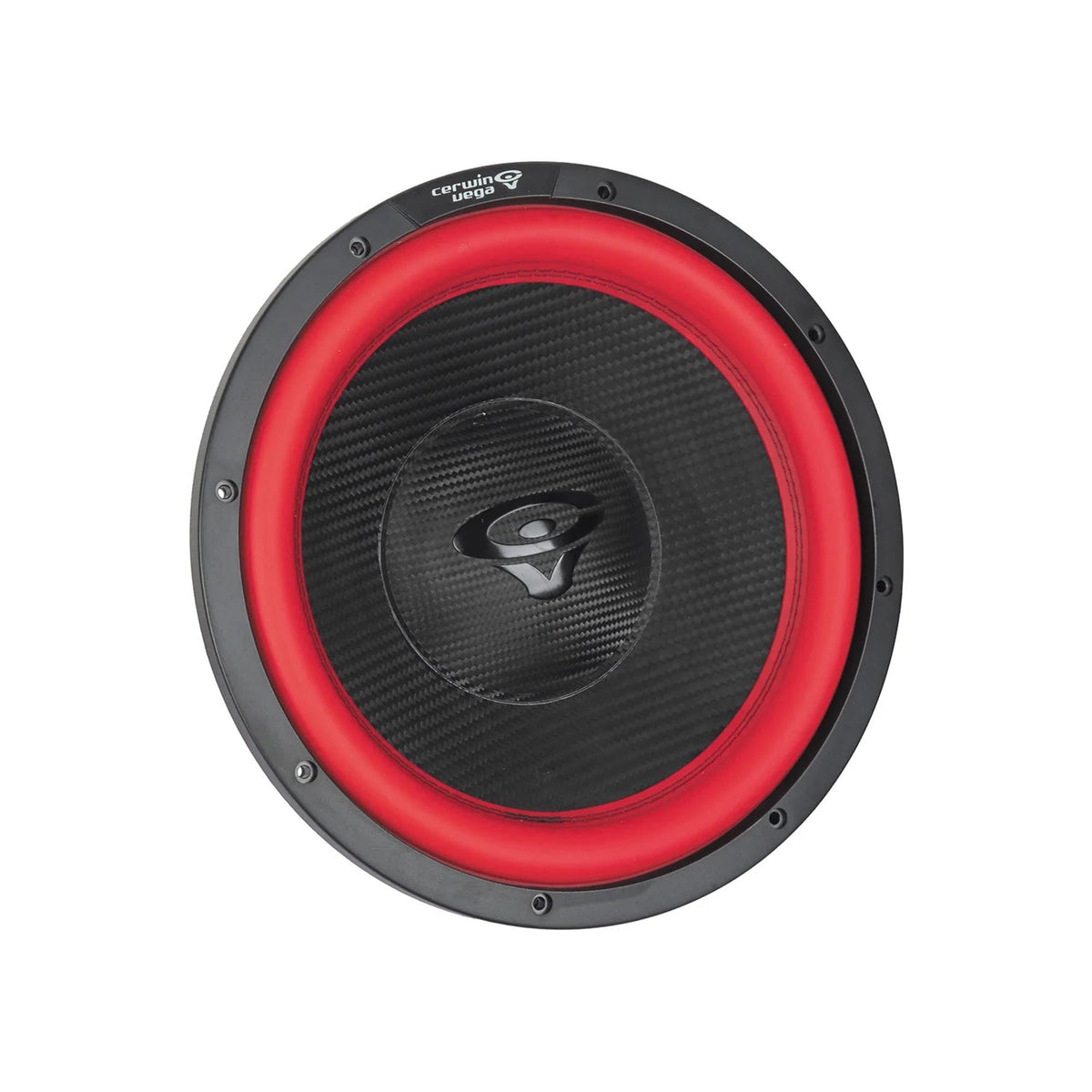

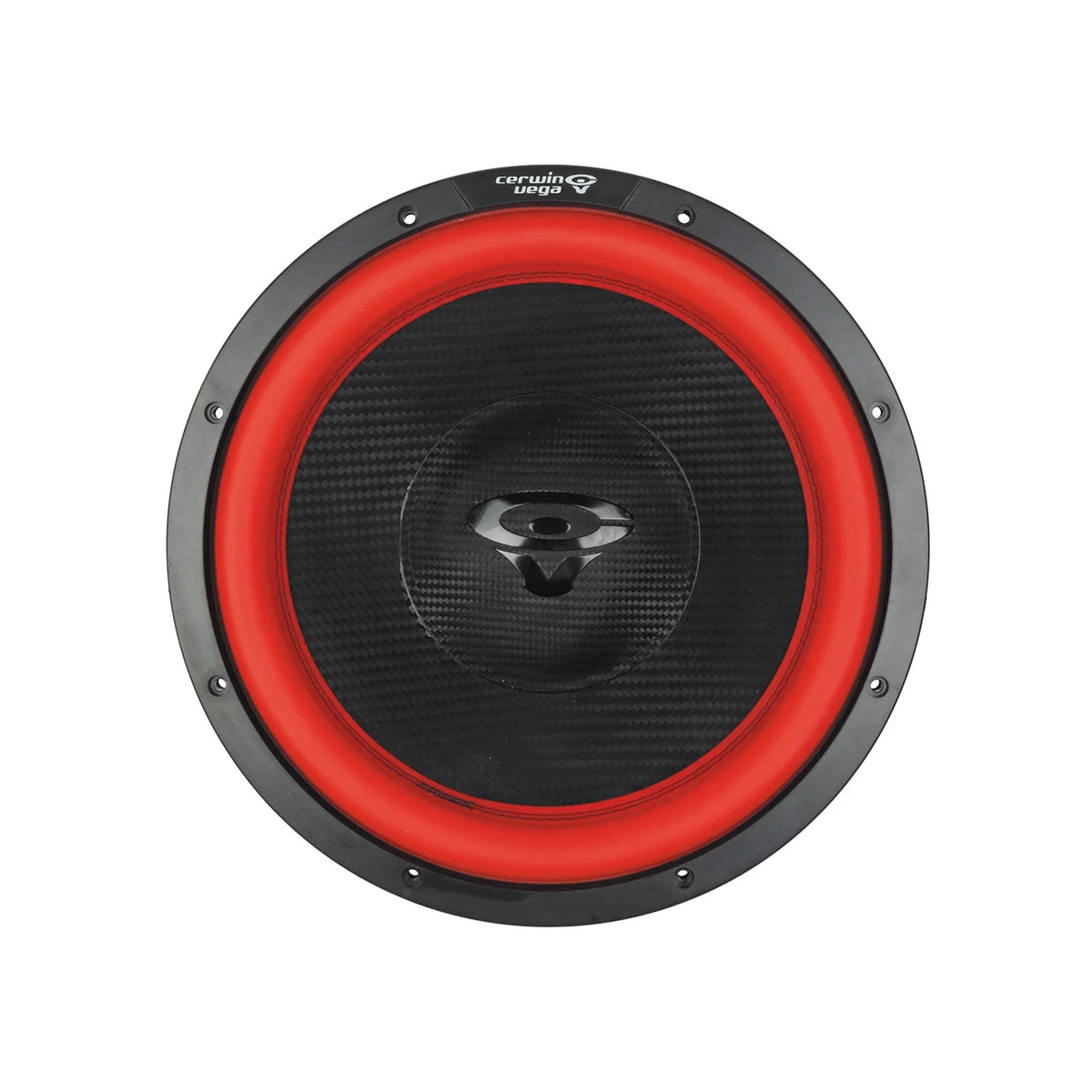

Cerwin-Vega V15DV2 15" Dual 2-Ohm Subwoofer

The Cerwin-Vega V15DV2 is a 15-inch VEGA Series car audio subwoofer designed for systems that need substantial low-frequency output. Its dual 2-ohm voice-coil design provides configuration flexibility when matching the subwoofer to a compatible amplifier. It is intended for custom car-audio installations rather than factory-replacement speaker locations.

With 1,500 watts RMS and 4,500 watts maximum power handling, the V15DV2 is suited to high-output bass systems built around a properly matched amplifier. Its 90 dB sensitivity and 30 Hz free-air resonance support strong low-bass performance when installed in an appropriate enclosure. The driver can be used in either sealed or ported enclosure designs.

The subwoofer uses a hybrid carbon-fiber and polypropylene diaphragm to combine cone rigidity with low moving-mass performance. A stitch-reinforced Santoprene surround supports controlled cone travel, while the listed 10 mm Xmax indicates its linear-excursion capability. These elements are designed to help the driver remain composed under demanding bass passages.

A ferrite motor structure provides the magnetic force behind the V15DV2, and its vented pole piece is designed to assist cooling during extended operation. The 3-inch voice coil and rigid cast-aluminum basket are part of the subwoofer's heavy-duty construction. Cerwin-Vega also equips this model with a single-terminal impedance selector to simplify system wiring.

The V15DV2 is a practical choice for listeners building a dedicated bass upgrade around a large enclosure and a high-power mono amplifier. Its 8.46-inch mounting depth and 13.86-inch cutout requirement should be checked carefully before choosing an enclosure or installation location. For a complete system, it requires an enclosure, compatible amplification, power wiring, speaker wiring, and installation hardware.

Key Features

• 15-Inch Subwoofer: Large cone area supports high-output bass applications.
• 1,500W RMS Handling: Supports use with a properly matched high-power amplifier.
• Dual 2-Ohm Voice Coils: Provides impedance flexibility for compatible amplifier systems.
• Hybrid Carbon-Fiber/Polypropylene Cone: Combines rigidity and responsive cone behavior.
• Santoprene Surround: Stitch-reinforced surround supports repeated cone movement.
• Single-Terminal Impedance Selector: Simplifies connection of the dual voice-coil system.

Design & Installation

The V15DV2 combines a polypropylene cone with a carbon-fiber diaphragm structure, Santoprene surround, ferrite magnet, and cast-aluminum basket. Its 3-inch voice coil, vented pole piece, and 10 mm Xmax are specified for sustained high-power bass use. The overall driver diameter is 15.61 inches, and overall height is 9.33 inches.

Plan for an enclosure with at least an 8.46-inch mounting-depth clearance and a 13.86-inch cutout. Cerwin-Vega lists sealed and ported enclosures as suitable, with 4.0 cubic feet listed as optimum sealed volume and 5.0 cubic feet as optimum ported volume. Select an amplifier that is stable at the impedance selected on the subwoofer and set gain conservatively to avoid overpowering the driver.
