Hifonics A3000.1D 3000W Monoblock Car Amplifier

The Hifonics A3000.1D is a one-channel car audio amplifier designed to drive a subwoofer system from a compact monoblock platform. It provides a dedicated low-frequency amplification solution for vehicles needing more bass output than a factory or head-unit amplifier can supply. Its 1-ohm-stable design supports properly matched subwoofer wiring configurations.

This ALPHA-series amplifier is intended for enthusiasts building a focused bass section in a car audio system. It offers manufacturer-listed output ratings of 1 x 750 watts at 4 ohms, 1 x 1500 watts at 2 ohms, and 1 x 3000 watts at 1 ohm. The mono-only layout keeps its controls and connections centered on subwoofer use.

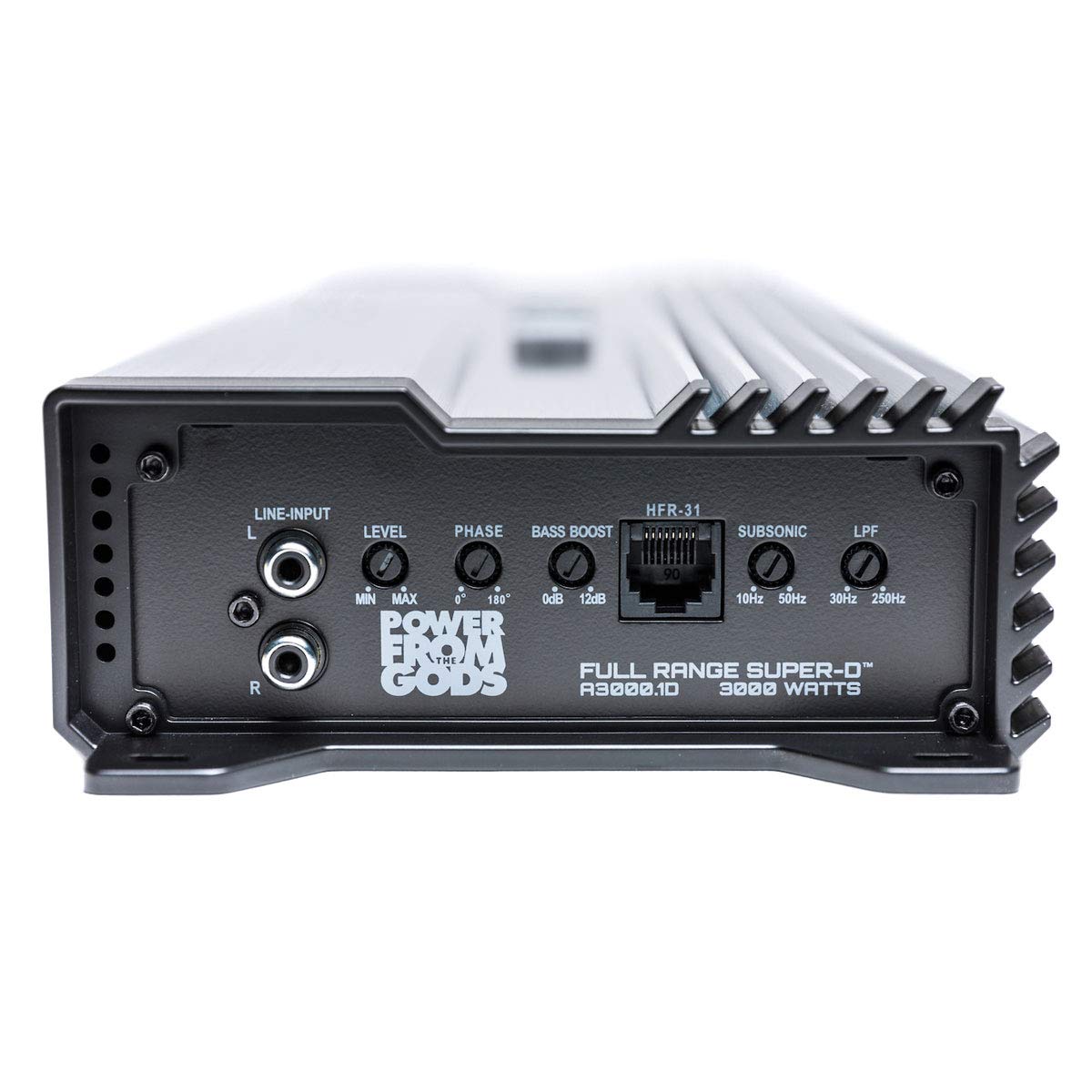

Sound tailoring is handled through an electronic Accu-Cross low-pass crossover, a variable subsonic filter, bass EQ, and variable phase adjustment. These controls allow the amplifier to be matched more carefully to the subwoofer enclosure, source signal, and front-speaker system. A wired HFR-31 bass remote is included for convenient adjustment from the driver’s seat.

The A3000.1D uses Hifonics Super D-Class circuitry with Ultra-Fi MOSFET output devices and a pulse-width-modulated Twin Turbo Coil power supply. Low-noise preamplifier circuitry and nickel-plated RCA inputs are used to support clean signal transfer from the source unit. The amplifier also accepts speaker-level audio inputs for systems that do not provide a conventional low-level RCA signal.

For a complete upgrade, pair the A3000.1D with subwoofers whose final impedance and power handling suit the selected output rating. Its variable low-pass filter, subsonic filter, and phase control provide useful setup flexibility as a system develops. The aluminum-alloy heat sink, angled terminals, and illuminated protection indicators support a practical installation in a wide range of vehicles.

Key Features

• 1-Ohm-Stable Mono Design: Supports a properly wired 1-ohm subwoofer load for the amplifier's highest listed output rating.
• Super D-Class Circuitry: Uses a compact, efficient amplifier topology intended for dedicated subwoofer duty.
• Variable Low-Pass Crossover: Adjusts from 30 to 250 Hz to help blend subwoofer output with the rest of the system.
• Subsonic Filter: Adjusts from 10 to 50 Hz to limit ultra-low frequencies below a chosen point.

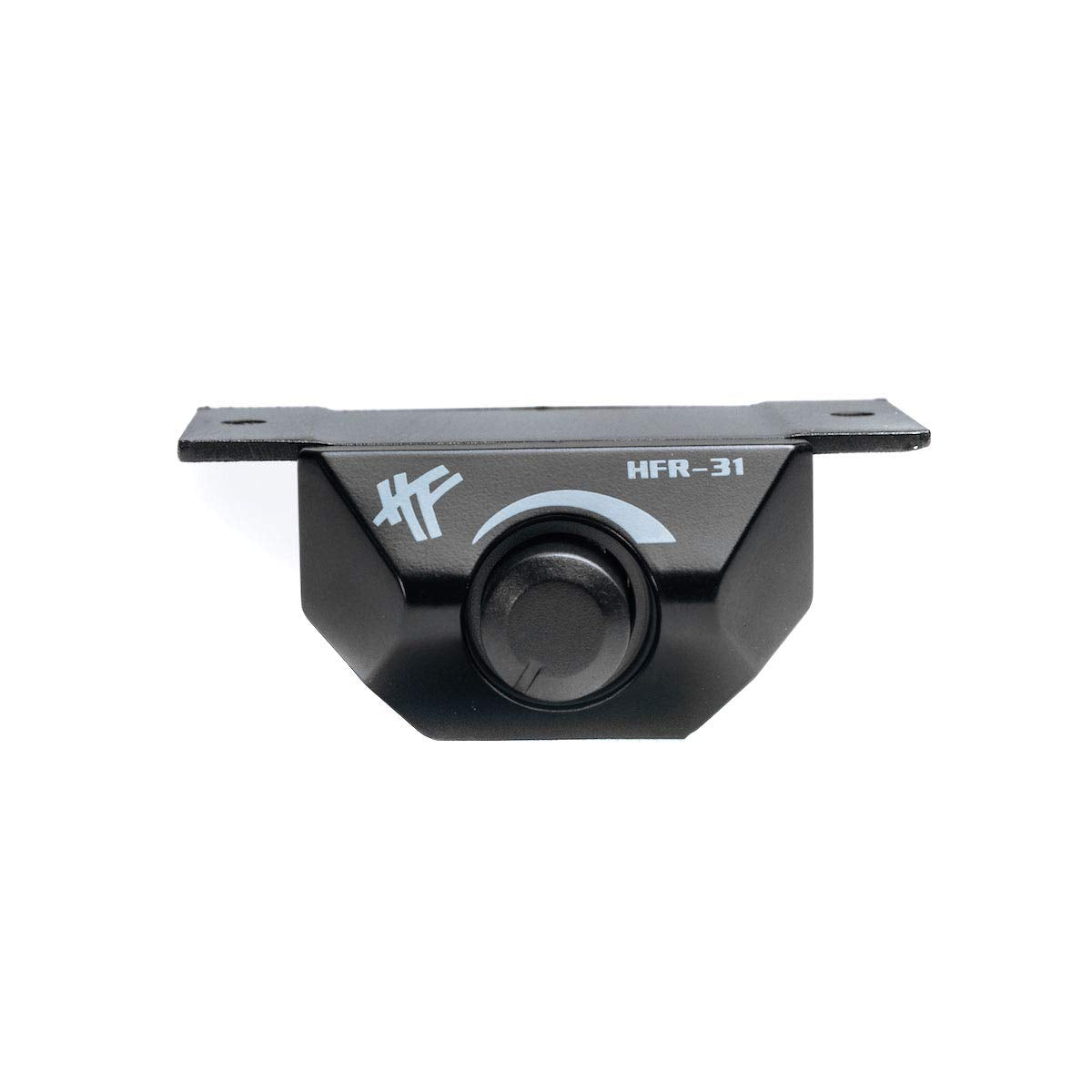

• HFR-31 Bass Remote: Included wired controller lets the driver adjust bass level from a mounted remote location.
• Protection Diagnostics: Illuminated indicators monitor overload and speaker-short protection status.

Design & Installation

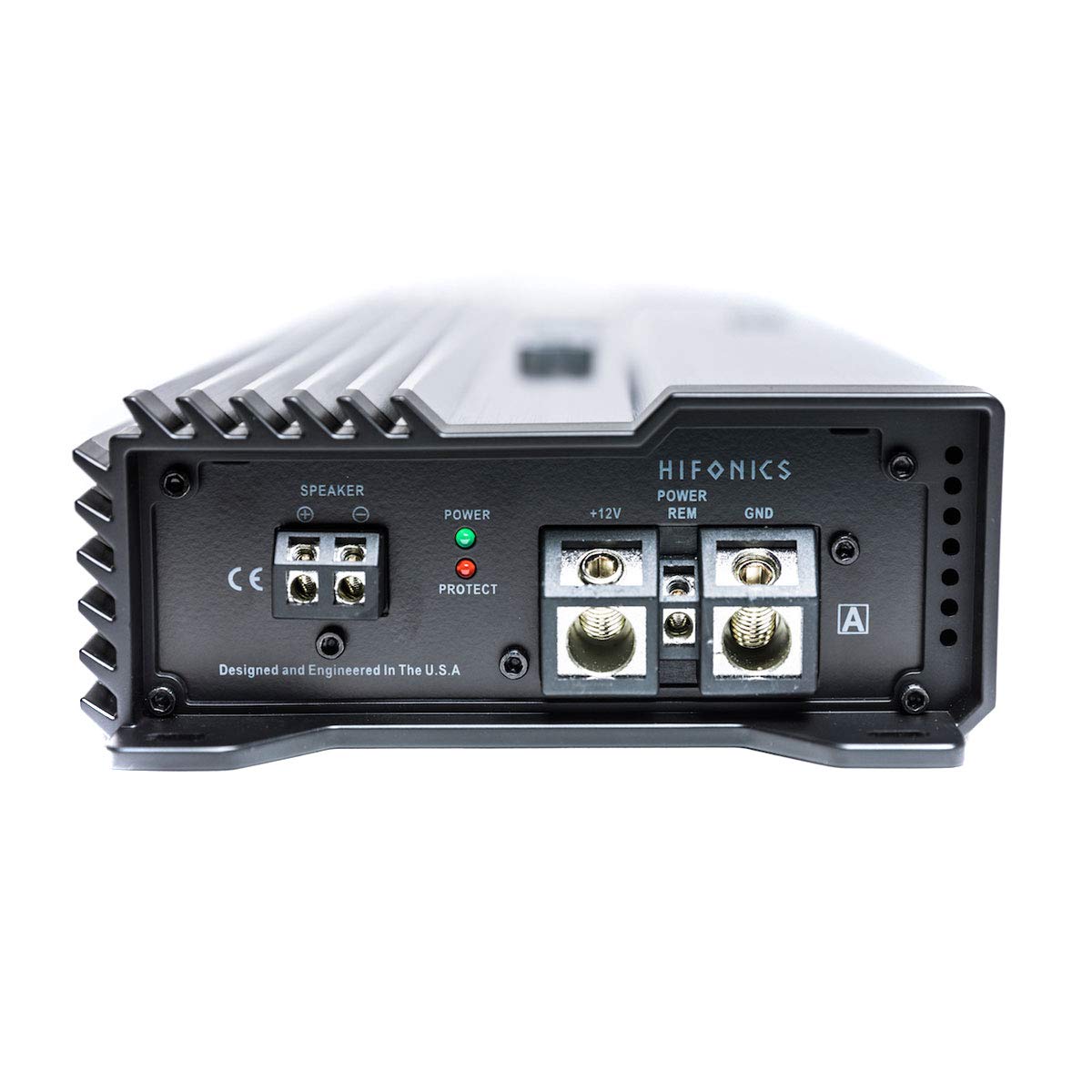

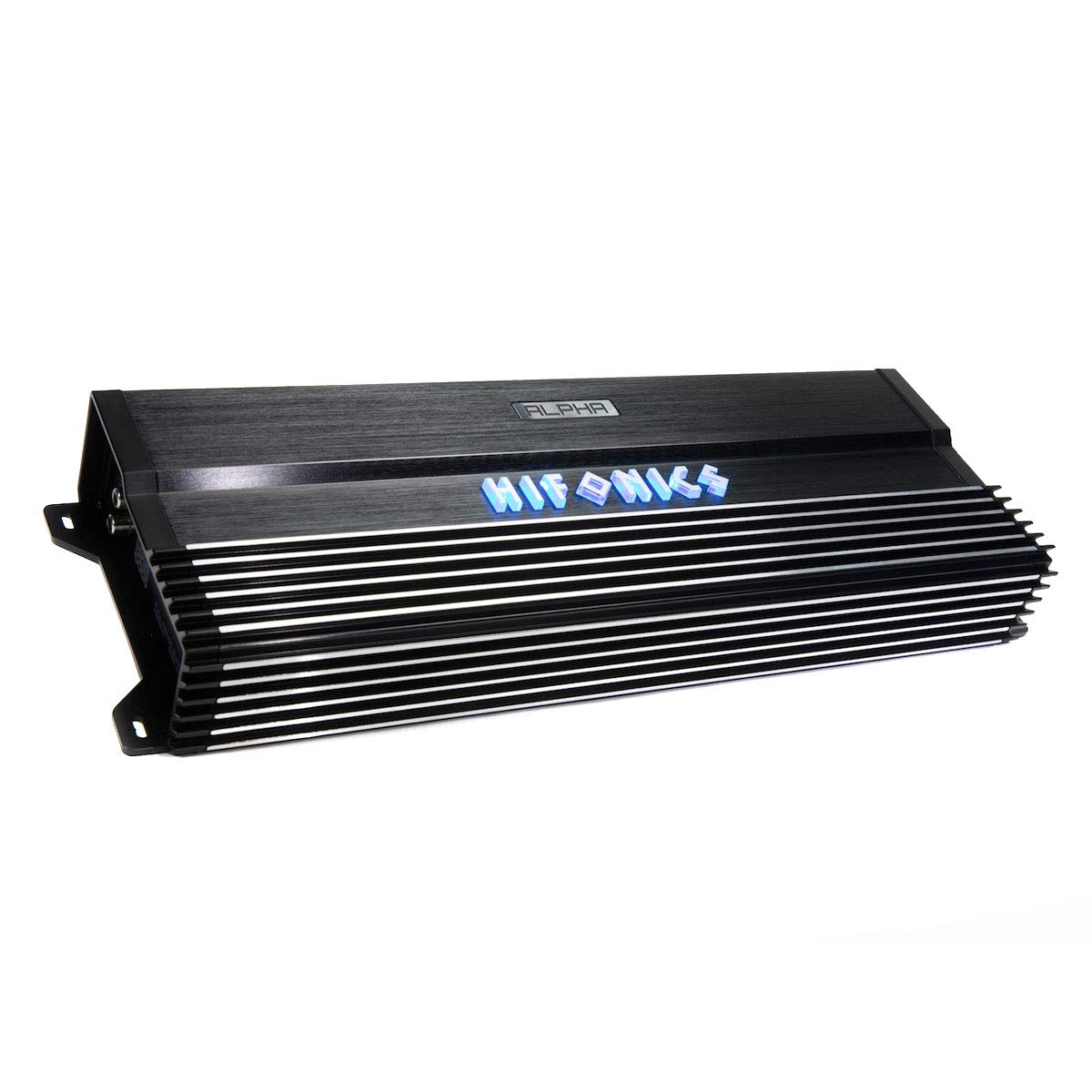

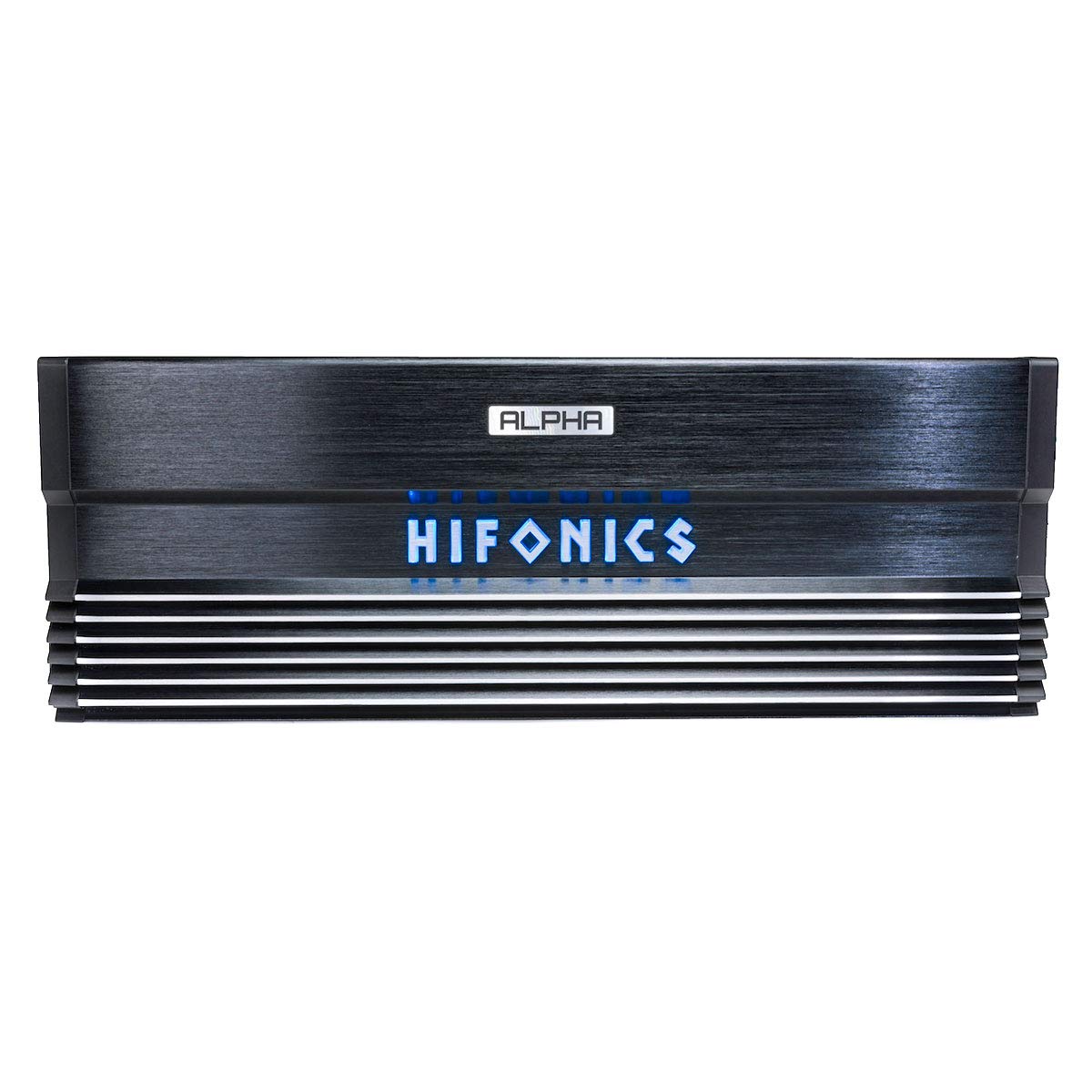

The A3000.1D has a black ALPHA-series chassis with a heavy-duty aluminum-alloy heat sink. It uses Ultra-Fi MOSFET output devices, surface-mount circuit construction, and nickel-plated, high-temperature impact-resistant terminals with hex-screw retention. Angled power, ground, and speaker connections are designed to improve access during installation.

Use a properly fused power run, a secure chassis ground, and wiring sized for the amplifier’s terminals; the 12V and ground terminals accept 4 AWG wire, while the speaker terminals accept 12 AWG wire. Confirm the final subwoofer impedance before wiring, then set gain, low-pass crossover, subsonic filter, bass EQ, and phase conservatively during setup. RCA inputs can be used with an aftermarket source unit, while speaker-level inputs provide an option for compatible factory-radio integrations.
