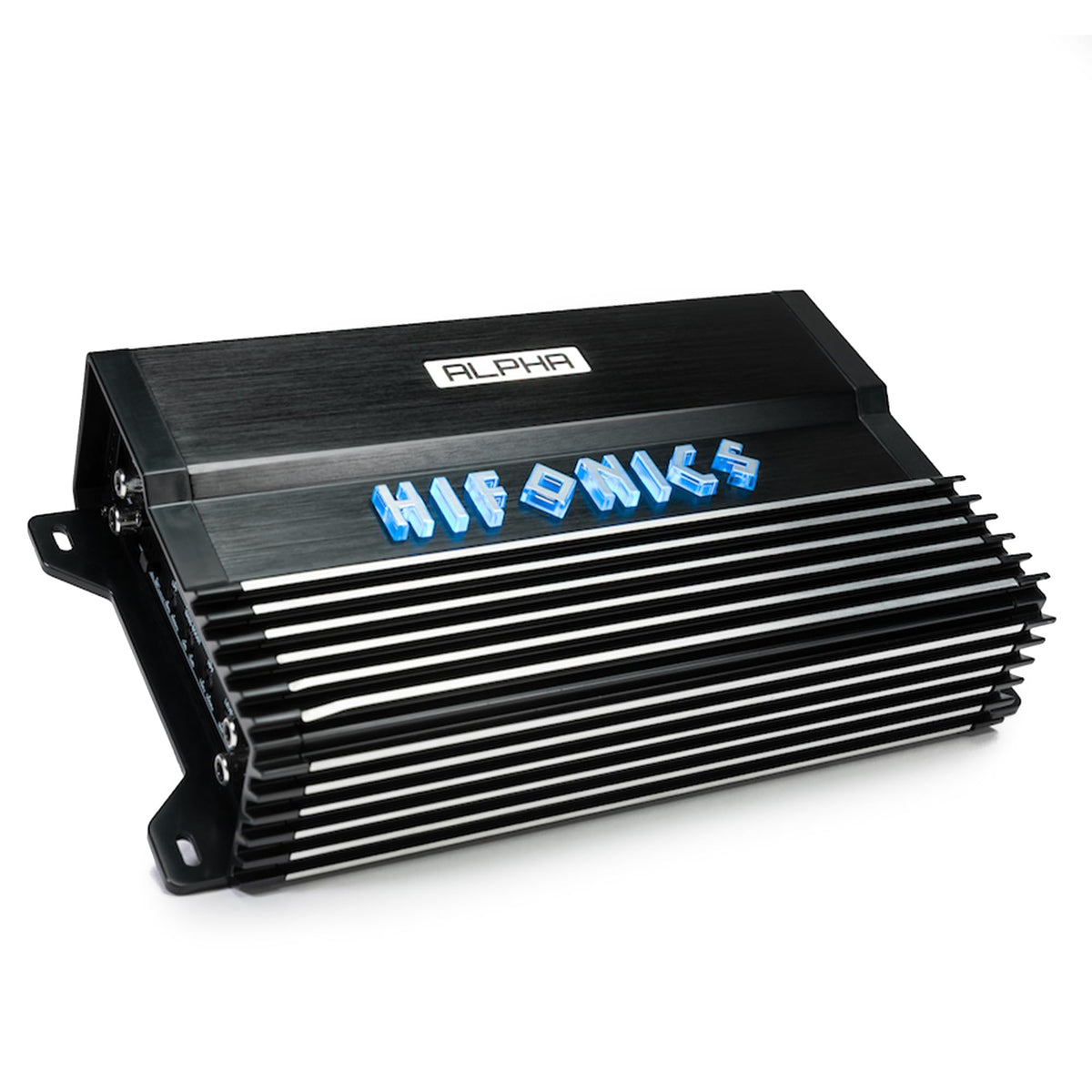

Hifonics A1200-4D 4-Channel Full-Range Car Amplifier

The Hifonics A1200-4D is a compact four-channel car audio amplifier for upgrading factory or aftermarket speaker systems. It provides four amplified channels for full-range speakers, component sets, or a combination of speakers and a bridged subwoofer channel pair. Its flexible channel configuration helps simplify multi-speaker system builds without requiring separate amplifiers.

This amplifier is designed for listeners who want more control and output than a head unit's built-in power can provide. It can operate as a conventional four-channel amplifier or bridge its channels into two higher-output channels. That flexibility supports front-and-rear speaker upgrades, active-style system layouts, or systems that combine speakers with a compatible bridged load.

Hifonics rates the A1200.4D at 4 x 150 watts at 4 ohms, 4 x 300 watts at 2 ohms, or 2 x 600 watts bridged at 4 ohms. Its full-range Super D-Class design is intended to deliver amplified audio across the frequency range rather than being limited to subwoofer duty. A 10 Hz to 45 kHz frequency response supports use with a broad range of car audio speaker applications.

Ultra-Fi MOSFET output devices, a pulse-width-modulated power supply, and a heavy-duty aluminum alloy heat sink are central to its design. These components are paired with low-noise preamplifier circuitry and surface-mount construction. The amplifier also includes illuminated power and protection diagnostics to help monitor operating status.

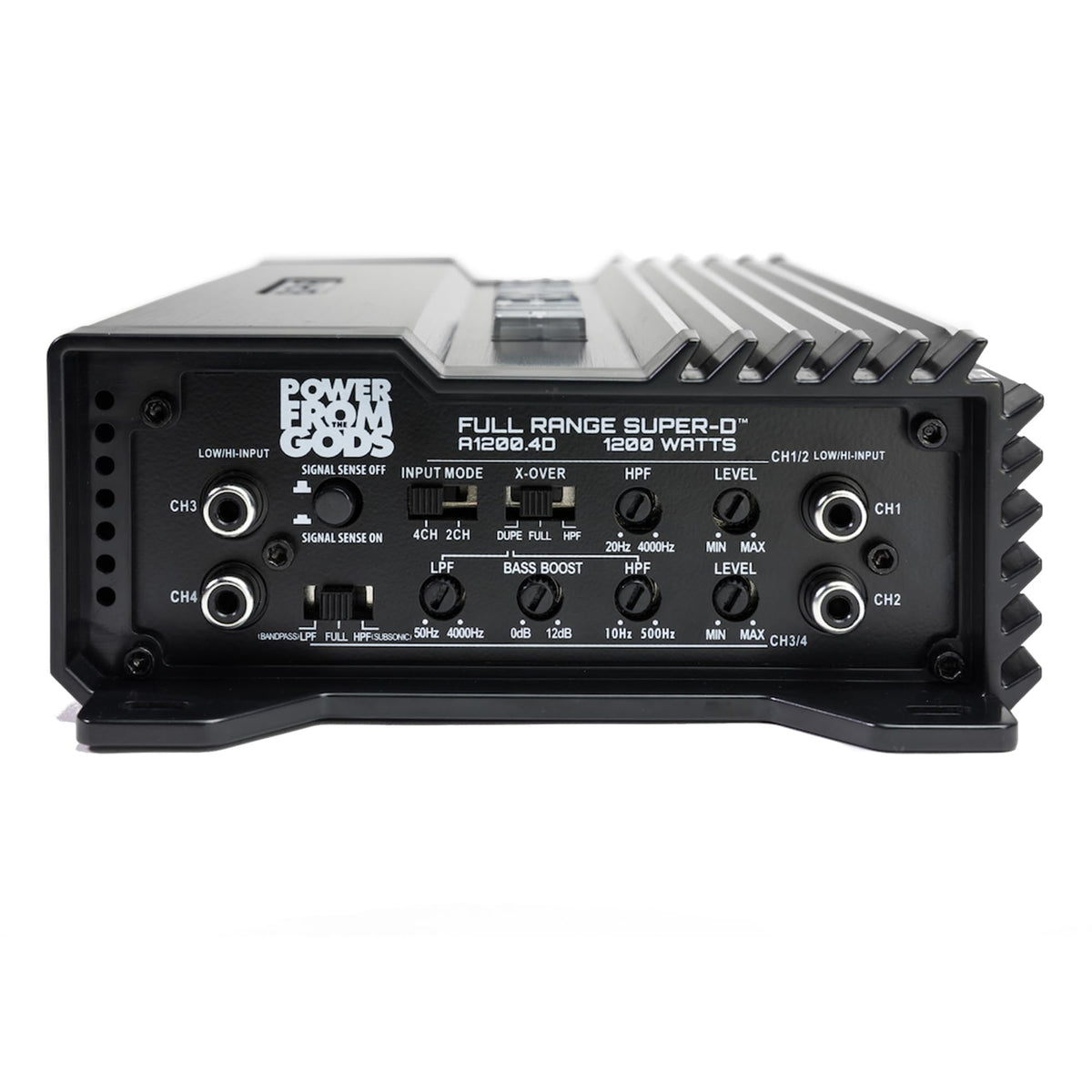

For system tuning, the A1200-4D includes selectable input modes, variable crossovers, input-level adjustment, and bass EQ. High-level audio inputs and signal-sensing turn-on capability can help when integrating with many factory radios, while RCA inputs support aftermarket source units. It is a practical amplifier choice for a vehicle audio upgrade when paired with correctly impedance-matched speakers, suitable wiring, and an external fuse.

Key Features

• Four-Channel Output: Powers four speakers or supports two bridged channel pairs.
• Full-Range Super D-Class: Supports full-range speaker and component-system applications.
• Selectable Input Modes: Accommodates 2-channel, 4-channel, and DUPE input configurations.
• Variable Crossovers: Helps tailor frequency output to connected speaker types.
• High-Level Inputs: Supports integration with compatible factory speaker-level signals.
• Protection Diagnostics: Illuminated indicators monitor overload and speaker-short protection.

Design & Installation

The A1200-4D uses a heavy-duty aluminum alloy heat sink to move heat away from its MOSFET output section. Its nickel-plated RCA connectors and nickel-plated, high-temperature, impact-resistant hex-screw terminals are designed for secure signal and wiring connections. Surface-mount technology is used within the amplifier to support resistance to vehicle shock and vibration.

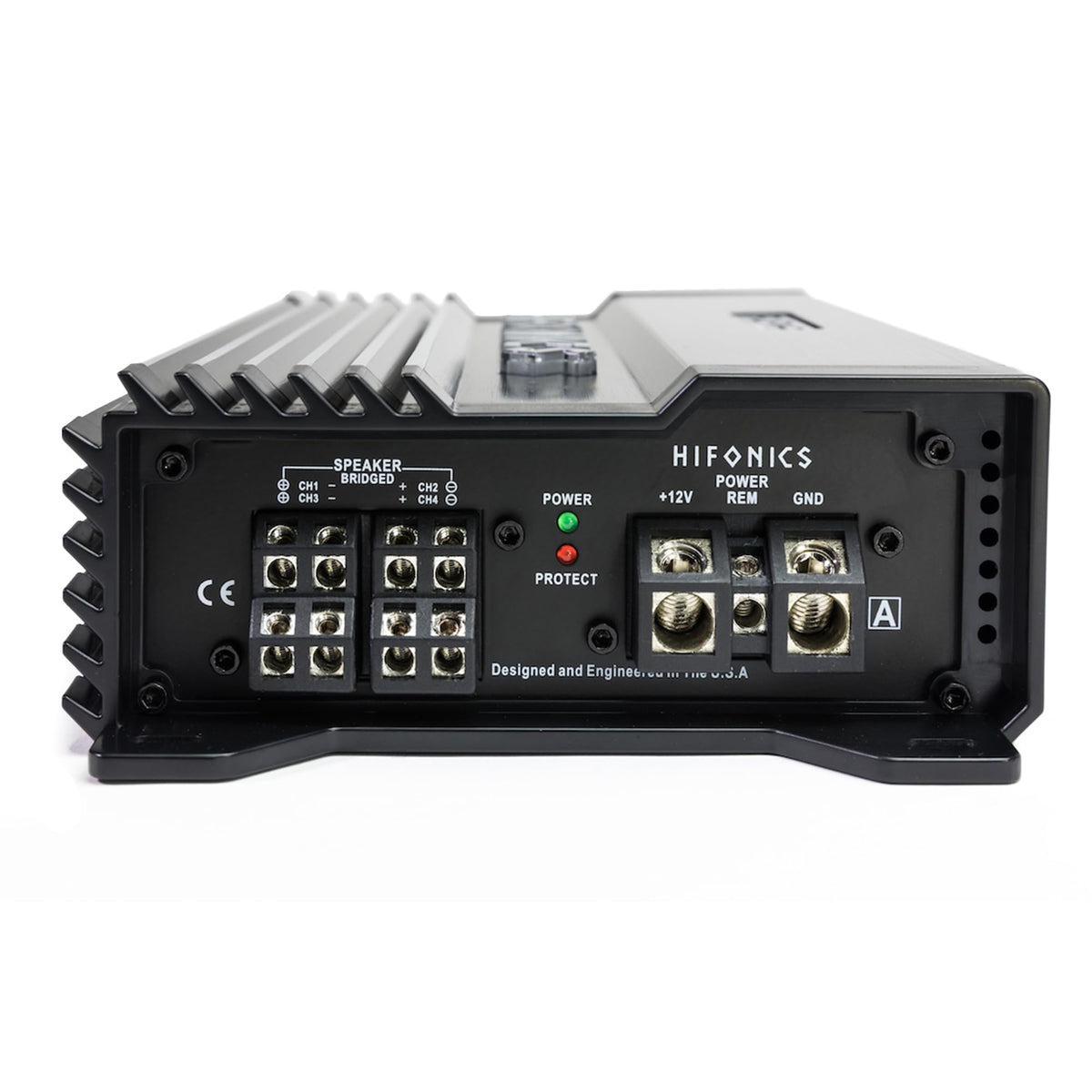

Mount the amplifier on a solid, dry surface with airflow around the heat sink, away from moisture and excessive heat. Use the specified 4 AWG power and ground terminals, install a properly selected external fuse near the battery, and match speaker loads to the published 2-ohm stereo or 4-ohm bridged ratings. Use RCA inputs with a conventional remote turn-on lead, or use the high-level input and signal-sense function only as directed for compatible source units.
