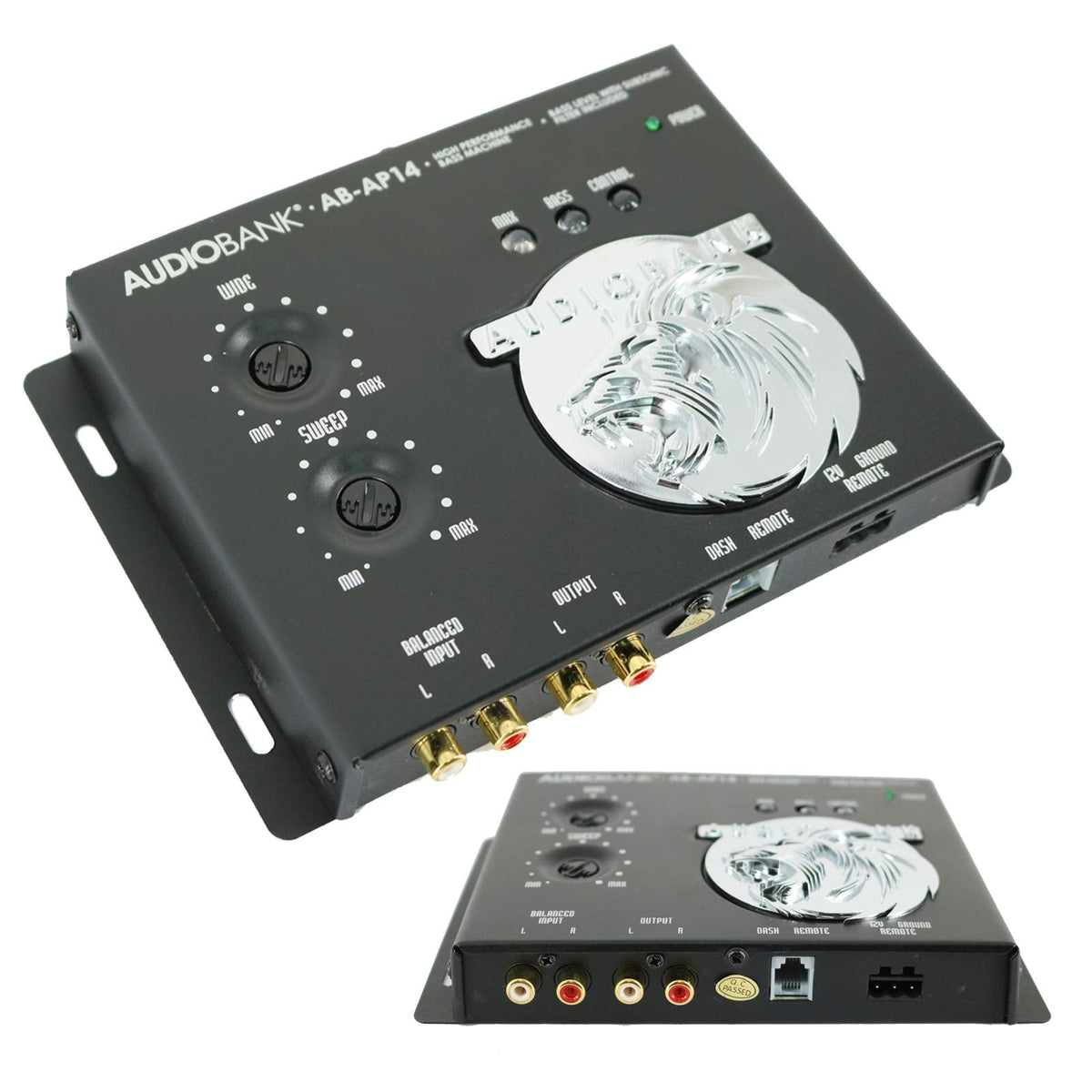

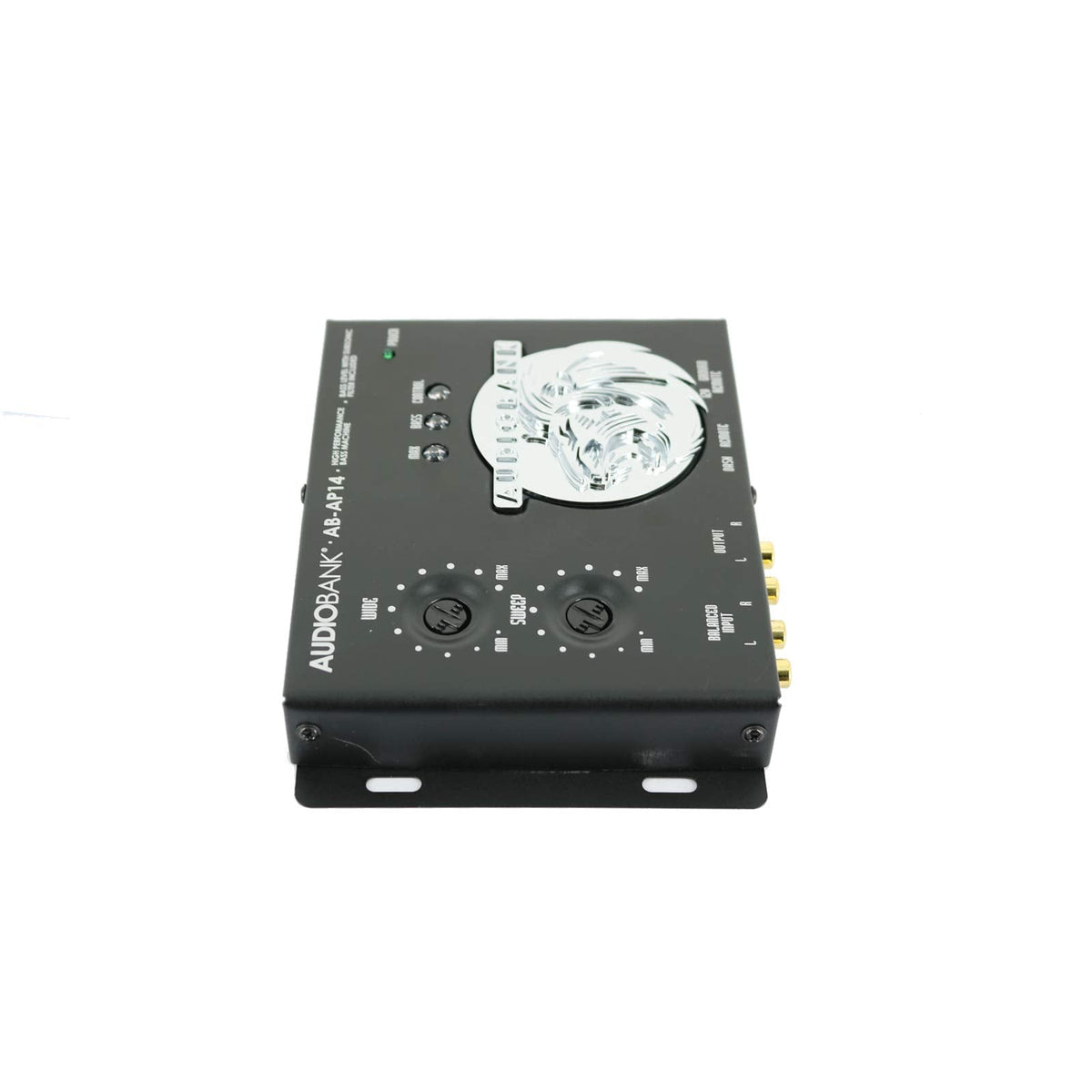

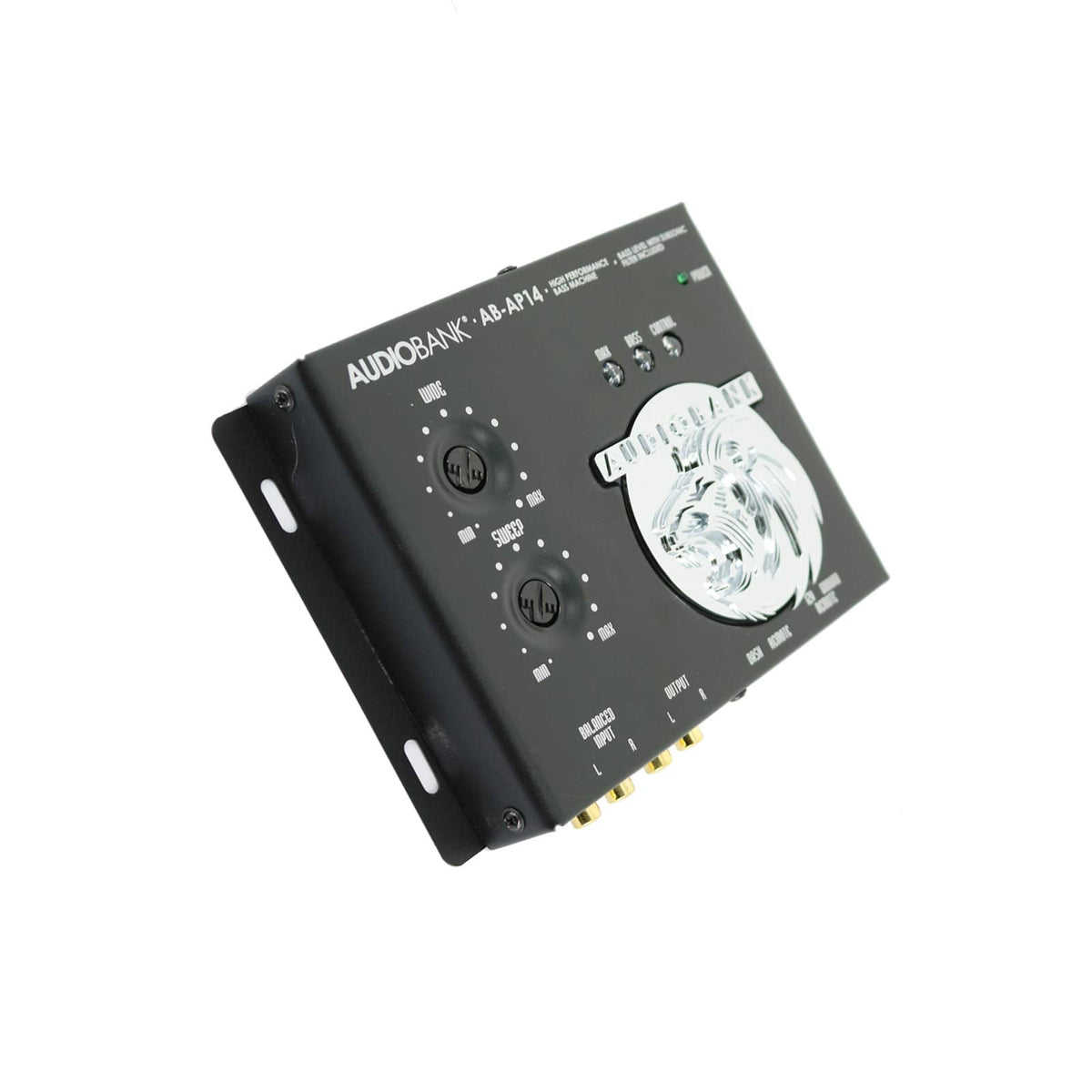

Audiobank AB-AP14 1/2 DIN Digital Bass Processor

The Audiobank AB-AP14 is a compact 1/2 DIN bass processor designed to give a car audio system more adjustable low-frequency control. It sits between a source unit and amplifier, allowing the bass signal to be shaped before it reaches the subwoofer amplifier. It is intended for systems where the listener wants more control than a head unit’s basic bass setting can provide.

This processor combines bass maximization and sound-restoration functions with adjustable bass level, sweep frequency, and width controls. The sweep control lets the installer target the low-frequency area being emphasized, while the width control changes how broad that enhancement is. These adjustments support system-specific tuning rather than relying on a fixed bass boost.

The AB-AP14 includes a PFM subsonic filter switch to help manage very low-frequency content in the signal path. Its bass maximizer indicator provides a visual operating reference while adjustments are being made. A power indicator is also provided to show when the processor is receiving power.

A dash-mount remote control allows convenient adjustment of processed bass level from the driver’s seat. This is useful when different recordings or listening levels call for a change in subwoofer output. The remote connects to the main processor through its dedicated dash-remote connection.

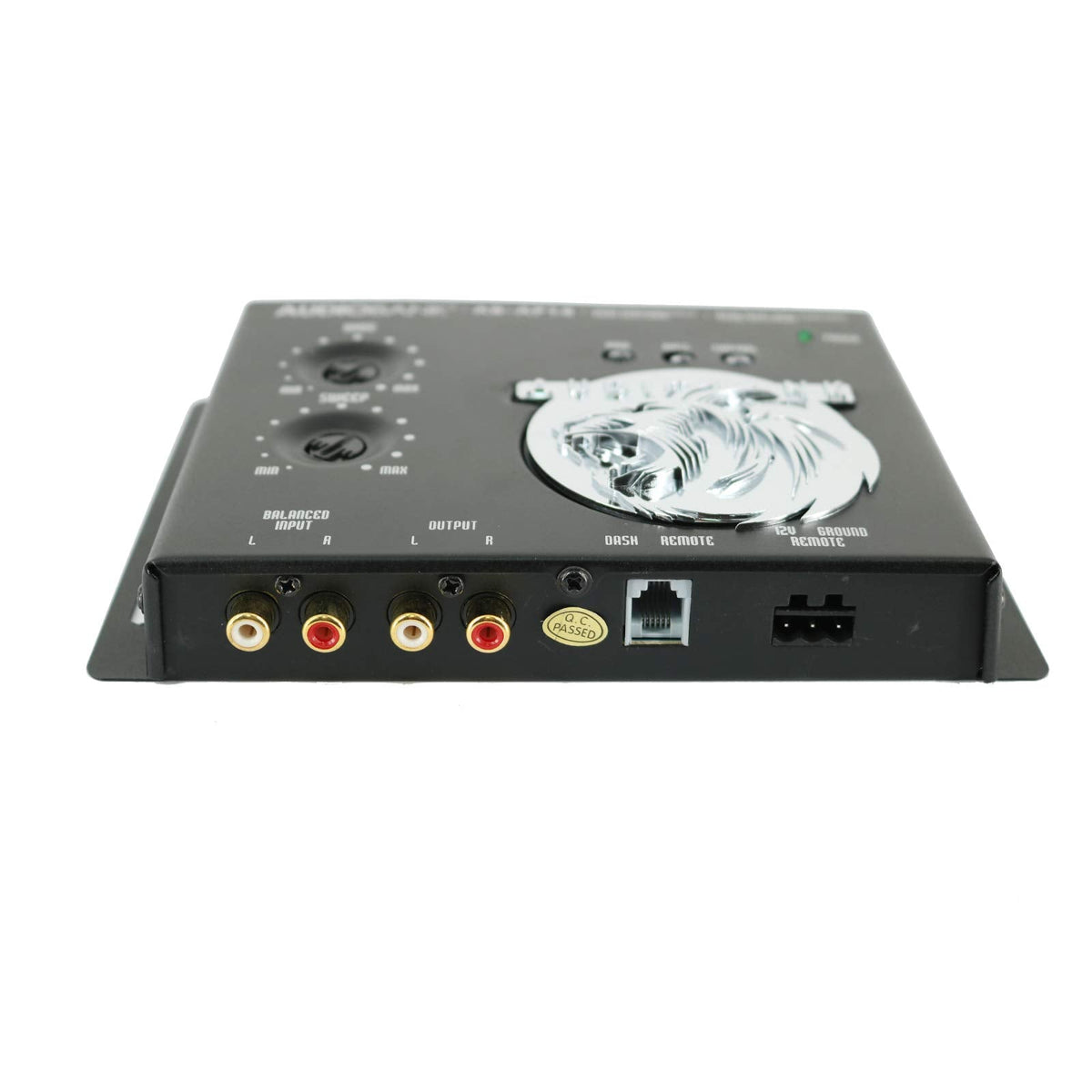

With stereo RCA inputs and RCA outputs, the AB-AP14 is suited to aftermarket systems using low-level RCA signal connections. It can be used with a compatible head unit or signal source and a separate amplifier driving subwoofers. Professional installation is recommended to ensure correct power, ground, turn-on, RCA routing, and gain setup.

Key Features

• Bass Processing: Shapes low-frequency content before it reaches the amplifier.
• Adjustable Sweep: Selects the bass frequency area to emphasize.
• Width Control: Adjusts the bandwidth of the bass effect.
• Dash-Mount Remote: Provides convenient in-cabin bass-level adjustment.
• PFM Filter Switch: Helps manage ultra-low-frequency signal content.
• RCA Signal Connections: Integrates with compatible aftermarket audio components.

Design & Installation

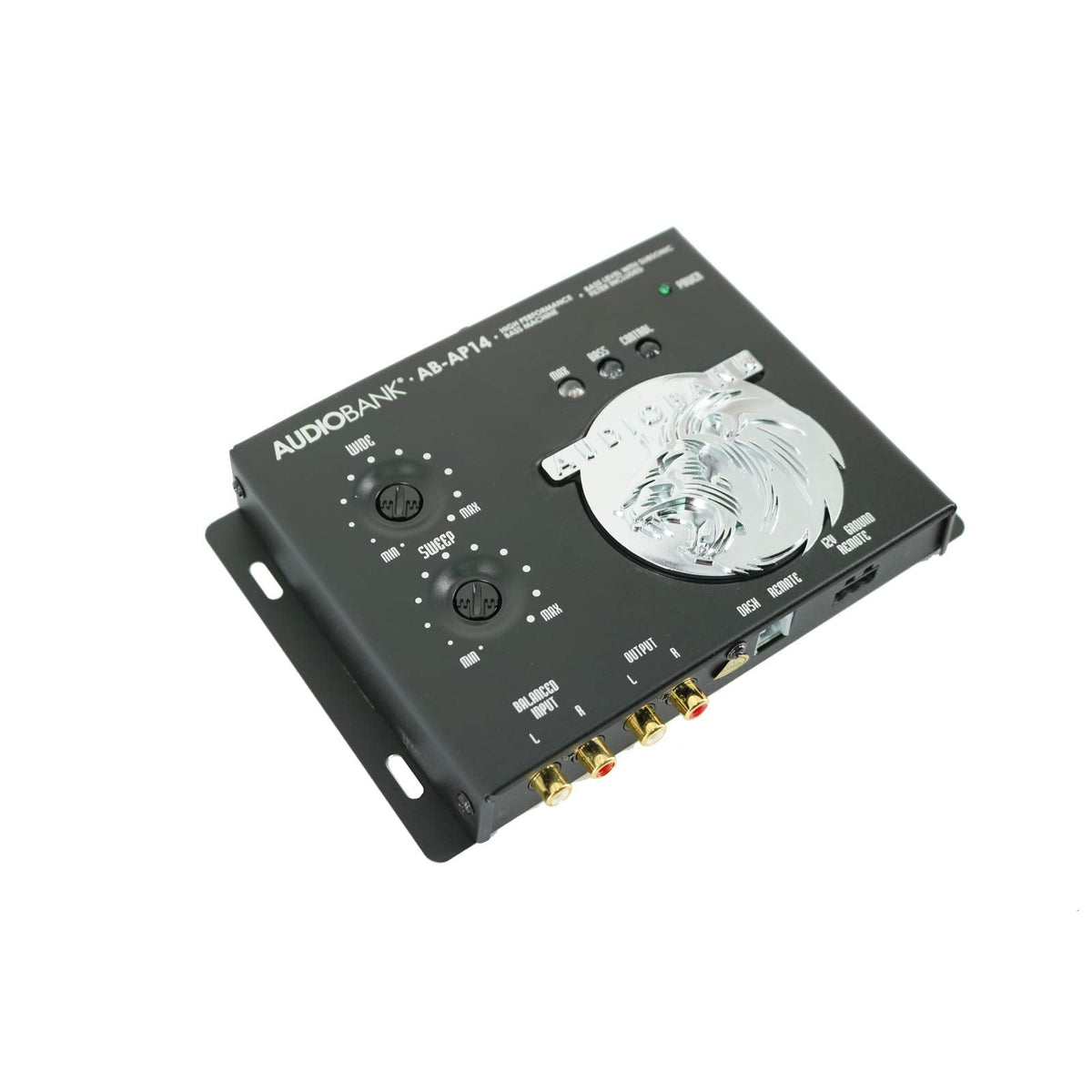

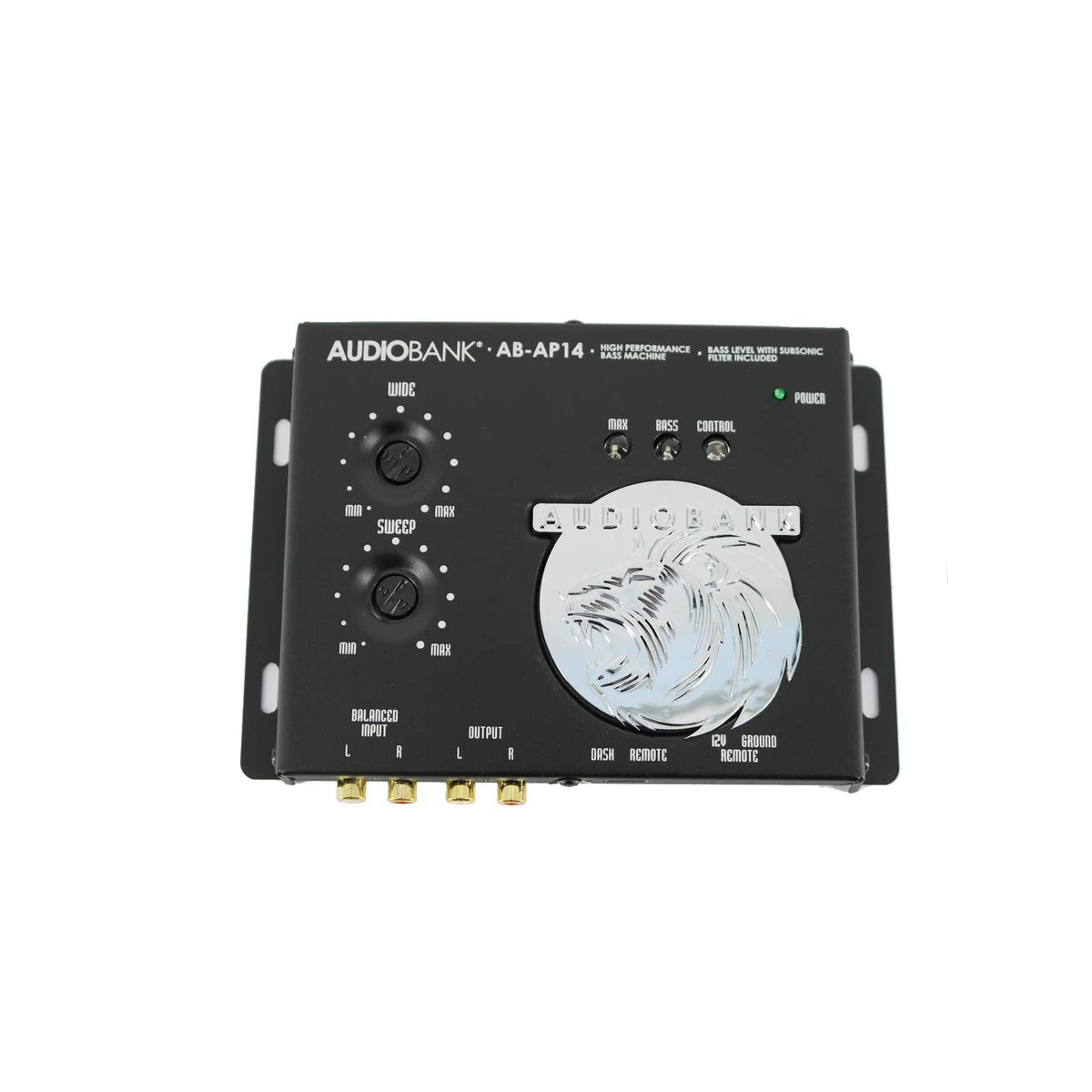

The AB-AP14 uses a compact 1/2 DIN processor format for integration into custom car-audio installations. Its control layout includes WIDE, SWEEP, and BASS CONTROL adjustments, along with illuminated status indication. The dedicated dash remote is designed to place bass-level control within easier reach of the driver.

Install the processor in a secure, dry, ventilated location away from excessive heat and moisture. Connect the stereo RCA inputs to a compatible low-level source, route the RCA outputs to the amplifier, and connect constant 12V, chassis ground, and remote turn-on wiring as required. Start with amplifier gain set conservatively, then tune sweep, width, and bass level gradually to suit the subwoofer system.
