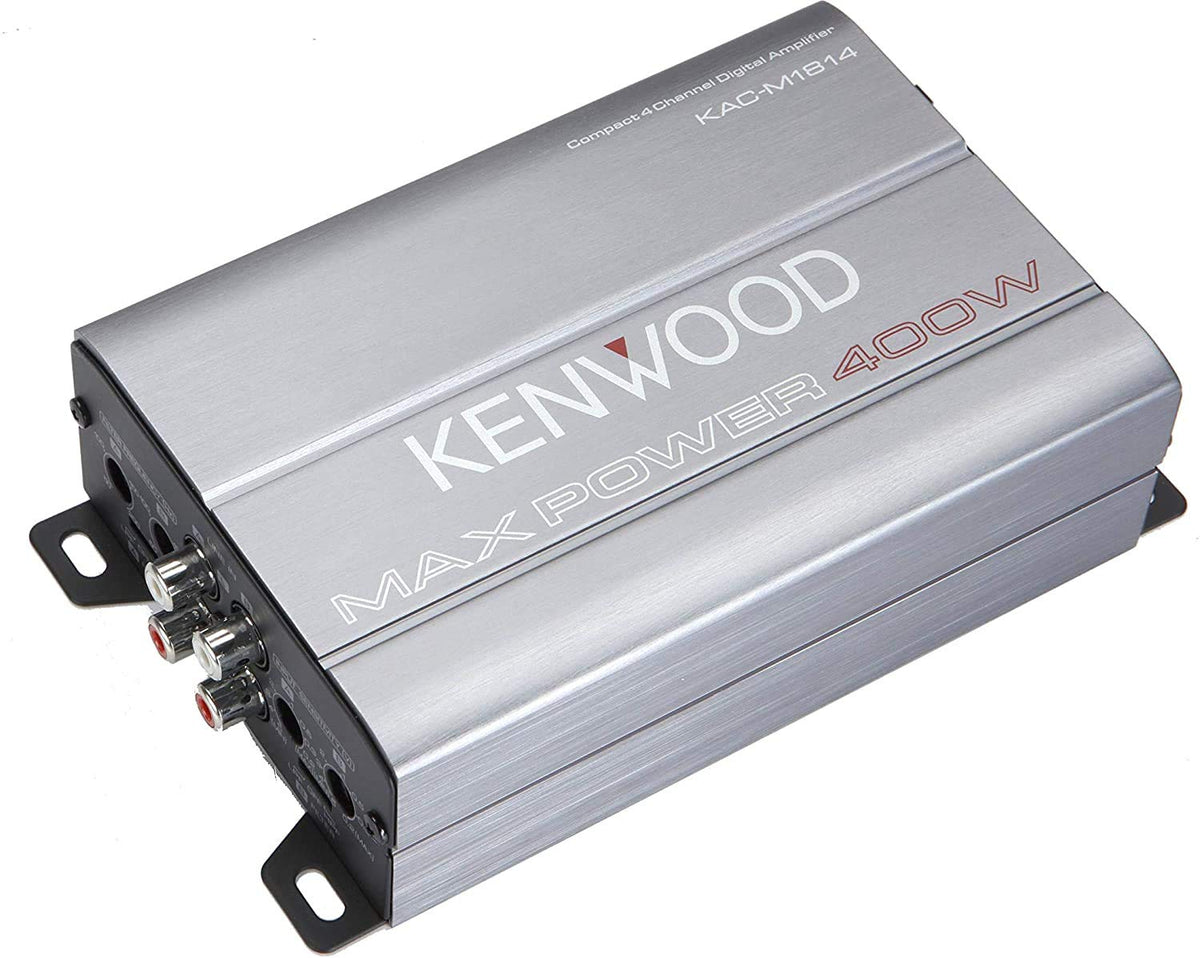

Kenwood KAC-M1814 Compact 4-Channel Marine Digital Amplifier

The Kenwood KAC-M1814 is a compact four-channel Class D amplifier designed to add clean, controlled power to car, marine, and motorsports audio systems. It is a practical solution for systems that need more output than a receiver's built-in amplifier can provide while conserving installation space. Its small footprint makes it suitable for locations where a conventional full-size amplifier may be difficult to mount.

With 45 watts RMS per channel, the KAC-M1814 can power four compatible speakers or be configured in bridged two-channel operation. It supports 2-ohm stereo loads and 4- to 8-ohm bridged loads, allowing it to work with a range of speaker layouts. Variable high-pass and low-pass filters help tailor the signal for full-range speakers or selected system configurations.

This amplifier is intended for listeners building a compact upgrade in a vehicle, boat, or powersports application. Speaker-level input with signal-sensing turn-on supports integration with receivers that do not provide dedicated RCA preamp outputs. RCA inputs are also available for use with aftermarket receivers and other line-level sources.

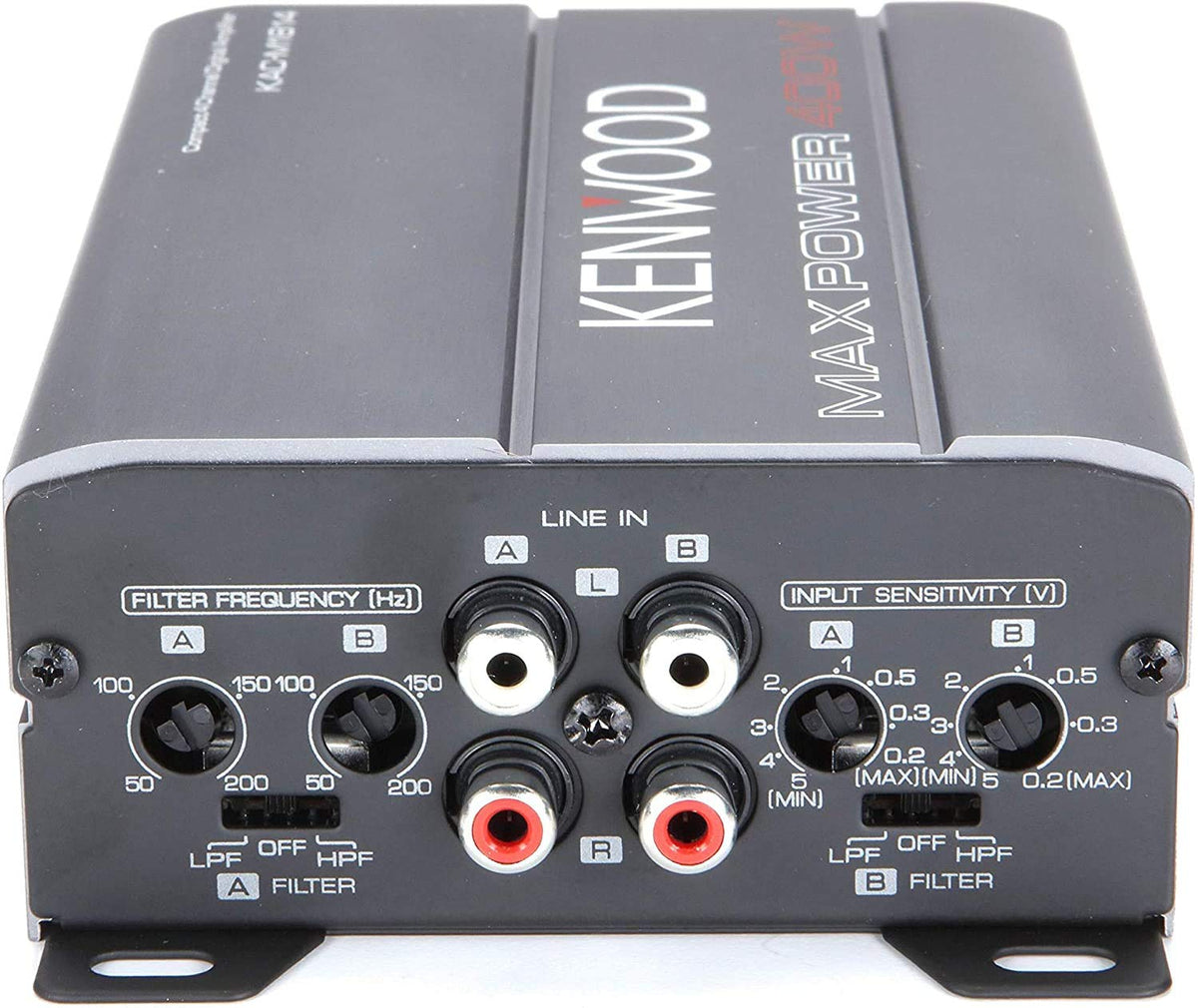

Kenwood uses a Class D digital amplifier platform with a Power MOS-FET switching power supply to keep the chassis compact. Separate preamp and power-amp sections are designed to help reduce radiation noise. Independent A and B channel gain controls and separately adjustable crossover sections provide useful setup flexibility.

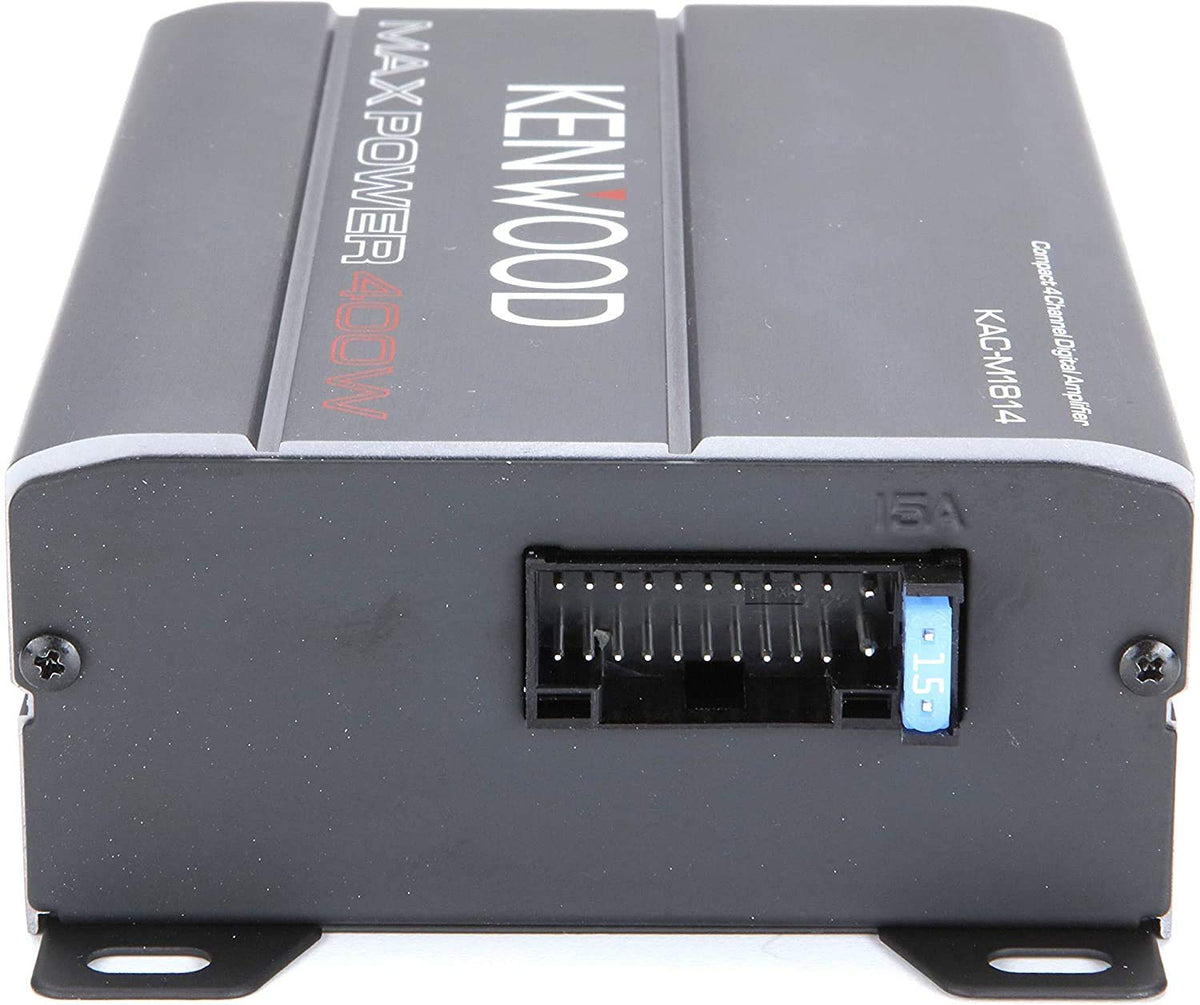

For outdoor-oriented installations, the KAC-M1814 includes conformal coating to help protect the circuit board from rust and vibration-related exposure. Its covered connectors are designed to help keep out water and dust. The amplifier fits neatly into a system using four speakers, or it can be used bridged for two compatible channels where higher per-channel output is needed.

Key Features

• Four-Channel Class D Amplification: Adds 45 watts RMS to each of four channels.
• Bridgeable Output: Supports two-channel bridged operation at compatible 4-ohm loads.
• Speaker-Level Input: Connects to systems without RCA preamp outputs.
• Signal-Sensing Turn-On: Powers on when an input signal is detected.
• Variable Crossovers: Adjustable high-pass and low-pass filtering from 50 to 200 Hz.
• Conformal-Coated Circuit Board: Helps protect the electronics in marine and motorsports use.

Design & Installation

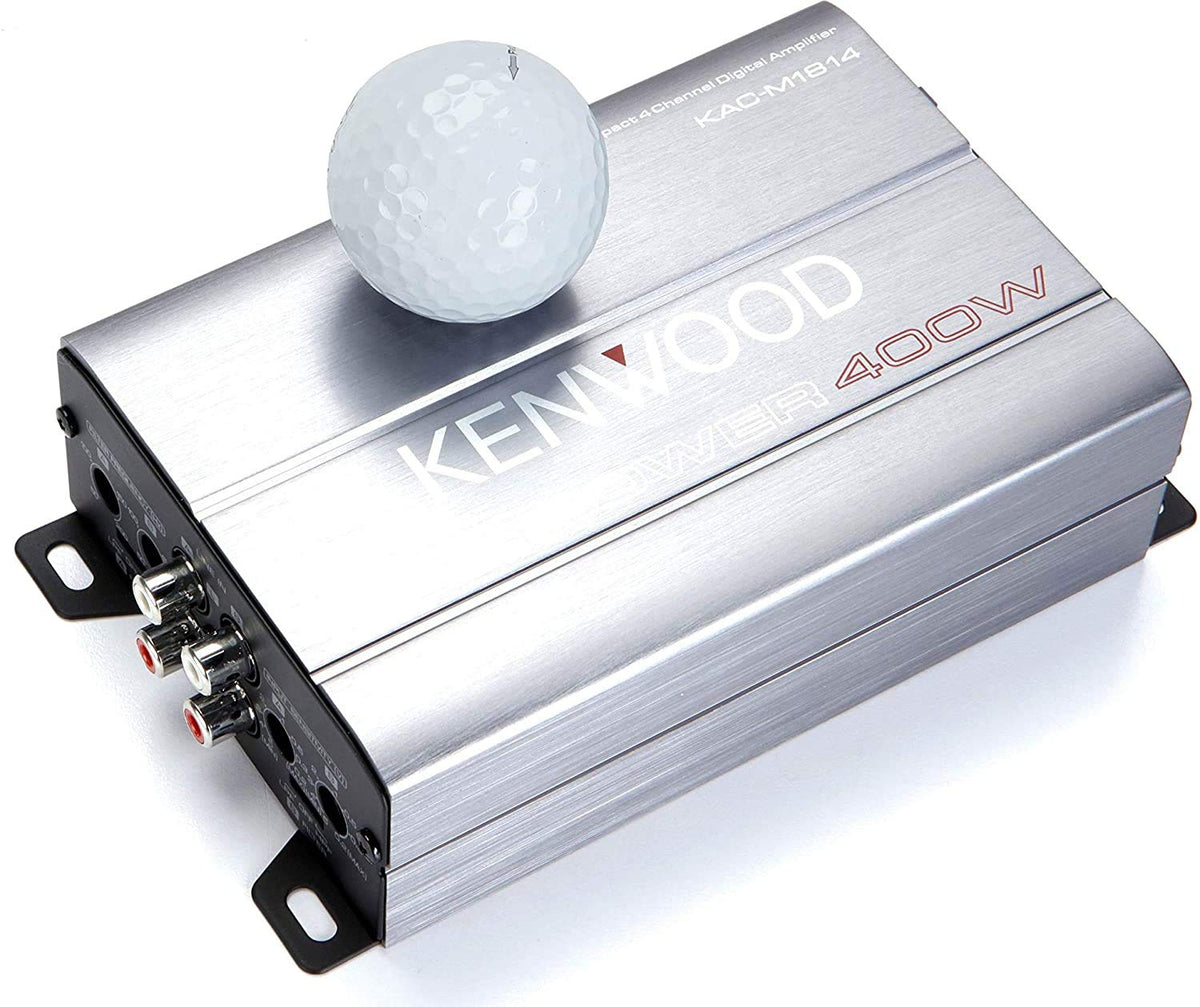

The KAC-M1814 uses a compact aluminum heat-sink chassis with a 145 x 45 x 99 mm enclosure size. Its Class D design, covered connector arrangement, and conformal-coated circuit board suit installations where space and environmental exposure are considerations. The amplifier also uses a Power MOS-FET switching power supply and separate preamp and power-amp sections.

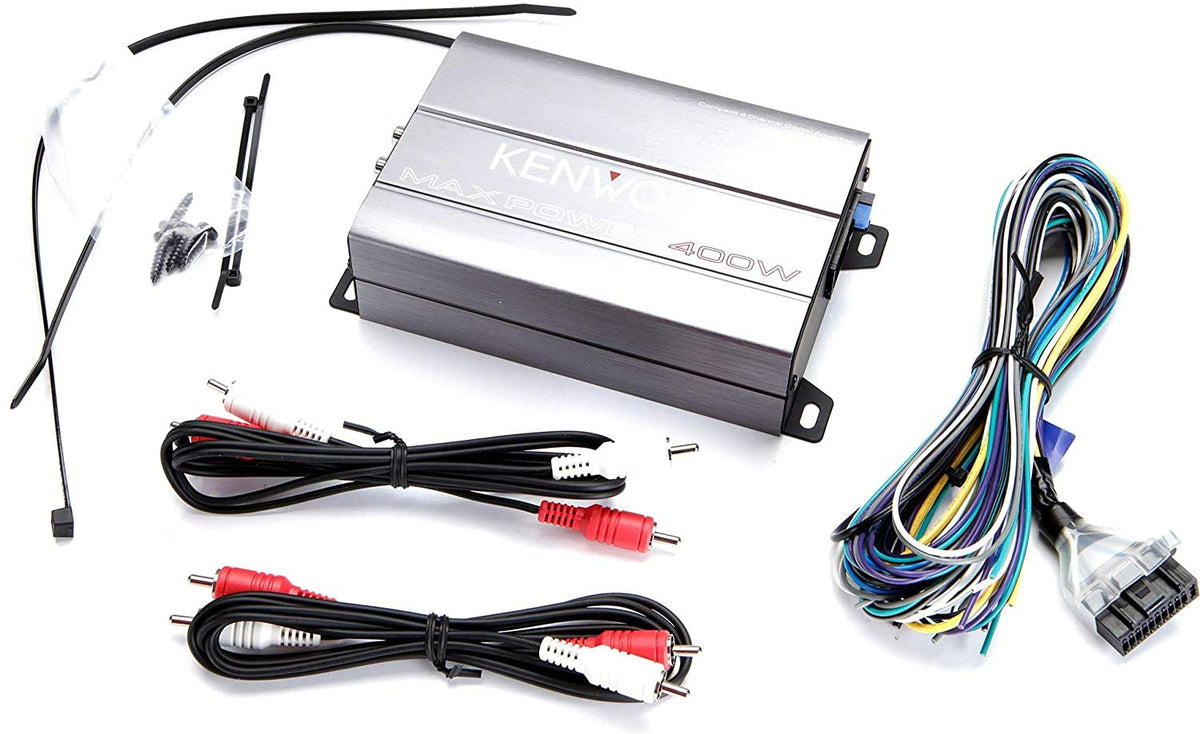

Mount the amplifier in a secure location with appropriate ventilation and connect it to a 12-volt DC vehicle electrical system. It can accept RCA line-level inputs or speaker-level inputs, while its included DC cable and RCA cables support basic installation connections. Set the A and B channel gain and crossover controls to match the connected speakers and chosen system layout.
