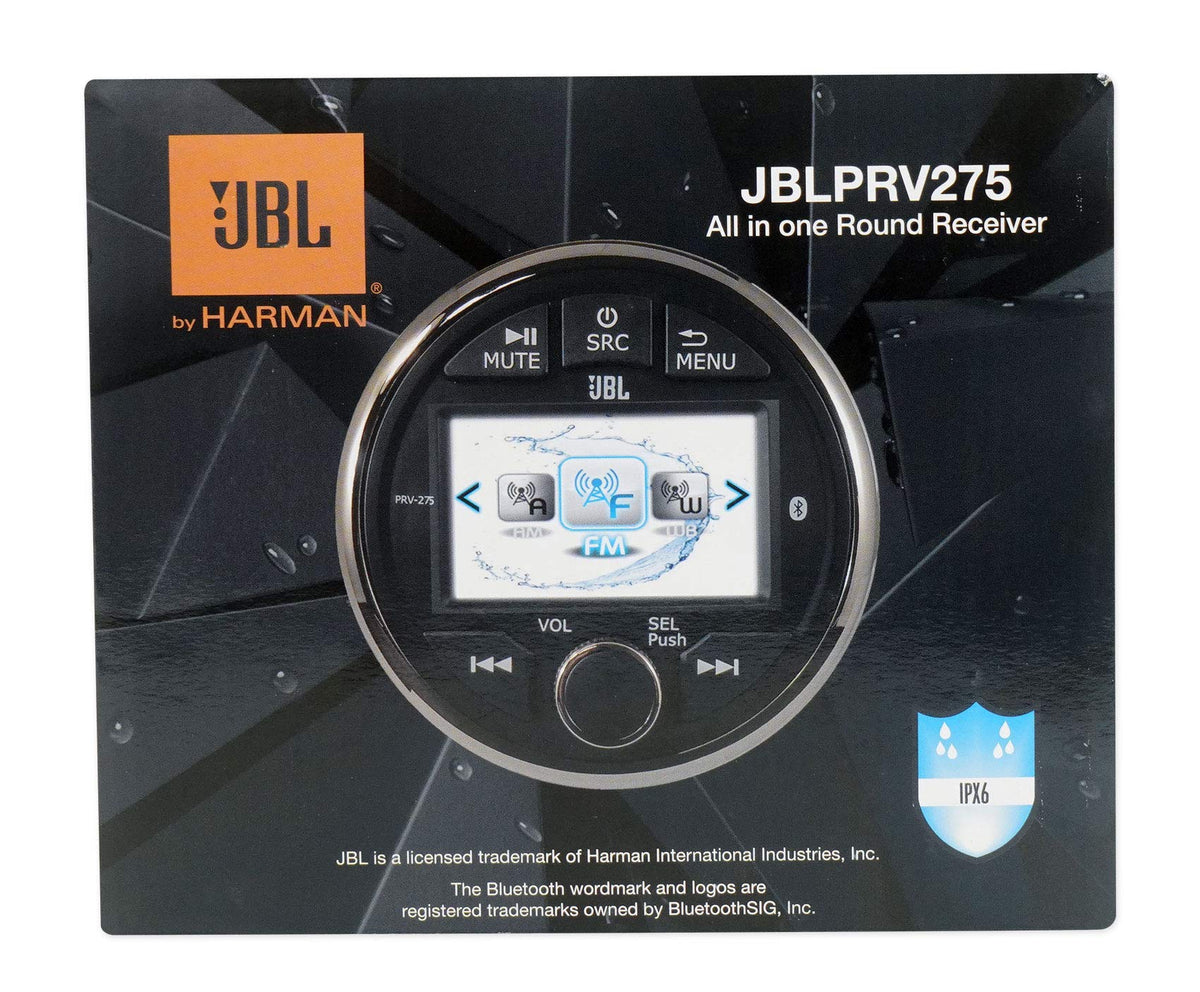

JBL PRV275 Gauge-Style Marine Receiver

The JBL PRV275 is a round, gauge-style marine and powersports receiver designed for installations where a conventional DIN chassis will not fit. Its compact circular format provides a central source unit for boats, side-by-sides, golf carts, and similar 12-volt systems. It combines radio reception, Bluetooth streaming, USB playback, and auxiliary audio in one dashboard-mounted receiver.

This receiver is suited to listeners who want straightforward source selection and physical controls in an exposed-use installation. A rotary encoder handles volume and menu navigation, while the 2.75-inch color TFT display presents source information and compatible ID3 song data. The waterproof faceplate helps support use in marine-oriented dashboards when installed according to the manual.

The built-in four-channel amplifier is rated by JBL at 4 x 45 watts and is stable to 2 ohms. That makes the PRV275 suitable for directly driving compatible speakers in a compact audio system. For expanded systems, its three pairs of RCA pre-outs provide front, rear, and subwoofer signal connections for external amplification.

Source flexibility includes AM, FM, and weather-band radio, Bluetooth audio streaming, USB-drive playback, and an auxiliary input. The USB connection supports MP3 and WMA files from USB drives and provides 5V/1A charging output. A dedicated video input also permits connection of a compatible camera, sold separately.

The PRV275 can serve as the foundation of a basic four-speaker system or as a control center for a larger amplified setup with a subwoofer. Its selectable subwoofer low-pass frequency and adjustable subwoofer output level help integrate a powered subwoofer or external subwoofer amplifier. Wired-remote readiness provides an additional control option where compatible remote hardware is used.

Key Features

• Gauge-Style Chassis: Round dashboard format fits applications without a DIN radio opening.
• Bluetooth Audio Streaming: Streams music wirelessly and displays compatible ID3 track information.
• AM/FM/Weather Band: Adds broadcast radio and weather-band listening options.
• Three RCA Pre-Out Pairs: Supports external front, rear, and subwoofer amplification.
• USB And Auxiliary Inputs: Connect a USB drive or compatible analog audio source.
• Video Input: Accepts a compatible camera input for on-screen viewing.

Design & Installation

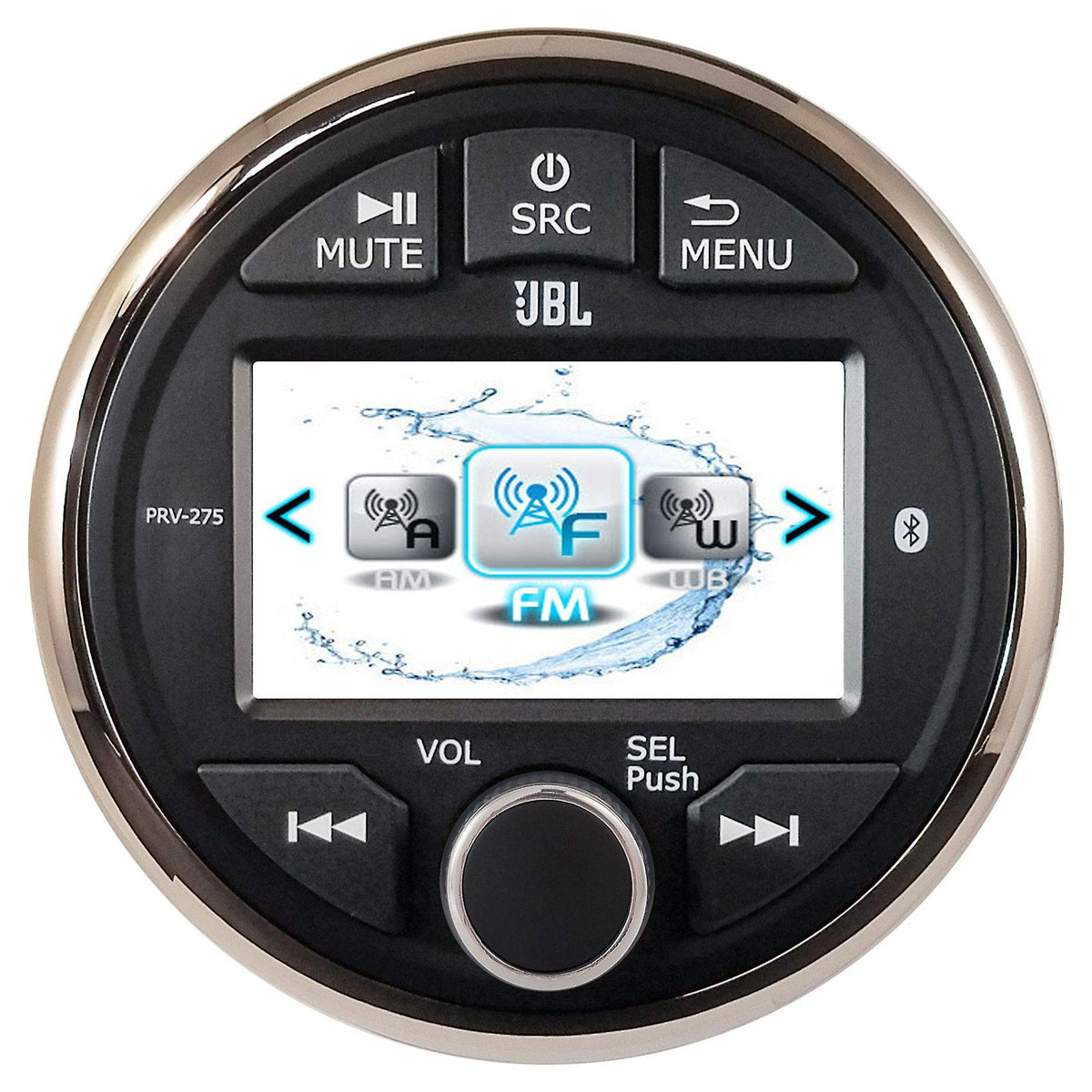

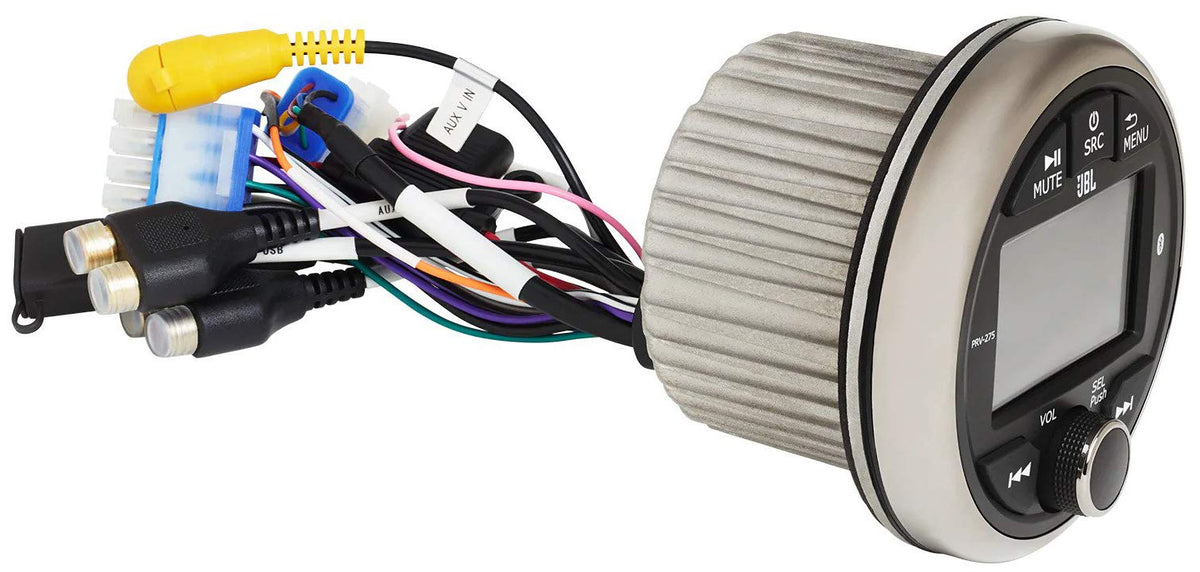

The PRV275 uses a round gauge-style design with a 2.75-inch color TFT screen, a rotary encoder, and a waterproof faceplate. Its listed mounting dimensions are a 4.125-inch outside diameter, 3.25-inch mounting depth, and 3.25-inch round cutout. JBL specifies a back-bracket and stud mounting arrangement, and the package includes a mounting gasket.

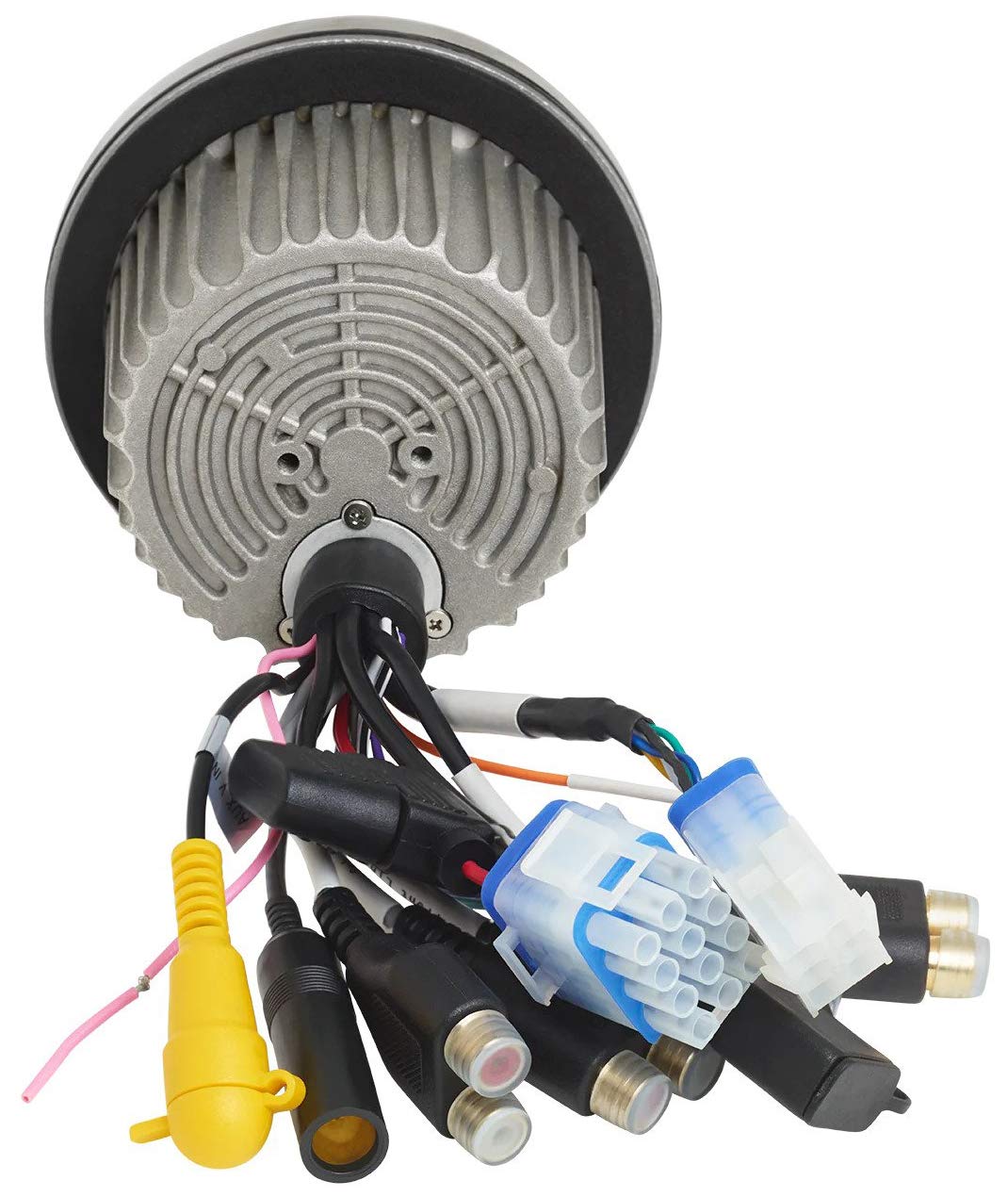

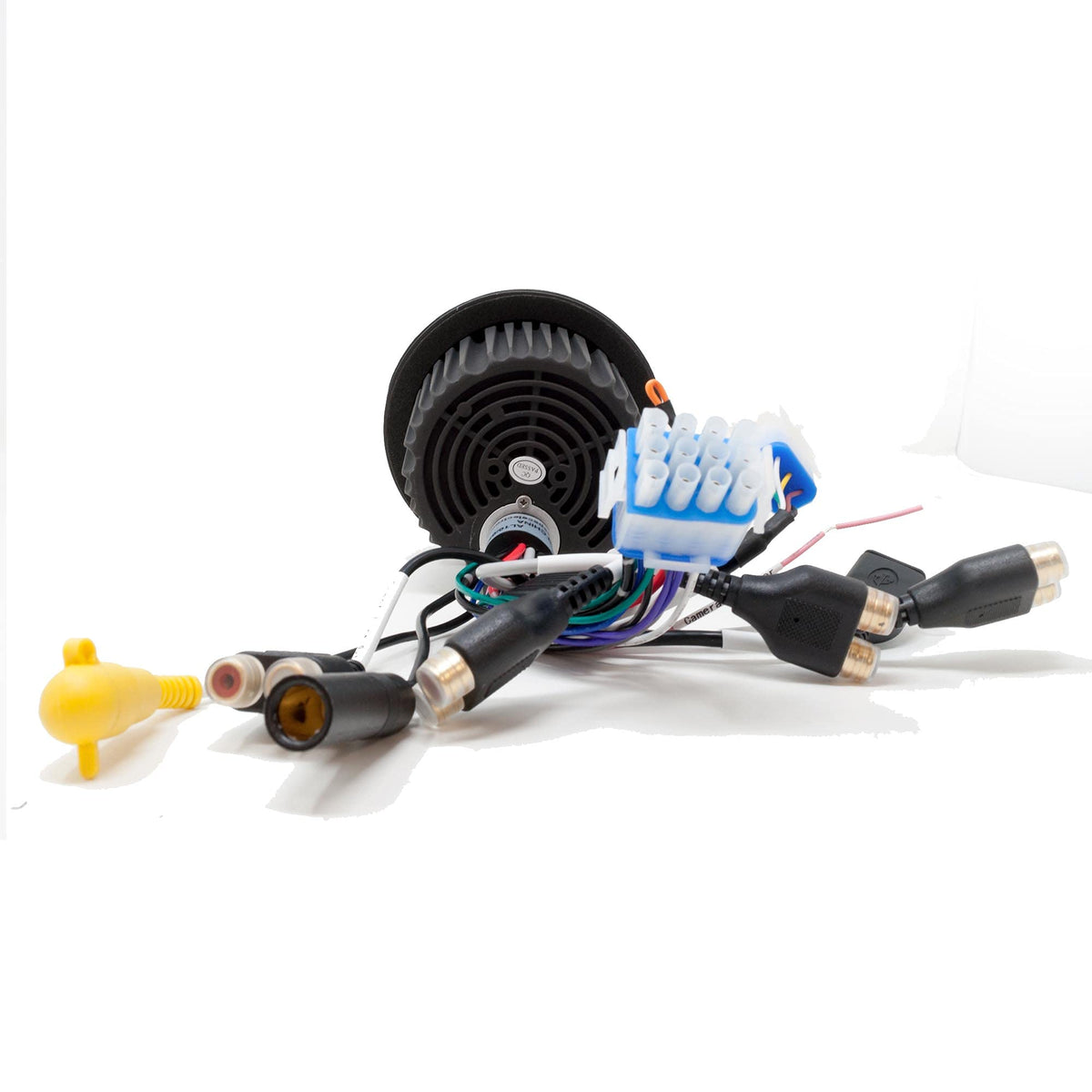

Install the receiver on a flat mounting surface and use the supplied mounting hardware as directed in the manual. Route the wire harness downward to help reduce water entry at the harness area, and connect the black ground lead to a suitable ground point; the manual recommends the boat battery negative terminal. Disconnect the battery positive cable before wiring, and use the front, rear, and subwoofer RCA outputs when adding external amplifiers.
