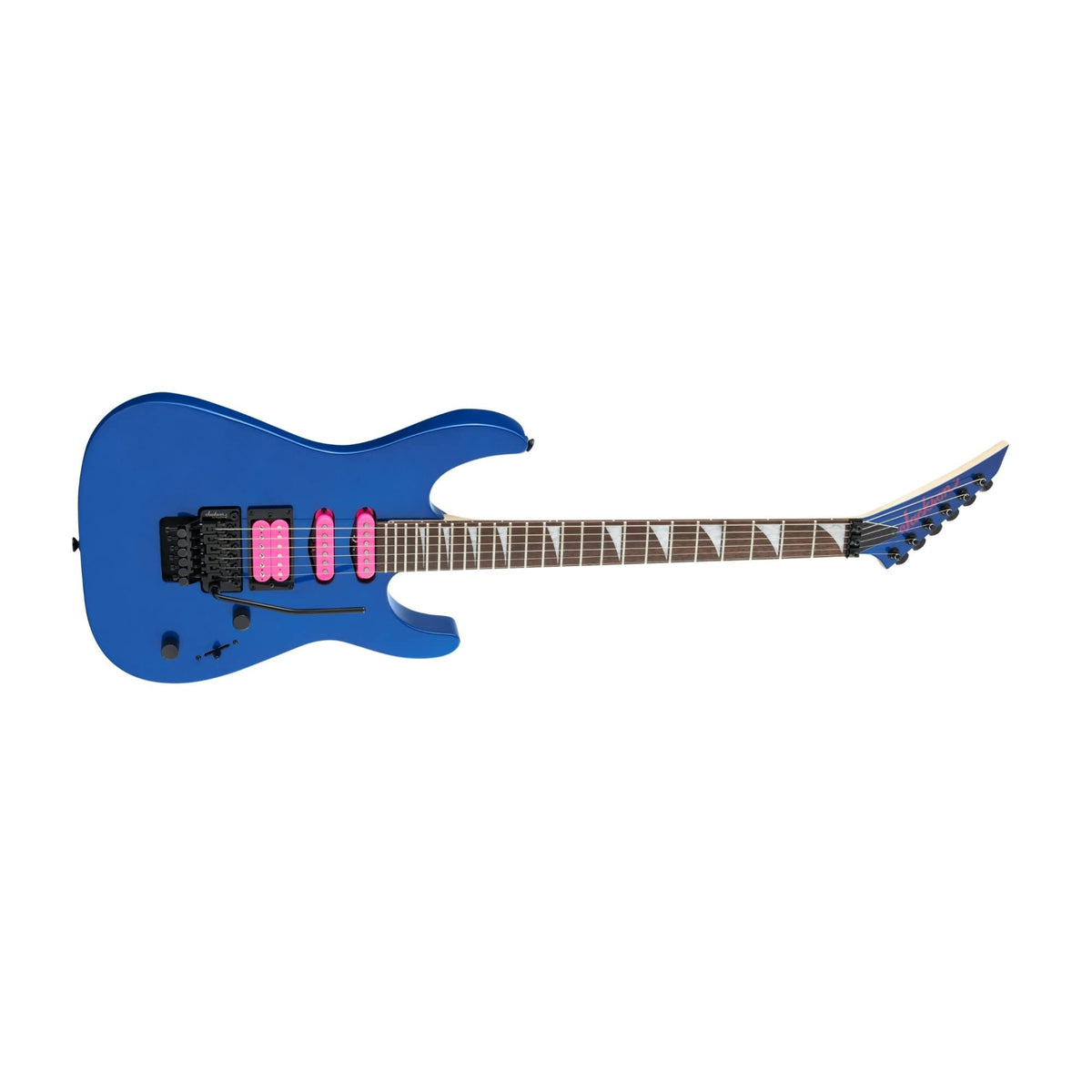

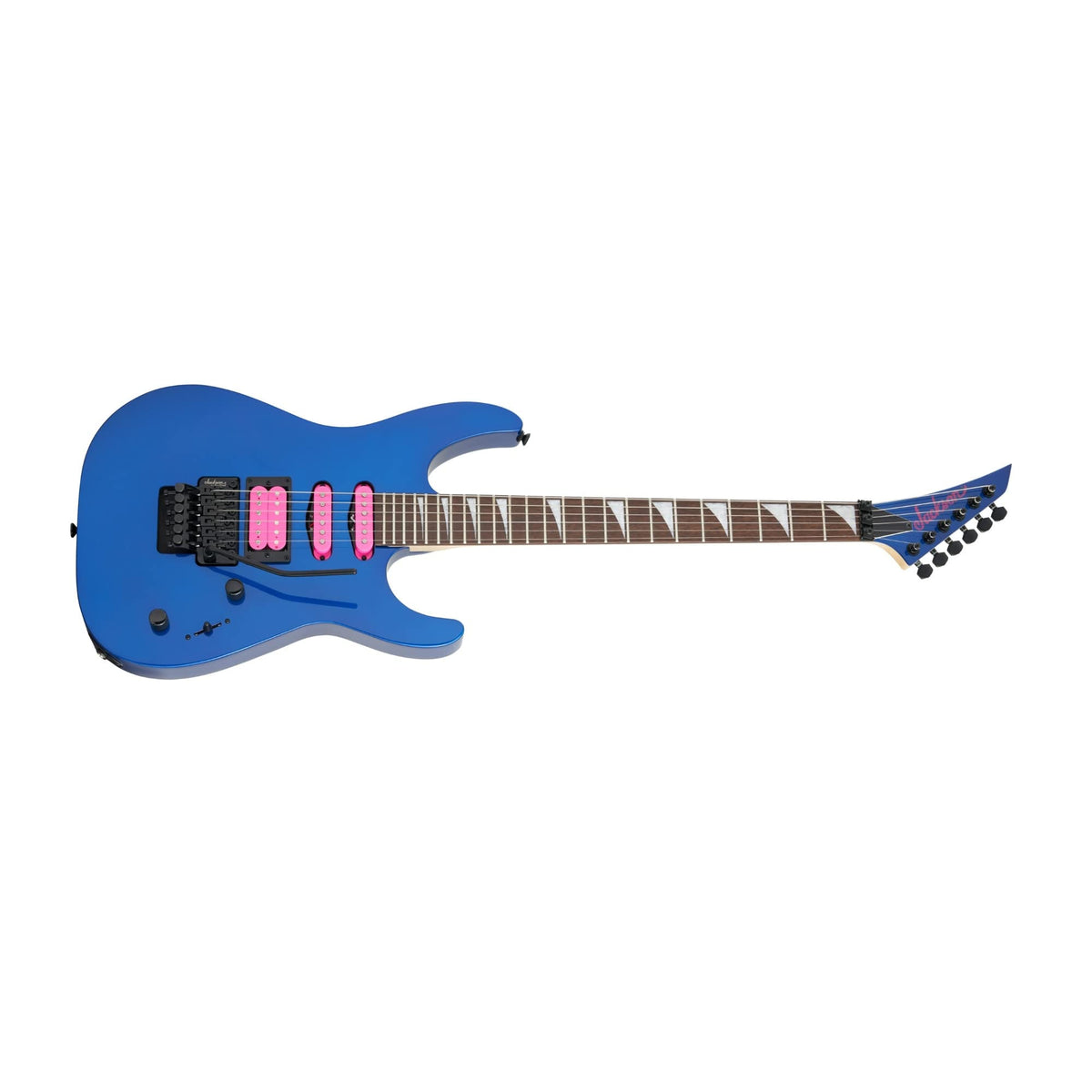

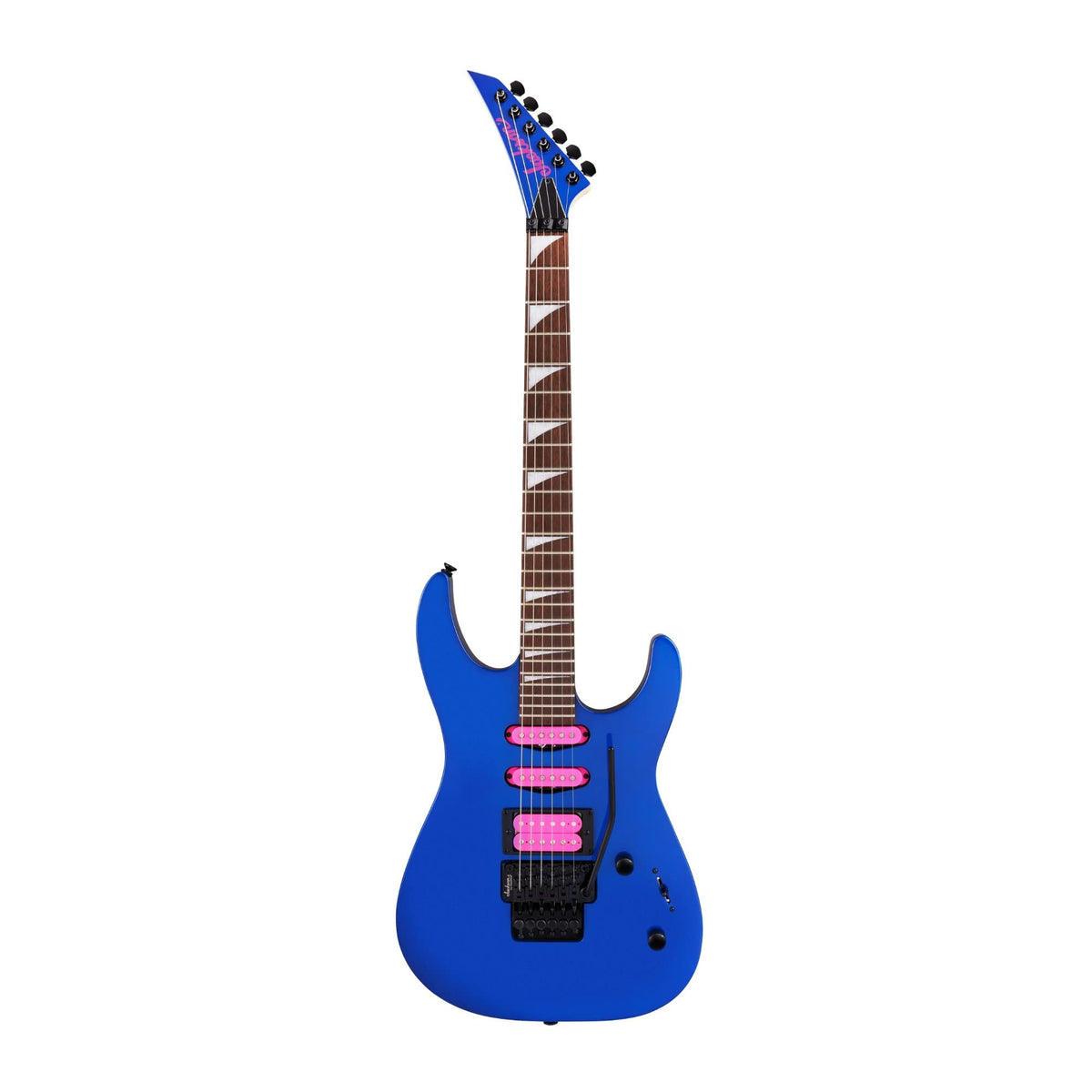

Jackson 2910022565 DK3XR HSS Electric Guitar

The Jackson X Series Dinky DK3XR HSS is a solidbody electric guitar designed for players who want a compact, performance-focused instrument with broad pickup versatility. Its HSS layout combines two single-coil pickups with a high-output bridge humbucker, covering clean, articulate selections as well as higher-gain bridge tones. The Cobalt Blue finish is paired with pink pickup covers and a matching pink Jackson headstock logo.

This model is suited to rock, metal, technical lead work, and players who also need recognizable single-coil-style switch positions for cleaner passages. A 25.5-inch scale length, 24 jumbo frets, and a 12-16-inch compound-radius laurel fingerboard provide room for precise fretting across the neck. Rolled fingerboard edges and a satin neck finish support a smooth playing feel.

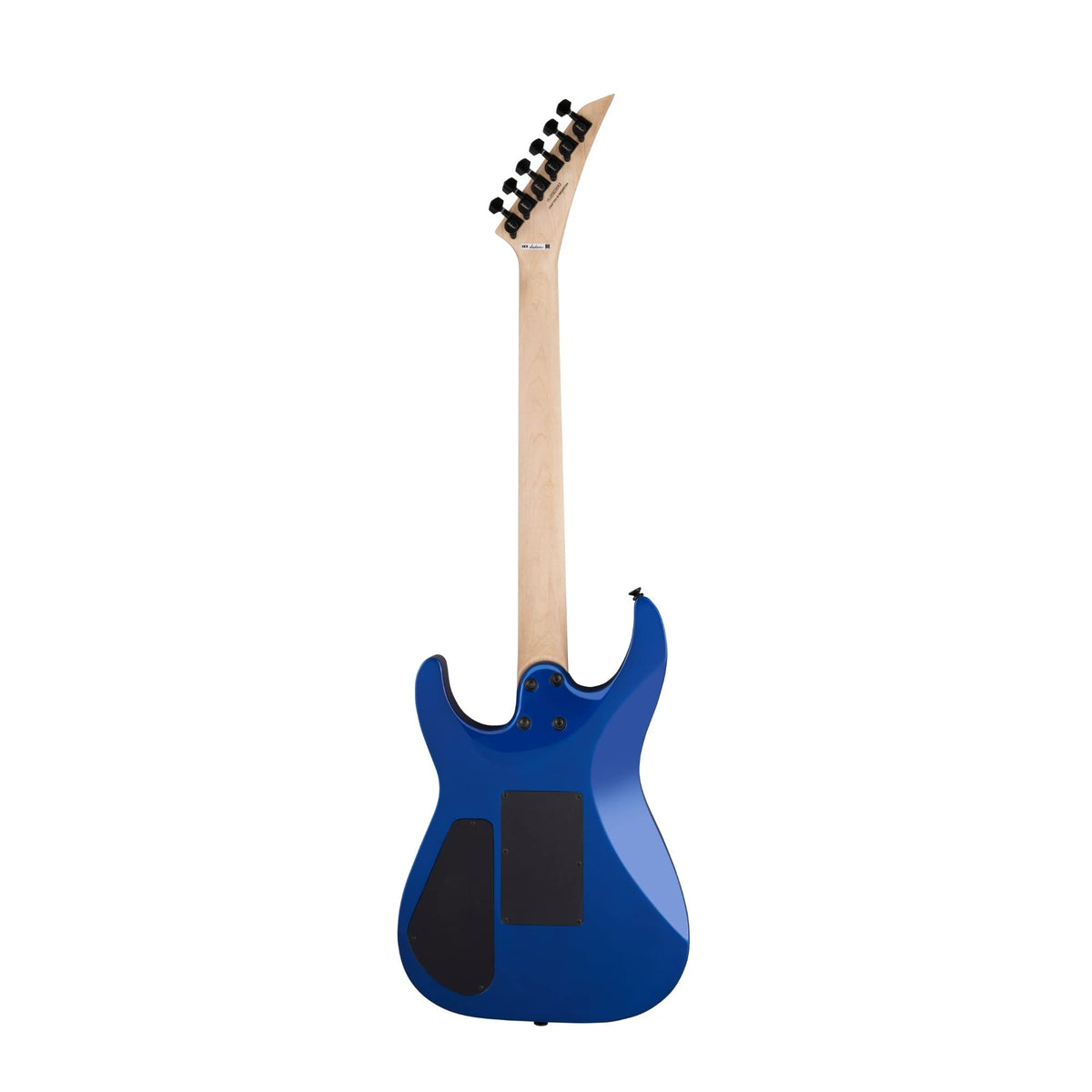

The poplar Dinky body has a sculpted shredder's cut heel to improve access to the higher frets. Its bolt-on maple neck uses a scarf joint and graphite reinforcement, with a dual-action truss rod adjusted at the nut. This construction combines the familiar response of a bolt-on guitar with features intended to support neck stability.

Jackson equips the DK3XR HSS with a Floyd Rose licensed Jackson double-locking tremolo bridge and Floyd Rose Special locking nut. The double-locking design is intended for expressive pitch effects while helping maintain tuning stability after proper setup. A Floyd Rose tremolo arm is included for bridge operation.

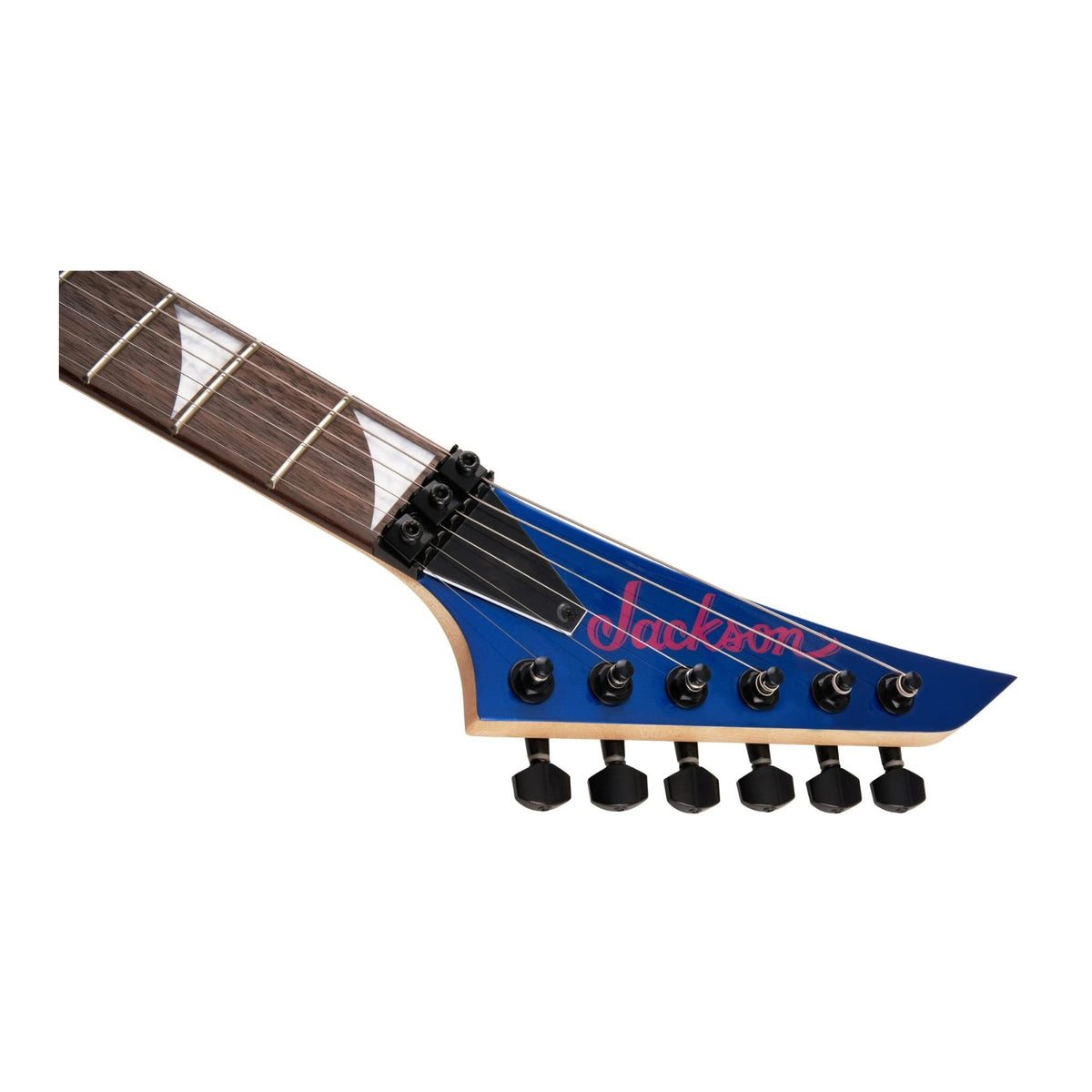

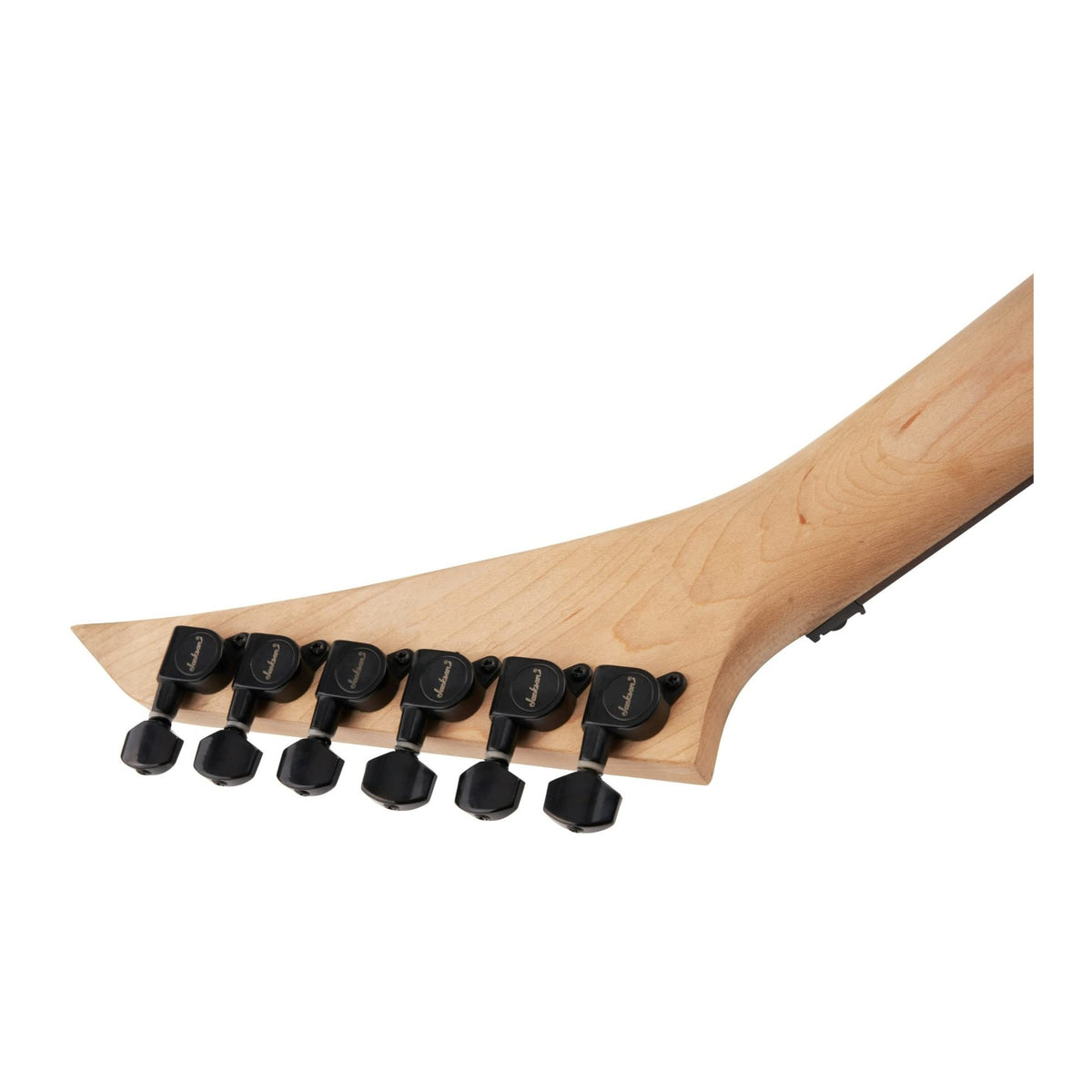

The five-position blade selector makes the HSS pickup set practical for an amp, pedalboard, recording interface, or other standard electric-guitar signal chain. Volume and tone controls provide straightforward adjustment at the instrument, while sealed die-cast tuners handle tuning at the reverse Jackson pointed 6-in-line headstock. It is a suitable platform for players seeking a 24-fret guitar with a locking tremolo and flexible passive electronics.

Key Features

• HSS Pickup Configuration: Combines bridge humbucker power with two single-coil voices.
• Five-Position Switching: Selects bridge, blended, middle, and neck pickup sounds.
• Double-Locking Tremolo: Supports pitch effects with locking-nut hardware.
• Compound-Radius Fingerboard: Transitions from 12 to 16 inches.
• 24 Jumbo Frets: Provides two full octaves of fret access.
• Graphite-Reinforced Maple Neck: Adds reinforcement to the bolt-on neck.

Design & Installation

The DK3XR HSS combines a gloss-finished poplar Dinky body with black hardware, a satin-finished maple neck, and a laurel fingerboard. Its reverse pointed 6-in-line headstock, inverted pearloid sharkfin inlays, dome-style knobs, and pink visual accents are specific to the Cobalt Blue presentation. The neck has no binding and uses rolled fingerboard edges.

Connect the guitar to an amplifier, pedalboard, or recording interface with a standard instrument cable. The bridge uses a locking nut and floating double-locking tremolo system, so string changes, alternate tunings, and setup adjustments should be performed with attention to bridge balance and locking hardware. Optional Jackson Soloist/Dinky hardshell and gig bags are available separately.
