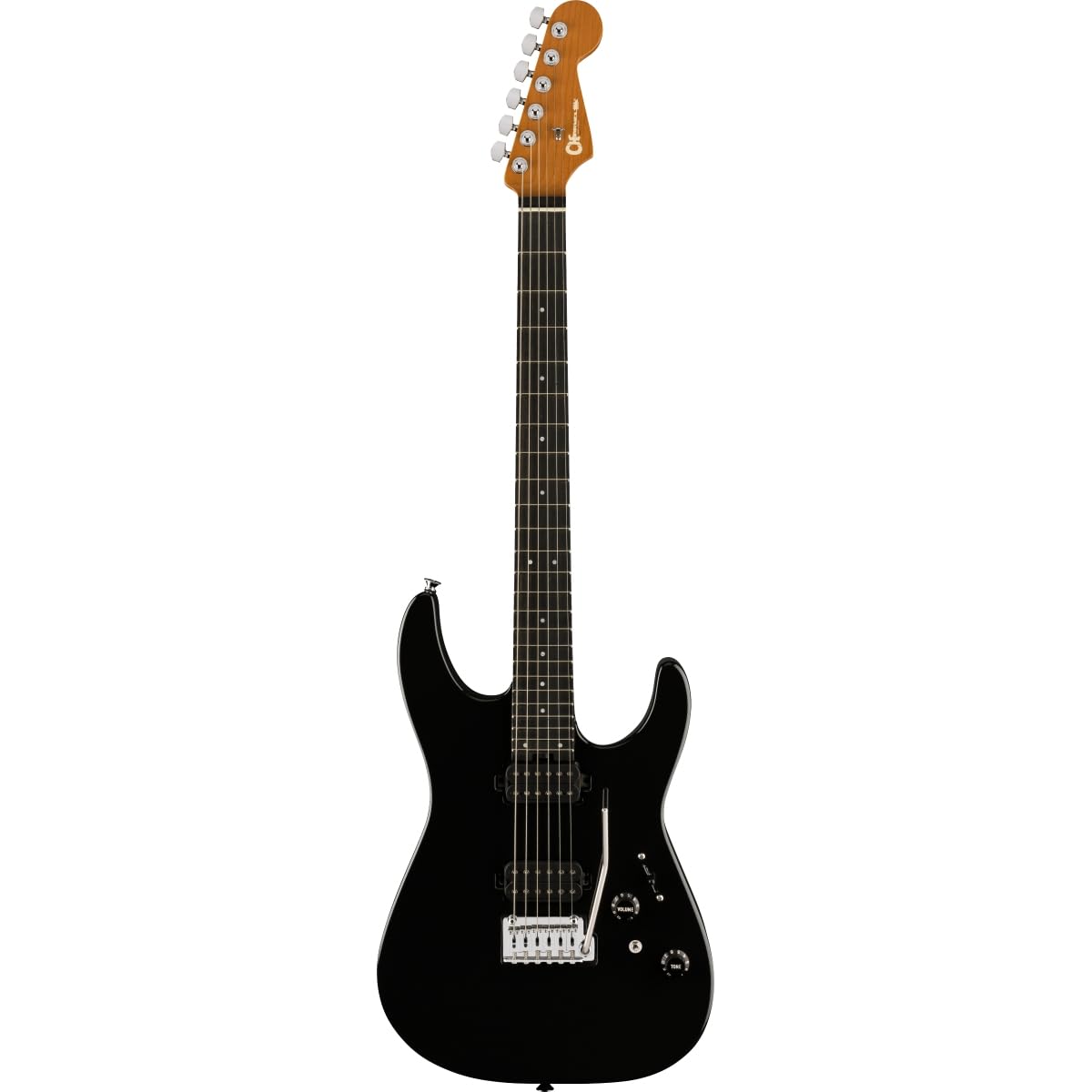

Charvel 2962411303 Pro-Mod DK24 HH 2PT EB Electric Guitar

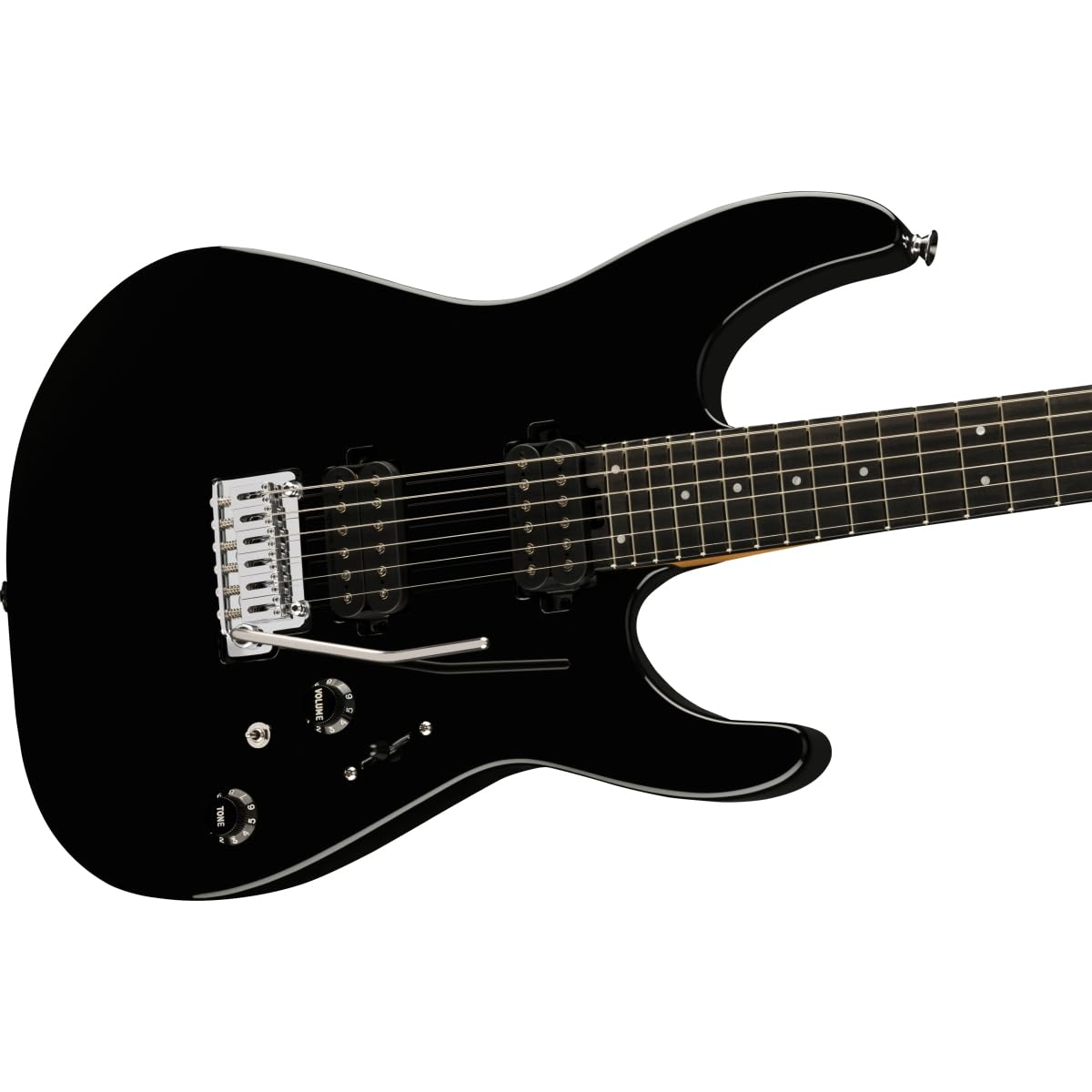

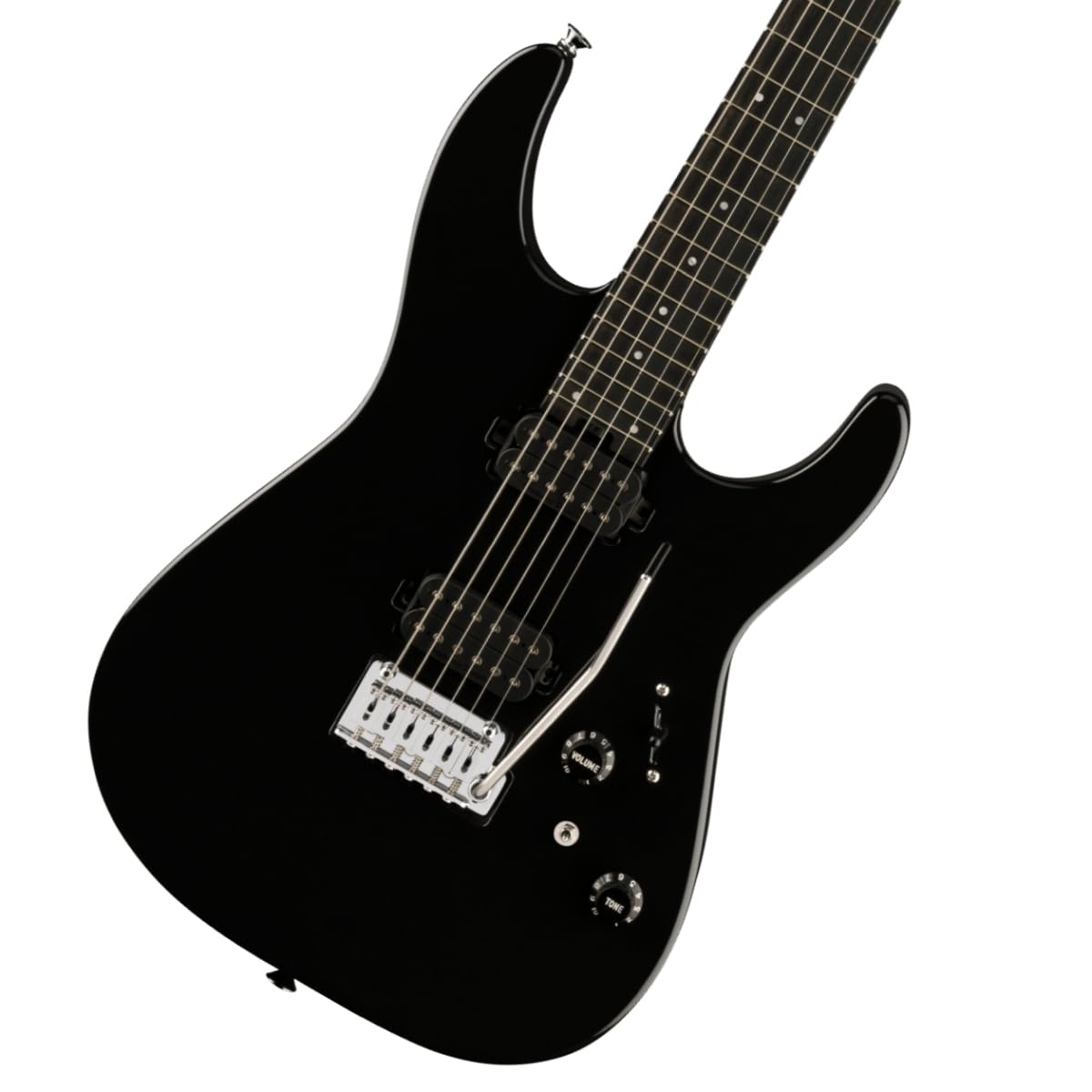

The Charvel Pro-Mod DK24 HH 2PT EB is a right-handed, six-string electric guitar built for players who want a fast-playing instrument with broad pickup-switching flexibility. Its Dinky alder body, sculpted heel, and scalloped lower back bout support comfortable access to the upper frets. The Gloss Black finish and chrome hardware give it a clean, modern appearance.

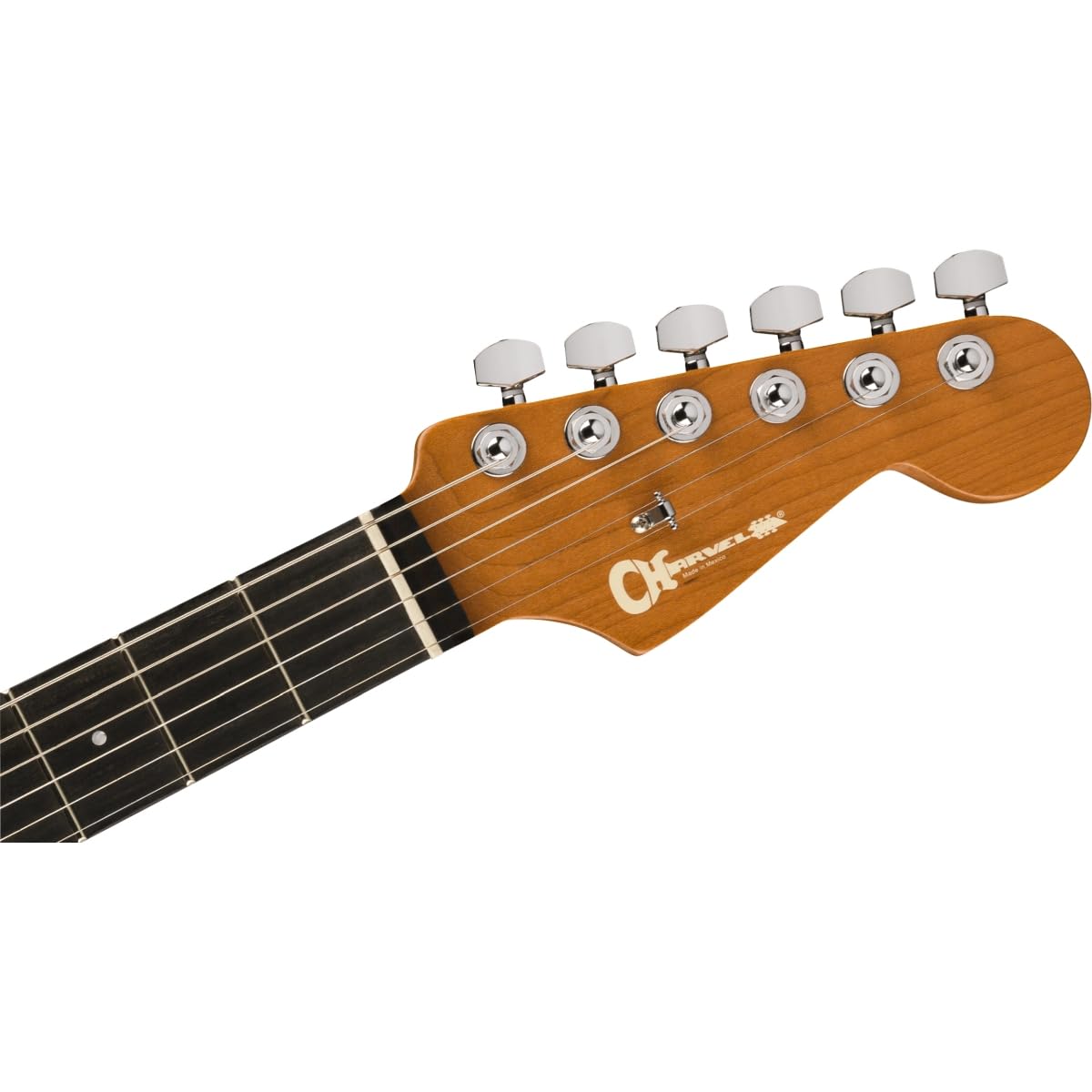

A caramelized maple Speed Neck provides the core playing feel, with graphite reinforcement for stability and a hand-rubbed urethane finish on the back. The bolt-on construction uses a sculpted four-bolt heel for less-obstructed access higher on the neck. Luminlay side dots and a heel-mount truss rod adjustment wheel add practical visibility and setup convenience.

The ebony fingerboard uses a 12-inch to 16-inch compound radius, rolled edges, 24 jumbo frets, and pearloid dot inlays. This layout keeps lower-position chord work comfortable while providing a flatter feel higher on the neck. A Graph Tech TUSQ XL nut and 25.5-inch scale length complete the guitar's performance-oriented neck specification.

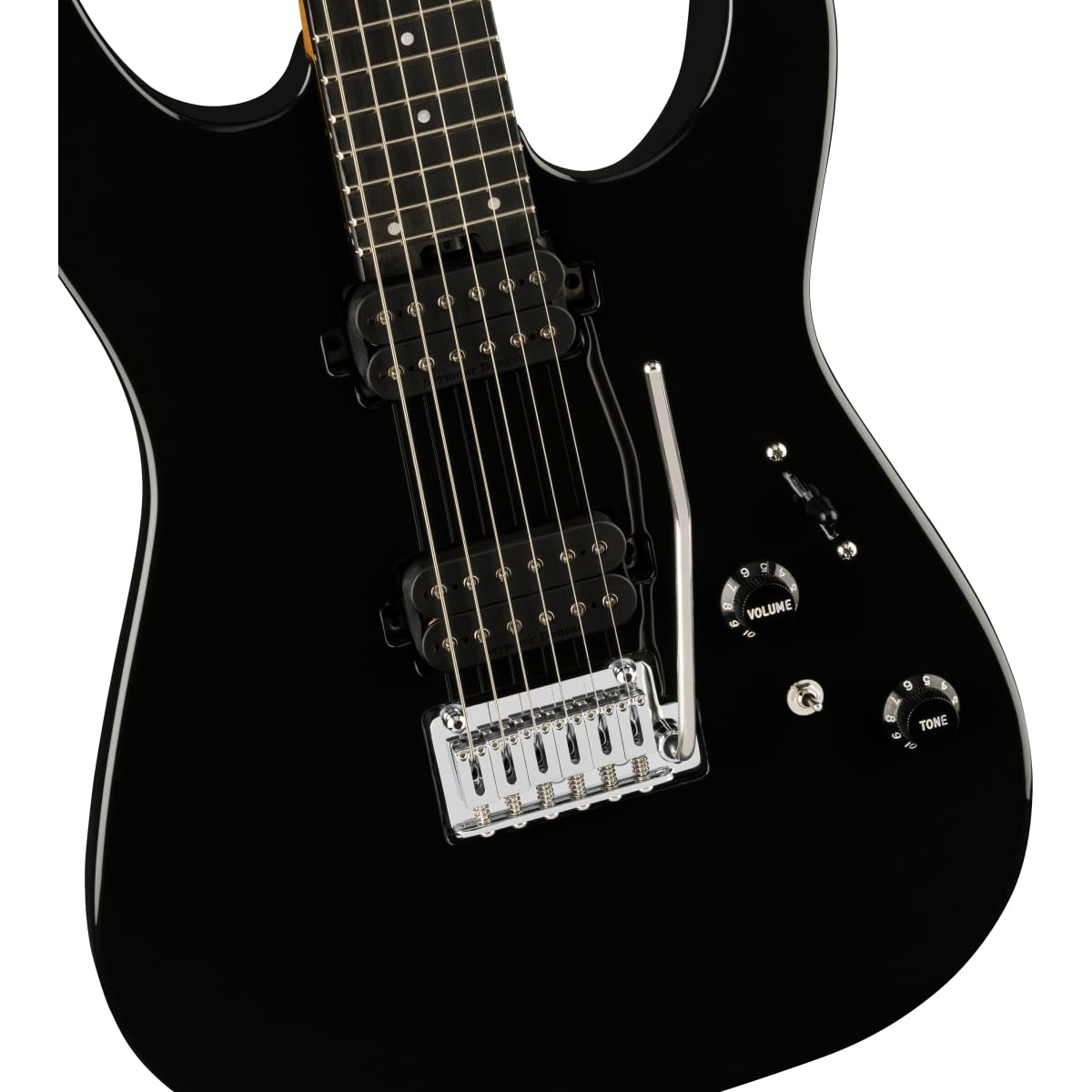

Its HH pickup configuration combines a Seymour Duncan Full Shred TB-10 bridge humbucker with a Seymour Duncan Alnico II Pro APH-1N neck humbucker. A five-position blade switch selects bridge, outer-coil, combined humbucker, inner-coil, and neck voices. The two-position mini toggle changes the pickups between all-series and all-parallel operation for additional tonal options.

The Pro-Mod DK24 HH 2PT EB is equipped with a Gotoh Custom 510 tremolo, Charvel-branded die-cast locking tuners, and a 500K EVH Bourns low-friction volume potentiometer. Its no-load tone control gives players a straightforward way to shape the instrument's response. It is a practical choice for a guitar rig that needs humbucker power, alternate coil combinations, and a non-locking tremolo bridge.

Key Features

• HH Seymour Duncan Pickups: Full Shred TB-10 bridge and Alnico II Pro APH-1N neck humbuckers provide two distinct pickup voices.
• Five-Way Blade Switch: Selects full humbucker, combined, and split-coil-style pickup combinations.
• Series/Parallel Mini Toggle: Changes the two pickups between all-series and all-parallel operation.
• Compound-Radius Ebony Fingerboard: The 12-inch to 16-inch radius supports chords and higher-register playing.
• Gotoh Custom 510 Tremolo: A recessed tremolo bridge supports expressive pitch control.
• Graphite-Reinforced Speed Neck: Caramelized maple construction combines a smooth finish with added neck reinforcement.

Design & Installation

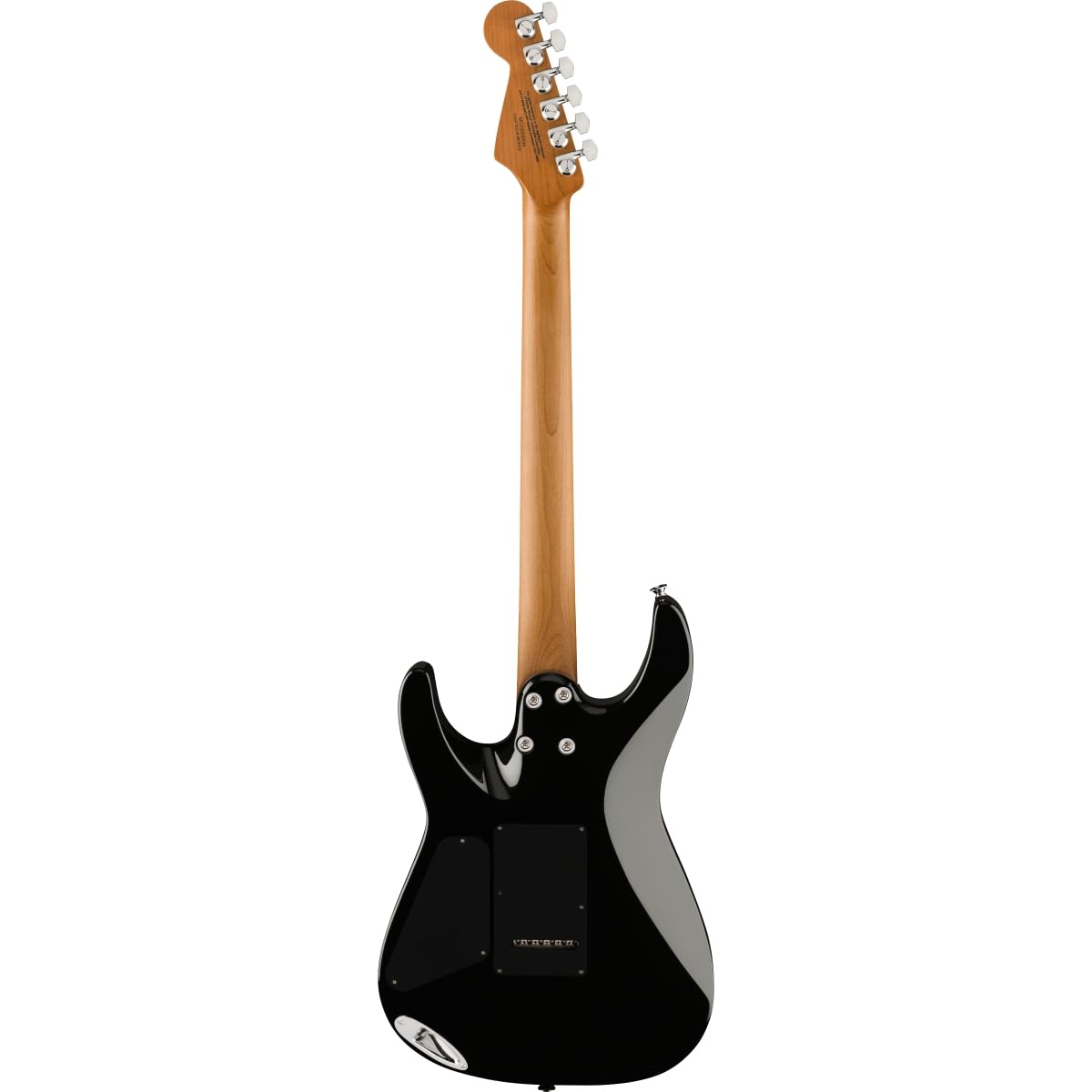

The DK24 HH 2PT EB combines an alder Dinky body with a caramelized maple bolt-on neck and ebony fingerboard. Its gloss body finish is paired with a hand-rubbed urethane neck finish, chrome hardware, black pickup covers, and Strat-style skirt control knobs. The guitar has no pickguard and uses a sculpted four-bolt heel rather than a traditional neck plate.

Use standard nickel-plated steel electric-guitar strings in the factory .009-.042 gauge range when replacing the installed set. The heel-mount adjustment wheel allows neck-relief adjustments without removing the neck, while the included saddle-height wrench is intended for bridge saddle setup. A compatible optional Charvel gig bag is listed separately as part number 007-6756-000.
