Audison AP8 8" Woofer Pair

The Audison AP8 is an 8-inch, 4-ohm Prima Series woofer designed for vehicle locations that use an 8-inch OEM woofer. It is intended to add capable low-frequency and midbass output in factory-style speaker positions without requiring a deep driver. Its broad 200 mm cone area helps it suit upgrades where space limits the use of a separate subwoofer.

Rated for 100 watts continuous and 300 watts peak power, the AP8 is built for use in properly matched amplified car-audio systems. Its 93.5 dB sensitivity supports efficient output from compatible amplification. The stated 35 Hz to 3 kHz frequency response gives it a useful operating range for dedicated woofer duties.

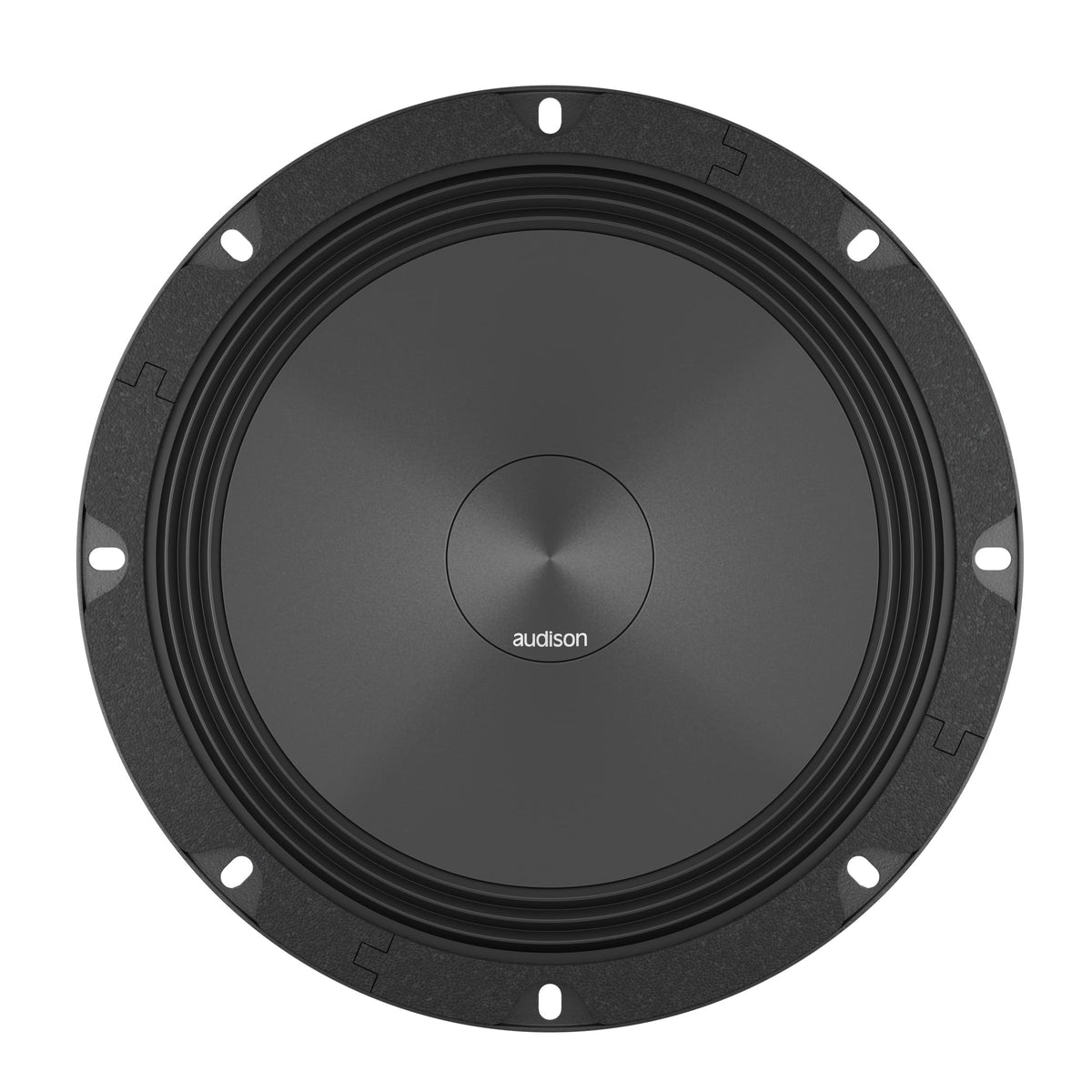

A water-repellent treated paper cone forms the basis of the AP8's acoustic design. Audison specifies a cone profile developed through FEM simulation and optimized with Klippel Scan Vibrometer measurements. A shallow TPU Triple Wave surround is used to support controlled cone travel and excursion linearity.

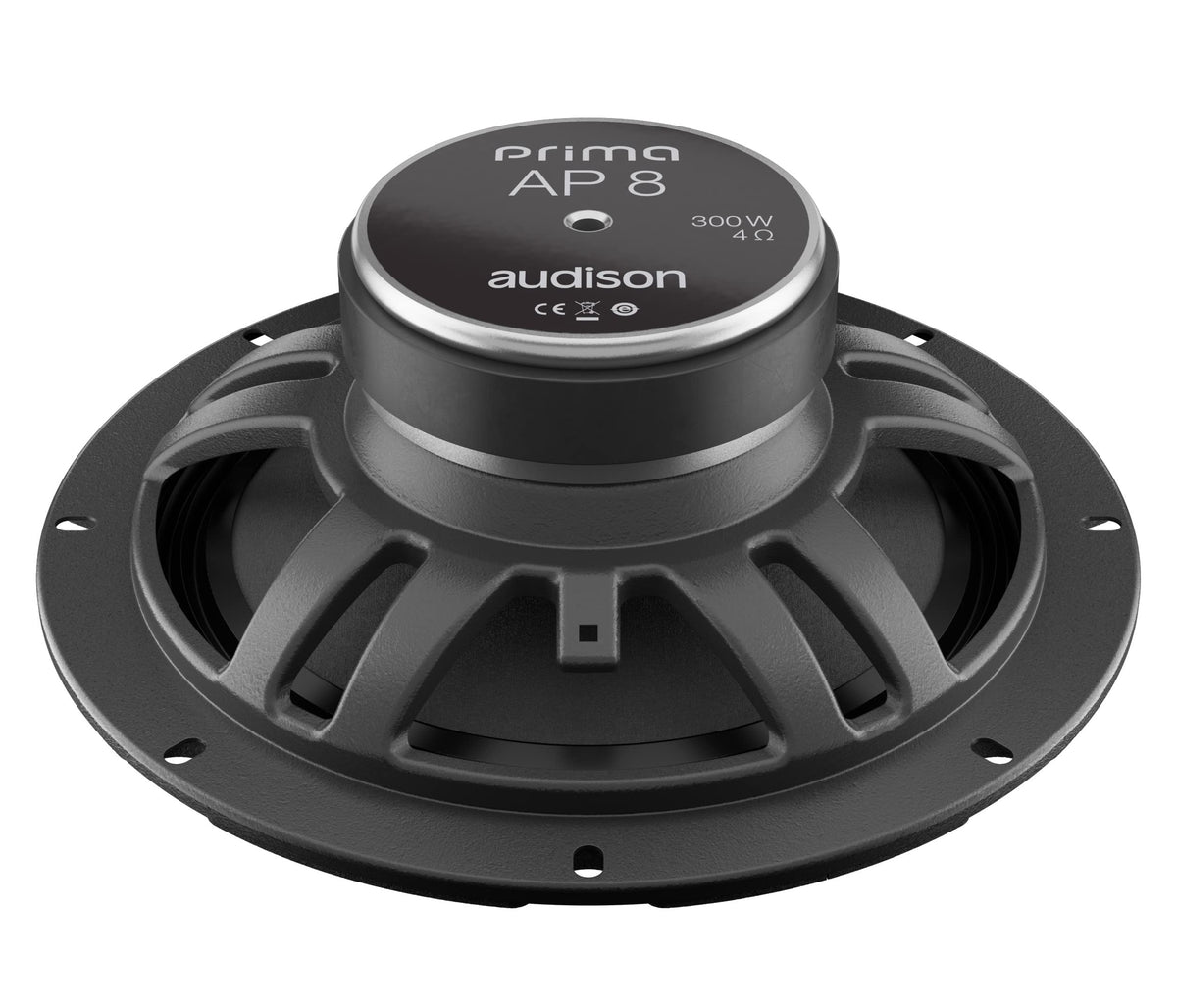

The AP8 uses a 25 mm voice coil and a high-density-flux ferrite motor assembly. Its mechanical low-pass behavior is designed so a passive crossover is not required to maximize woofer efficiency. This makes the driver especially relevant in OEM-integration installations where packaging and connection simplicity matter.

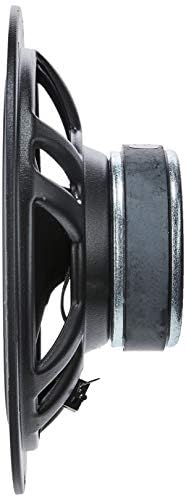

With a 174 mm mounting cutout and 66 mm mounting depth, the AP8 is intended for relatively shallow factory woofer locations. Dual-contact positive and negative fast-on terminals provide connection flexibility at the speaker. It can be used as part of a larger Prima upgrade with compatible amplification, signal processing, and higher-frequency speakers selected for the vehicle.

Key Features

• 8-Inch Woofer: Fits applications designed around 200 mm OEM woofer locations.
• 100W Continuous Rating: Supports properly matched amplified system upgrades.
• 4-Ohm Impedance: Works with compatible 4-ohm-rated car audio amplification.
• Water-Repellent Paper Cone: Provides a treated cone for automotive speaker use.
• Triple Wave TPU Surround: Supports controlled excursion in a shallow-profile design.
• Dual-Contact Fast-On Terminals: Allows flexible, quick speaker-wire connections.

Design & Installation

The AP8 combines a water-repellent treated paper cone, TPU surround, 25 mm voice coil, and high-density-flux ferrite magnet. Its compact basket has an abrasion-resistant, scratch-resistant coating, while the motor is secured with damping epoxy adhesive. A temperature-resistant plastic terminal cover helps protect the connections against accidental short circuits.

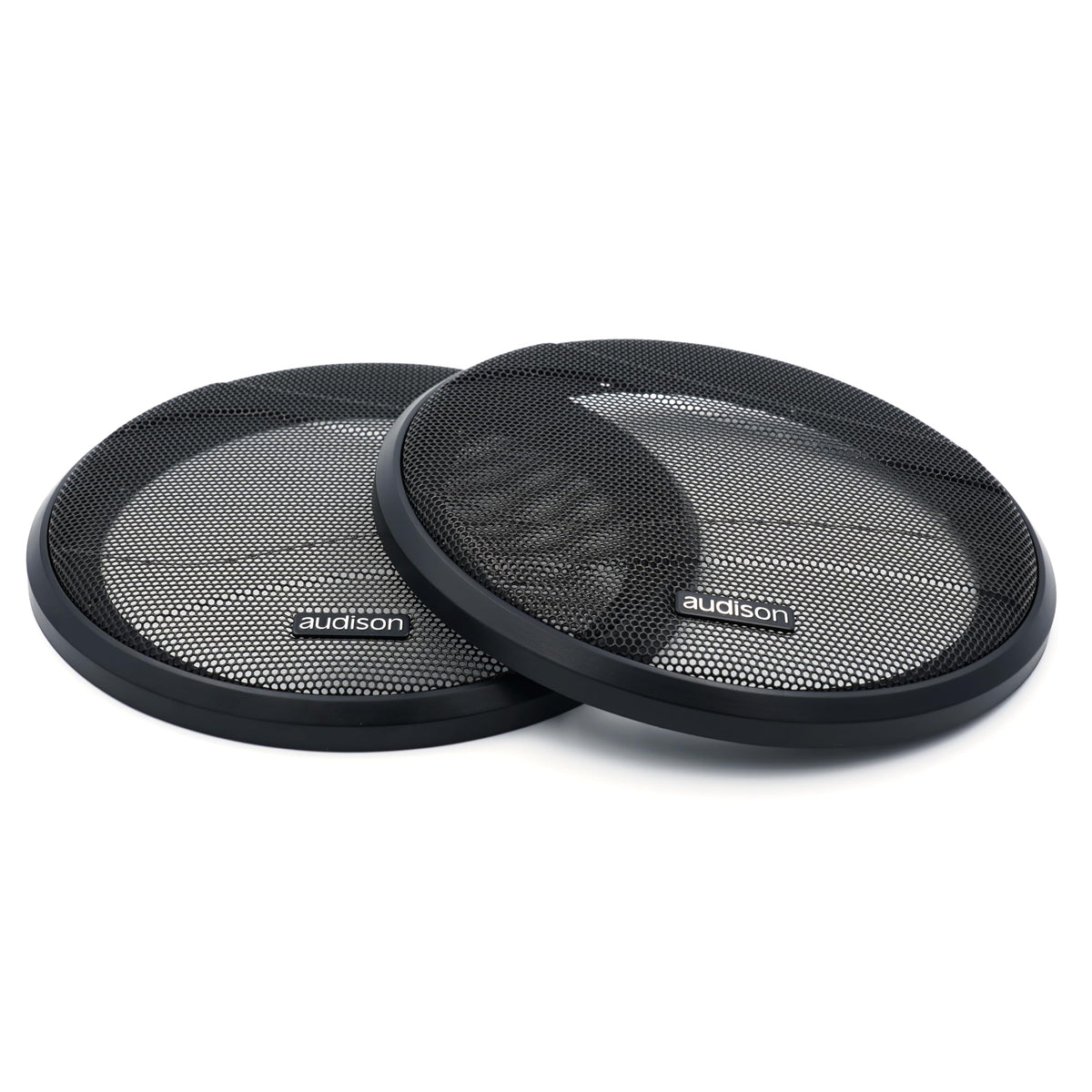

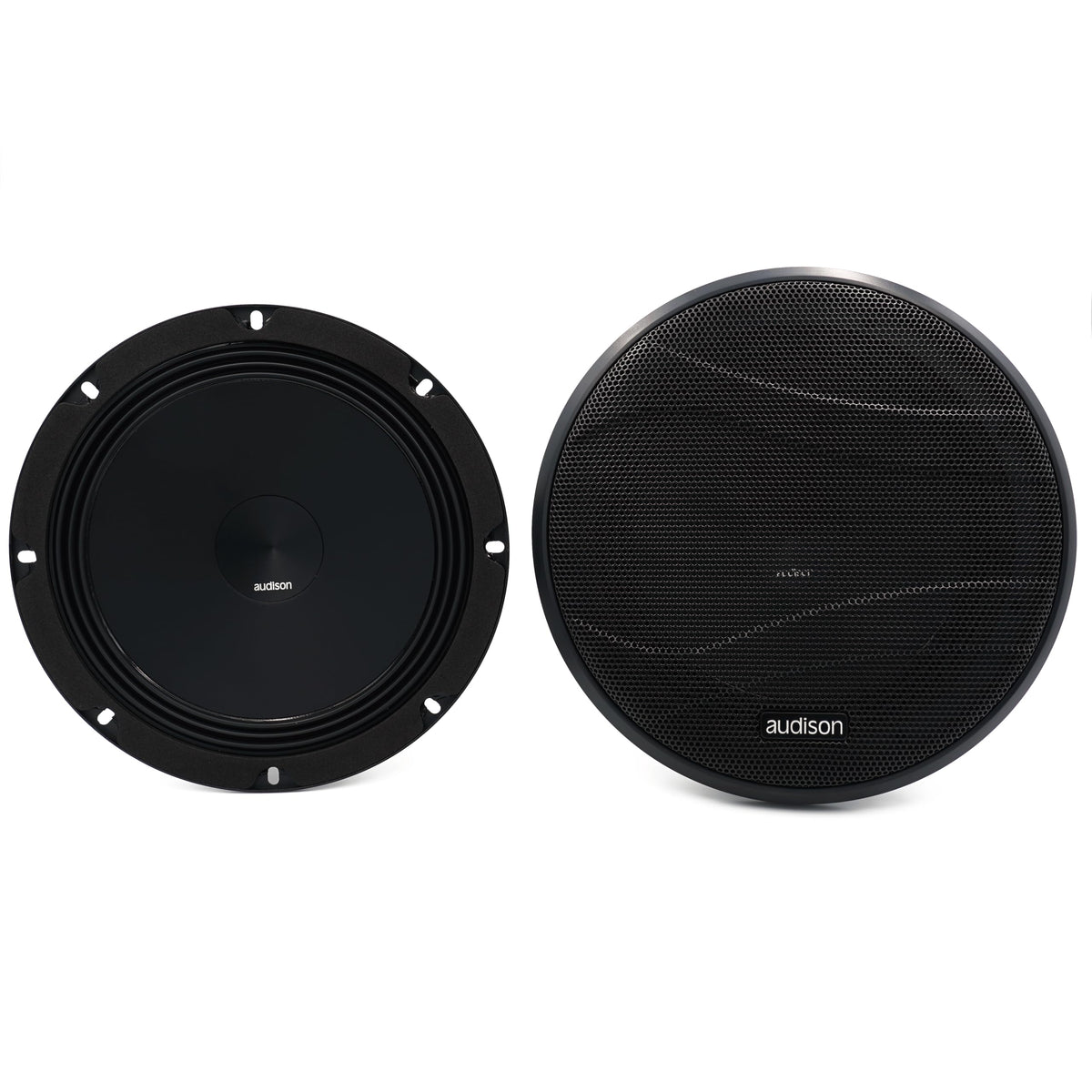

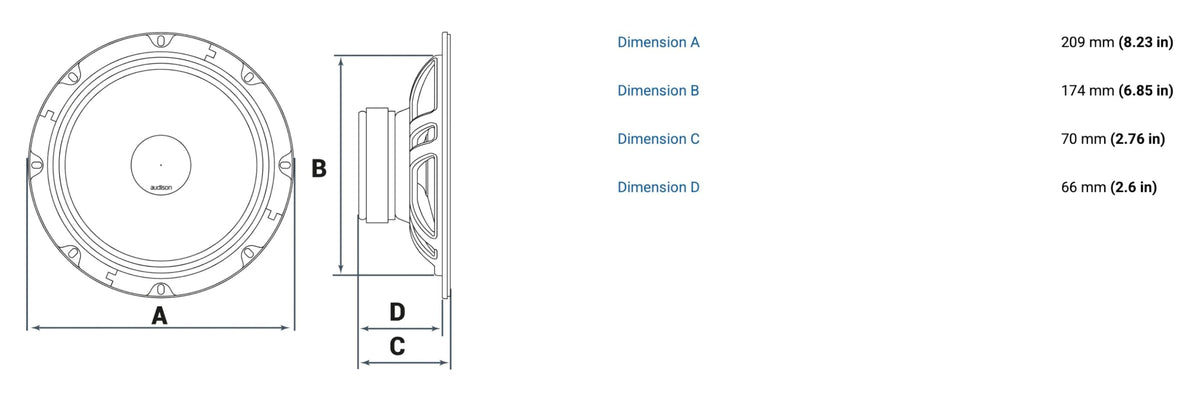

Confirm available mounting space before installation: the technical drawing lists a 174 mm cutout dimension and 66 mm mounting-depth dimension. Use appropriate speaker wiring and a compatible 4-ohm amplifier channel, then set amplifier gain and filtering for the installed system. The manufacturer notes a grille is included; confirm vehicle-specific mounting hardware and adapter requirements separately.
