Rockford Fosgate T1000-4AD 4-Channel Car Amplifier

The Rockford Fosgate Power T1000-4AD is a full-range four-channel car amplifier designed for systems that need substantial power for speakers, component sets, or a mixed speaker-and-subwoofer layout. It provides 1,000 watts RMS total output and supports multiple impedance configurations. Its four channels can be used independently or bridged into two higher-power channels.

This amplifier suits enthusiasts upgrading factory or aftermarket audio systems where high-output door speakers, separates, or multi-zone audio need dedicated amplification. A 2-channel/4-channel input switch supports installations using either two or four RCA signal channels from the source unit. RCA pass-through outputs can also help route signal to an additional amplifier.

Rockford Fosgate's Constant Power design is rated at 250 watts RMS per channel at 4, 2, or 1 ohm. When configured in bridged mode, it delivers 500 watts RMS per pair at 4 or 2 ohms. This flexibility allows system designers to match the amplifier to a wide range of compatible speaker loads.

The Class-AD topology combines a full-range design with efficient operation, while dynamic switching frequency control is intended to support clean audio reproduction. Differential balanced RCA inputs help reduce noise susceptibility in a vehicle environment. Variable Punch EQ provides bass and treble adjustment, and selectable high-pass or low-pass crossovers support speaker protection and system tuning.

The T1000-4AD is intended for a properly planned vehicle electrical system, with 4 AWG power and ground wiring plus an external 150-amp fuse. Its compact chassis can be mounted in a trunk, cargo area, or other ventilated location with adequate clearance. It is a strong fit as the main amplifier in a high-powered full-range system or as part of a larger multi-amplifier build.

Key Features

• Four-Channel Output: Powers four speakers independently or two bridged channel pairs.
• Constant Power Circuitry: Maintains its rated 250-watt-per-channel output across 1-, 2-, and 4-ohm stereo loads.
• Class-AD Topology: Delivers full-range amplification with efficient operation for demanding vehicle audio systems.
• 24 dB/Octave Crossovers: Adjustable high-pass and low-pass filters help match output to speakers or subwoofers.
• Differential RCA Inputs: Balanced input design helps reject noise introduced through vehicle signal wiring.
• Variable Punch EQ: Provides adjustable bass and treble shaping for front and rear channel sections.

Design & Installation

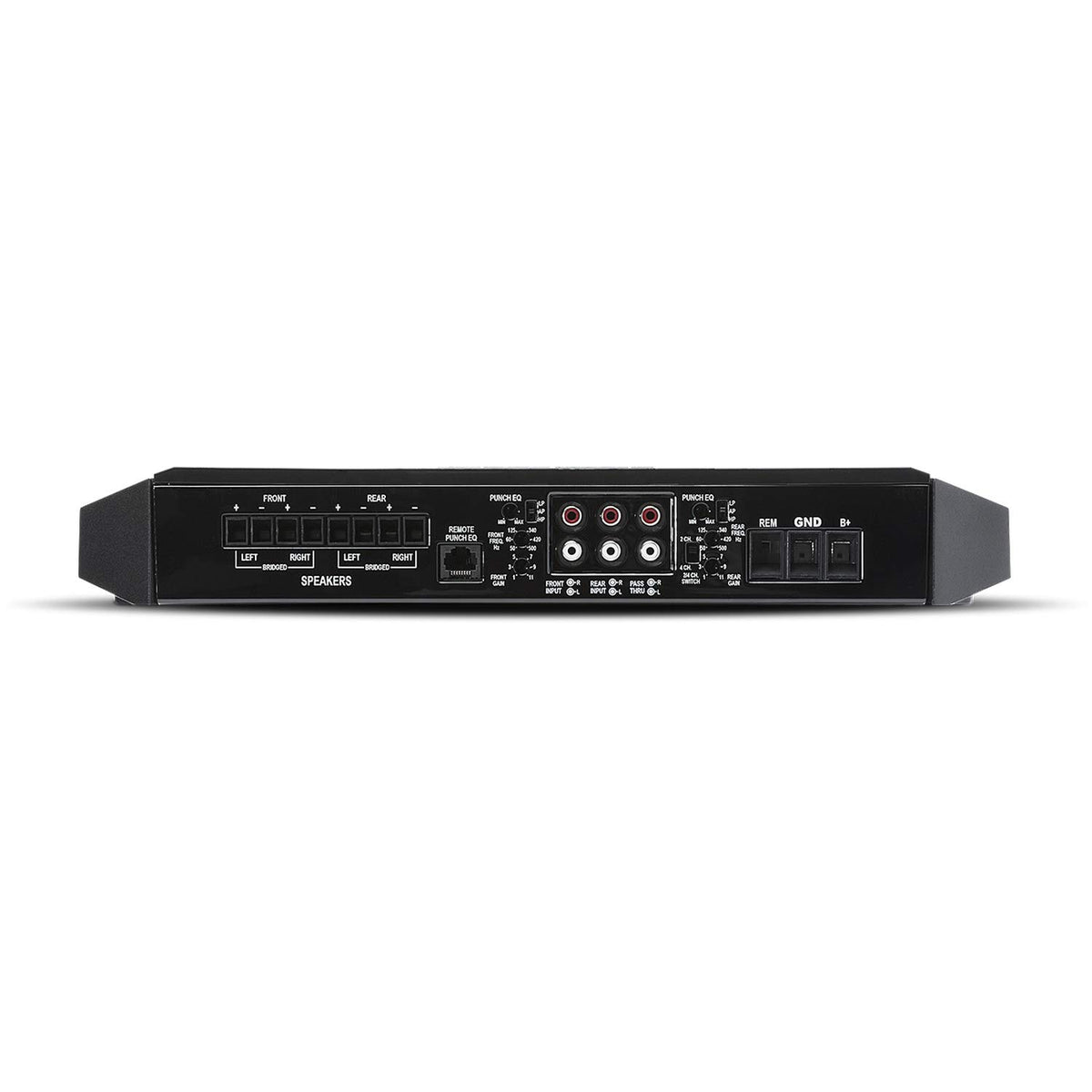

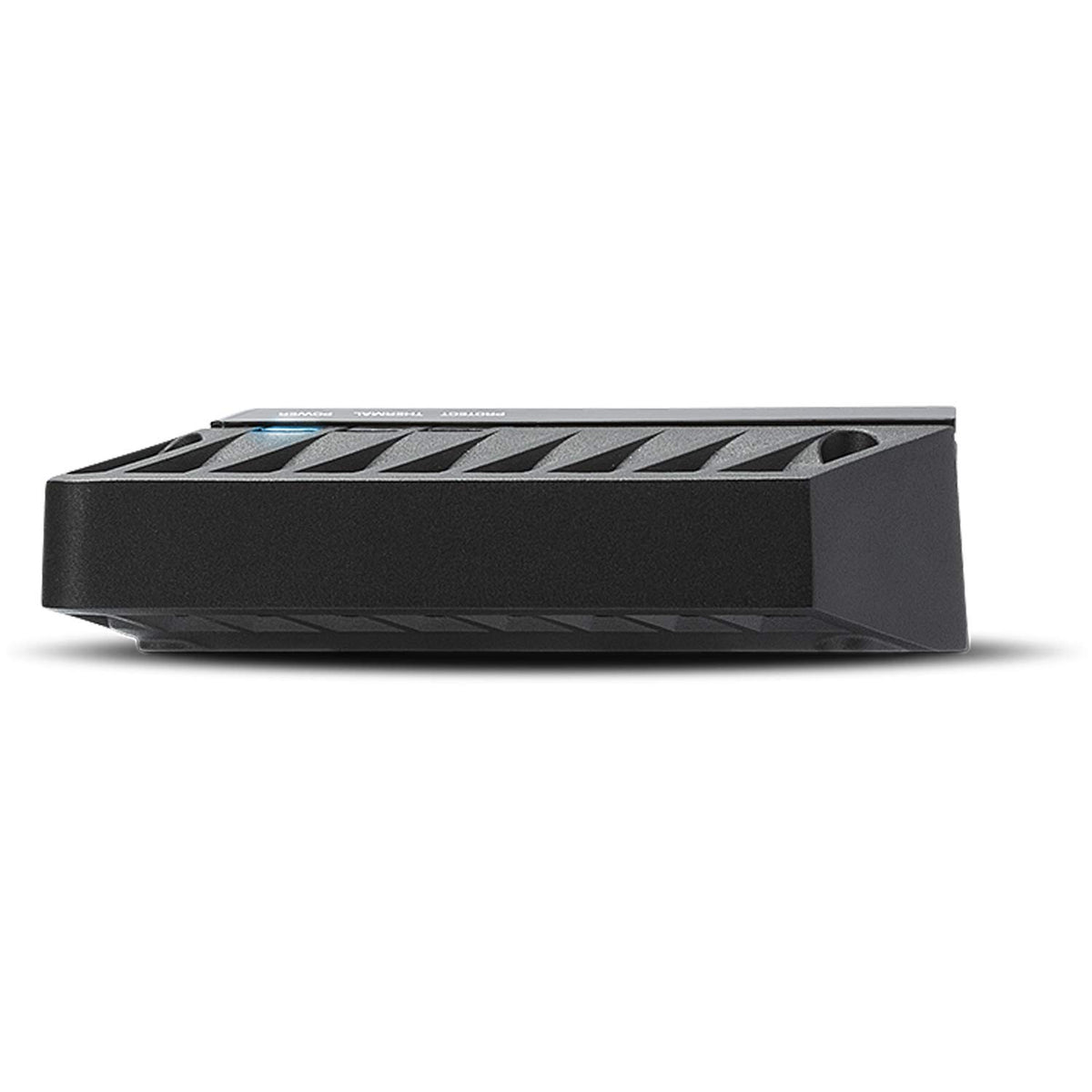

The T1000-4AD uses a MOSFET power supply and MOSFET output stage in a cast-aluminum heatsink chassis. It is cooled by convection and includes blue power, red thermal, and yellow protect status indicators. Audiophile-grade speaker connections and block-style power and speaker terminals support secure system wiring.

Use 4 AWG power and ground wiring, install the required external 150-amp fuse, and provide sufficient ventilation around the amplifier. Connect source-unit RCA outputs to the front and rear input pairs, then select 2-channel or 4-channel input operation as needed. Set gain, crossover, and Punch EQ controls conservatively during initial setup, and use compatible speaker loads for stereo or bridged operation.
