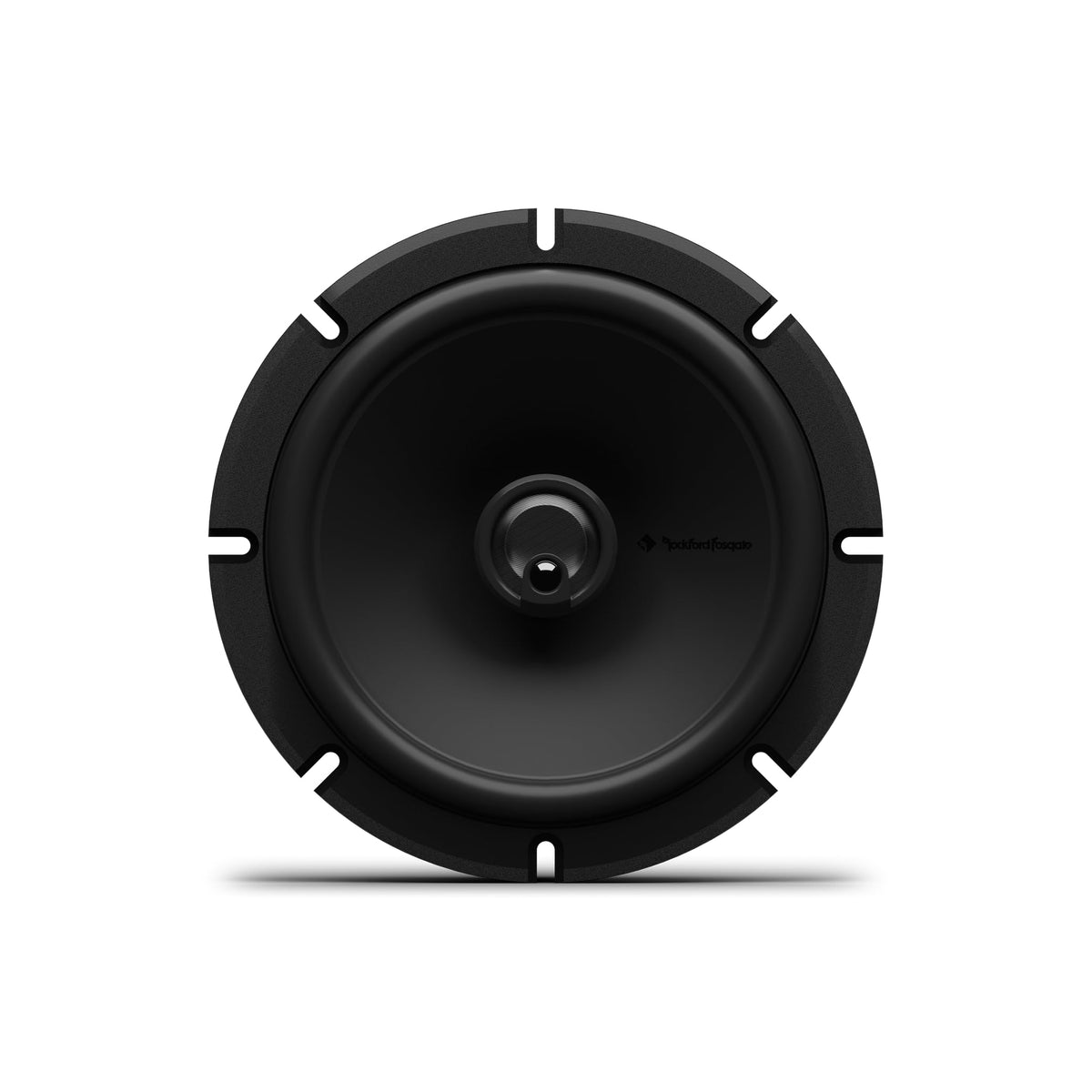

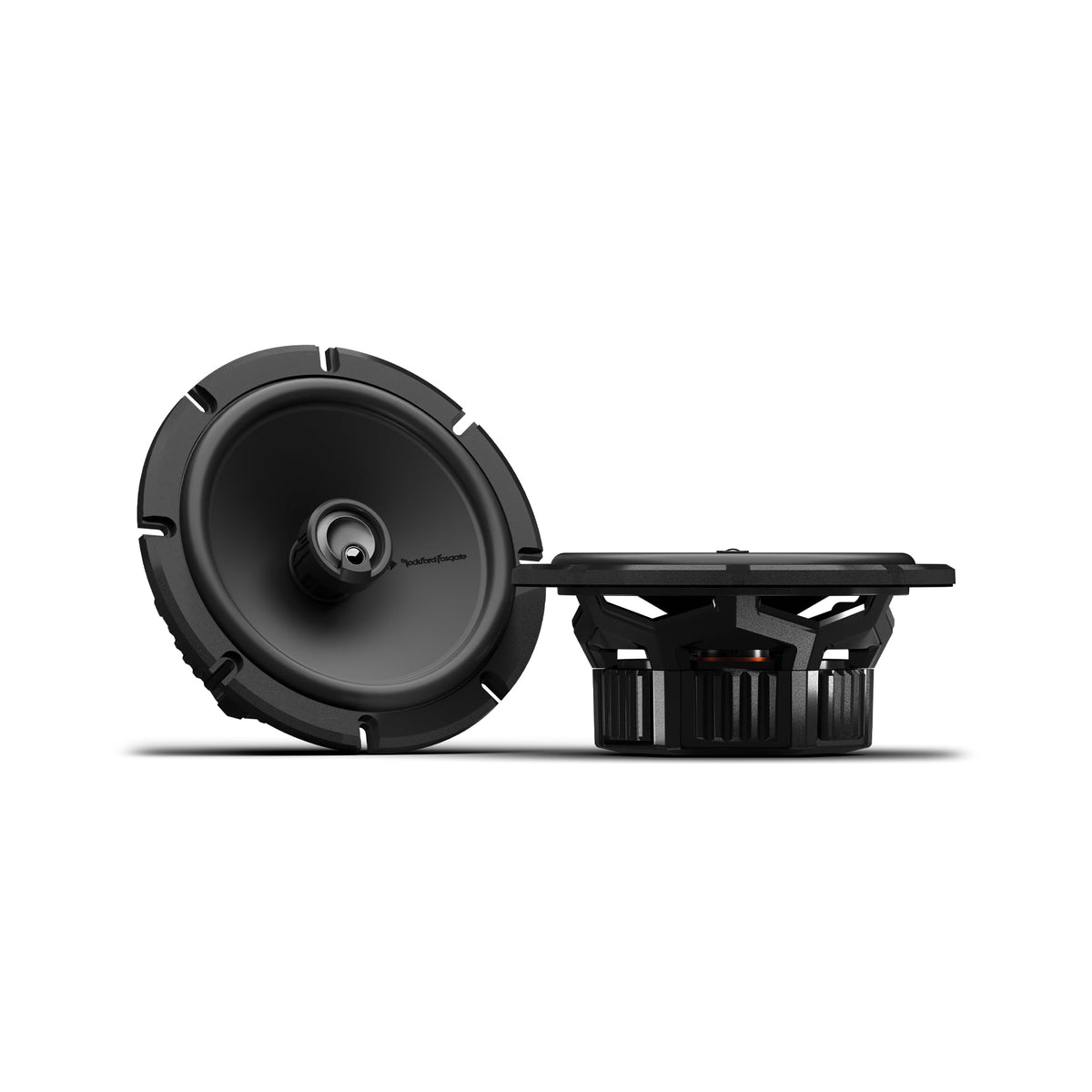

Rockford Fosgate P1V2-6 6-Inch 3-Way Coaxial Speakers

The Rockford Fosgate P1V2-6 is a pair of 6-inch, 4-ohm, 3-way coaxial car speakers designed to replace factory full-range speakers in compatible door or rear-deck locations. Each speaker combines a woofer, dome tweeter, and piezo super tweeter in one assembly. This makes them a practical option for upgrading basic OEM systems that use a single speaker location.

Rated for 75 watts RMS and 150 watts peak per speaker, the P1V2-6 is suited to either a compatible factory radio or an aftermarket amplifier matched appropriately to its power handling. Its 53 Hz to 25 kHz frequency response covers midbass, midrange, and upper-frequency detail. The 4-ohm nominal impedance is common in aftermarket car-audio applications.

The speaker uses a mica-reinforced polypropylene cone with a Santoprene rubber surround to support controlled cone movement. A 3/4-inch Tetolon inverted-dome tweeter handles high frequencies, while a 3/8-inch polypropylene piezo super tweeter extends the upper range. This three-way arrangement is intended to add treble detail to systems replacing factory single-cone drivers.

Rockford Fosgate specifies a 1-inch voice coil, ferrite magnet, and a tweeter high-pass crossover at 9 kHz with a 6 dB-per-octave slope. Sensitivity is rated at 88 dB at 1 watt/1 meter, or 91 dB at 2.83 volts/1 meter. The speakers are CTA-2031 compliant for reported performance and physical specifications.

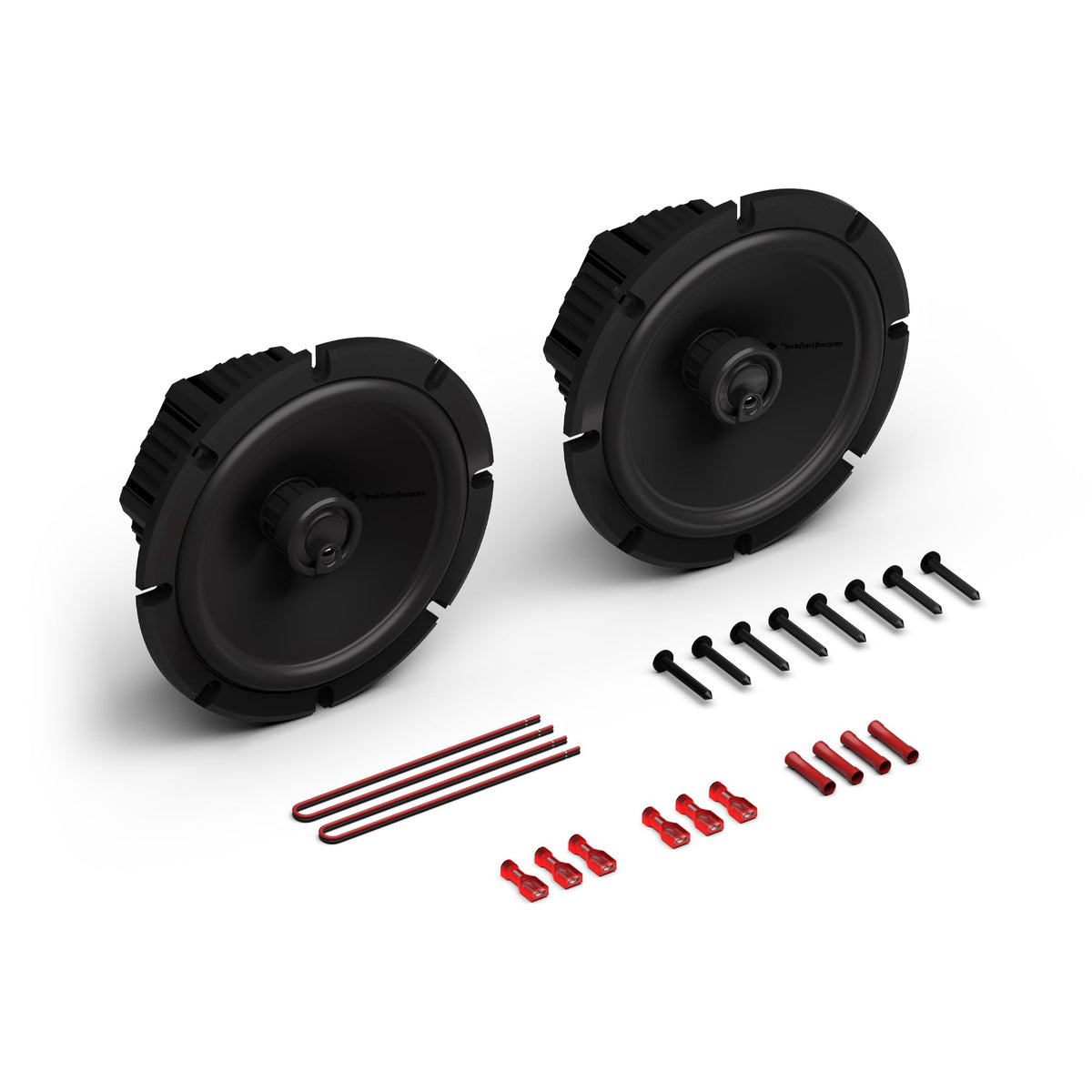

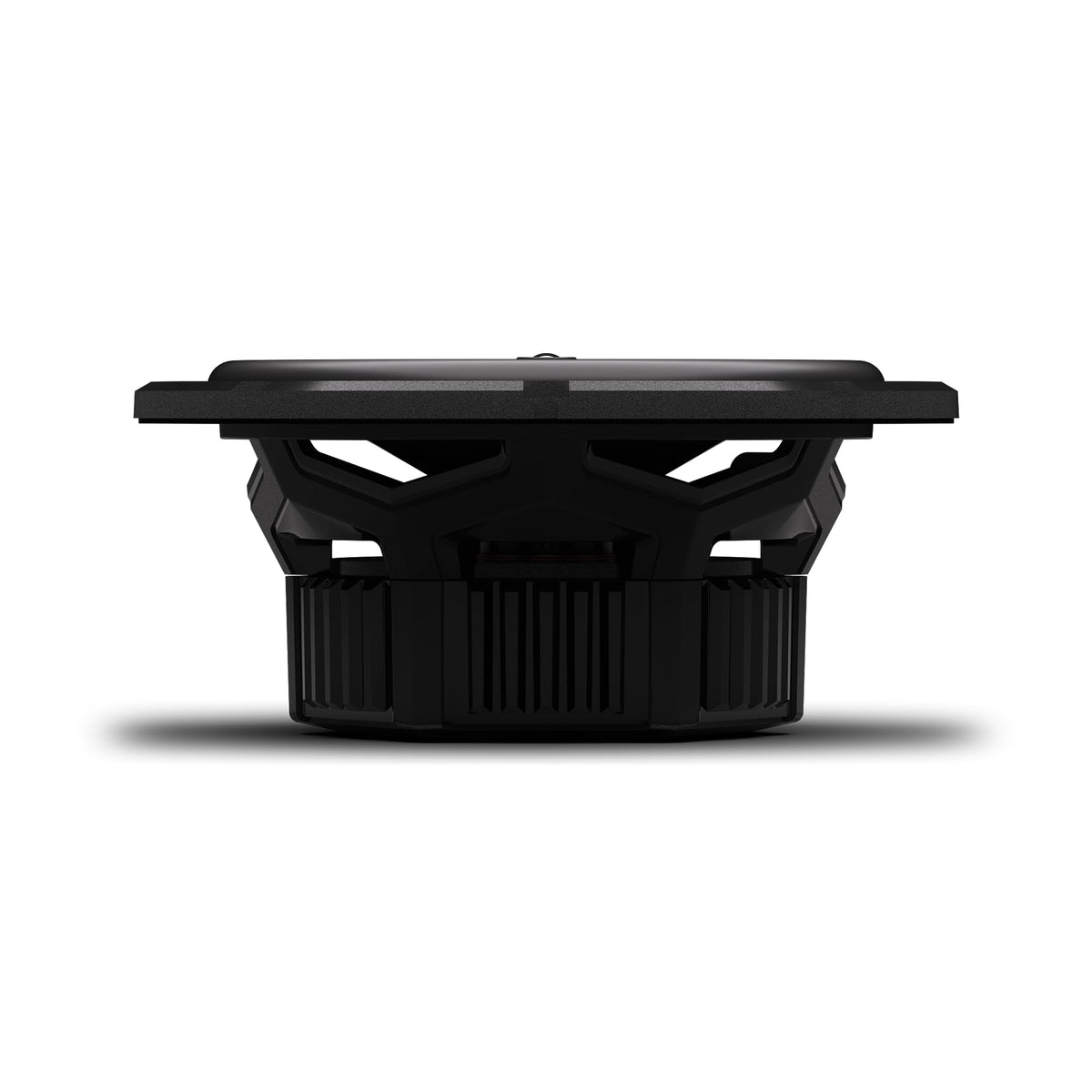

For installation planning, each P1V2-6 requires a 5-inch cutout and has a 2.38-inch standard-flange mounting depth. The removable motor cover reduces the minimum mounting-depth requirement to 2.14 inches where clearance is limited. The package includes two speakers, installation hardware, wiring pieces, crimp connectors, and a cutout template; grilles are not included.

Key Features

• 3-Way Coaxial Design: Combines woofer, dome tweeter, and piezo super tweeter in each speaker.
• 75W RMS Per Speaker: Supports amplifier matching up to 75 watts RMS per channel.
• Mica-Reinforced Polypropylene Cone: Provides a durable woofer cone for everyday vehicle use.
• Tetolon Inverted-Dome Tweeter: Handles high-frequency reproduction through a 3/4-inch dome.

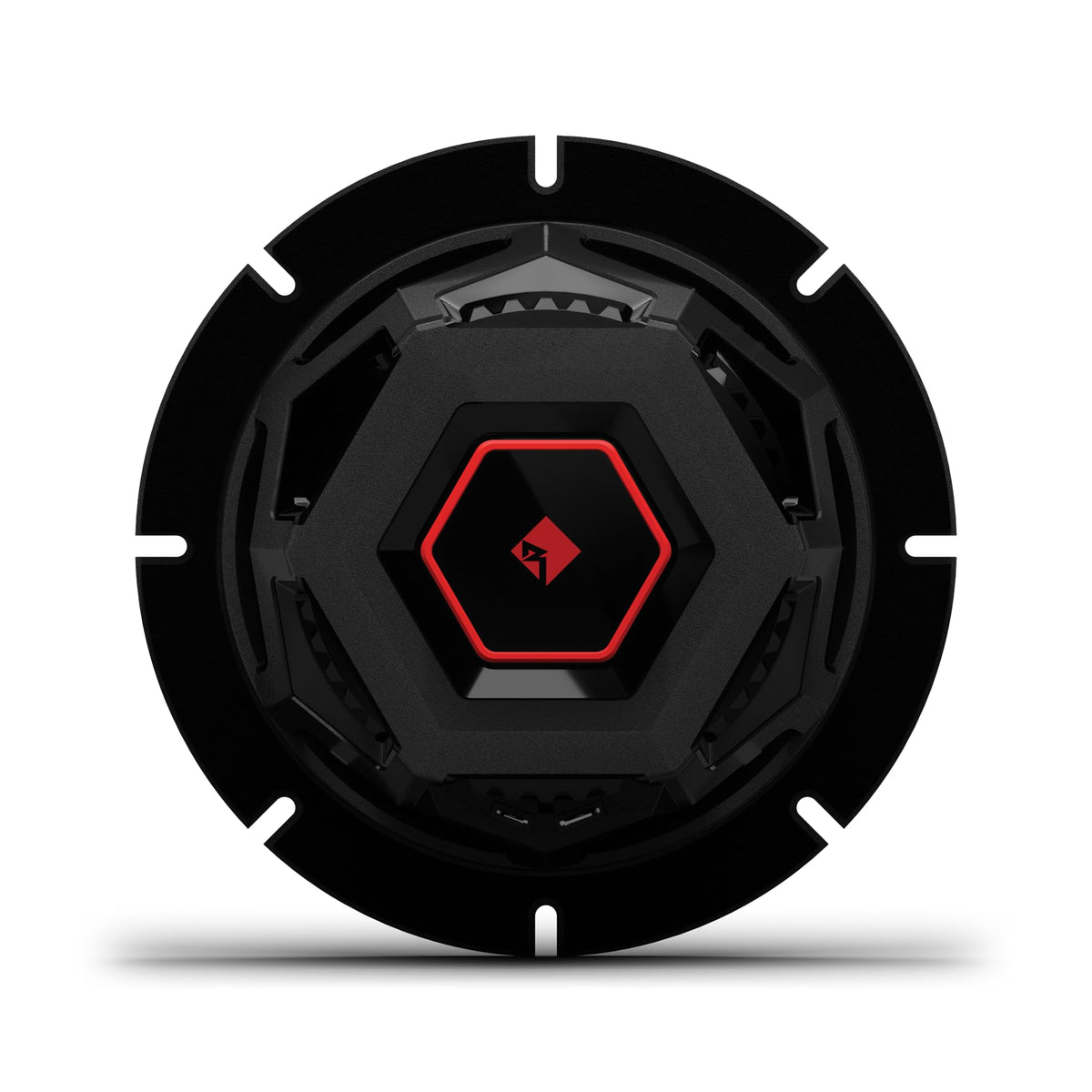

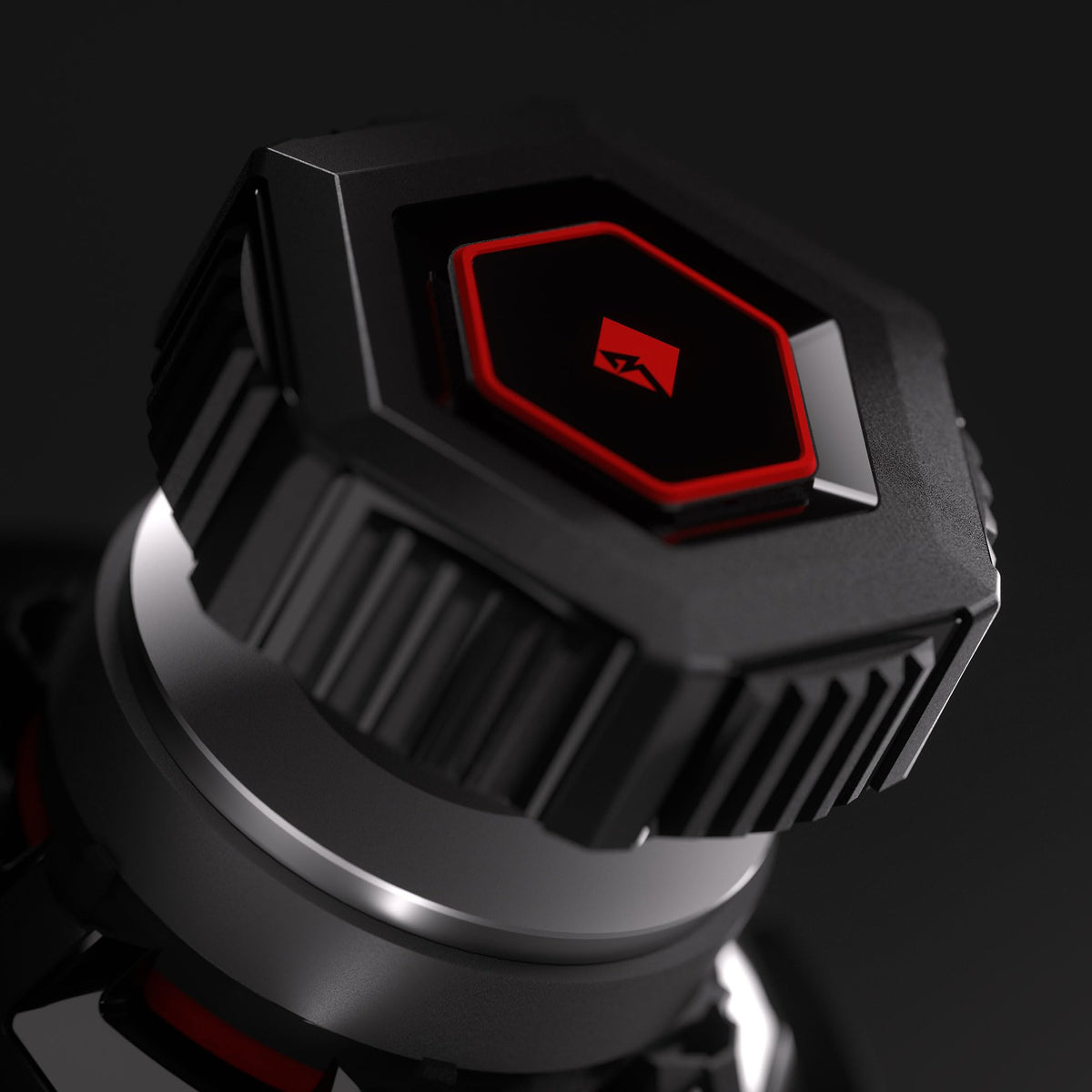

• Removable Motor Cover: Helps reduce required mounting depth in tighter locations.
• 4-Ohm Nominal Impedance: Fits many common aftermarket car-audio speaker applications.

Design & Installation

The P1V2-6 uses a ferrite motor structure, 1-inch voice coil, mica-reinforced polypropylene cone, and Santoprene rubber surround. Its integrated 3-way layout places the 3/4-inch inverted-dome tweeter and 3/8-inch piezo super tweeter over the 6-inch woofer. The removable motor cover is part of the speaker’s fitment-focused design.

Confirm the vehicle’s available cutout, depth, and front-side clearance before purchase. Plan for a 5-inch cutout, 2.38-inch mounting depth with the motor cover installed, and 0.49 inch of front-side clearance; the minimum depth without the motor cover is 2.14 inches. Use the included hardware and observe speaker polarity when connecting to a factory radio or compatible external amplifier.
