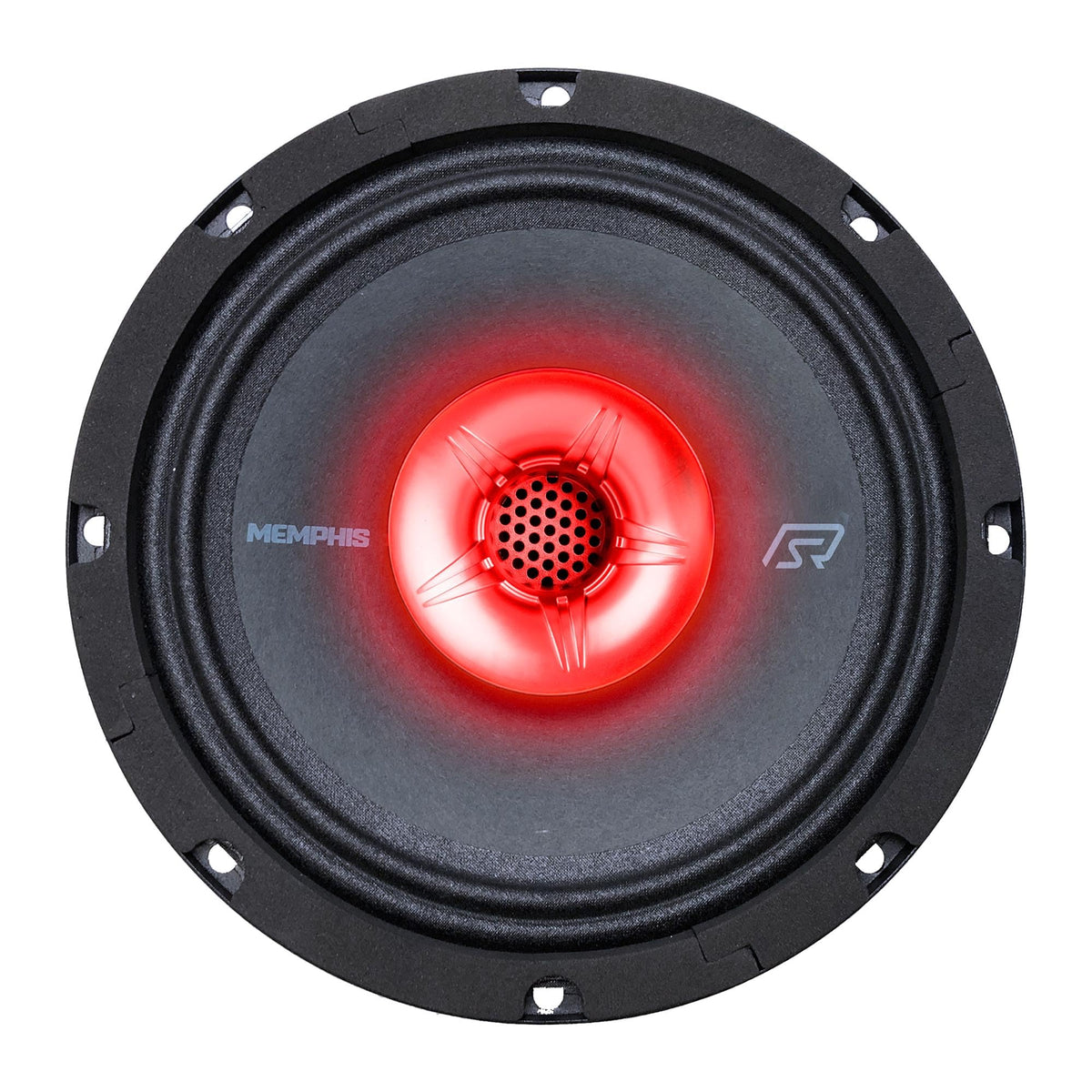

Memphis SRXP82WTV2 8" 2-Way Coaxial Speaker

The Memphis SRXP82WTV2 is an 8-inch, 2-way coaxial car speaker sold individually. It combines a midrange woofer and horn-loaded tweeter in one assembly for installations that need a compact full-range speaker solution. Its 4-ohm design and 175-watt RMS power rating make it suited to systems built around dedicated aftermarket amplification.

This speaker is intended for listeners who want strong output from an 8-inch location without building a separate component set. The coaxial layout places the high-frequency driver at the center of the woofer, helping simplify speaker placement where space is limited. It is a practical option for custom door panels, speaker pods, and other applications designed around an 8-inch driver.

A lightweight paper cone and treated cloth surround form the woofer assembly. The woofer uses a 1.5-inch voice coil to support its rated power handling. With a 95 dB sensitivity rating, the SRXP82WTV2 is designed to produce useful output from the power supplied by a properly matched amplifier.

High frequencies are handled by a 3-inch-deep horn tweeter with a 1-inch diaphragm. An integrated 6 dB Mylar crossover directs the appropriate frequency range to the tweeter within the coaxial assembly. This design concentrates the speaker's midrange and high-frequency reproduction into a single mounting position.

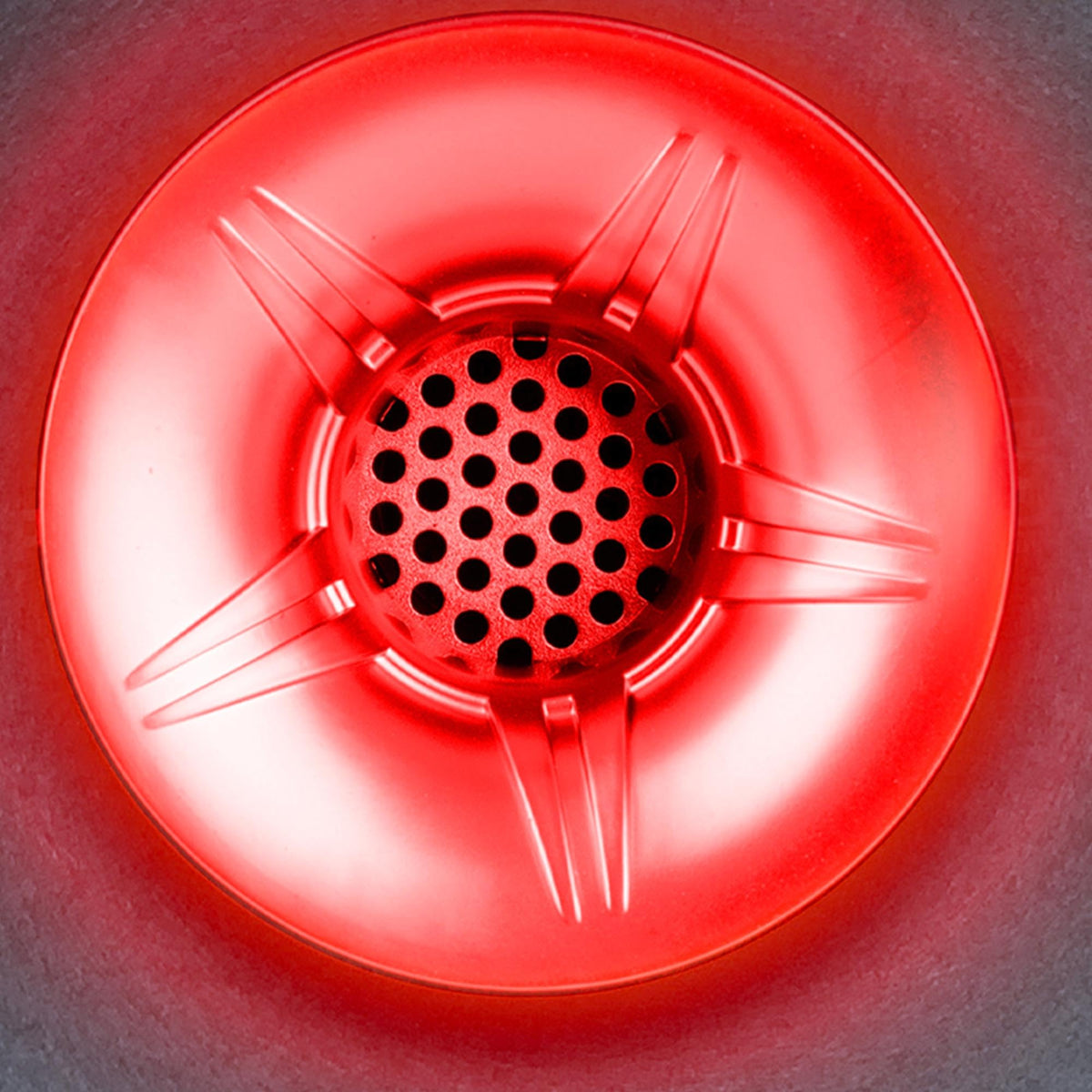

The horn tweeter includes RGB LED illumination for a visible accent in custom installations. A grille is included to help protect the speaker face after installation. Use the SRXP82WTV2 as a single replacement speaker or combine multiple individually sold units in a larger amplified audio system.

Key Features

• 8-Inch Coaxial Design: Combines woofer and horn tweeter in one speaker assembly.
• 175-Watt RMS Rating: Supports amplifier matching for sustained high-output use.
• 3-Inch Horn Tweeter: Uses a 1-inch diaphragm for high-frequency reproduction.
• RGB LED Illumination: Adds a customizable visual accent at the tweeter.
• 1.5-Inch Voice Coil: Supports the woofer's stated power-handling capability.
• Integrated 6 dB Crossover: Routes high frequencies to the coaxial tweeter.

Design & Installation

The SRXP82WTV2 uses a lightweight paper woofer cone with a treated cloth surround, paired with a horn-loaded center tweeter. Its 25-ounce magnet and 1.5-inch woofer voice coil are part of the speaker's high-output-oriented construction. A grille is included for the front of the speaker.

Confirm that the mounting location accepts an 8-inch speaker and provides at least 3.15 inches of mounting depth. The manufacturer mounting template identifies a 7.0-inch, or 178 mm, mounting-hole pattern for the related 8-inch SR Pro coaxial platform. Match the speaker to a stable 4-ohm amplifier channel with power appropriate for its 175-watt RMS rating, and plan separate wiring and control arrangements for the RGB lighting as needed.
