JBL Club A754 4-Channel Car Amplifier

The JBL Club A754 is a compact four-channel car amplifier designed to add dedicated power to front and rear speakers. It delivers 75 watts RMS to each channel at 4 ohms, giving compatible aftermarket speakers more usable power than a typical factory radio. It is suited to vehicle owners building a balanced speaker upgrade or expanding an existing car audio system.

Its four-channel layout supports several system approaches. Use all four channels for front and rear full-range speakers, bridge the amplifier for two higher-power channels, or configure a three-channel setup for a pair of speakers and a subwoofer. This flexibility helps the amplifier serve as a foundation for systems that may be expanded over time.

The Club A754 uses a Class H amplifier design and Balanced Differential Inputs. JBL specifies this input design to help reduce noise and distortion at higher output levels while improving resistance to line-induced engine noise. Separate variable high-pass and low-pass crossovers for the front and rear channels provide useful control when matching the amplifier to speaker placement and system goals.

Factory-radio integration is supported through speaker-level inputs, while low-level inputs accommodate aftermarket receivers with preamp outputs. Input level controls cover both connection types, allowing the amplifier to be set up for a range of source-unit signal voltages. Full-range preamp outputs also make it possible to pass signal to an additional amplifier without using splitters.

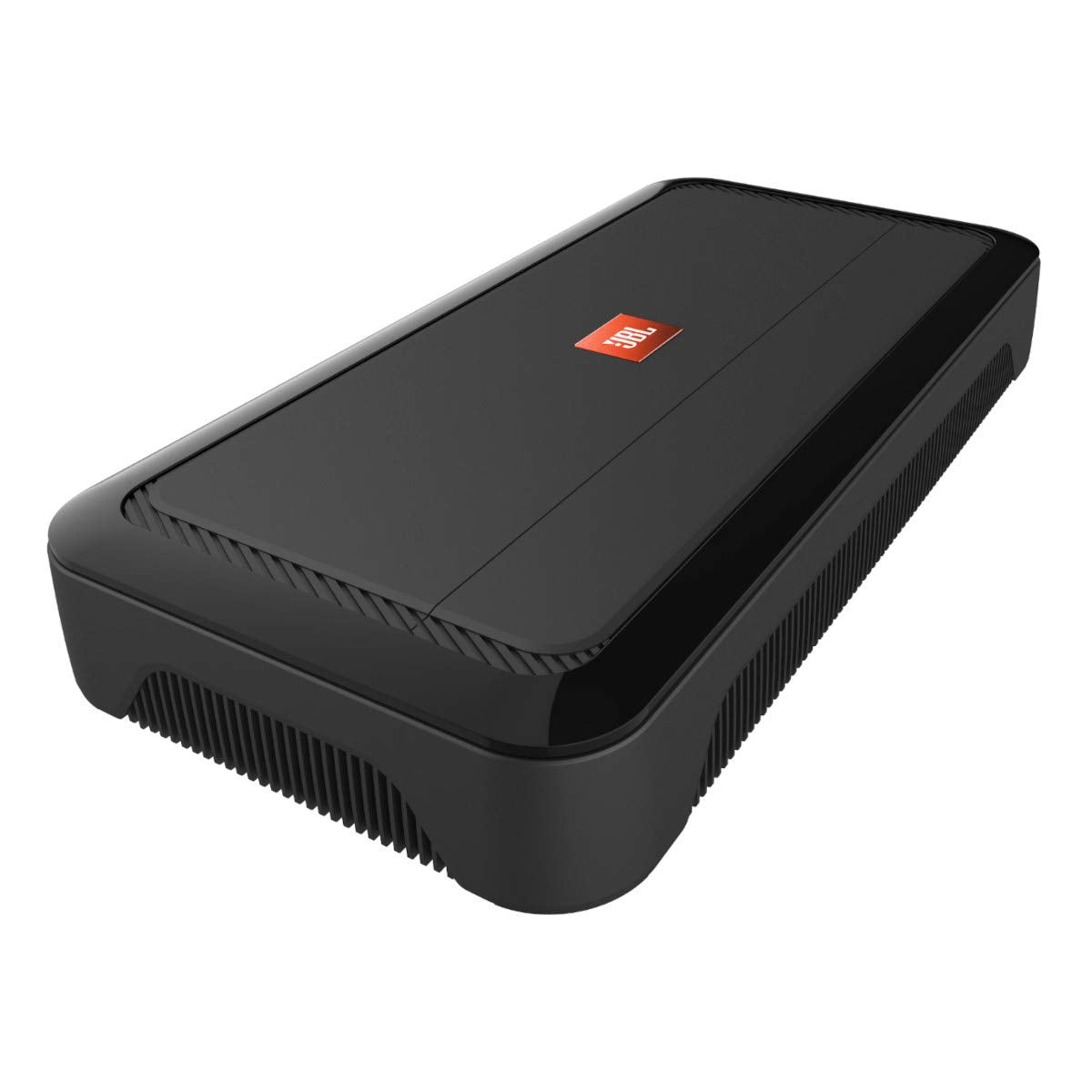

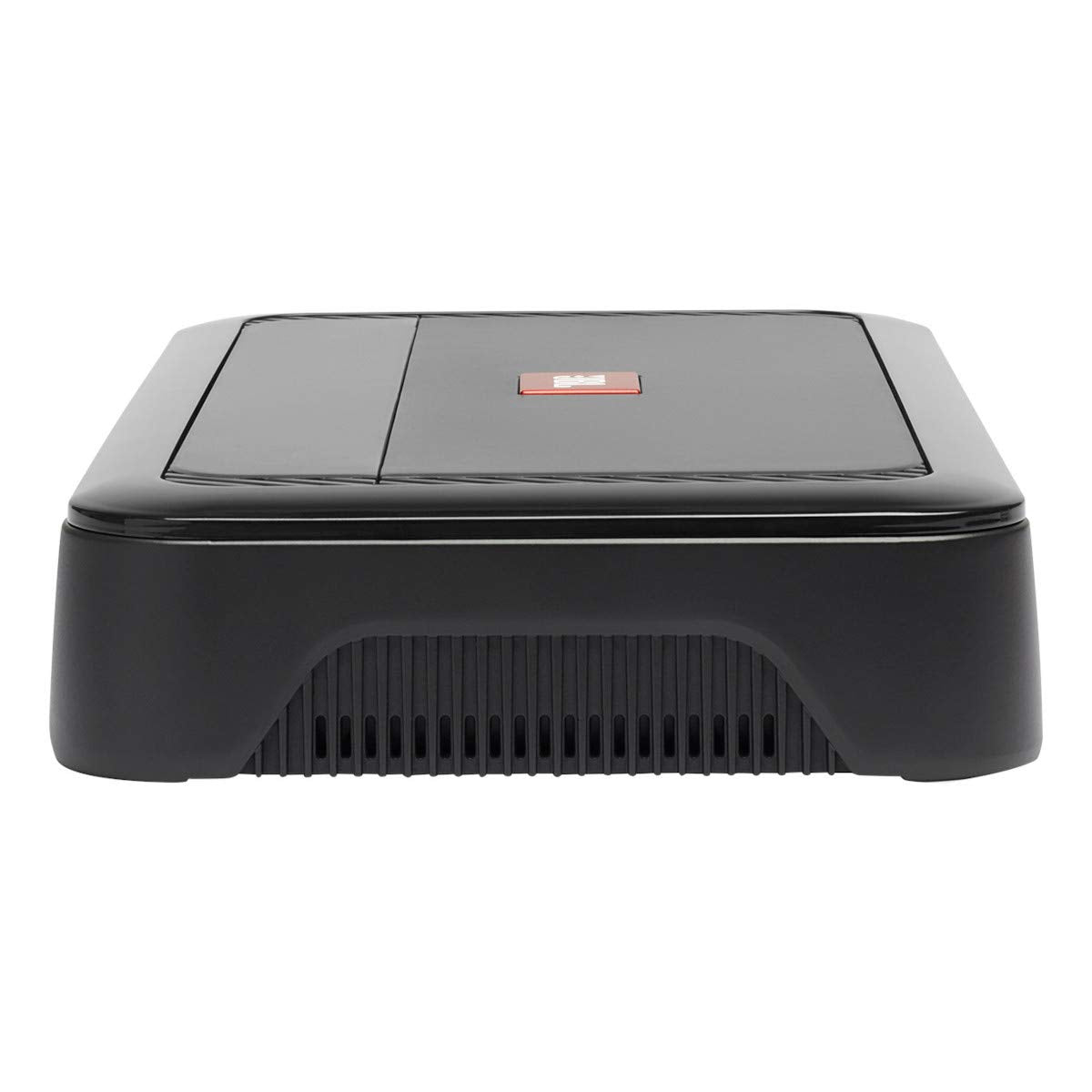

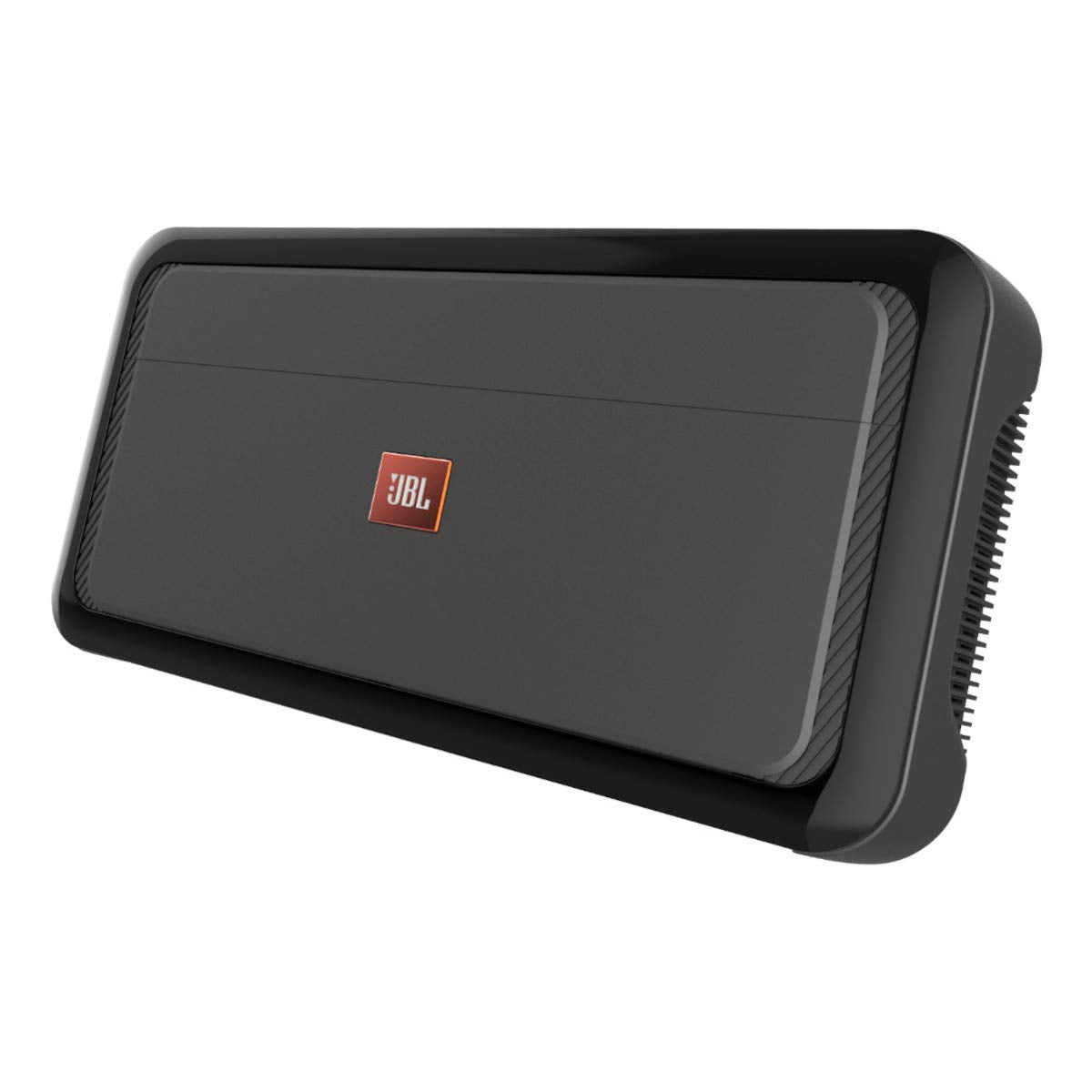

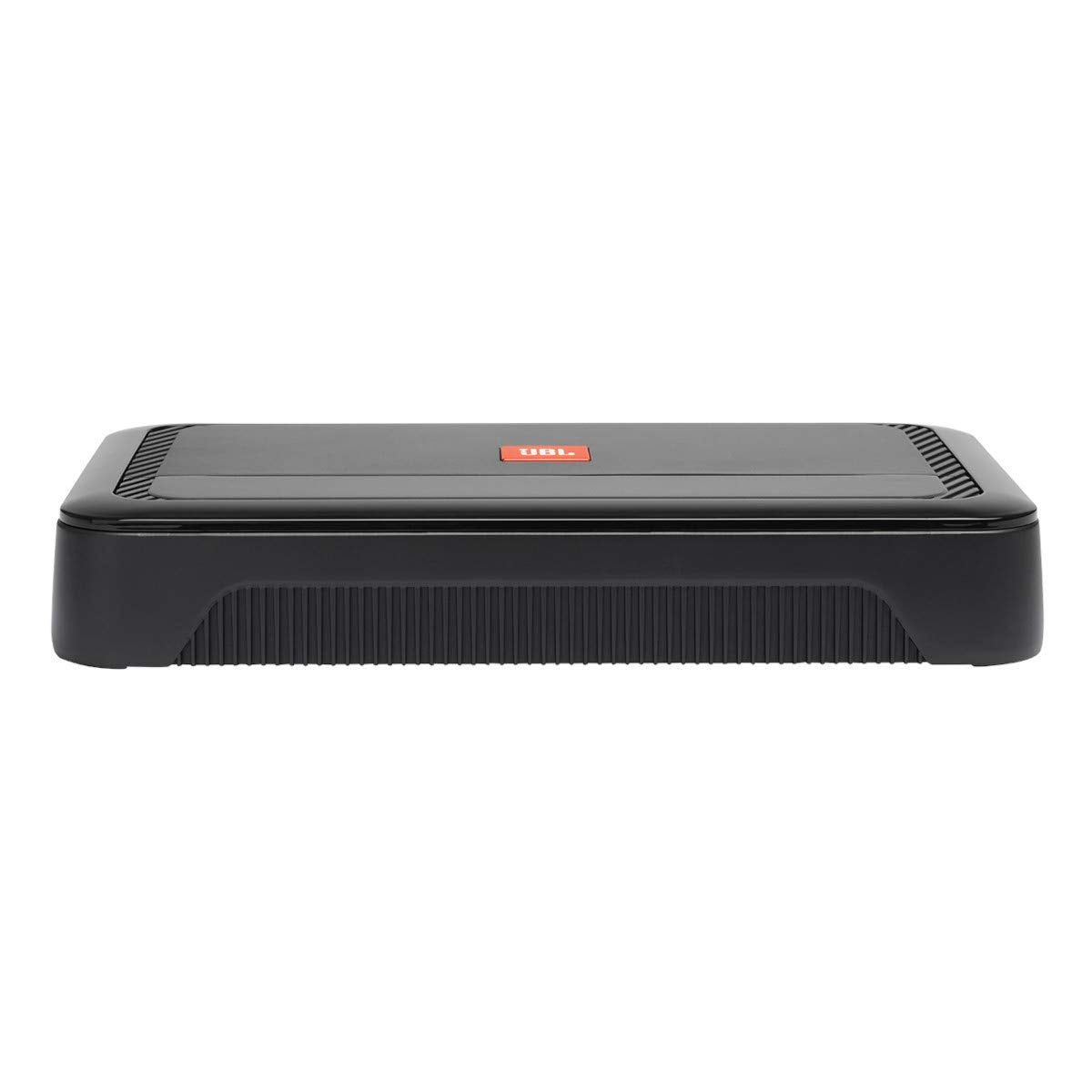

The low-profile chassis measures 12-5/8 inches wide, 2-1/16 inches high, and 7-1/8 inches deep, making it practical for installations where amplifier space is limited. On-board protection circuitry monitors for shorts, high temperature, overvoltage, and undervoltage conditions. A status LED indicates when a protection condition is present.

Key Features

• Four-Channel Output: Powers front and rear speakers from one amplifier.
• 75W RMS Per Channel: Delivers rated power at 4-ohm loads.
• Bridgeable Channels: Supports two-channel or three-channel system layouts.
• Variable Crossovers: Helps tailor frequency range for installed speakers.
• High- And Low-Level Inputs: Works with factory or aftermarket source units.
• Full-Range Preamp Outputs: Allows signal pass-through to another amplifier.

Design & Installation

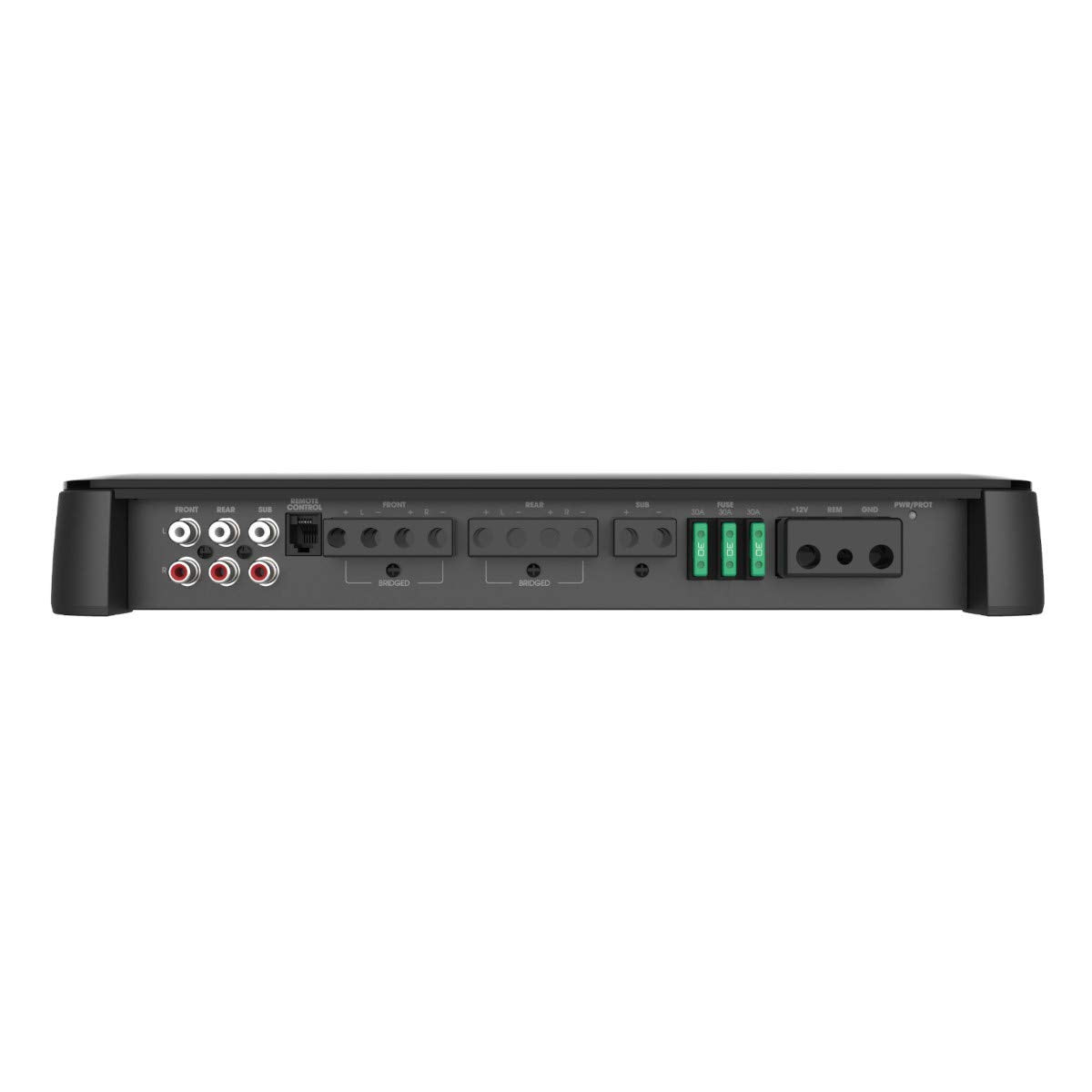

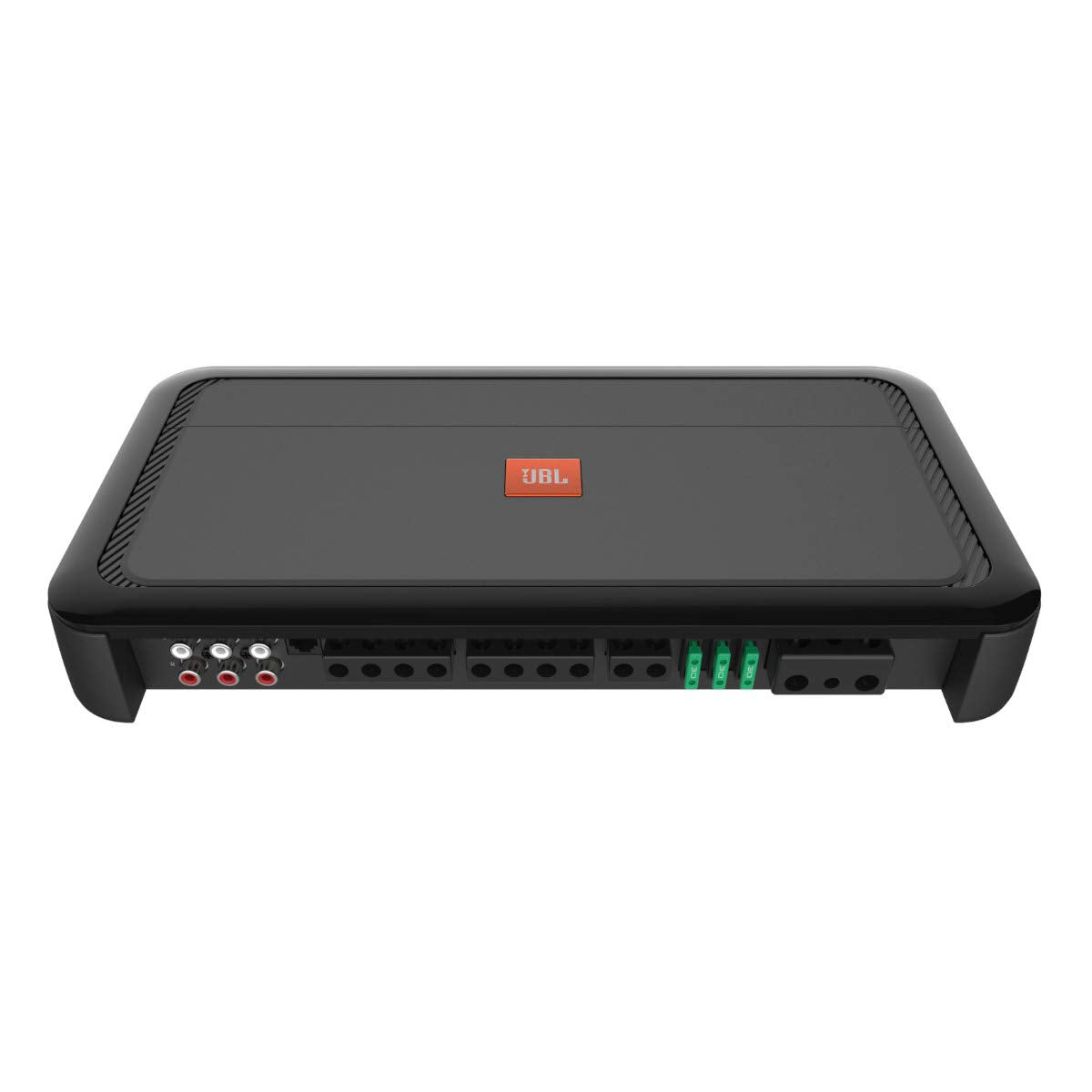

The Club A754 uses a low-profile chassis with a compact overall footprint for vehicle installations with limited mounting space. JBL identifies the design as a Class H amplifier platform and provides a removable trim piece for access to the connector and control panel. The manufacturer does not specify the chassis material in its published product specifications.

For installation, JBL recommends 8-gauge power and ground leads; wiring and installation hardware beyond the included mounting screws are not supplied. The amplifier accepts speaker-level and low-level signal inputs, with bare-wire-to-RCA adapters included for speaker-level connections. Set the front and rear crossover controls and input levels to suit the connected speakers, source unit, and selected four-, three-, or two-channel configuration.
