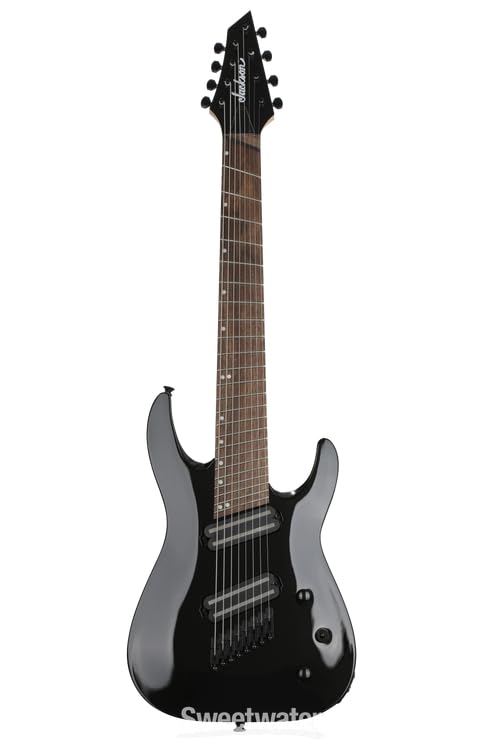

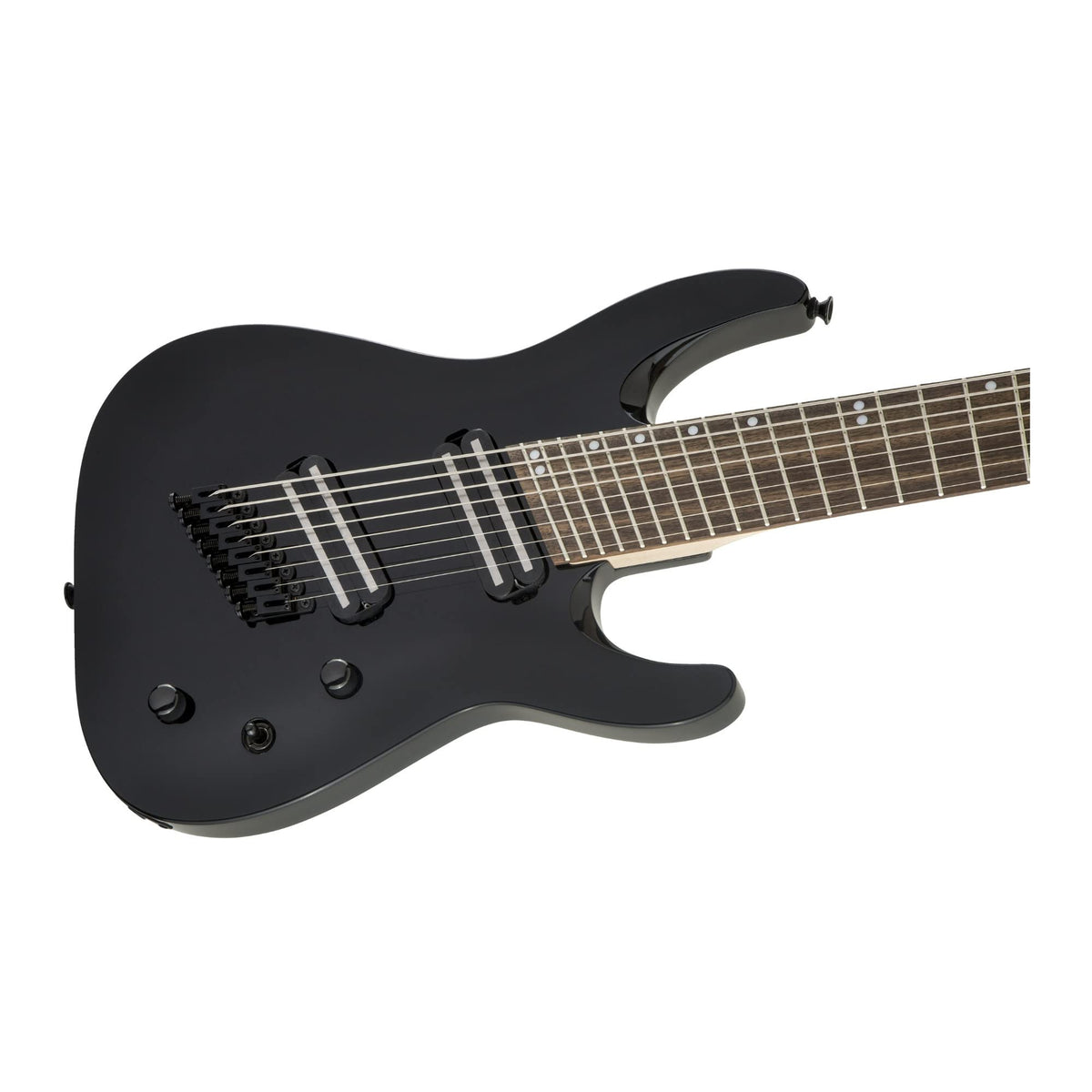

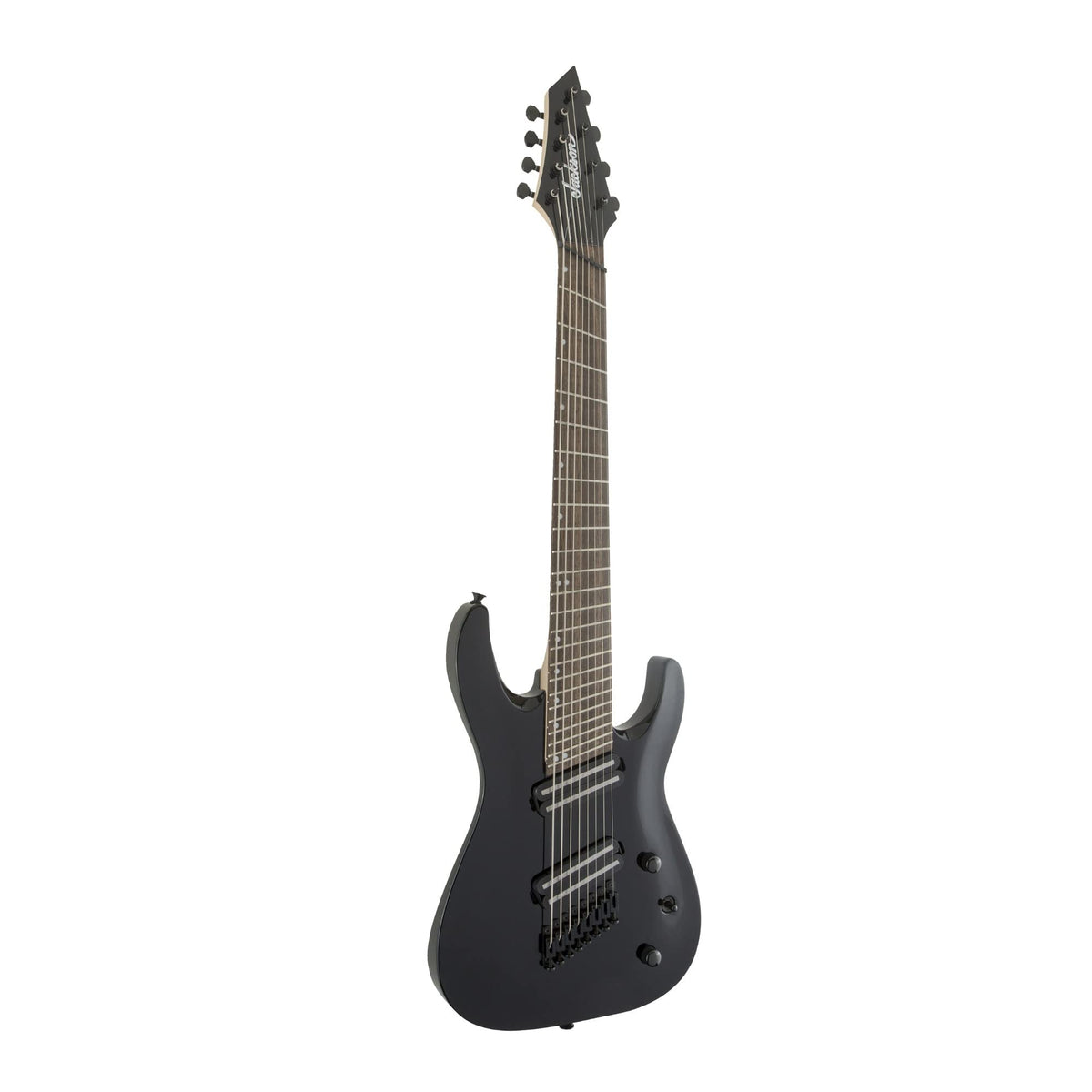

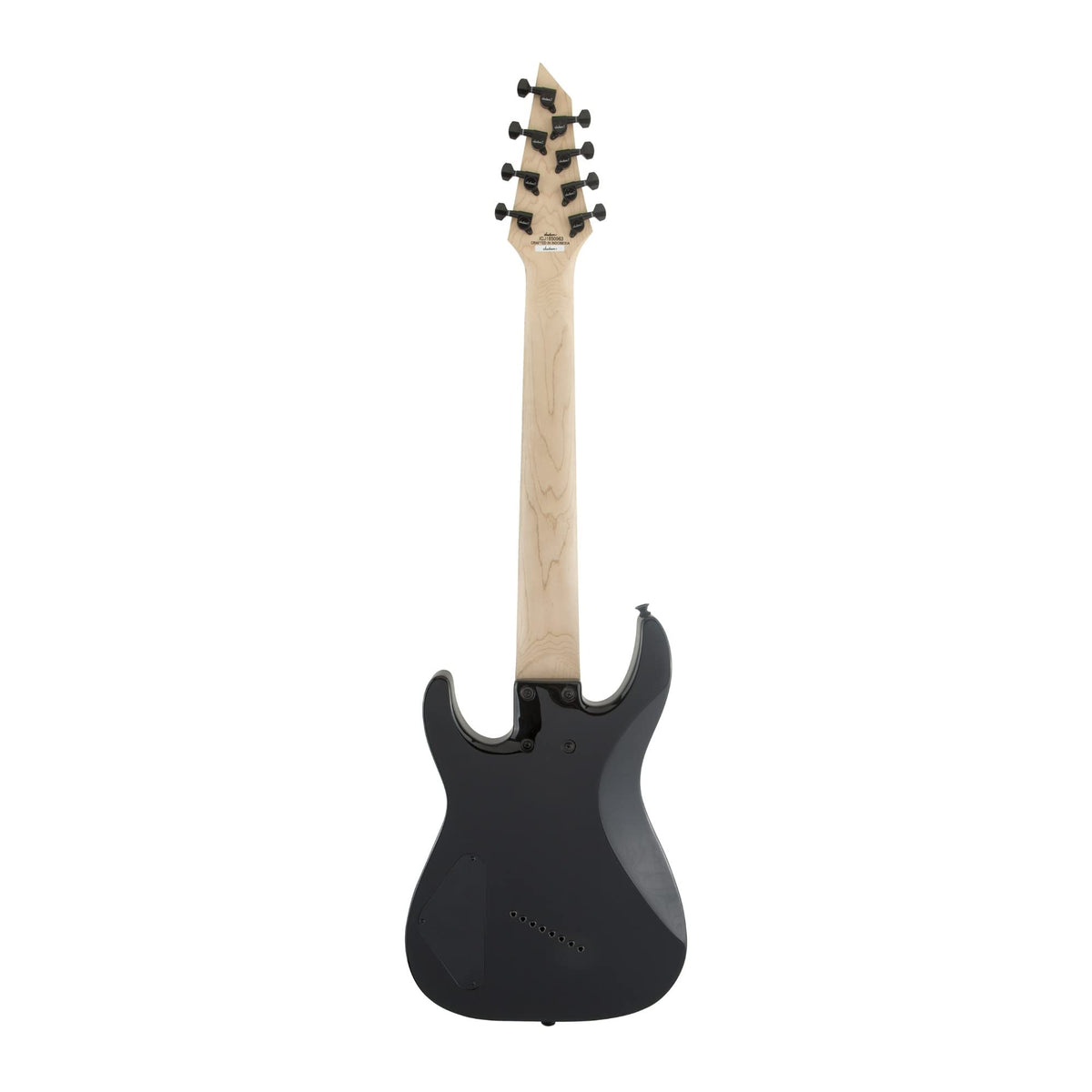

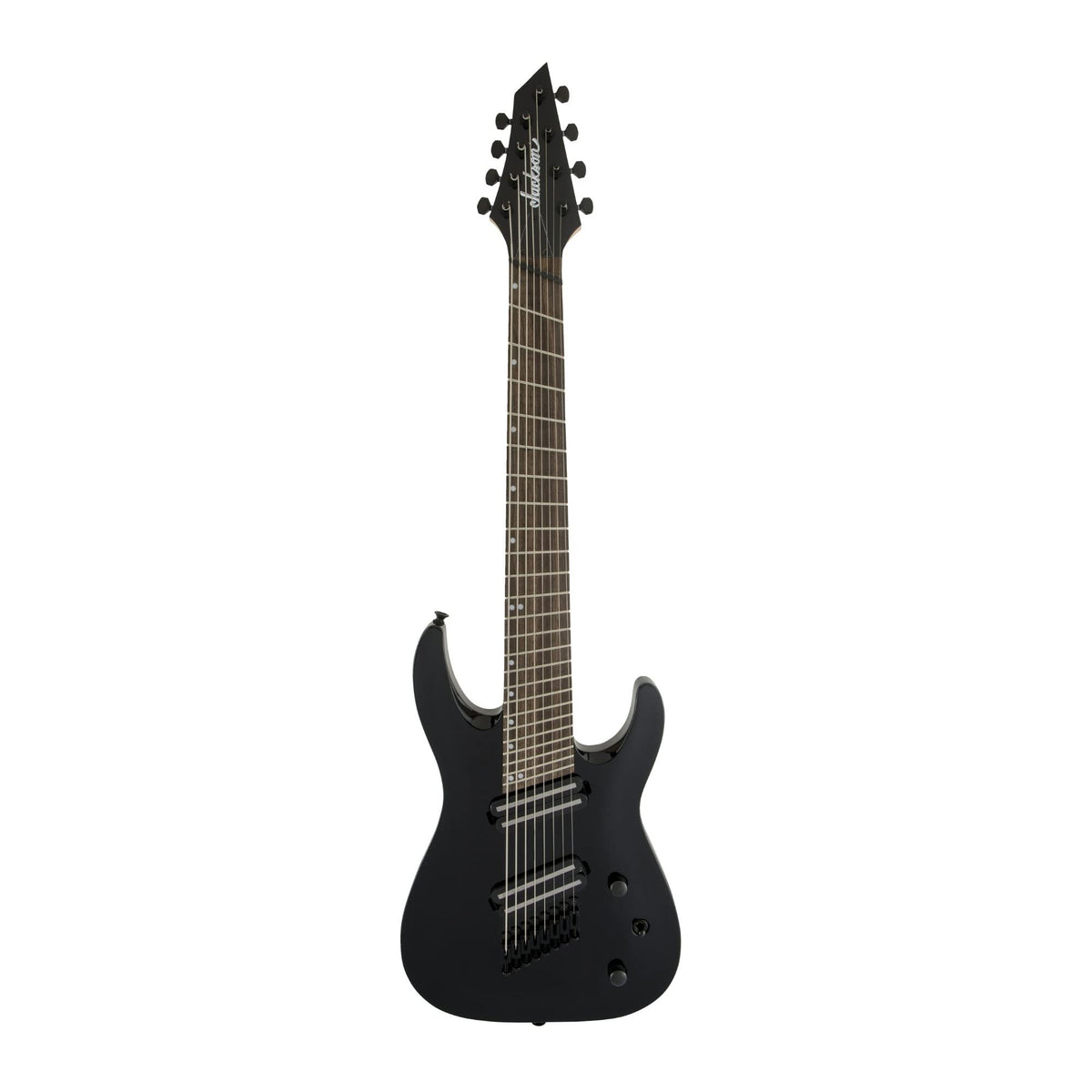

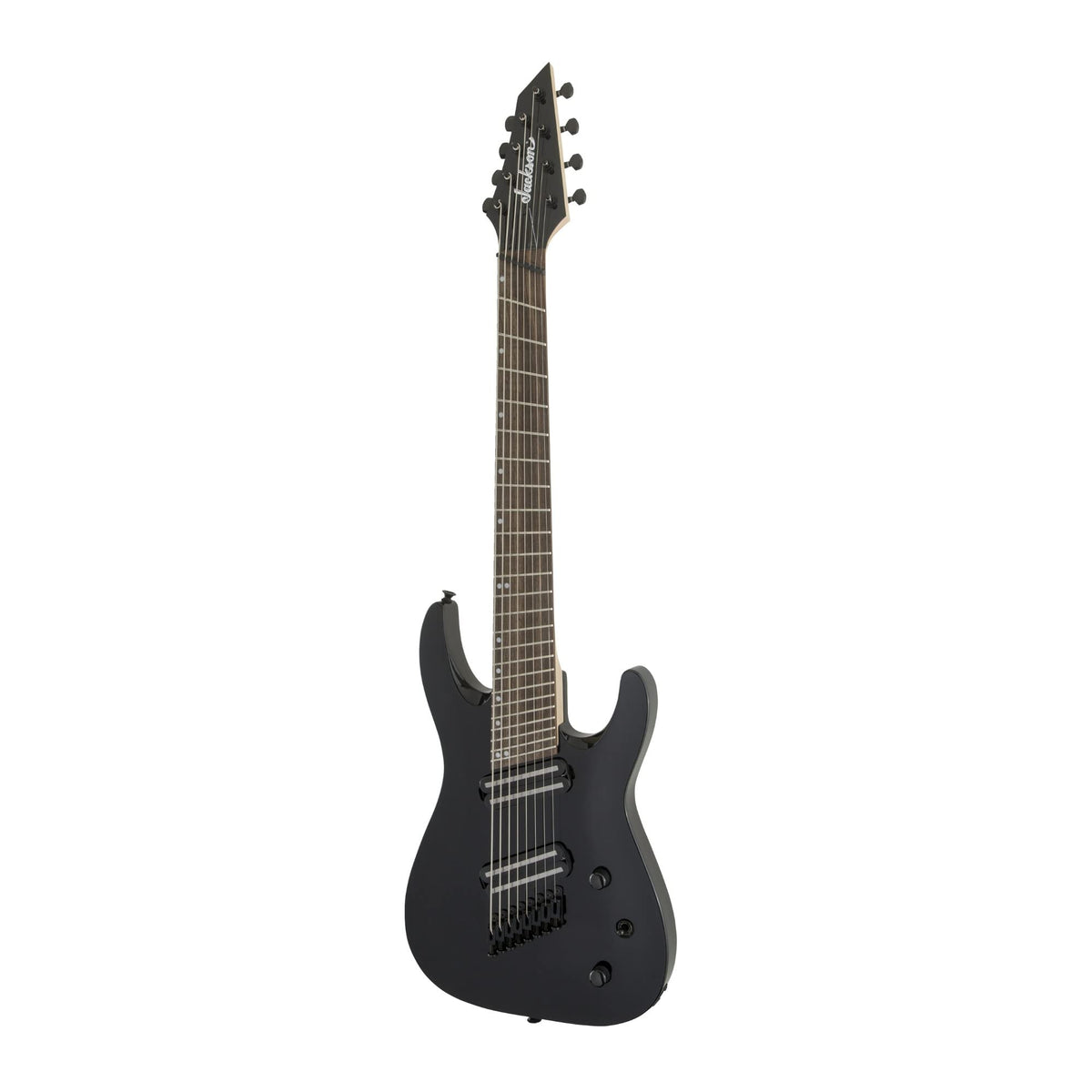

Jackson 2916183503 DKAF8 MS 8-String Electric Guitar

The Jackson X Series Dinky Arch Top DKAF8 MS is an 8-string solidbody electric guitar designed for players who need a wider low-end range without giving up a compact, performance-oriented feel. Its multi-scale layout supports more even string tension across the instrument, helping the lowest strings remain defined for down-tuned and extended-range playing. The Gloss Black finish, Dinky body shape, and black hardware give it a focused, stage-ready presentation.

This guitar is suited to metal, progressive, djent, and other technically demanding styles where low-register clarity and precise intonation matter. The 26-inch to 28-inch multi-scale length uses a shorter treble-side scale and longer bass-side scale to accommodate the eight-string format. That design helps balance feel between the high and low strings while retaining familiar lead-playing access.

A mahogany Dinky body with an arched top provides the foundation, paired with a one-piece maple bolt-on neck. Graphite reinforcement and a scarf joint support neck stability, while the satin neck finish is built for a smooth, non-sticky playing surface. The 12-inch to 16-inch compound-radius laurel fingerboard becomes flatter higher up the neck for fretting chords and navigating lead passages.

Dual Jackson uncovered 8-string blade humbucking pickups provide the guitar's amplified voice. A three-position toggle selects the bridge pickup, both pickups, or the neck pickup, while dedicated volume and tone controls allow straightforward adjustment at the instrument. This HH layout is practical for players using high-gain amps, modelers, pedalboards, or recording interfaces.

Staggered individual bridge saddles are matched to the multi-scale construction and provide individual string support at the bridge. Jackson sealed die-cast tuning machines and the 4x4 AT-1 headstock arrangement complete the fixed-bridge hardware package. The DKAF8 MS can serve as an extended-range addition to an existing guitar rig or as a dedicated instrument for lower tunings and eight-string arrangements.

Key Features

• Eight-String Configuration: Adds lower-register range for extended-range guitar parts and down-tuned music.
• 26-Inch To 28-Inch Multi-Scale: Balances string tension and supports intonation across all eight strings.
• Mahogany Arch-Top Body: Provides a solidbody platform with a compact Dinky profile.
• Graphite-Reinforced Maple Neck: Adds structural support to the bolt-on, scarf-joint neck design.
• Jackson Blade Humbuckers: Delivers an HH pickup configuration with three-position switching.
• Staggered Individual Saddles: Match the multi-scale layout while allowing individual string adjustment.

Design & Installation

The DKAF8 MS uses a gloss-finished mahogany Dinky body, satin-finished maple neck, laurel fingerboard, black plastic nut, and black hardware. Its neck is bolt-on with recessed four-bolt neck-plate screws, graphite reinforcement, and a scarf joint. The fingerboard has 24 jumbo frets, offset pearloid dot inlays, and no neck binding.

As a passive electric guitar, the DKAF8 MS connects to a compatible guitar amplifier, pedalboard, modeler, or recording interface with a standard instrument cable. Its fixed staggered-saddle bridge is intended for eight-string electric-guitar strings; the factory set is nickel-plated steel in .010-.074 gauges. Saddle-height and truss-rod wrenches are included, while the compatible SLAT 7/8 String Gig Bag is optional.
