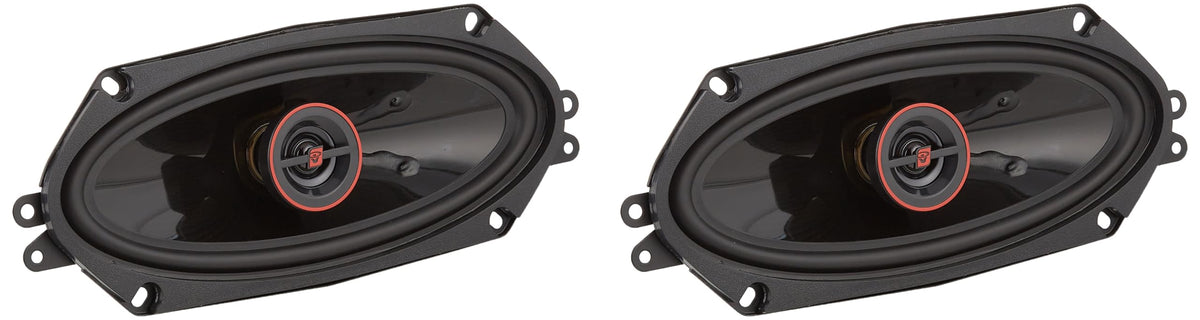

Cerwin-Vega H7410 4x10" 2-Way Coaxial Speakers

The Cerwin-Vega H7410 is a pair of 4x10-inch, 2-way coaxial car speakers designed as a replacement for vehicles using this uncommon factory speaker size. It combines a woofer and tweeter in each speaker for full-range reproduction from a single mounting location. This makes it a practical upgrade for replacing worn or underperforming factory speakers without adding separate component tweeters.

Rated for 50 watts RMS and 320 watts maximum power handling, the H7410 is suited to systems built around a compatible factory radio or aftermarket amplification. Its 4-ohm nominal impedance matches the common load used by many car-audio speaker outputs. The 50 Hz to 20 kHz frequency-response specification supports bass, midrange, and treble reproduction within its intended full-range role.

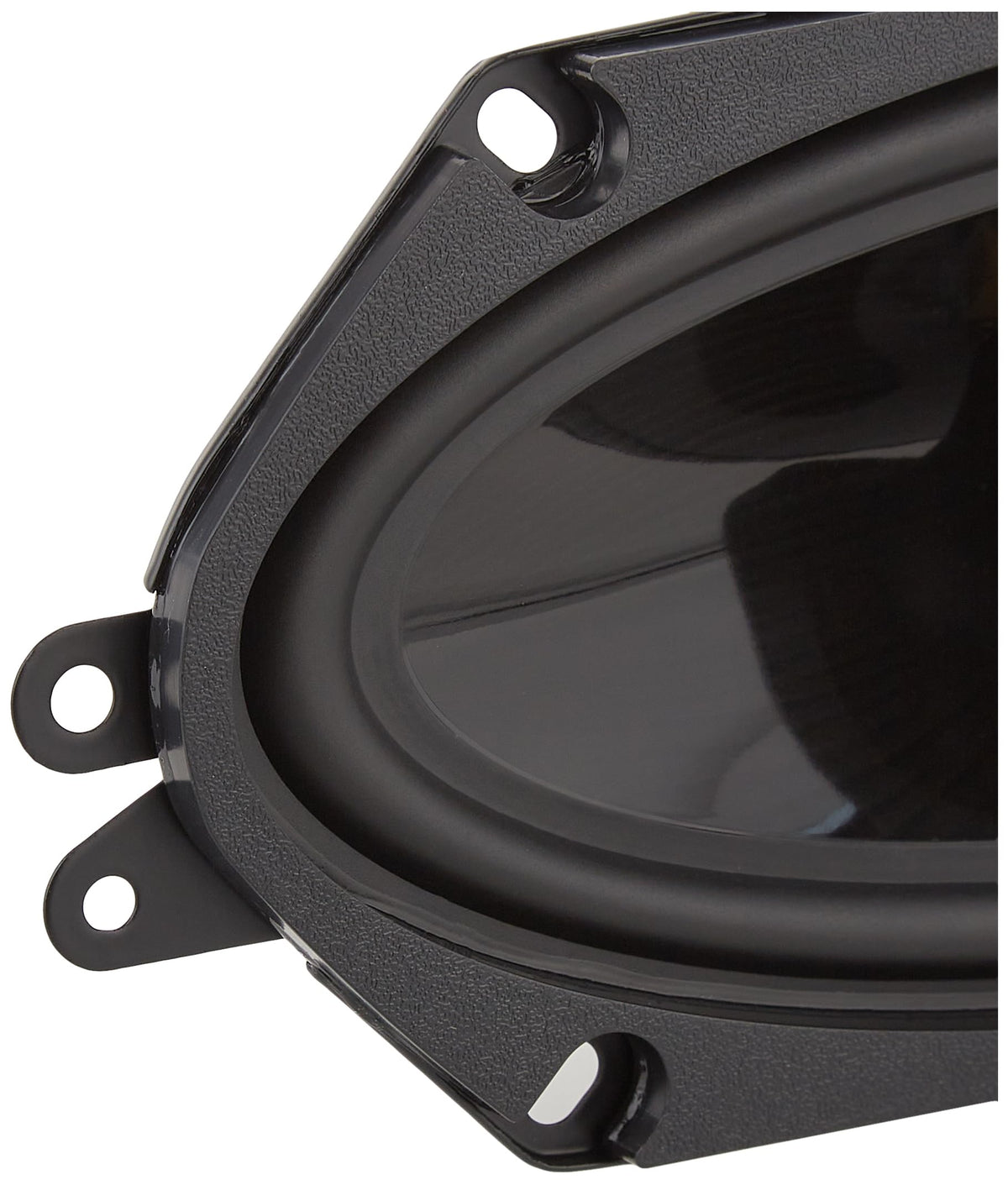

Each H7410 uses a 4x10-inch polypropylene cone with a treated-foam surround, backed by a ferrite ceramic magnet. The coaxial layout also incorporates a 1-inch balanced PEI black polypropylene dome tweeter for high-frequency detail. An internal crossover is included to direct the appropriate frequency ranges within the speaker assembly.

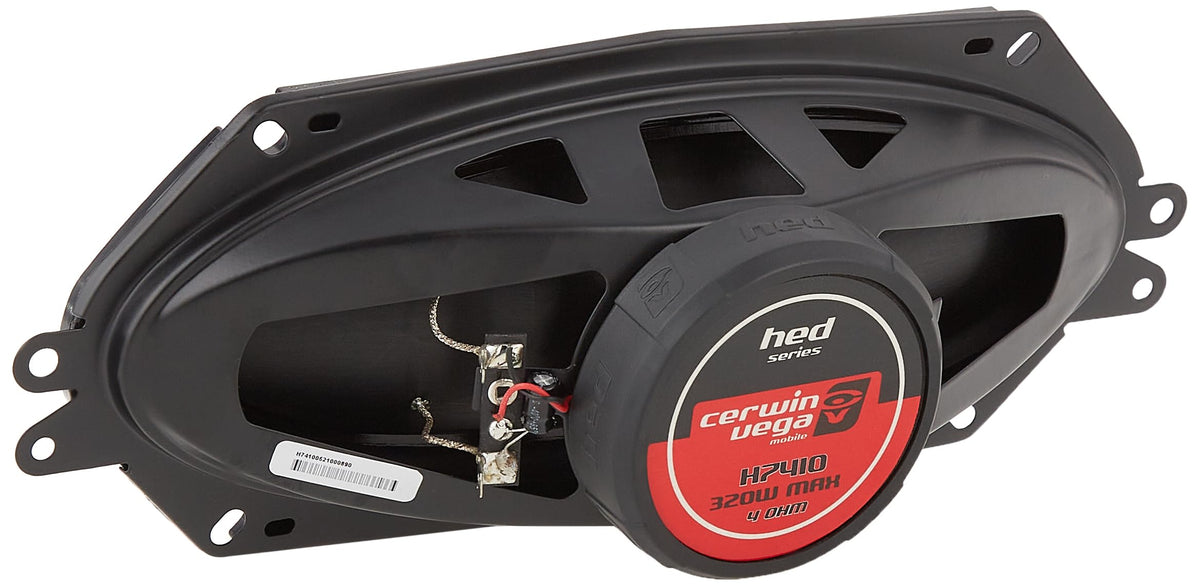

The speaker is built around a stamped-steel vented frame and a graphite-injected reinforced spun cone design. A linear woven treated red spider supports cone movement, while the single 1-inch voice coil is specified for the speaker's power-handling range. These construction details focus on stable mounting and consistent operation in an automotive environment.

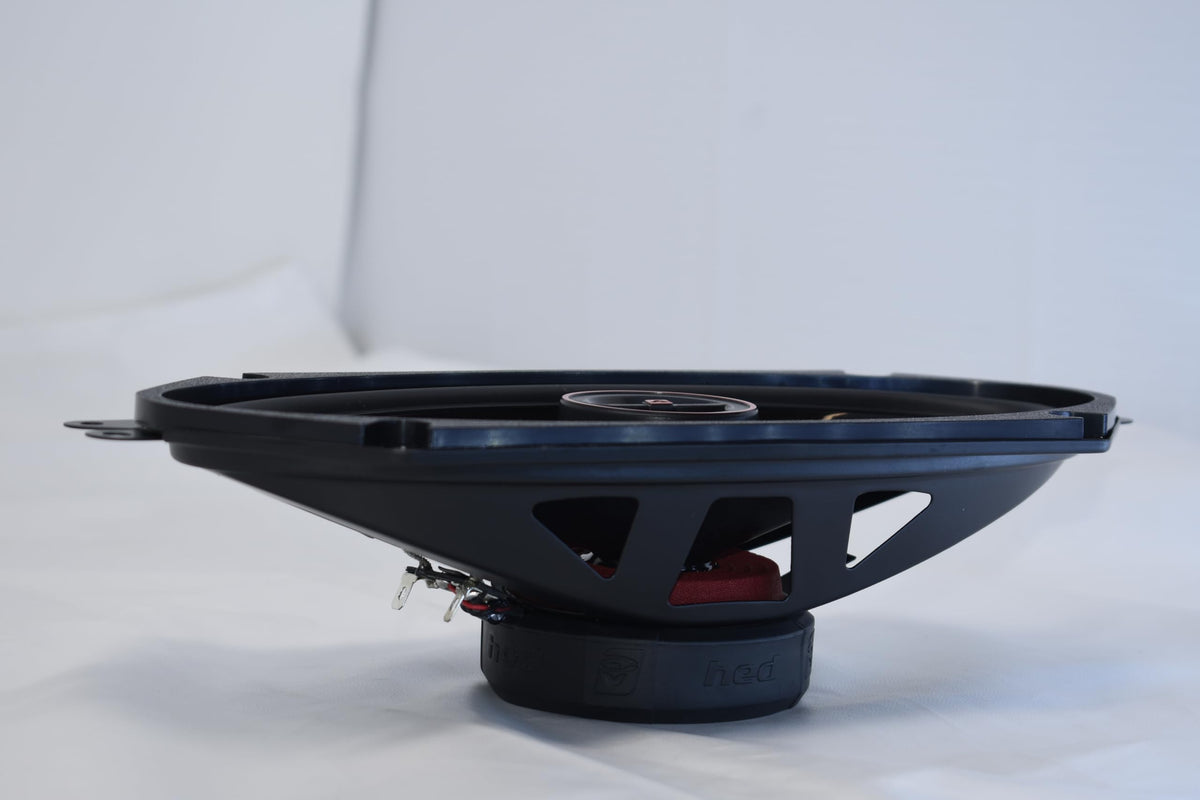

The H7410 is intended for direct replacement in compatible 4x10-inch locations, including applicable rear-deck and factory mounting positions. Its 9.4 x 3.8-inch mounting opening and 2.4-inch mounting depth should be checked against the vehicle before installation. It can serve as a straightforward factory-speaker replacement or as part of a broader head-unit, amplifier, and speaker upgrade.

Key Features

• 4x10-Inch Coaxial Format: Combines woofer and tweeter functions in each speaker.
• 2-Way Design: Separates high-frequency reproduction from the main cone.
• 50W RMS Handling: Supports continuous power up to its rated level.
• Internal Crossover: Directs frequencies within the coaxial speaker assembly.
• Polypropylene Cone: Provides a durable cone material for automotive use.
• 4-Ohm Impedance: Matches a common car-audio speaker load.

Design & Installation

The H7410 uses a stamped-steel vented basket, ferrite ceramic magnet, treated-foam surround, and polypropylene cone. Its listed construction also includes a graphite-injected reinforced spun cone, linear woven treated red spider, and 1-inch balanced PEI black polypropylene dome tweeter. No grille is specified for this model.

Confirm the vehicle's available mounting opening, depth, mounting-hole pattern, and panel clearance before purchase; the listed mounting diameter is 9.4 x 3.8 inches and mounting depth is 2.4 inches. A secure, well-sealed mounting surface helps isolate the front and rear sound waves from the speaker. Use protected wiring when routing through metal panels, and match the amplifier or radio output to the speaker's 4-ohm impedance and 50-watt RMS rating.
