Rockford Fosgate RNGR18-CAPM2 4-Speaker Rear Audio Cap

The Rockford Fosgate RNGR18-CAPM2 is a loaded rear audio cap designed to expand a compatible Polaris Ranger roof-audio setup. It replaces the blank rear cap supplied with RNGR18-ROOF2M2 and RNGR18-ROOF4M2 roof systems. The assembly adds rear-firing sound, integrated lighting, cargo illumination, and a backup camera in one vehicle-specific enclosure.

This add-on is intended for Ranger owners who already have a compatible Rockford Fosgate all-in-one roof system and want more sound coverage behind the cab. Four 8-inch M2-8HB horn-loaded Color Optix speakers are driven by an internal M5-800X4 four-channel amplifier. The result is a purpose-built rear-audio expansion rather than a universal soundbar or standalone stereo system.

The system is rated at 800 watts total dynamic power and uses a Class AD marine-grade amplifier with four channels. Its horn-loaded 2-way speakers are designed for clear projection in open-cab and outdoor environments. Integrated 12 dB-per-octave crossovers and 1-inch horn tweeters support broad, detailed playback.

Element Ready construction is designed for exposure to water, salt, UV, vibration, and off-road conditions. The M2-8HB speakers use UV-inhibited composite materials, corrosion-resistant terminals, sealed crossover networks, and IPX6-rated protection. The overhead location also keeps the audio equipment elevated above typical water and mud levels.

Color Optix RGB lighting is integrated into the speaker system for coordinated accent lighting. The rear cap also incorporates dual LED cargo-bed lights, a driver/passenger LED dome light, and a waterproof backup camera configured for display through a compatible PMX-3 source unit. It is a direct upgrade path for the matching Rockford Ranger roof systems, with plug-and-play connections and OEM-mounting-point installation.

Key Features

• Rear Audio Expansion: Replaces the blank rear cap on compatible Ranger roof-audio systems.
• Four 8-Inch Speakers: Uses four M2-8HB horn-loaded 2-way Color Optix speakers.
• Internal Four-Channel Amplifier: Includes an M5-800X4 Class AD amplifier rated at 800 watts dynamic.
• Color Optix Lighting: Adds multicolor RGB speaker illumination with app-based lighting control.
• Integrated Vehicle Lighting: Includes cargo-bed lights and a driver/passenger dome light.

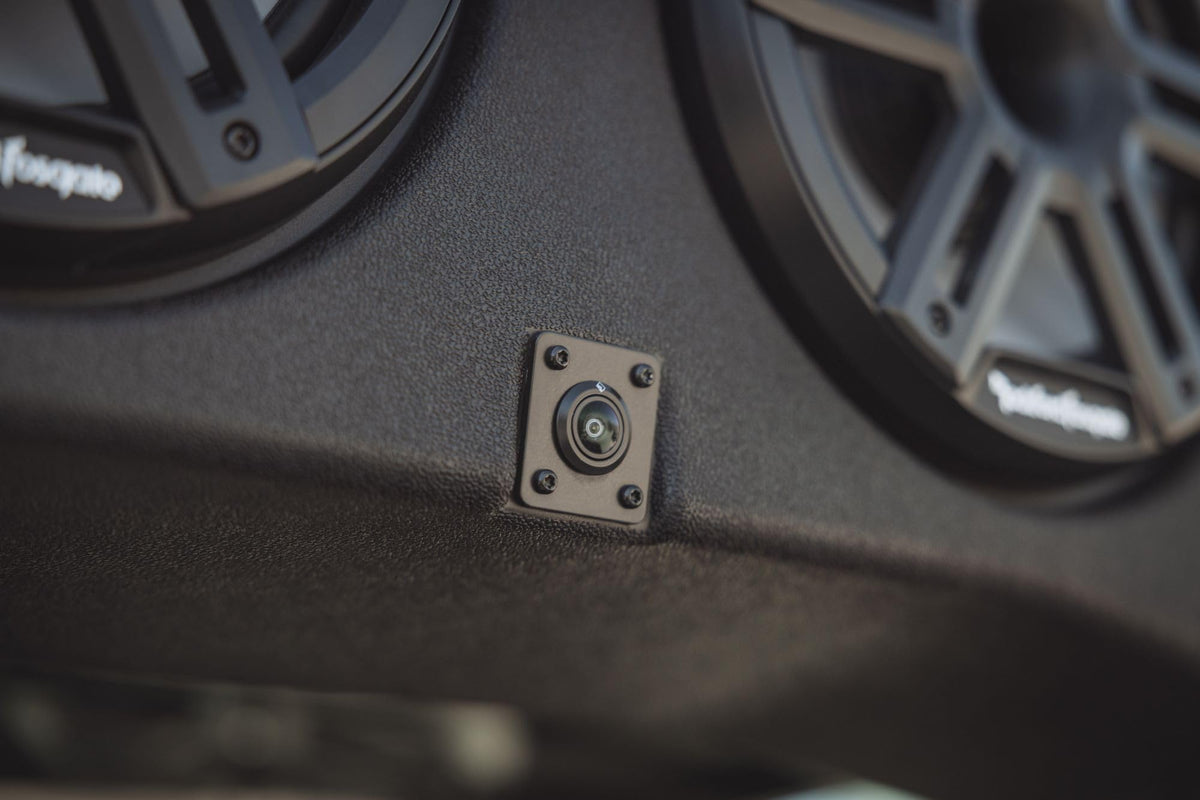

• Backup Camera Included: Incorporates a waterproof MX-CAM backup camera and Ranger-specific harness.

Design & Installation

The RNGR18-CAPM2 uses a rugged rotomolded rear-cap enclosure with sport grilles over the speakers. Its audio components are Element Ready for outdoor use, while the M2-8HB speakers feature UV-stable grilles, a mineral-filled polypropylene cone, TPE surround, sealed crossover network, and marine-grade brass terminals. The M5-800X4 amplifier is IPX6-rated and uses protected molded harness connections.

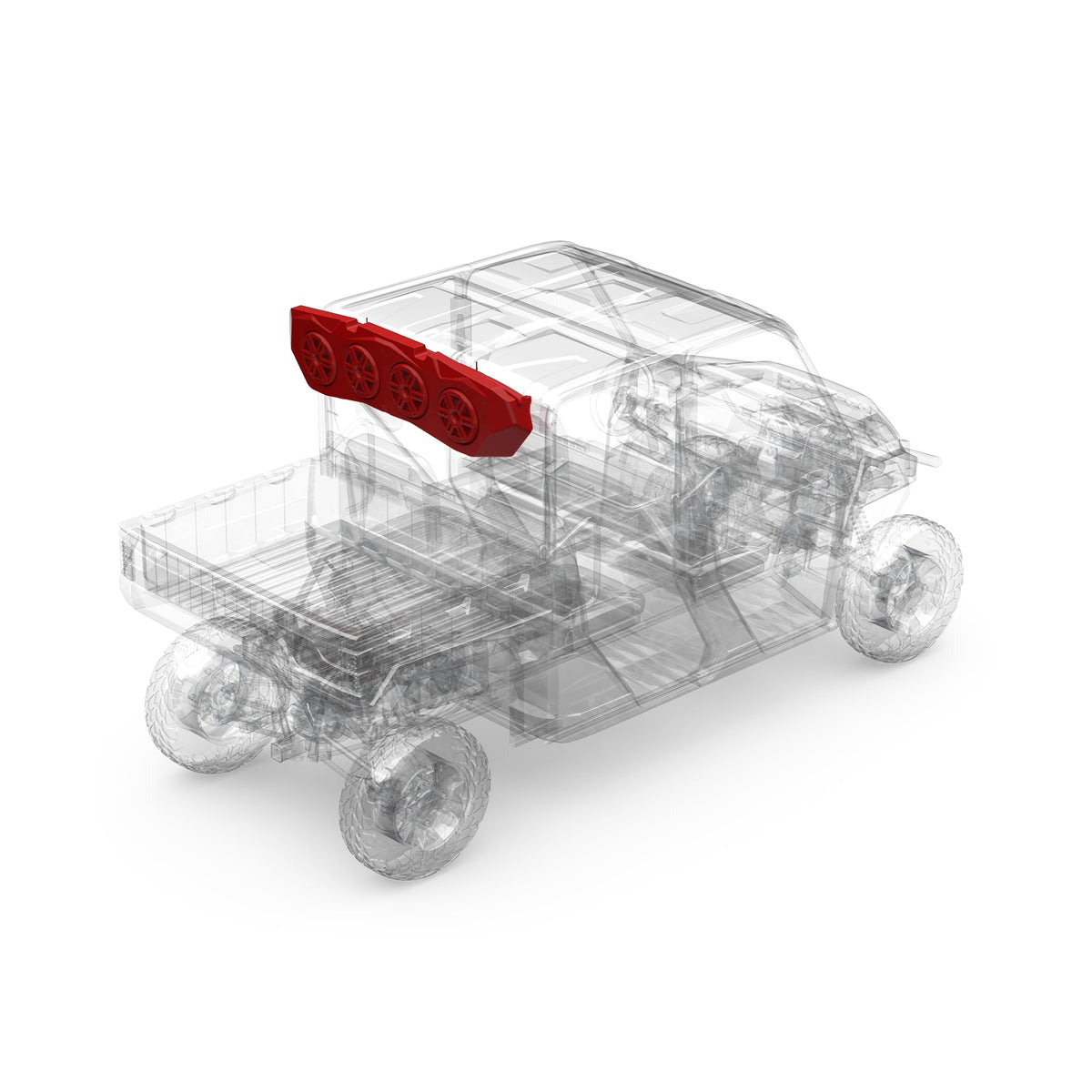

This cap is not a complete standalone Ranger audio system; it requires an existing RNGR18-ROOF2M2 or RNGR18-ROOF4M2 roof audio system. It mounts through the vehicle's OEM mounting locations with minimal disassembly, and the supplied roof system provides the hardware used to secure the rear cap. Confirm vehicle fitment and the existing roof-system configuration before purchase; typical installation time is listed as approximately 30 minutes.
