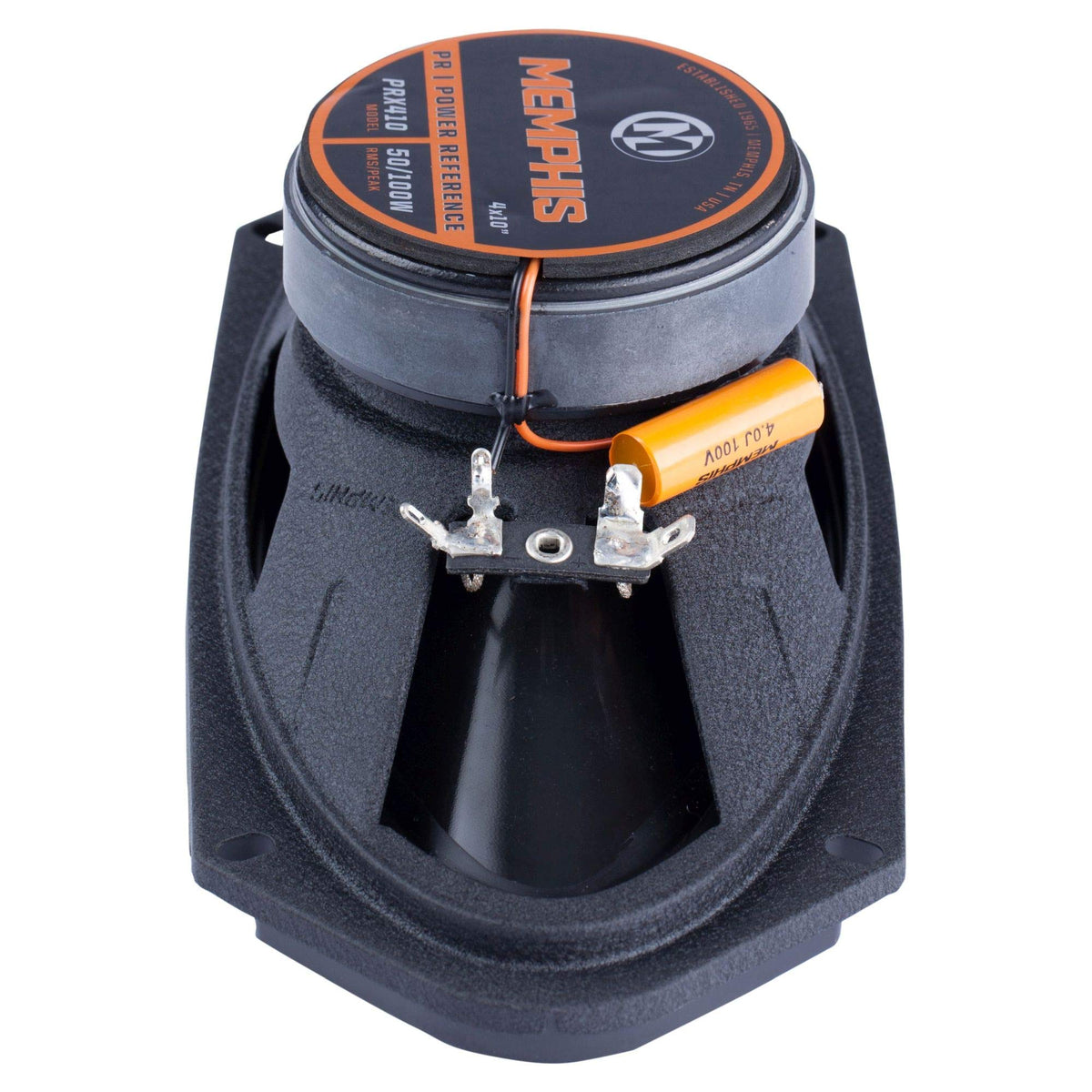

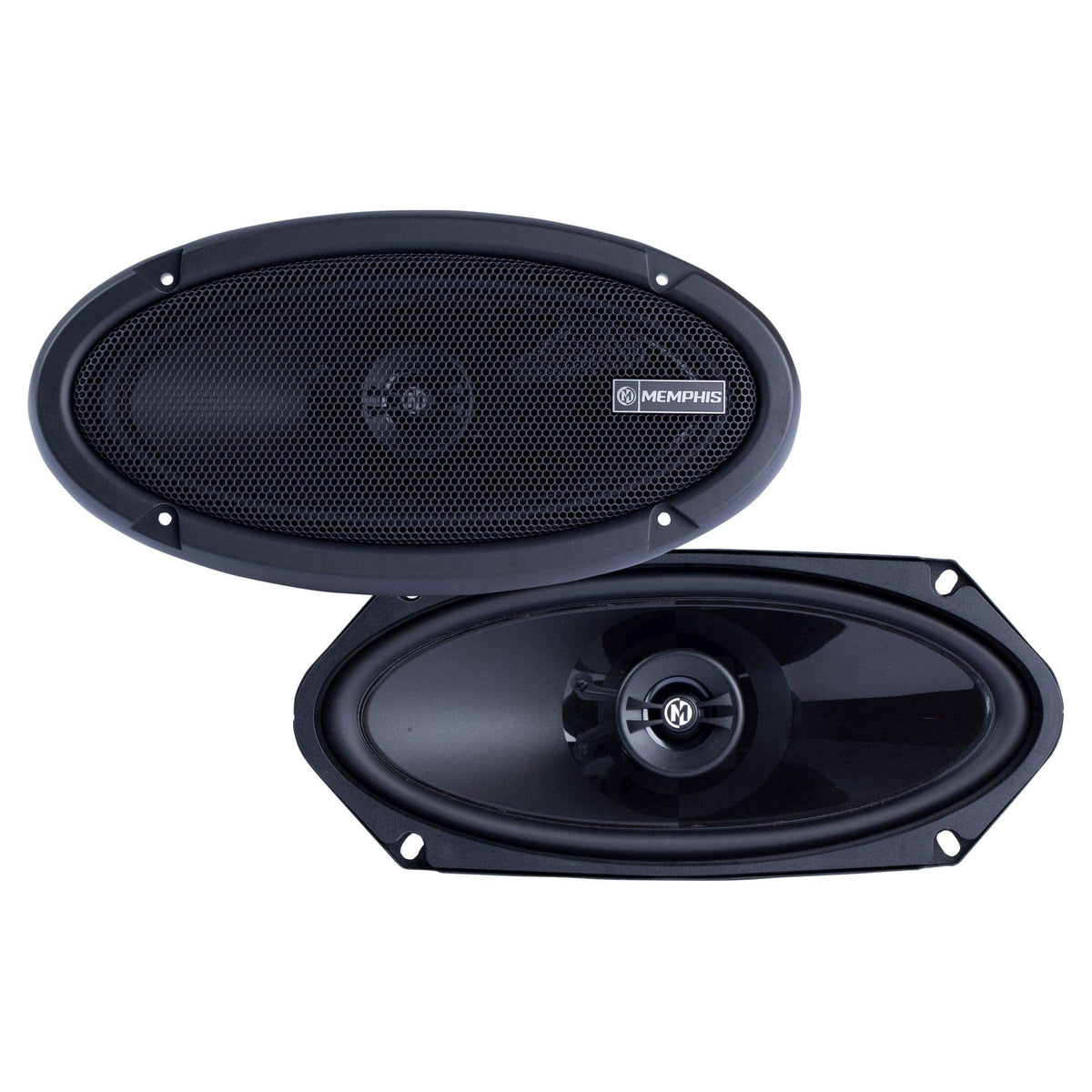

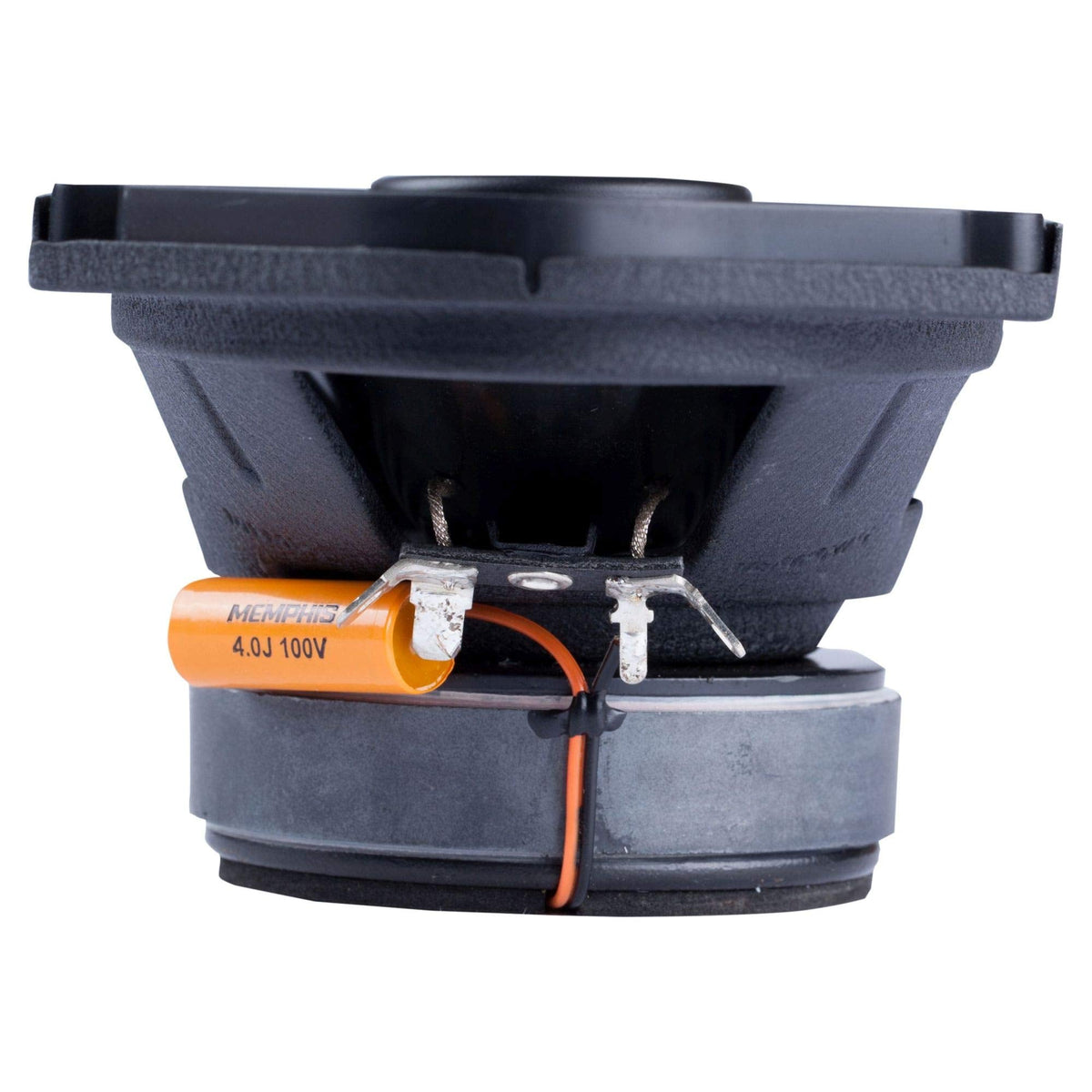

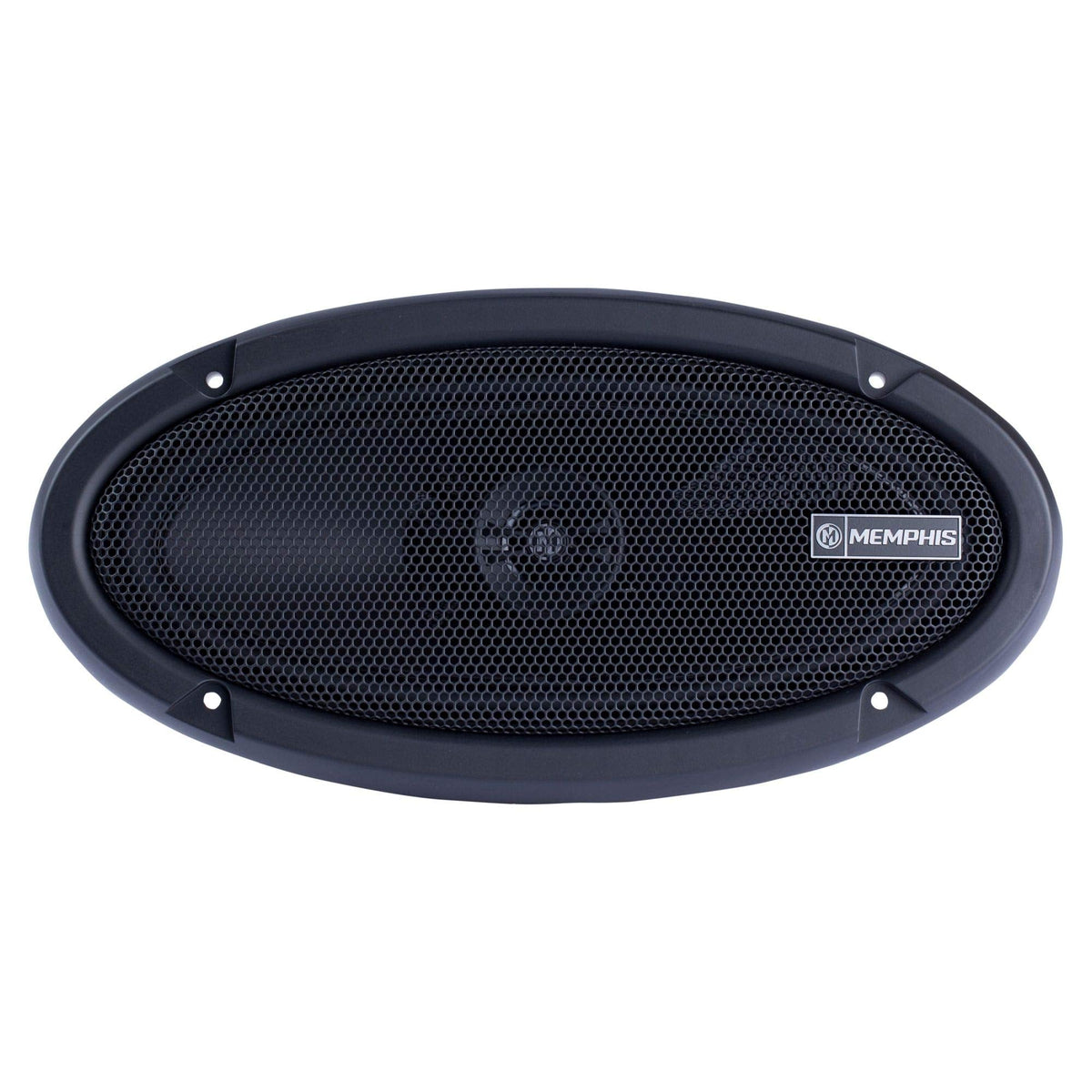

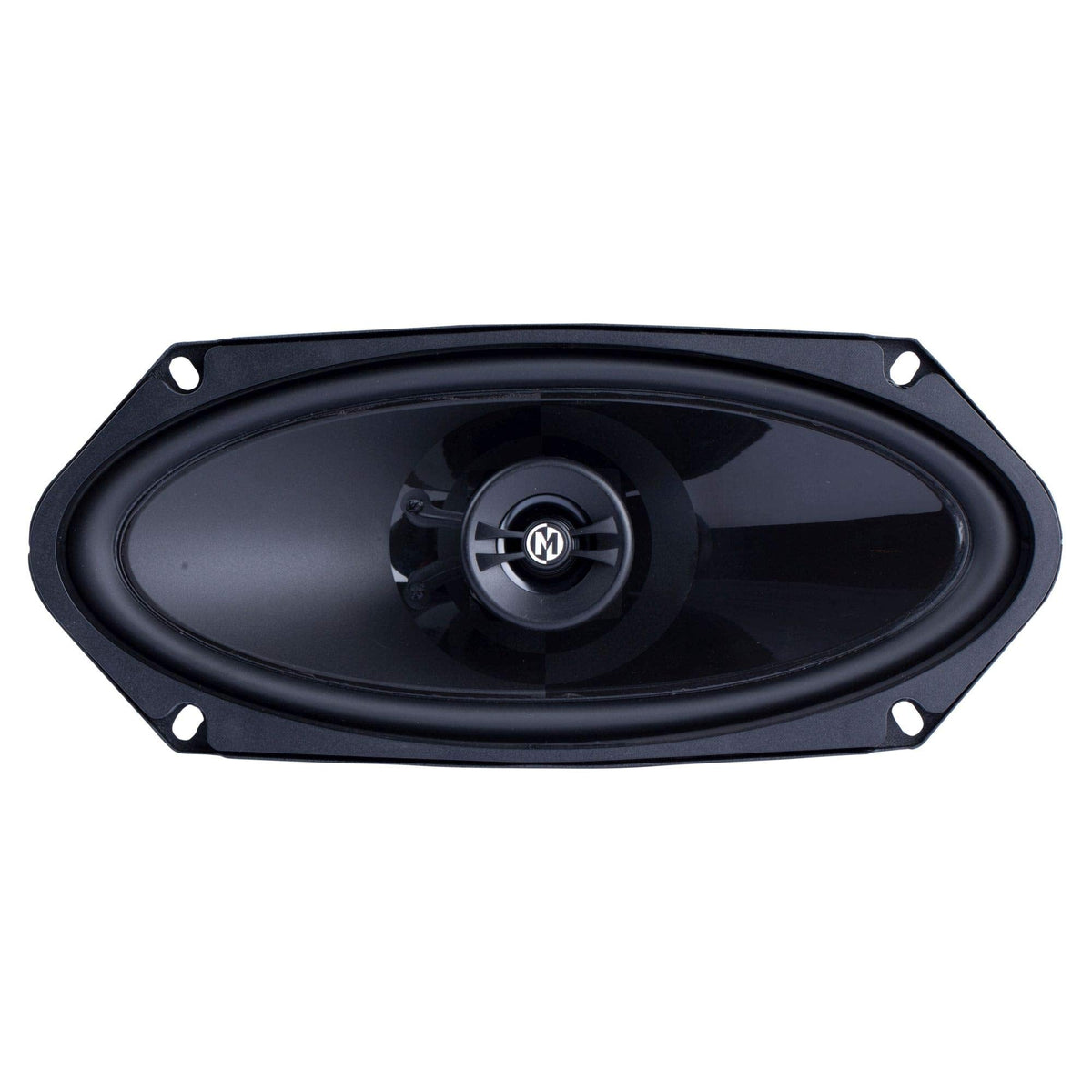

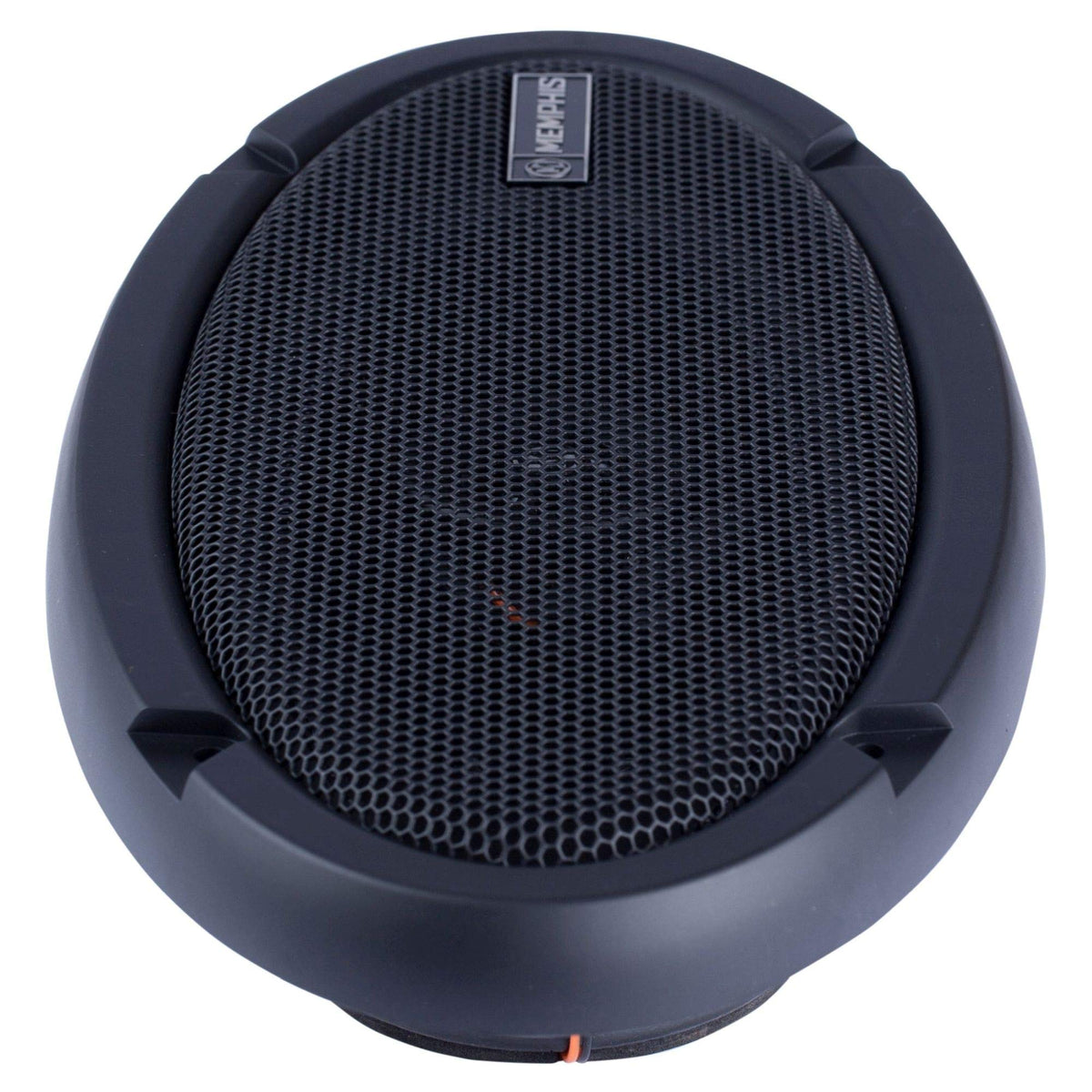

Memphis PRX410 4x10" 2-Way Coaxial Speakers

The Memphis PRX410 is a pair of 4x10-inch, 2-way coaxial car speakers designed as a direct-size upgrade for many factory speaker locations. It gives drivers a practical way to replace aging OEM speakers while retaining a compact 4x10-inch footprint. With 50 watts RMS power handling per speaker, the pair is suited to factory-radio upgrades or moderate-power aftermarket systems.

These speakers combine a full-range woofer and a centrally mounted tweeter in one assembly. The graphite-reinforced polypropylene cone is designed to reproduce midrange and upper-bass information, while the PEI dome tweeter handles higher frequencies. This coaxial layout helps simplify installation where a separate component-speaker system is not needed.

The PRX410 uses a multi-direction pivot tweeter system, allowing the tweeter to be aimed toward the listening area when installation space permits. This can help tailor high-frequency direction in dash, rear-deck, or other factory 4x10-inch locations. An integrated 6 dB tweeter crossover supports proper signal routing to the tweeter.

With a 4-ohm impedance and 89 dB sensitivity, the PRX410 is compatible with many conventional car-audio speaker applications. Its 120 Hz to 20 kHz listed frequency response focuses it on clear vocal, instrument, and high-frequency reproduction. For a system that needs deeper low bass, it can be paired with a dedicated subwoofer.

The Power Reference Series design balances factory-location fitment with upgrade-oriented materials and adjustable treble dispersion. A 13-ounce magnet supports the speaker motor structure, while the butyl rubber surround is intended for durability during regular use. Included grilles provide an option for custom or exposed speaker installations.

Key Features

• 4x10-Inch Coaxial Format: Fits many factory-style 4x10-inch speaker locations.
• 50W RMS Power Handling: Supports moderate aftermarket amplifier or radio power.
• PEI Dome Tweeter: Reproduces high-frequency detail in a compact assembly.
• Pivoting Tweeter System: Allows directional adjustment of high-frequency output.
• Integrated 6 dB Crossover: Directs high frequencies to the tweeter.
• 4-Ohm Impedance: Works with many factory and aftermarket systems.

Design & Installation

The PRX410 uses a graphite-reinforced polypropylene cone, a butyl rubber surround, and a PEI dome tweeter. Its black Power Reference styling keeps the appearance understated when used behind factory panels or with the included grilles. The 2-way coaxial construction places the woofer and tweeter in one speaker frame.

Confirm both the vehicle's factory opening and available mounting clearance before ordering. Memphis lists a 2.5-inch mounting depth; the speaker should be wired with correct polarity and powered within its 50-watt RMS rating. The pivot tweeter may be aimed toward the listening position where panel clearance allows, and a subwoofer can be added if deeper bass is desired.
