Rockford Fosgate GS-4 4-Inch Surface Mount Grilles

The Rockford Fosgate GS-4 is a pair of 4-inch surface-mount speaker grilles made for protecting and finishing compatible Punch speaker installations. They provide a clean exterior cover where a speaker is mounted behind a panel or trim surface. This accessory is intended for installations where the grille can sit proud of the mounting surface.

Designed specifically for Rockford Fosgate P1V2-4 4-inch speakers, the GS-4 helps complete an exposed or custom speaker installation without changing the speaker itself. Its role is physical protection and visual finishing rather than adding power or altering the audio system. The grille mesh snaps into the bezel after the speaker is mounted.

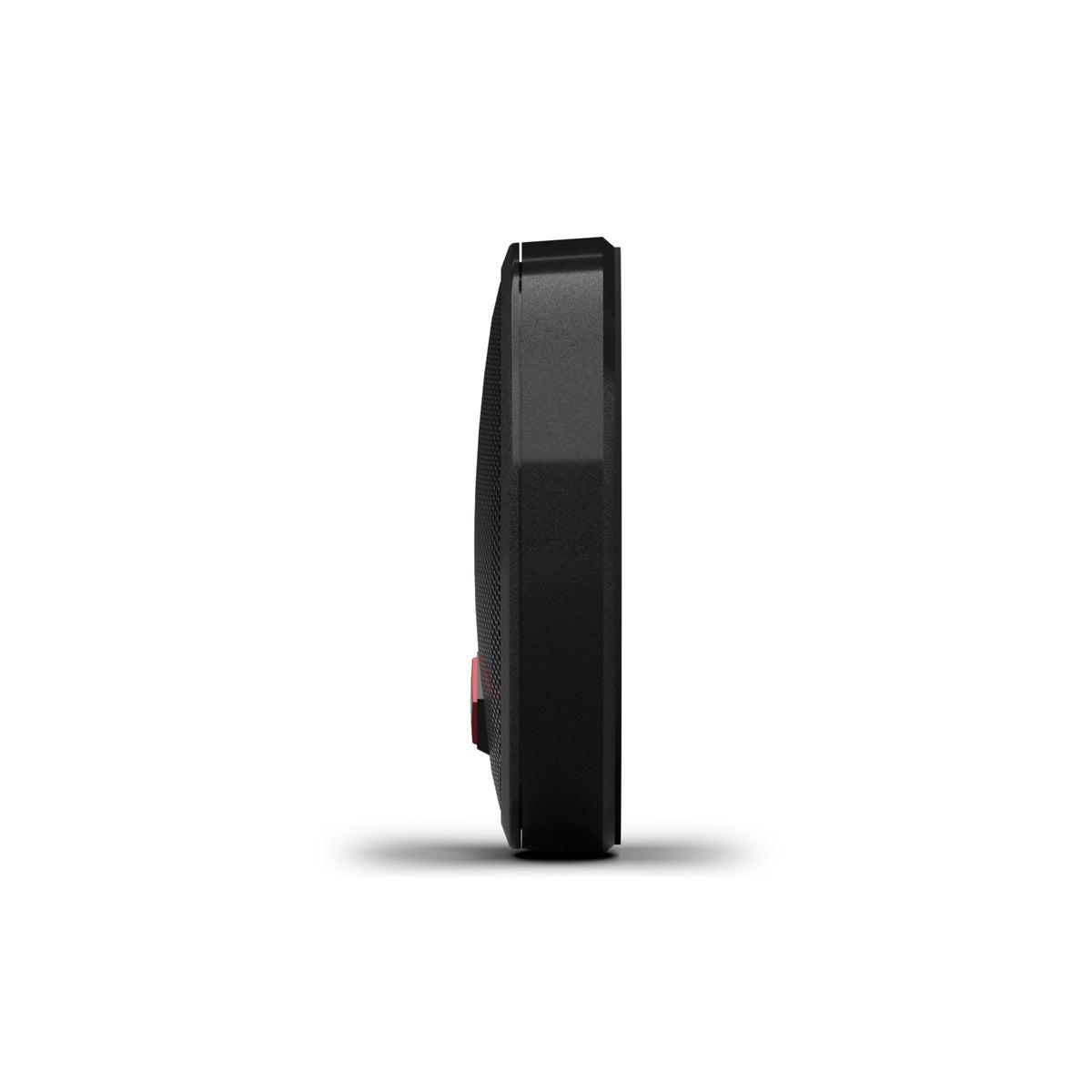

The GS-4 uses a surface-mount format, with a 1.01-inch mounting height above the panel. This makes it a practical choice when a flush-mounted grille is not required and there is enough clearance in front of the speaker. The black grille design keeps the speaker installation visually tidy with no exposed grille-fastening hardware.

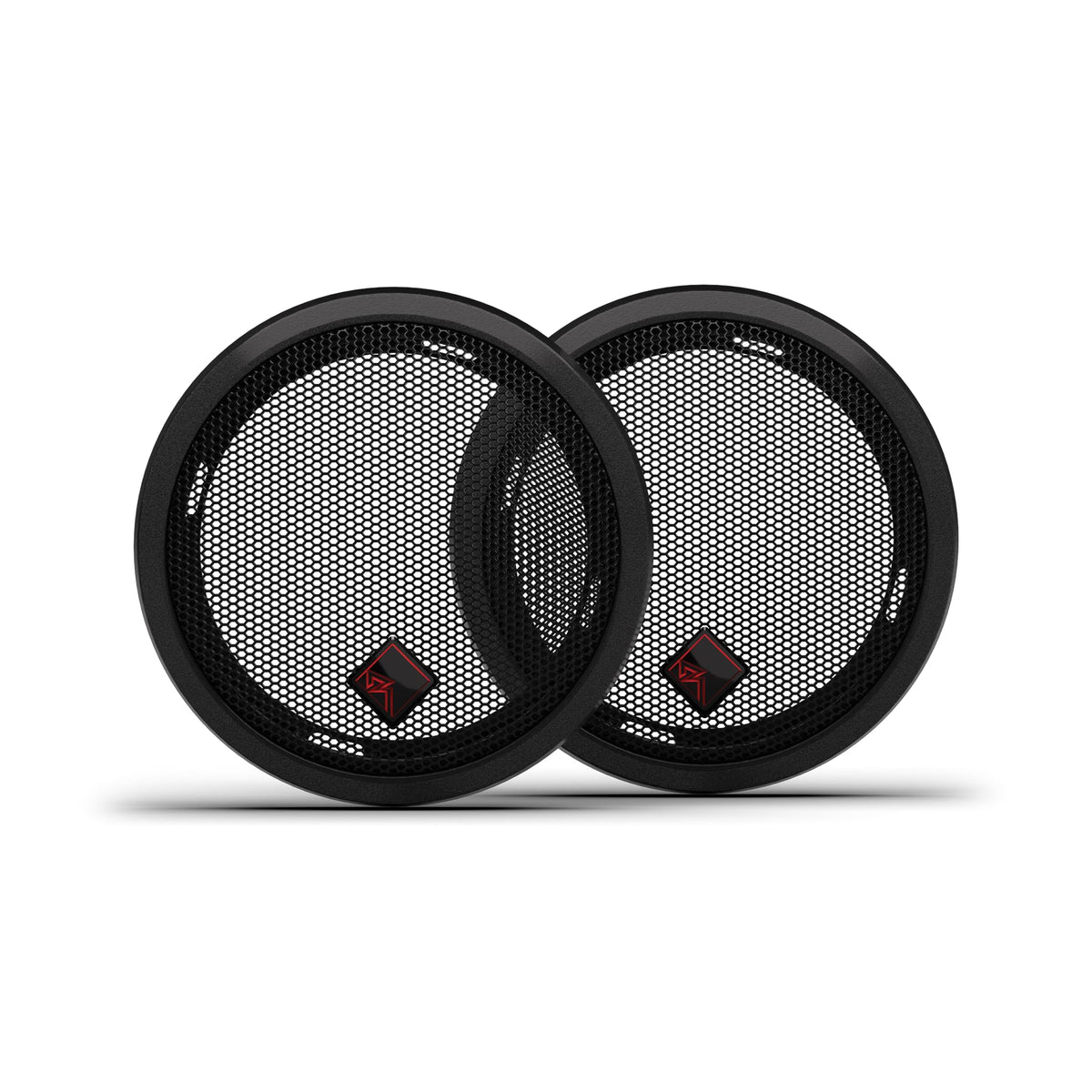

Each set includes two grille meshes, two bezels, eight self-tapping screws, and a cutout template. The bezel uses slotted mounting holes to allow minor rotational adjustment for grille alignment. The keyed grille mesh is installed with the logo oriented correctly, then pressed into place.

For a matched system upgrade, pair the GS-4 with compatible P1V2-4 speakers and use the specified 3.41-inch cutout opening. It is suited to vehicle panels and custom installations where the mounting area is checked for wiring, window tracks, and other obstructions before cutting. Rockford Fosgate covers the product with a one-year limited warranty when purchased through an authorized dealer in the United States.

Key Features

• 4-Inch Surface Grilles: Designed for compatible 4-inch speaker installations.
• P1V2-4 Compatibility: Fits Rockford Fosgate P1V2-4 speakers.
• Surface-Mount Profile: Adds a finished grille above the panel.
• Snap-In Grille Mesh: Keyed mesh presses into the bezel.
• Alignment Flexibility: Slotted bezel holes allow minor adjustment.
• Pair Package: Includes two grilles for two speakers.

Design & Installation

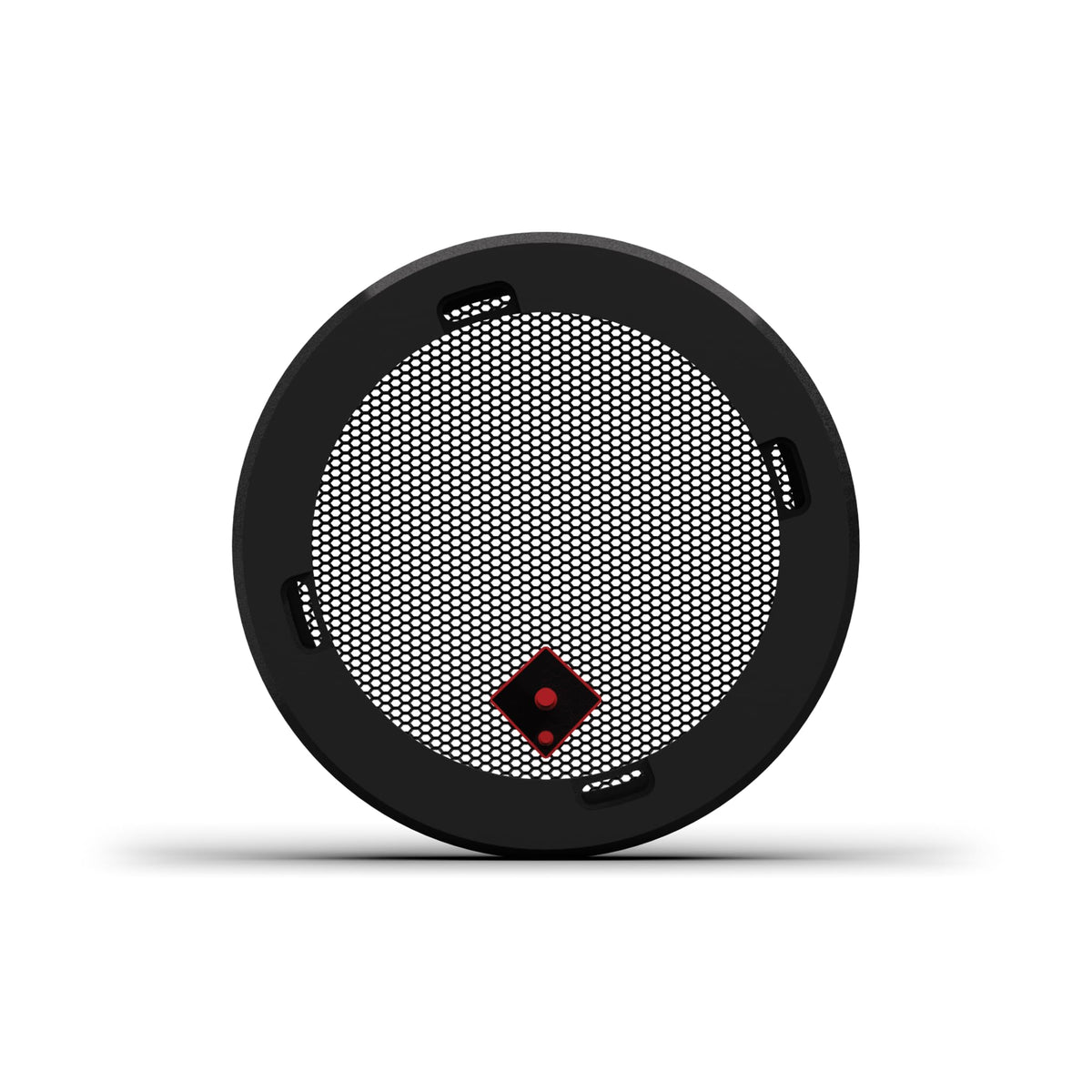

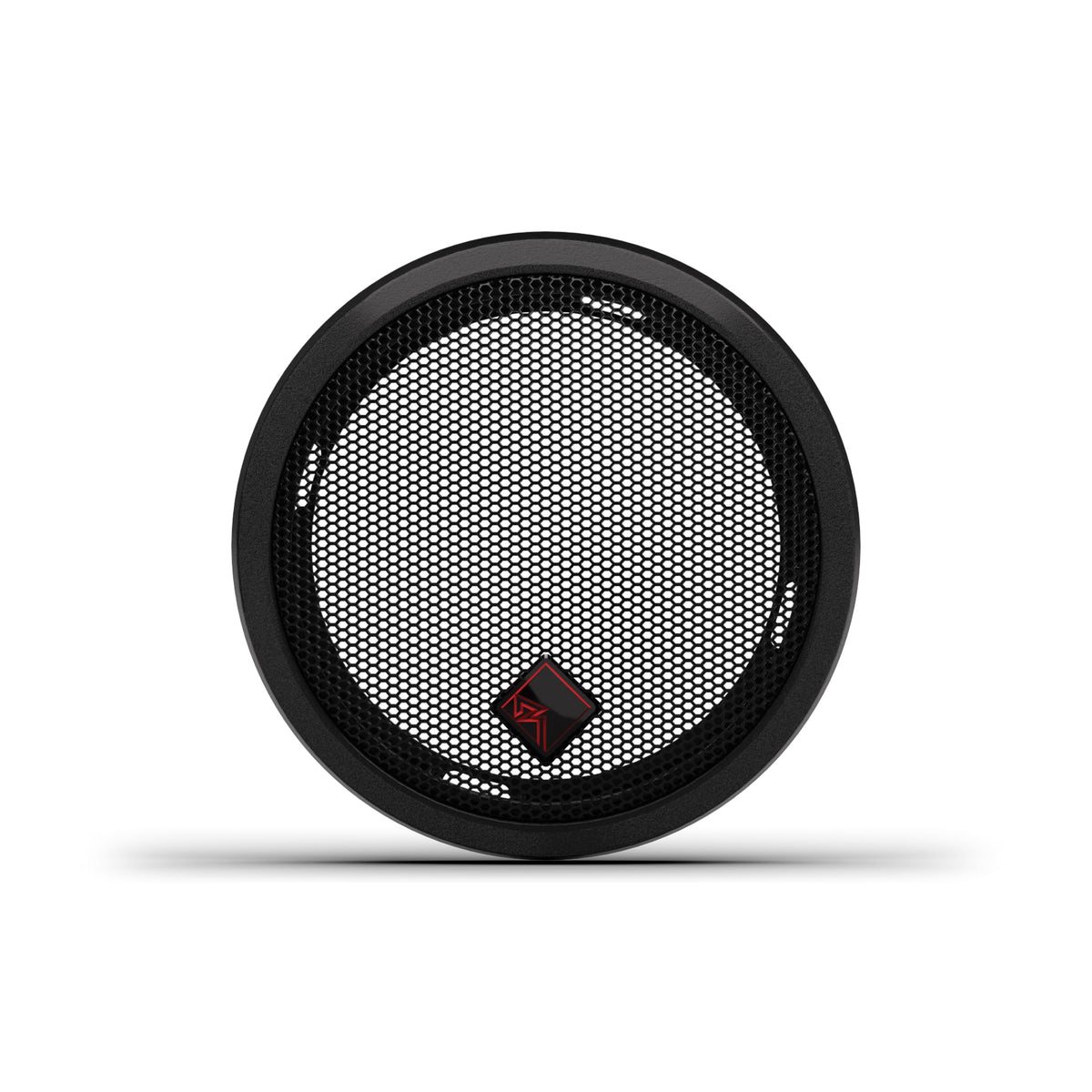

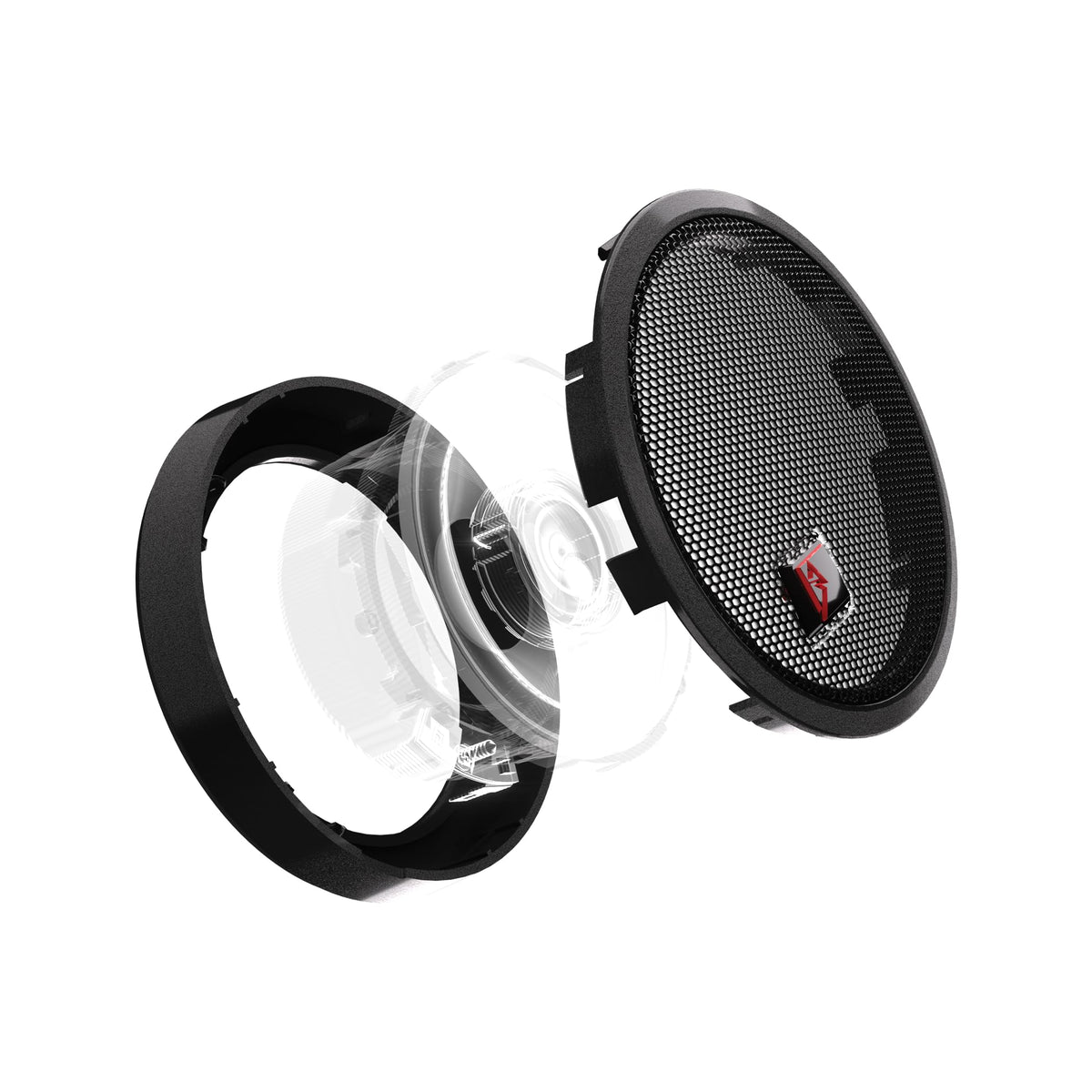

The GS-4 combines a black grille mesh and bezel assembly to protect the speaker from foreign objects while providing a finished appearance. Its surface-mount design has a 4.61-inch outside diameter and rises 1.01 inches from the mounting surface. The grille mesh is removable and can be painted to coordinate with an interior.

Use the included template and create a 3.41-inch cutout, confirming that there are no obstructions behind the panel before cutting. Mount the speaker and bezel assembly with the included #4 x 30 mm self-tapping screws, then align the logo and snap the grille mesh into place. A drill with a hole saw or jigsaw, screwdriver, pencil or marker, and measuring tape are recommended for installation.
