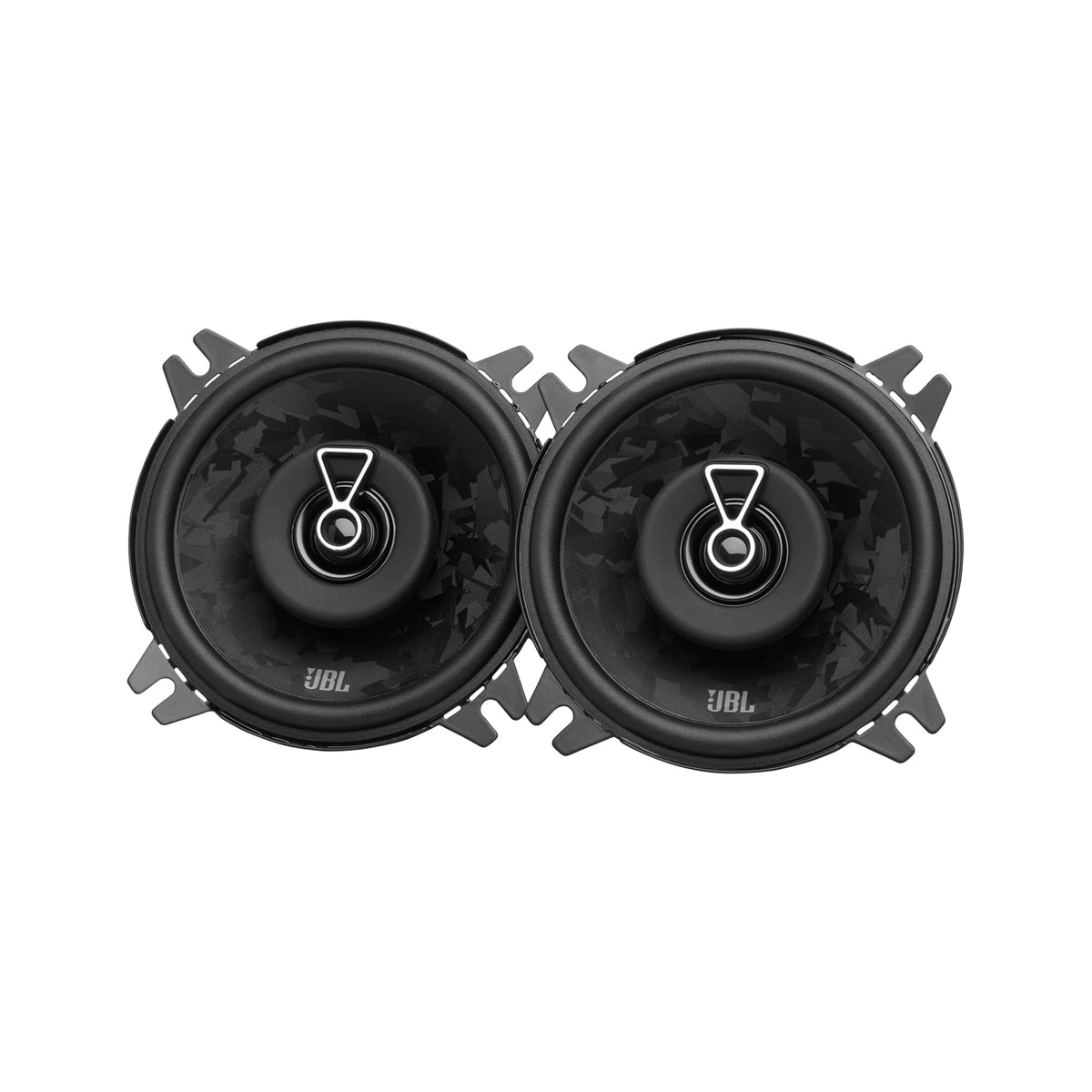

JBL STAGE3 48F 4" 2-Way Coaxial Speakers

The JBL STAGE3 48F is a pair of 4-inch coaxial car speakers designed for factory-location audio upgrades where space and fitment matter. Its integrated woofer-and-tweeter design replaces a compatible full-range speaker position with a more capable two-way arrangement. These speakers are supplied without grilles for installations that retain the vehicle’s existing speaker covers or use a factory-style mounting location.

With 50 watts RMS power handling, 400 watts peak power handling, and 89 dB sensitivity, the STAGE3 48F is suited to aftermarket head units as well as appropriately matched external amplification. The true 4-ohm nominal load is designed to work efficiently with compatible car-audio electronics. Its 80 Hz to 20 kHz frequency response covers the main midrange and high-frequency range expected from a compact coaxial speaker.

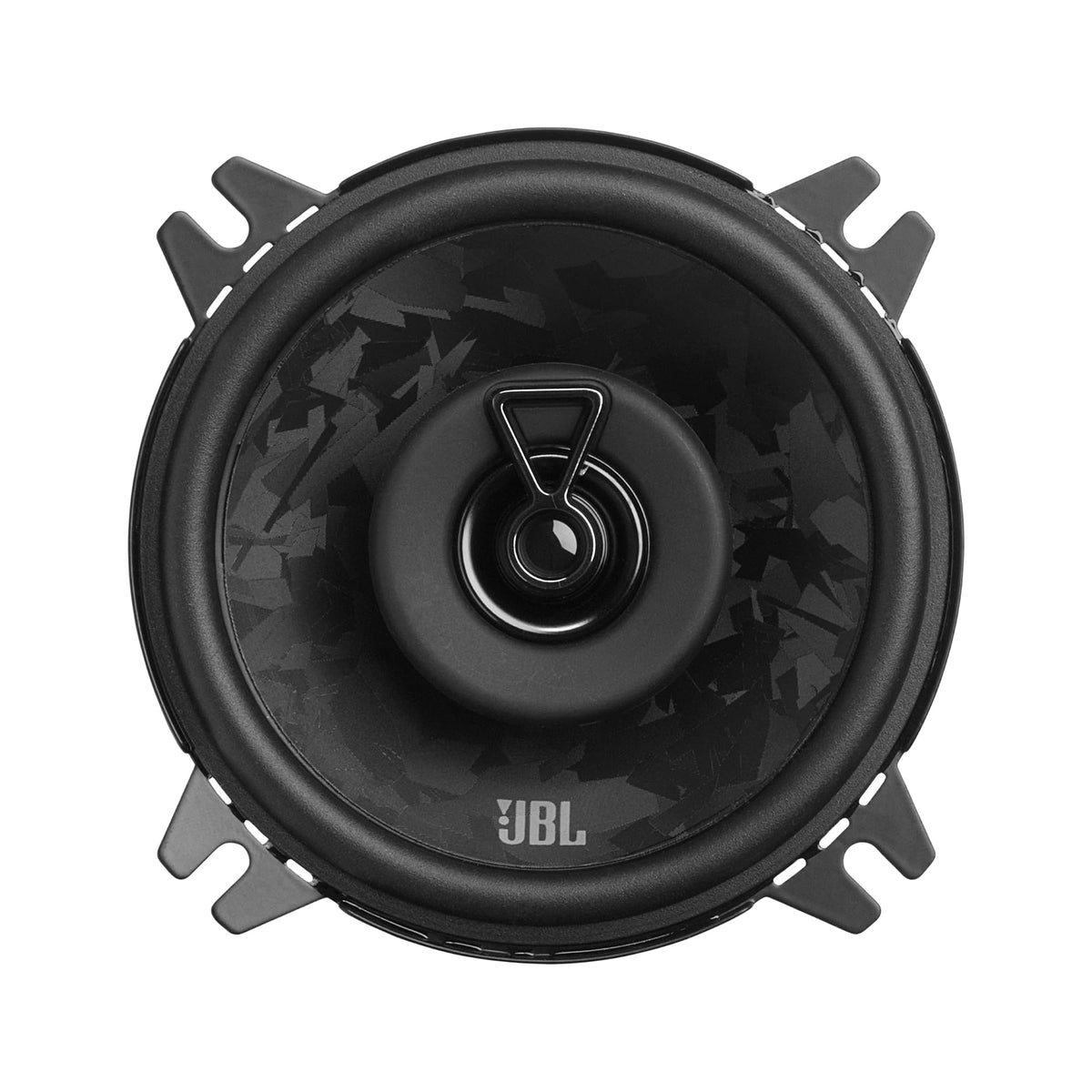

A PEI balanced dome tweeter handles high frequencies from the center of each speaker. This coaxial layout keeps the system simple by combining the woofer and tweeter into one assembly. It is a practical option for listeners seeking clearer high-frequency detail from a compact 4-inch replacement speaker format.

The woofer uses JBL's Plus One cone architecture, which increases usable cone area relative to conventional designs in its class. Its laser-etched cone is reinforced with 10% glass fiber and finished with a forged-carbon-fiber-inspired visual effect. Together, these design elements support the speaker’s low-frequency output within the limits of its 4-inch size.

The STAGE3 48F can serve as a focused replacement for worn or limited factory speakers in compatible dash, door, or rear locations. It includes basic installation hardware, foam gaskets, and spade clips to support mounting and wiring. Confirm the vehicle’s mounting depth, cutout size, factory connector, and clearance before installation, especially where the speaker is mounted behind a trim panel.

Key Features

• 4-Inch Coaxial Design: Combines woofer and tweeter functions in each compact speaker assembly.
• 50W RMS Power Handling: Supports matching with compatible head units or amplifiers.
• Plus One Woofer Cone: Provides increased cone area for a compact speaker format.
• PEI Balanced Dome Tweeter: Reproduces high frequencies through an integrated coaxial tweeter.
• True 4-Ohm Load: Matches common 4-ohm car-audio speaker system requirements.
• Factory-Style Package: Supplied without grilles for compatible OEM-style locations.

Design & Installation

The STAGE3 48F uses a laser-etched woofer cone reinforced with 10% glass fiber, a PEI balanced dome tweeter, and a rubber surround. JBL also specifies post-consumer recycled plastic materials, PVC-free wiring, and soy-ink packaging for the Stage3 Gen2 family. The speakers have a black finish and are supplied without separate grilles.

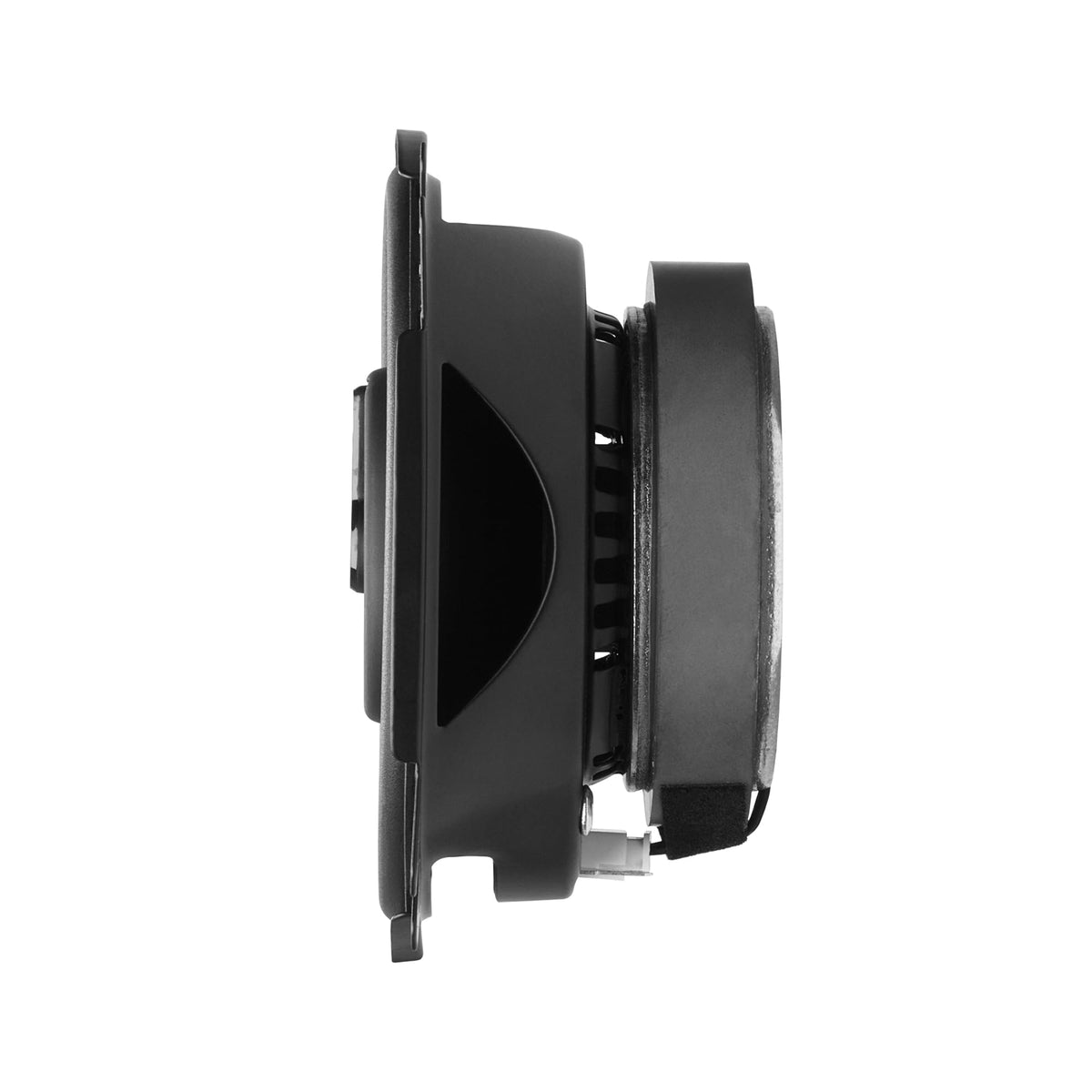

Check the vehicle-specific opening and available mounting clearance before purchase; the listed cutout diameter is 3.66 inches and top-mount depth is 1.81 inches. Use the supplied foam gaskets and mounting hardware where appropriate, and connect the included spade clips with correct polarity. Vehicle-specific adapter brackets or wiring harnesses may still be required depending on the factory location and connector.
