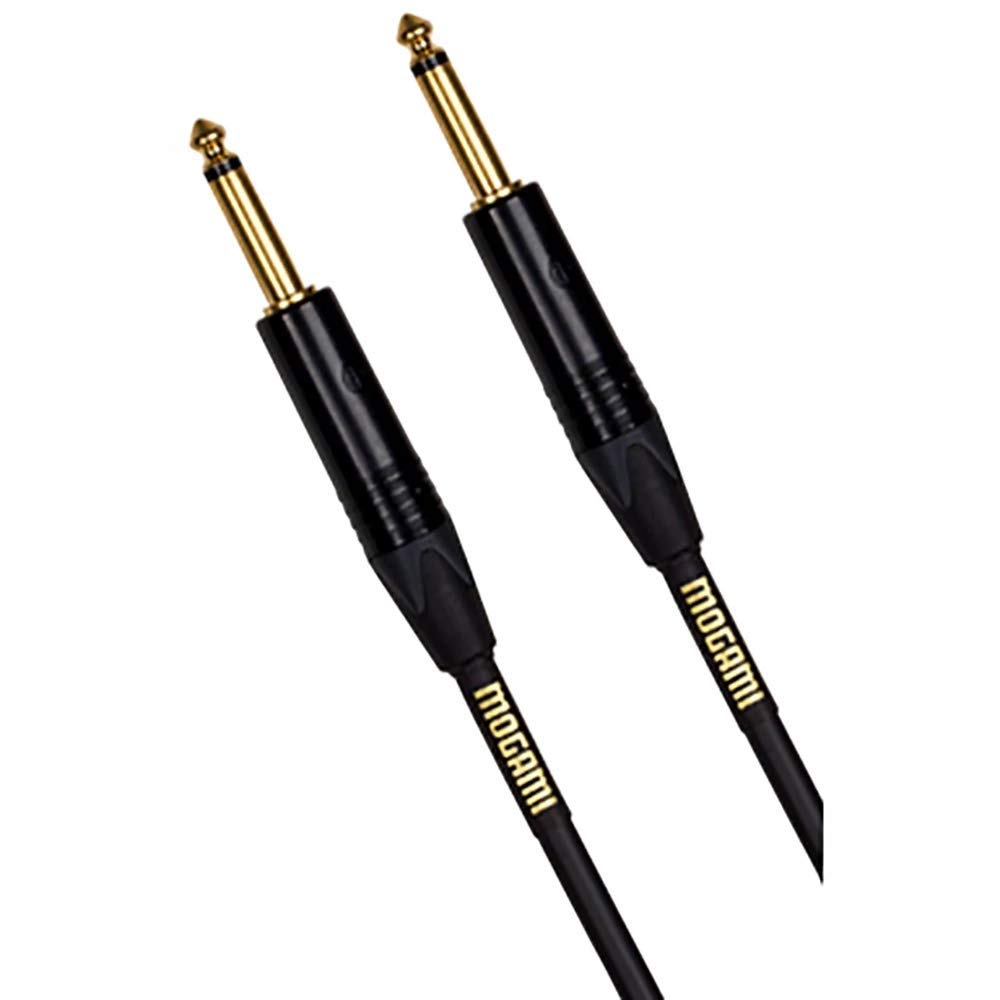

Mogami GOLD SPEAKER-03 3' 1/4" TS Speaker Cable

The Mogami GOLD SPEAKER-03 is a 3-foot speaker cable with straight 1/4-inch TS male connectors at both ends. It is designed to link a power amplifier or amplifier head to a passive speaker cabinet equipped with compatible 1/4-inch speaker connections. Its short length is useful for compact amp-and-cabinet setups where excess cable is unnecessary.

This cable is intended for musicians, studios, rehearsal rooms, and live-performance rigs using separate amplifiers and speaker cabinets. It uses speaker-cable construction rather than instrument-cable construction, making it appropriate for carrying amplified speaker-level signals. Both cable ends use the same straight TS connector format for straightforward amp-to-cabinet routing.

The GOLD SPEAKER-03 uses Mogami W3082 coaxial speaker cable with 14 AWG oxygen-free copper conductors. Its low-resistance conductor design supports efficient signal transfer across a short speaker run. The cable is specified with a capacitance of 77 pF per foot and inductance of 0.12 microhenry per foot.

Mogami W3082 construction combines a central conductor with a served outer conductor in a coaxial layout. The cable uses PVC insulation and a flexible black PVC outer jacket, while its carbon-impregnated PVC construction is designed to control handling noise. An ultra-high-density spiral shield helps limit noise transfer into and out of the cable.

Use the GOLD SPEAKER-03 when an amplifier and passive cabinet have 1/4-inch TS speaker jacks and are positioned close together. It can replace a worn or unsuitable speaker lead in a compatible amplifier-to-cabinet signal path. Verify that the amplifier and cabinet are matched according to their own impedance and power requirements before connecting them.

Key Features

• 3-Foot Length: Keeps close-range amplifier-to-cabinet connections neat and manageable.
• 1/4-Inch TS Connectors: Provides straight male TS plugs on both cable ends.
• W3082 Speaker Cable: Uses Mogami's coaxial W3082 cable construction.
• 14 AWG OFC Conductors: Provides substantial oxygen-free copper conductor size for speaker-level signals.
• Flexible PVC Jacket: Adds a durable, flexible exterior for regular setup use.
• Lifetime Warranty: Includes Mogami's lifetime manufacturer warranty coverage.

Design & Installation

The GOLD SPEAKER-03 is built around Mogami W3082 cable, with 80 strands of 0.18 mm oxygen-free copper in both the inner conductor and served outer conductor. It has white PVC insulation, a flexible black PVC jacket, and an approximately 6.5 mm outer jacket diameter. The straight plugs use copper cores with gold-plated contacts.

Connect one TS plug to a compatible amplifier speaker output and the other to a compatible passive speaker cabinet input. This is a 3-foot TS-to-TS speaker cable, so no adapters are included or required when both components use standard 1/4-inch TS speaker connections. Do not substitute an instrument cable where a speaker cable is required, and follow the amplifier and cabinet manufacturers' connection and impedance instructions.
