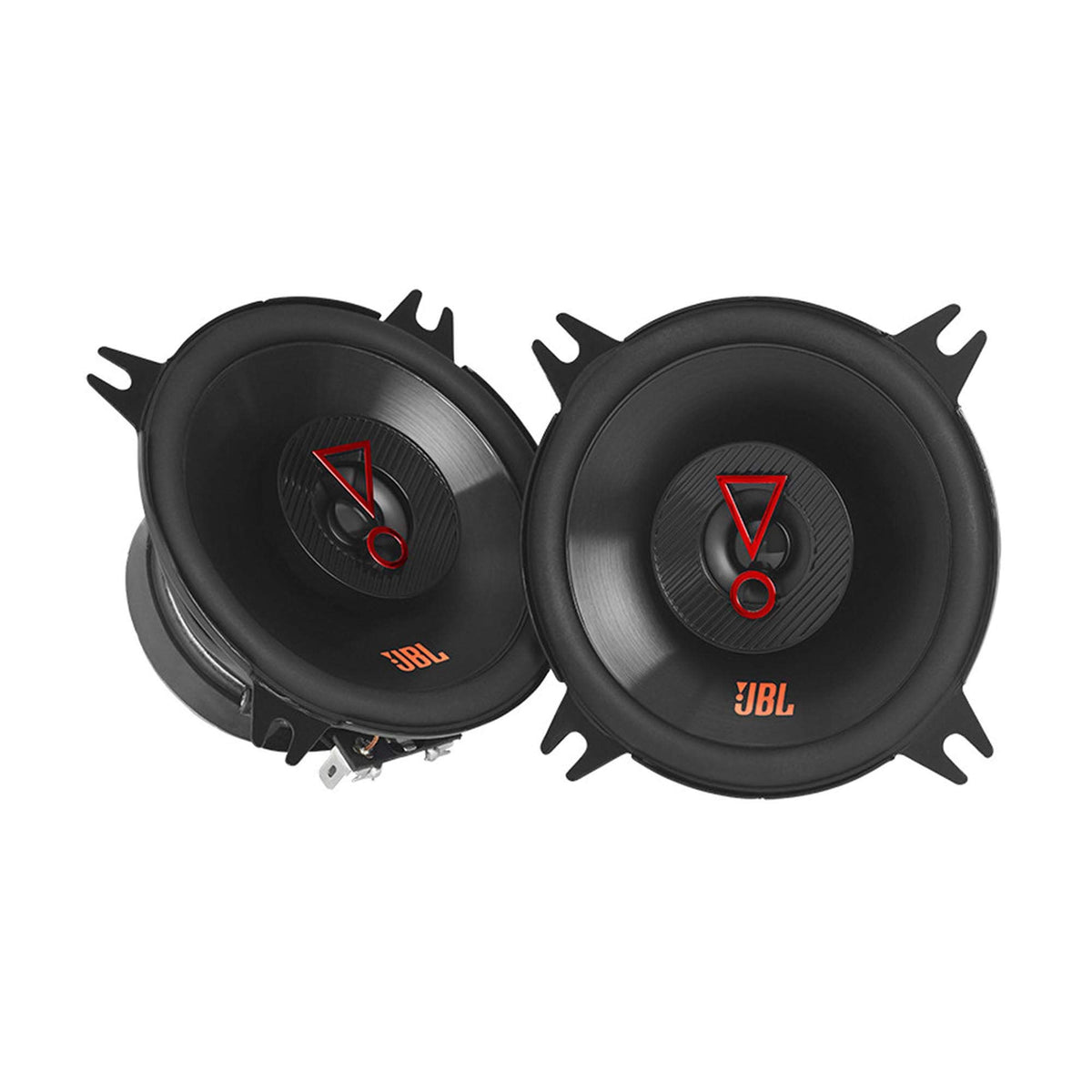

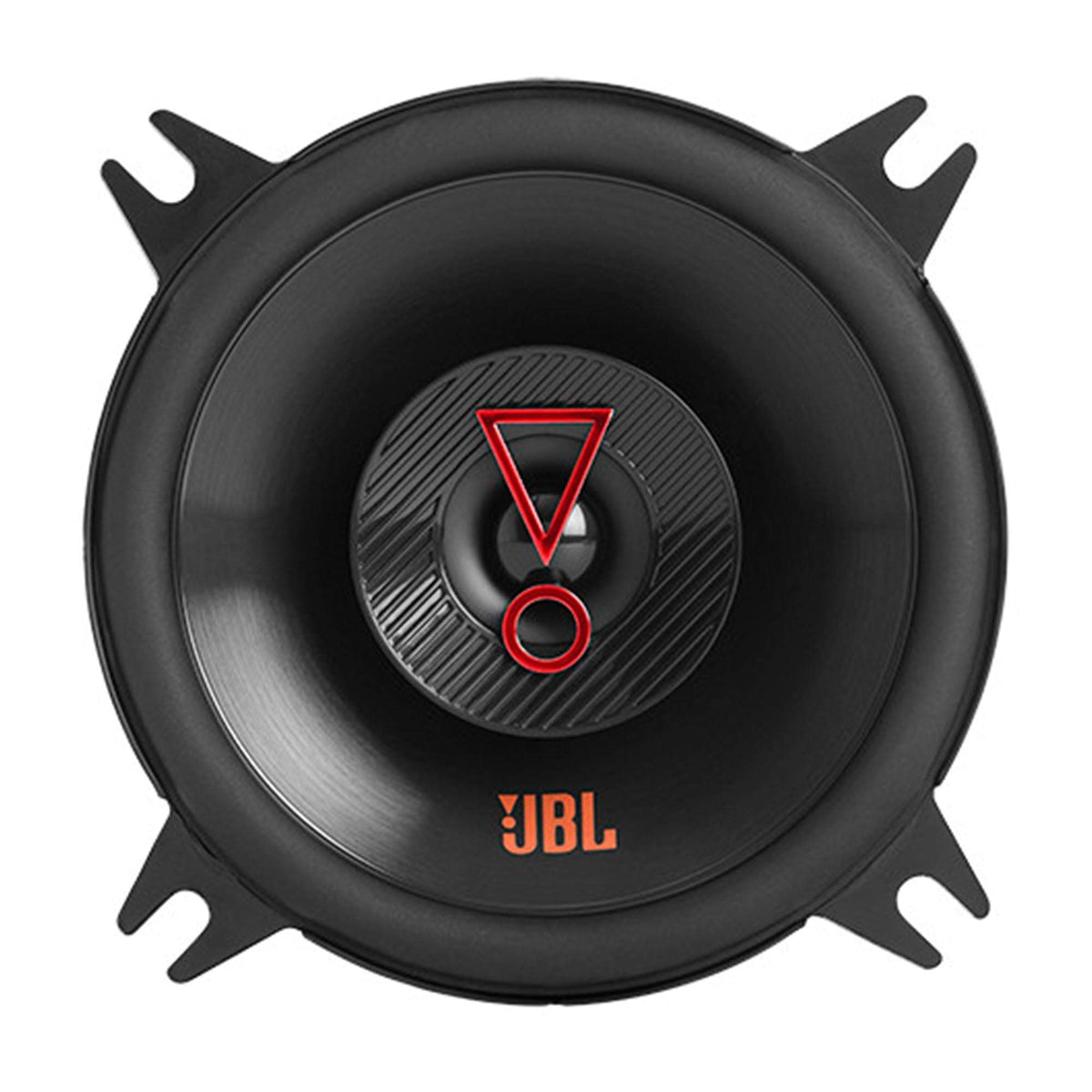

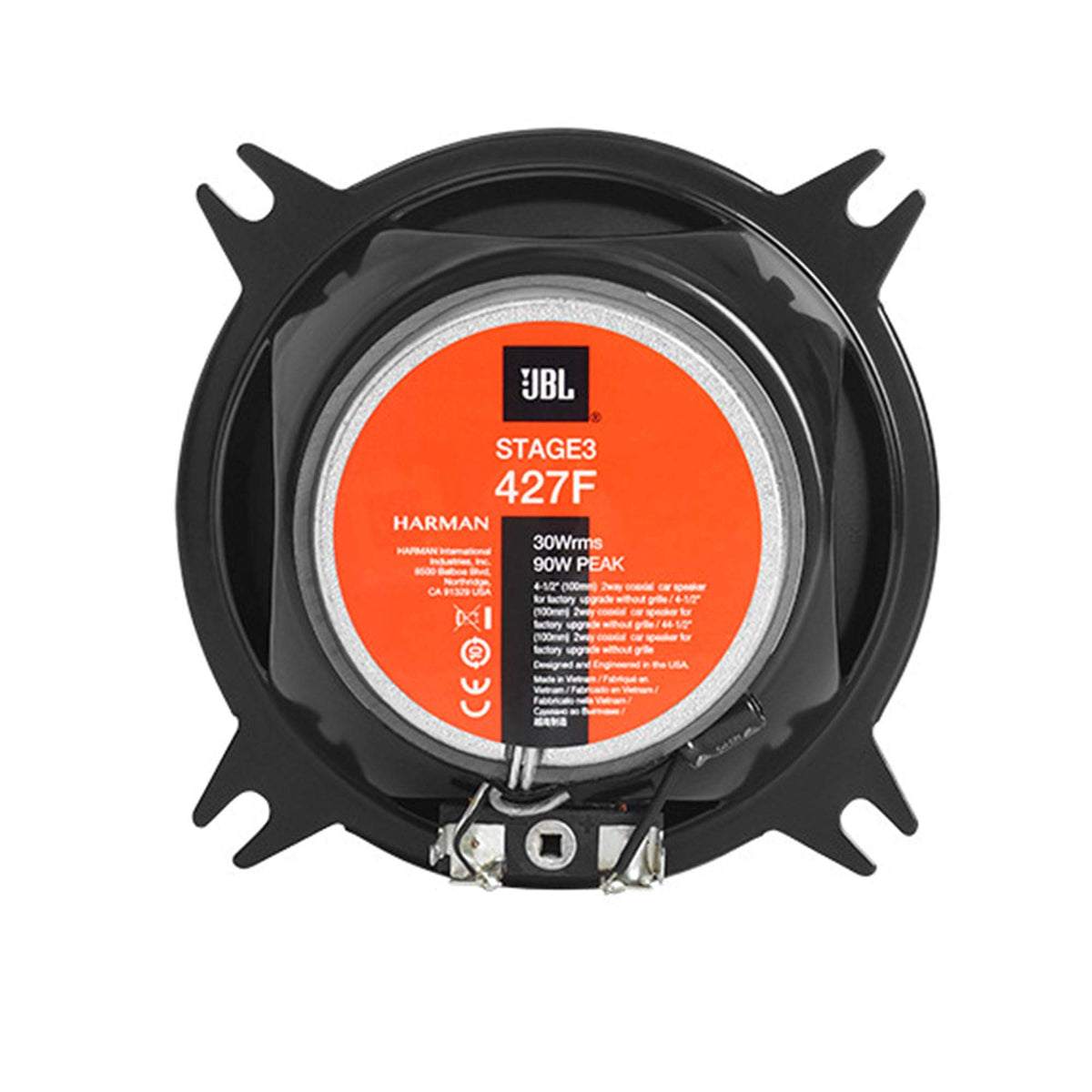

JBL STAGE3427FAM Stage3 427F 4" 2-Way Car Speakers

The JBL Stage3 427F is a pair of 4-inch, two-way coaxial car speakers designed for factory speaker locations that use the vehicle’s existing grille. It provides a practical replacement path for worn or underperforming factory speakers while maintaining a compact installation footprint. The no-grille configuration is intended for installations behind an OEM door, dash, or panel grille.

With 30 watts RMS power handling per speaker, 3-ohm impedance, and 90 dB sensitivity, the Stage3 427F is suited to modestly powered factory radios as well as compatible aftermarket amplification. Its 75 Hz to 20 kHz frequency response supports midrange and high-frequency duties in a full vehicle audio system. A separate subwoofer may be useful for listeners seeking deeper bass below the speaker’s low-frequency range.

This is a two-way coaxial design, placing the high-frequency driver within the woofer assembly for a space-efficient installation. JBL specifies an edge-driven dome tweeter design for the Stage3 family, supporting smooth high-frequency reproduction. The result is a straightforward speaker upgrade for vehicles with limited mounting space.

The polypropylene Plus One™ woofer cone uses a larger effective cone area than conventional designs in its class. JBL states that this architecture can increase cone area by up to 35% and overall efficiency by up to 2 dB. That added efficiency can help make productive use of the limited power available from many factory head units.

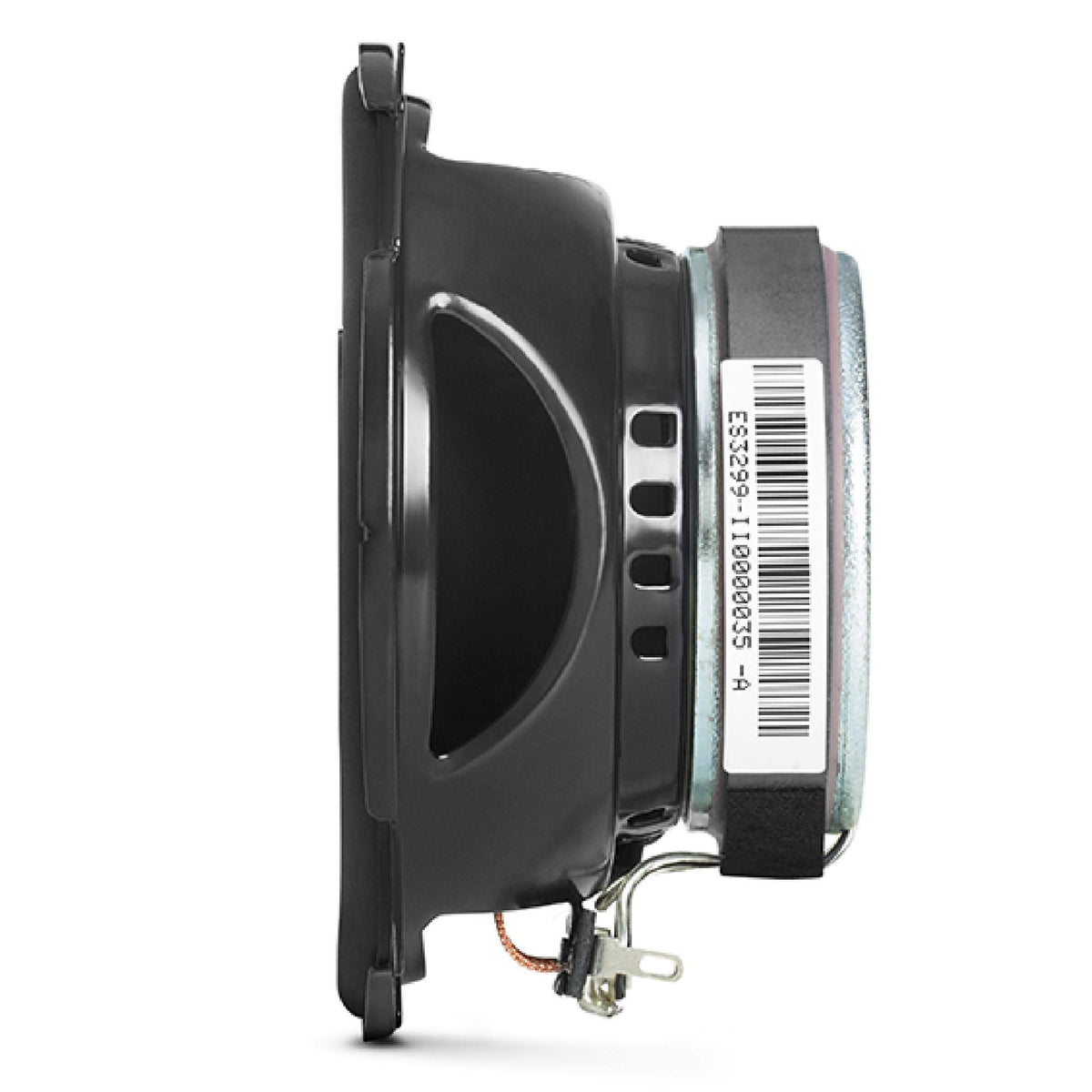

A rigid vented basket frame is designed to help move heat away from the voice coil during operation. This construction supports dependable operation and helps manage distortion at higher output levels. For a balanced system upgrade, use the Stage3 427F as a matched left/right pair and confirm vehicle-specific mounting, connector, and depth requirements before installation.

Key Features

• 4-Inch Coaxial Design: Combines woofer and tweeter functions in one compact speaker assembly.
• 30W RMS Handling: Matches modest factory-radio power and compatible aftermarket amplification.
• 3-Ohm Impedance: Designed to draw useful output from compatible car audio sources.
• Plus One™ Woofer Cone: Uses increased cone area for efficient output and bass response.
• Edge-Driven Dome Tweeter: Supports broad, smooth high-frequency reproduction in a compact layout.
• Vented Basket Frame: Helps dissipate voice-coil heat during extended listening.

Design & Installation

The Stage3 427F uses a polypropylene woofer cone, an integrated dome tweeter, and a vented basket frame. Its black finish and grille-free format are intended for factory-style installations where the vehicle already provides speaker protection. JBL lists the speaker as a 4-inch (100 mm) model, with a 102.4 mm overall outside diameter.

Confirm that your vehicle accepts a 4-inch speaker and that there is adequate mounting clearance before purchase; the published drawing lists 46.8 mm mounting depth and 52.8 mm overall depth. The package contains two speakers only, so mounting hardware, adapters, wiring adapters, and factory-grille retention are vehicle dependent. Because these are 3-ohm speakers, verify that any aftermarket amplifier or head unit is compatible with a 3-ohm speaker load.
