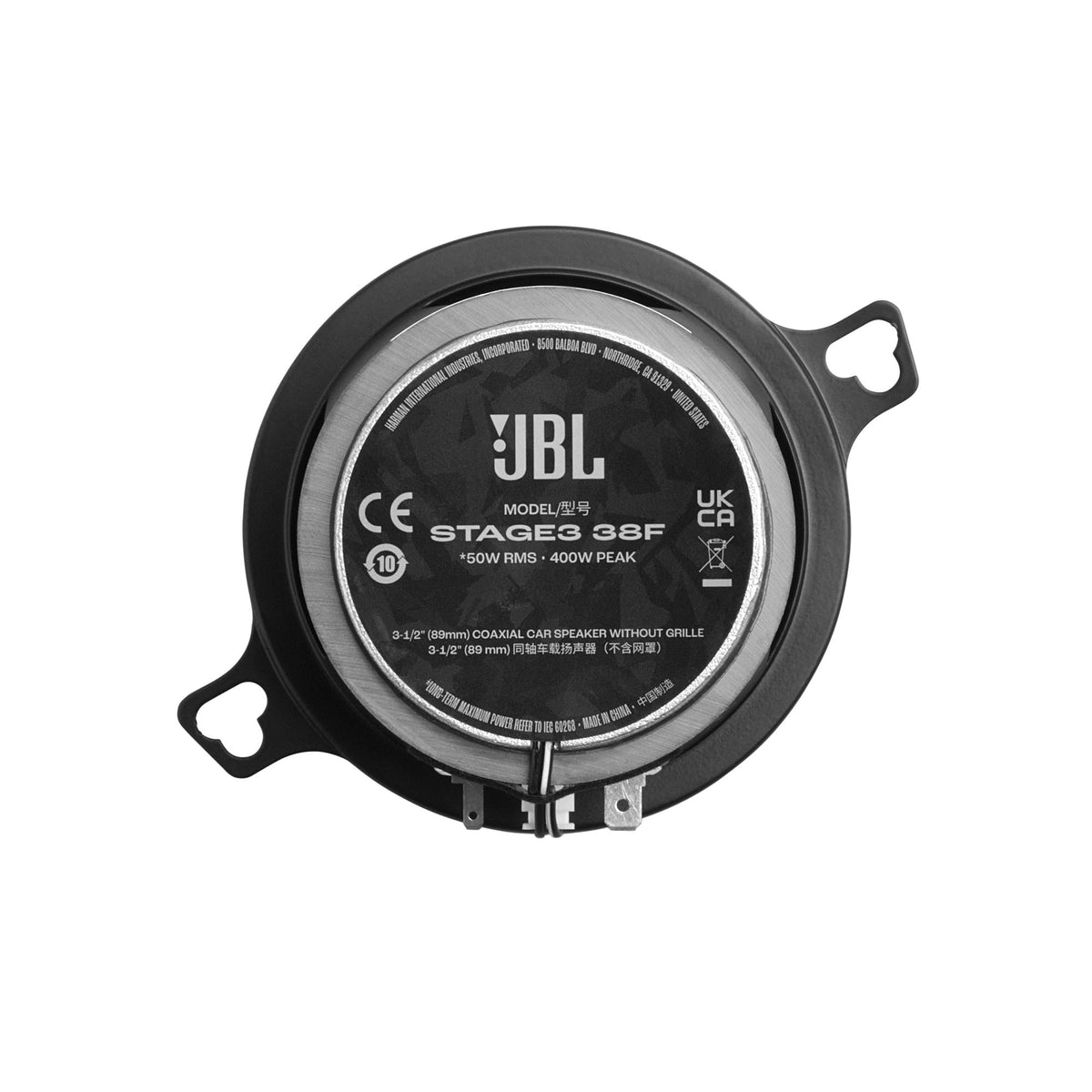

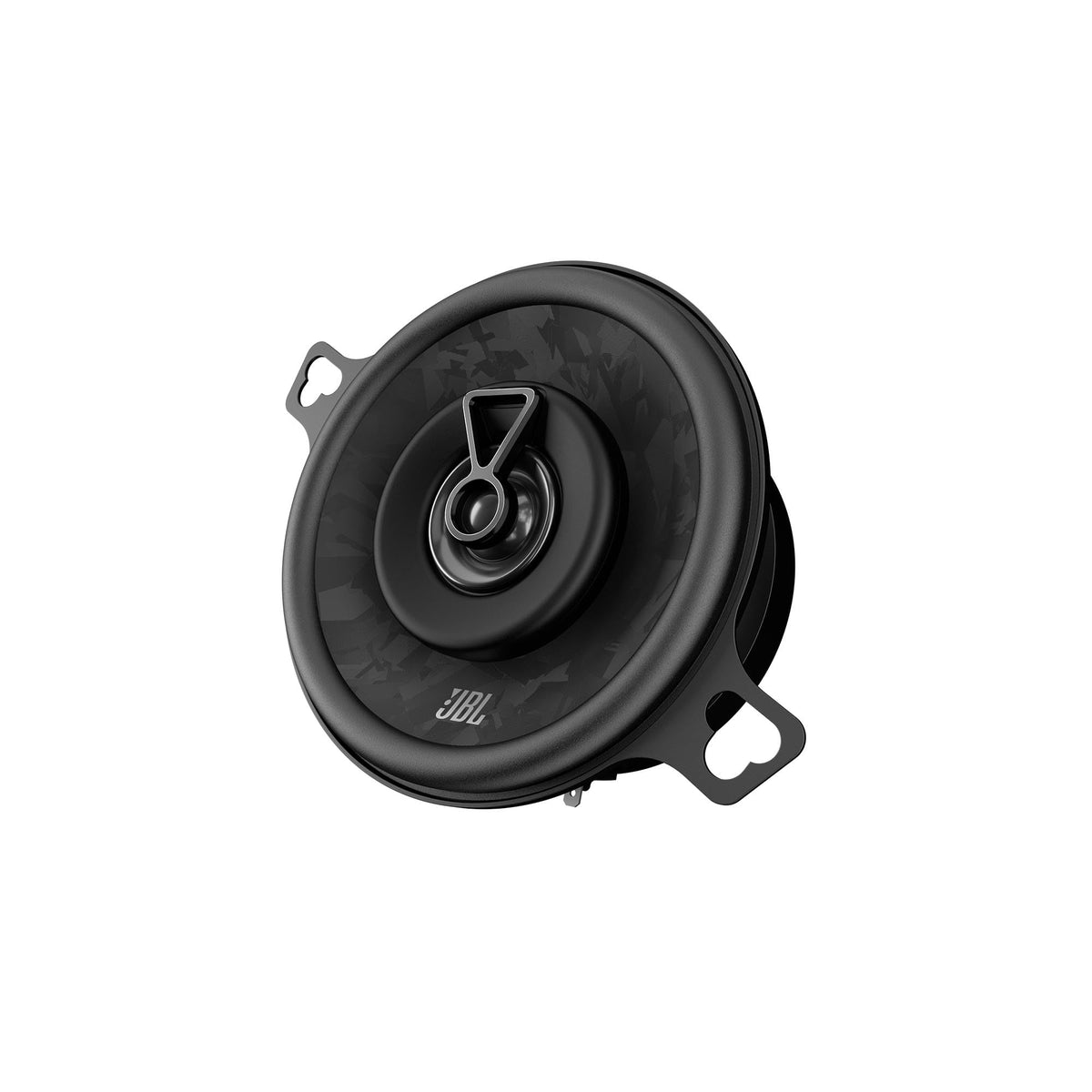

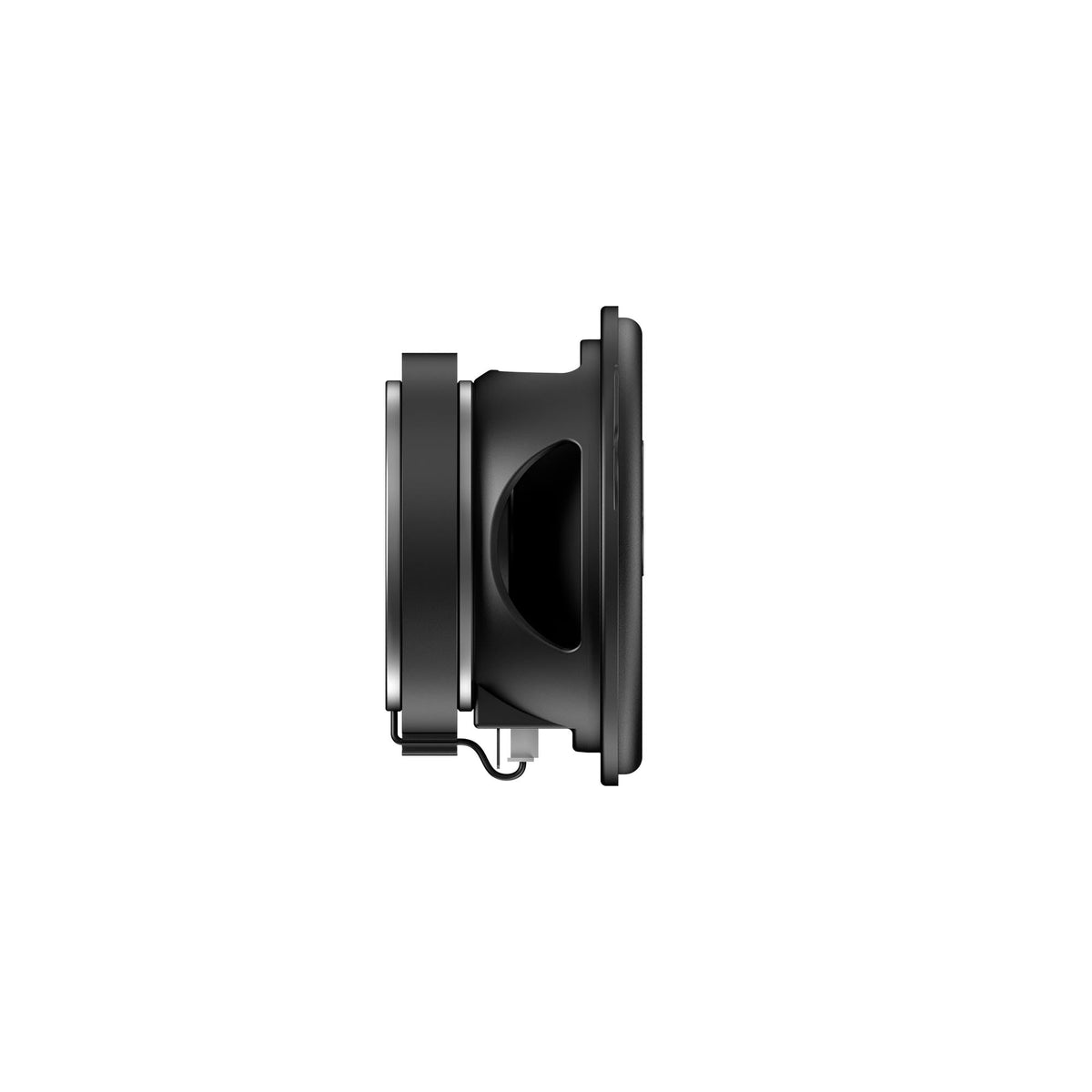

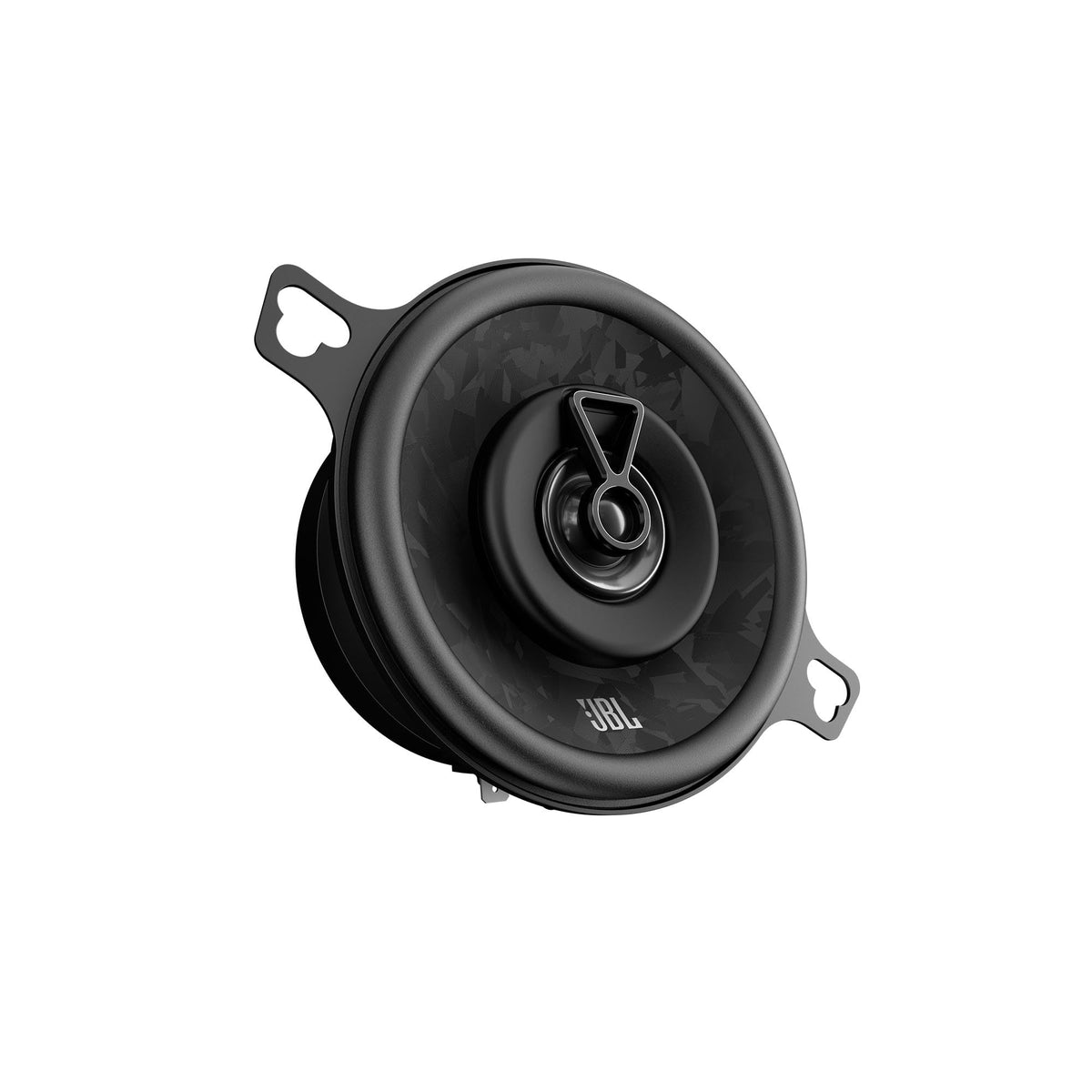

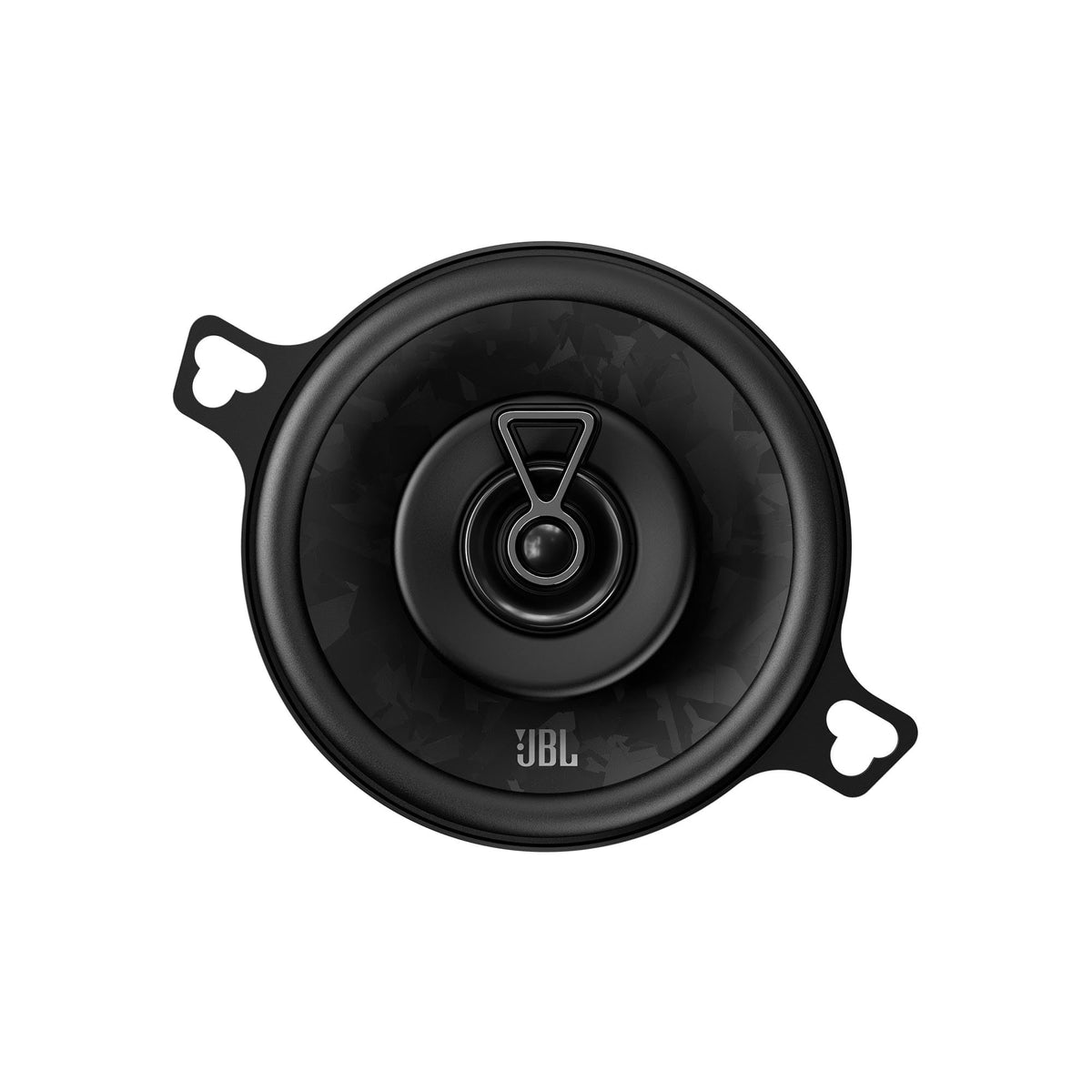

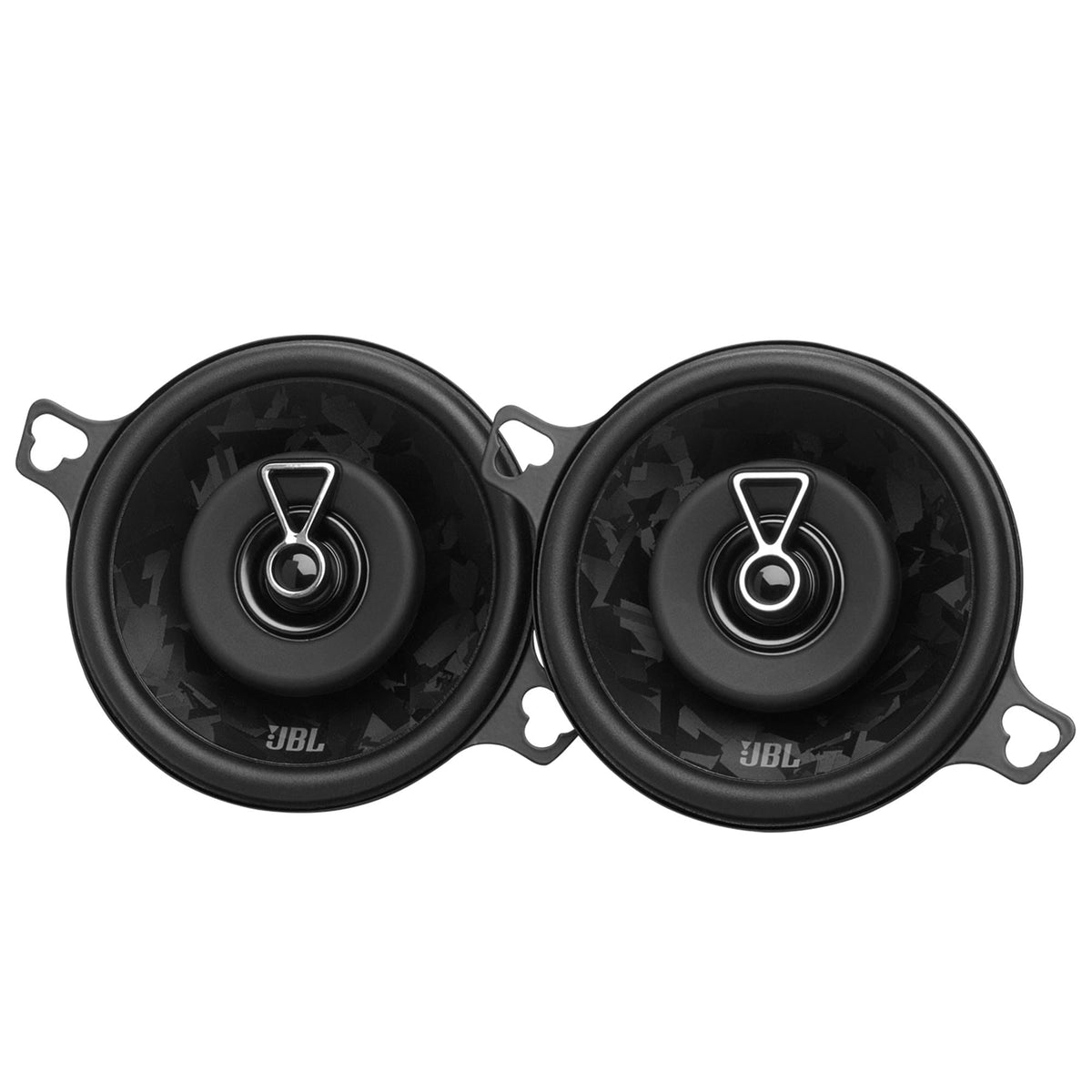

JBL STAGE3 38F 3.5" 2-Way Coaxial Speakers

The JBL STAGE3 38F is a pair of 3.5-inch, 2-way coaxial car speakers made for replacing compatible factory speakers in compact locations. Its grille-free design is intended for installations behind existing vehicle panels, such as dash or corner-dash locations. This makes it a practical option for refreshing worn or limited-range factory speaker positions without adding separate tweeters.

Each speaker is rated for 50 watts RMS and 400 watts peak power, with a 4-ohm nominal impedance. The 88 dB sensitivity rating and true 4-ohm design support use with a compatible factory radio or aftermarket amplifier. With a 90 Hz to 20 kHz frequency response, the pair is suited to delivering midrange and high-frequency detail in a compact speaker location.

The 2-way coaxial layout combines a woofer and tweeter in one assembly to simplify installation where space is limited. A 3/4-inch PEI balanced dome tweeter handles high frequencies, while the polypropylene woofer is designed to provide the main midrange and upper-bass output. This integrated approach can help retain a clean factory-style installation while adding clearer treble reproduction.

JBL's Plus One woofer cone architecture increases usable cone area compared with conventional woofer designs of a similar size. The polypropylene cone is reinforced with 10% glass fiber and uses a laser-etched surface treatment, while a rubber surround supports cone movement. These construction details are designed to balance compact fitment with controlled everyday playback.

The STAGE3 38F works well as part of a broader speaker upgrade, particularly where a vehicle uses small factory dash speakers alongside larger door or rear speakers. It can be connected to a compatible 4-ohm speaker output from a radio or amplifier. For systems with a subwoofer, these speakers can cover the vocal and treble range while the subwoofer handles lower bass frequencies.

Key Features

• 3.5-Inch Coaxial Design: Combines woofer and tweeter in one compact speaker assembly.
• 50W RMS Power Handling: Supports amplifier or radio power up to 50 watts RMS per speaker.
• True 4-Ohm Load: Designed to work with compatible factory radios and amplifiers.
• PEI Balanced Dome Tweeter: Provides dedicated high-frequency reproduction from a compact driver.
• Plus One Woofer Cone: Uses increased cone area for efficient output in limited space.
• Grille-Free Factory Fit: Intended for concealed placement behind compatible factory panels.

Design & Installation

The STAGE3 38F uses a polypropylene woofer cone reinforced with 10% glass fiber, a rubber surround, and a 3/4-inch PEI balanced dome tweeter. JBL also specifies post-consumer recycled plastic components, PVC-free wiring, and soy-ink packaging. The laser-etched cone design gives the woofer a distinctive finished appearance while retaining a compact coaxial layout.

Verify the vehicle's speaker opening, mounting depth, mounting-hole pattern, and connector arrangement before purchase. The reported top-mount depth is 1.42 inches and the reported cutout diameter is 3.03 inches; adapters or a vehicle-specific wiring harness may be needed depending on the application. The package includes mounting hardware, foam gaskets, spade clips, logo badges, and a mini owner's manual, but it does not include grilles.
