Cerwin-Vega H35 3.5" 2-Way Coaxial Speakers

The Cerwin-Vega H35 is a pair of compact 3.5-inch, 2-way coaxial car speakers designed for replacing factory speakers in space-limited locations. Each speaker combines a woofer and tweeter in one assembly, helping simplify a full-range speaker upgrade. It is suited to vehicles with compatible 3.5-inch factory locations and adequate mounting clearance.

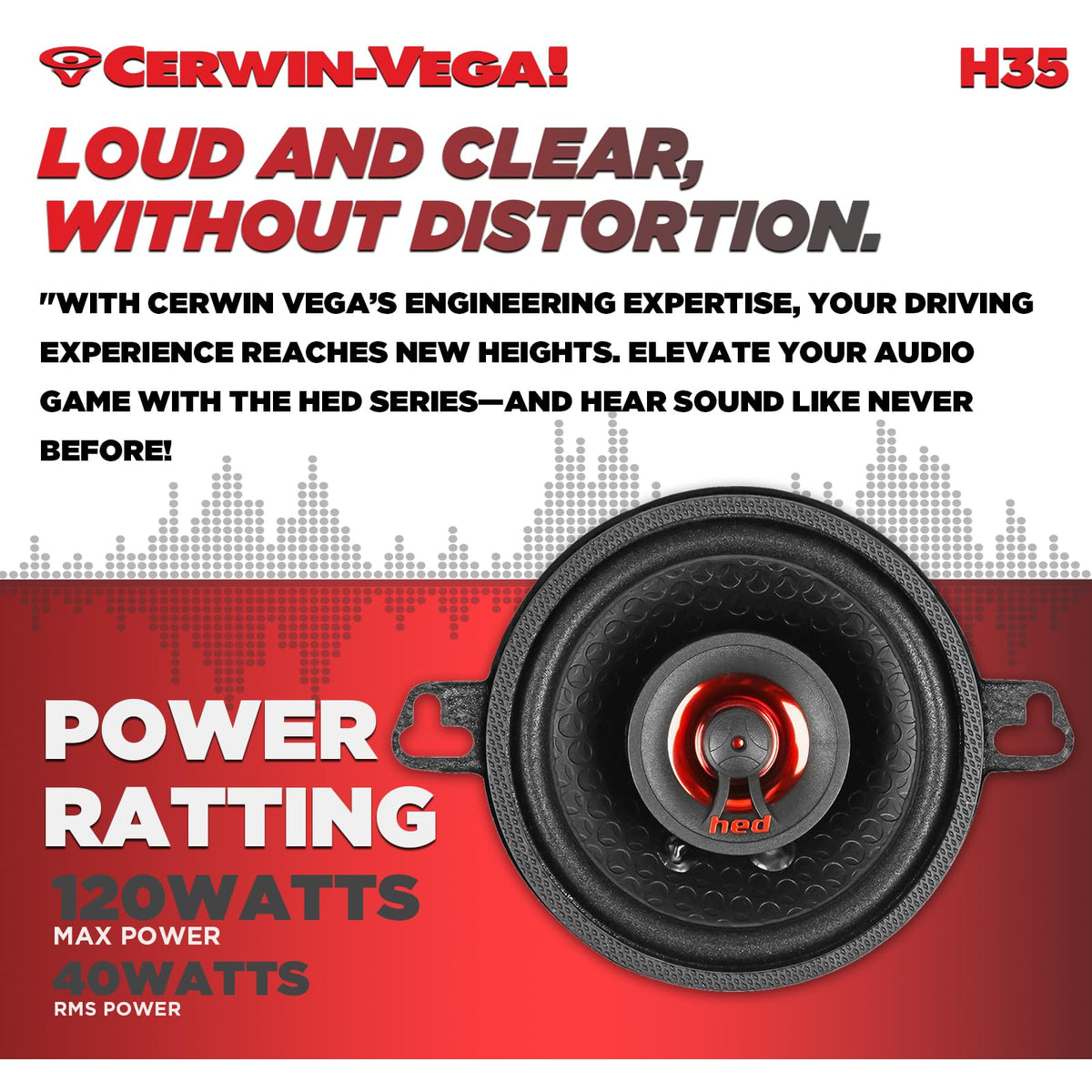

With 40 watts RMS and 120 watts maximum power handling per speaker, the H35 is intended for use with a compatible factory radio or an appropriately matched aftermarket amplifier. Its 4-ohm nominal impedance suits common car-audio speaker circuits. The 84 Hz to 20 kHz published frequency response covers midrange and high-frequency duties in a compact format.

The H35 uses a responsive polypropylene woofer cone with a UV-treated foam surround. This material combination is designed to support controlled cone movement while adding resistance to sun-related wear. A strontium ferrite woofer magnet provides the motor structure for the woofer section.

High frequencies are handled by a dynamically balanced 1-inch PEI balanced-dome tweeter with a neodymium magnet. An integrated crossover directs the appropriate frequency range to the woofer and tweeter. Built-in tweeter protection is included to help protect the high-frequency driver during demanding playback.

For a clean installation, the H35 has a 3.11-inch cutout requirement and a 1.54-inch mounting depth. Its rigid stamped-steel basket is powder coated, and the pair does not include grilles according to the manufacturer specification chart. Confirm vehicle-specific fitment, panel clearance, and mounting-hole alignment before installation.

Key Features

• 3.5-Inch 2-Way Coaxial Design: Combines woofer and tweeter functions in each compact speaker.
• 40W RMS Per Speaker: Supports power matching with compatible head units or amplifiers.
• Polypropylene Woofer Cone: Provides a lightweight cone material for midrange and bass reproduction.
• UV-Treated Foam Surround: Helps support long-term durability in vehicle environments.
• 1-Inch PEI Dome Tweeter: Handles upper-frequency detail with a neodymium tweeter magnet.
• Integrated Crossover Protection: Routes frequencies between drivers and protects the tweeter.

Design & Installation

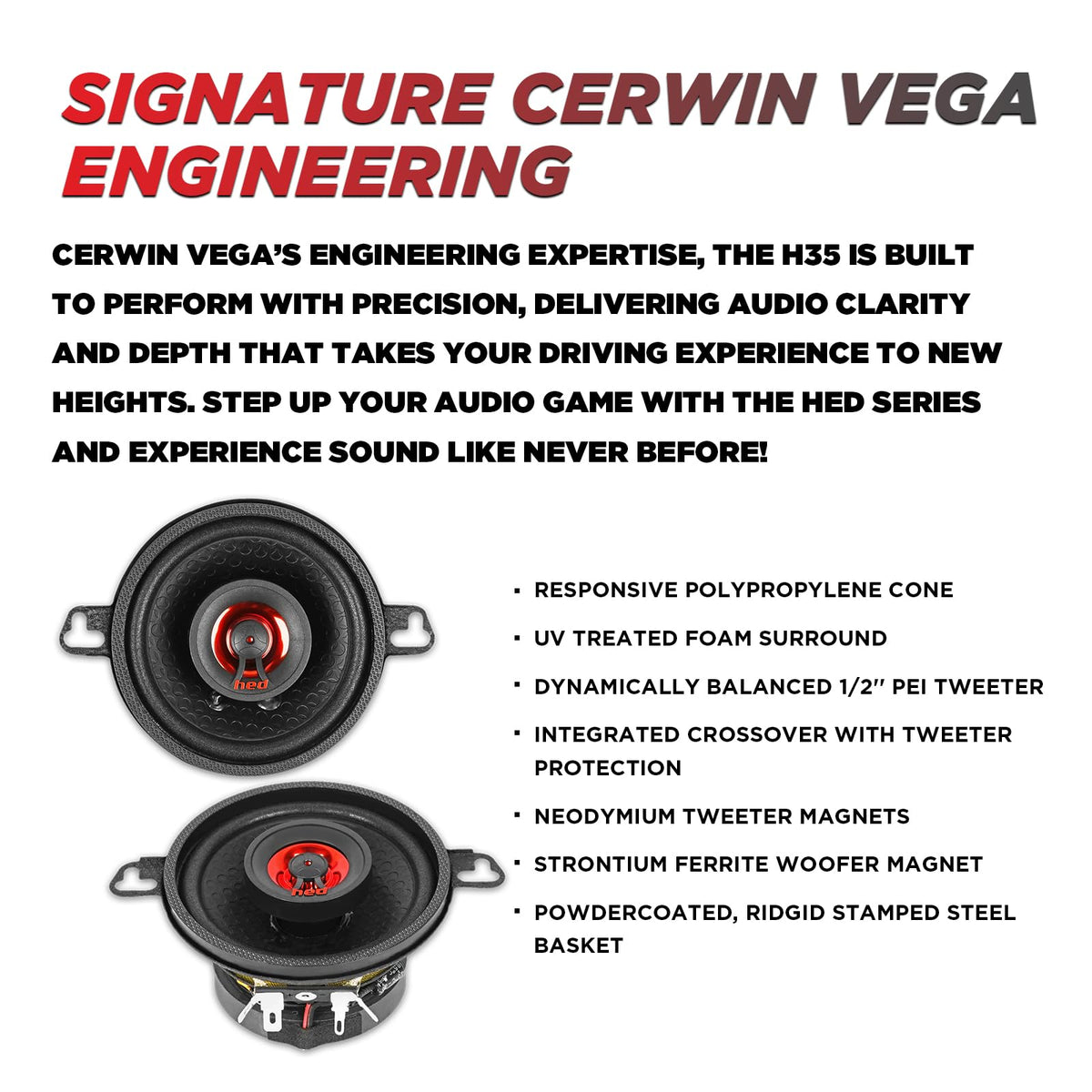

The H35 uses a powder-coated, rigid stamped-steel basket with a strontium ferrite woofer magnet. Its woofer uses a polypropylene cone and UV-treated foam surround, while the centrally mounted PEI balanced-dome tweeter uses a neodymium magnet. The set is sold as a pair and is specified without grilles.

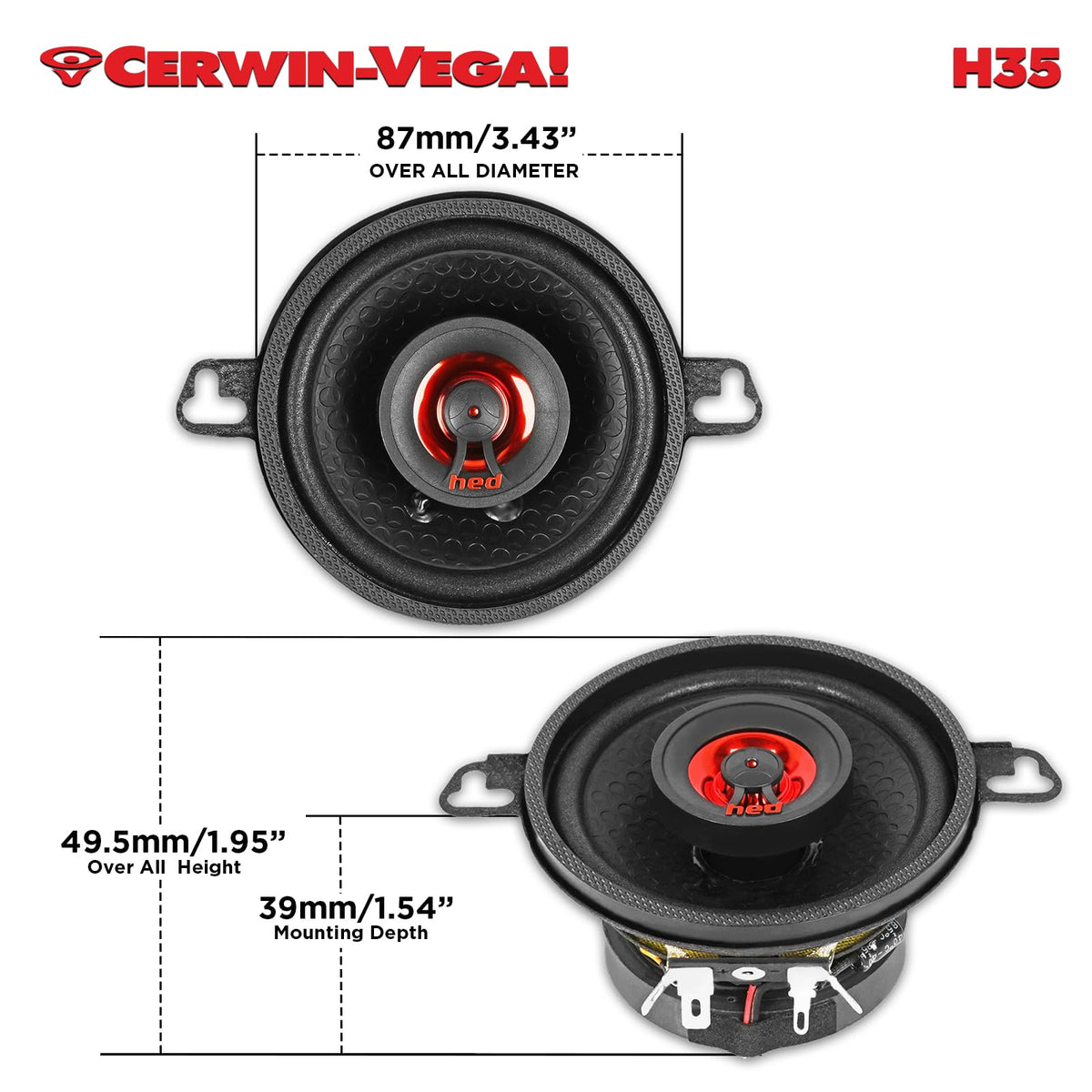

Verify that the mounting location accepts a 3.11-inch cutout, 1.54-inch mounting depth, and 3.43-inch speaker diameter before ordering. Mount the speakers securely to a flat baffle and seal the frame to reduce air leaks around the mounting surface. Observe speaker polarity when wiring and use an amplifier or receiver compatible with 4-ohm speakers.
