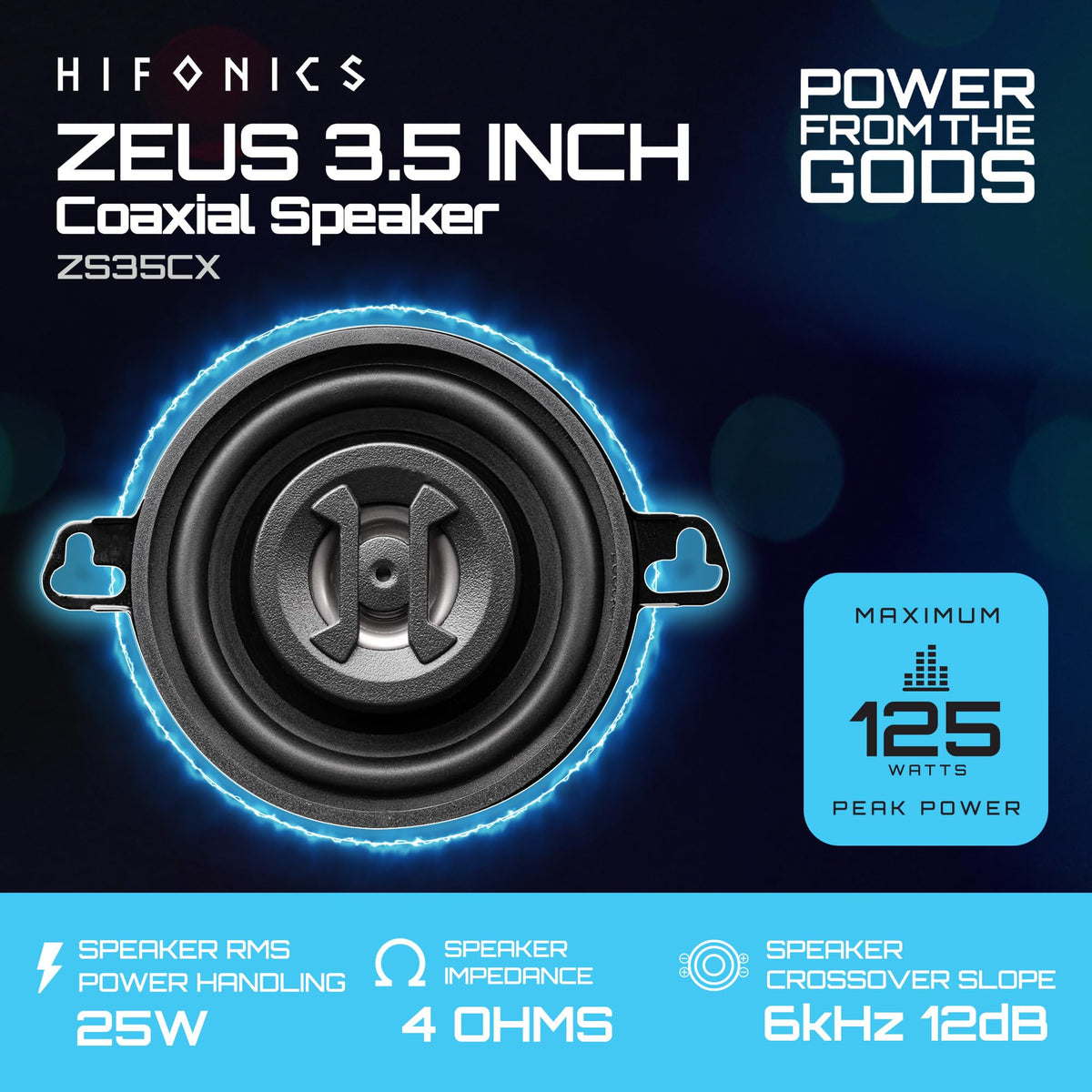

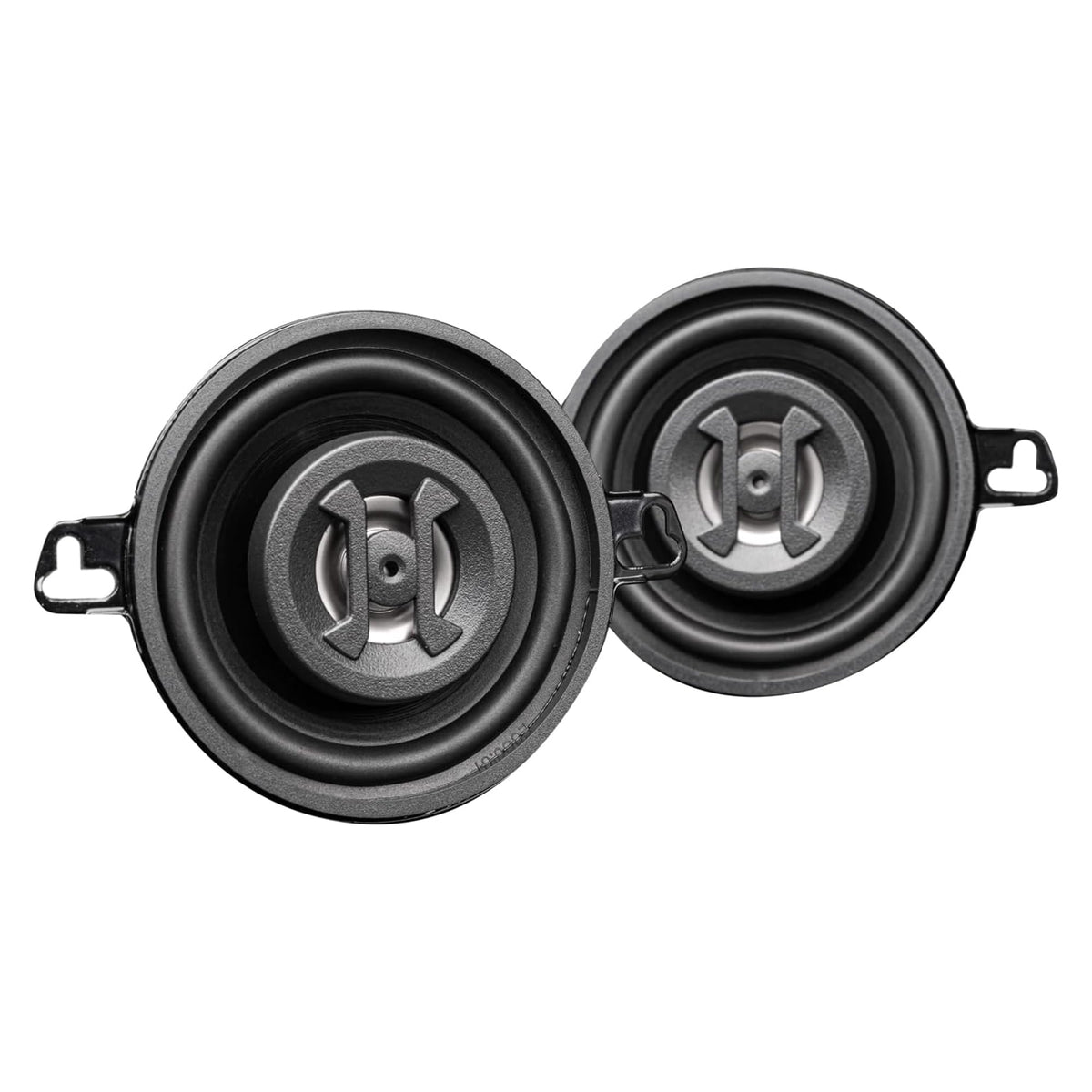

Hifonics ZS35CX 3.5" 2-Way Coaxial Car Speakers

The Hifonics ZS35CX is a pair of 3.5-inch, 2-way coaxial car speakers designed to replace factory speakers or support a compact vehicle-audio upgrade. Their small format suits vehicles with 3.5-inch speaker locations where space is limited. Each speaker combines a woofer and tweeter in one assembly for a straightforward installation approach.

With 25 watts RMS and 125 watts peak power handling per speaker, the ZS35CX is intended for modest-power factory-radio or external-amplifier systems. Its 4-ohm impedance is common in automotive audio applications. The specified 80 Hz to 20 kHz frequency response covers midrange and high-frequency duties in a full-range speaker system.

The speaker uses a 1-inch Neo-Mylar soft-dome tweeter to handle high-frequency detail. A passive Butterworth crossover at 6 kHz with a 12 dB slope directs frequencies between the woofer and tweeter. This integrated crossover design helps provide a more controlled handoff between the two drivers.

An Alpha-Cellulose woofer cone and rubber surround form the low- and mid-frequency section of each speaker. The woofer is paired with a pure-copper voice coil on a Kapton former, while an overcoil air-exchange design supports heat dissipation around the voice coil. An epoxy-infused natural-fiber spider provides suspension support for the moving assembly.

The ZS35CX is a practical option for refreshing small factory speaker positions in compatible cars. Its stamped-steel basket and ferrite motor structure provide the basic mechanical foundation for the speaker assembly. Use it as a direct replacement where vehicle mounting diameter, cutout, depth, and wiring connections are verified before installation.

Key Features

• 3.5-Inch Coaxial Design: Combines woofer and tweeter in each compact speaker.
• 25W RMS Handling: Supports moderate-power factory or amplified audio systems.
• 1-Inch Neo-Mylar Tweeter: Reproduces upper-frequency detail through a soft-dome design.
• Alpha-Cellulose Woofer Cone: Provides a lightweight, rigid cone construction.
• Butterworth Crossover: Divides woofer and tweeter frequencies at 6 kHz.
• Rubber Surround: Adds durability and supports woofer movement.

Design & Installation

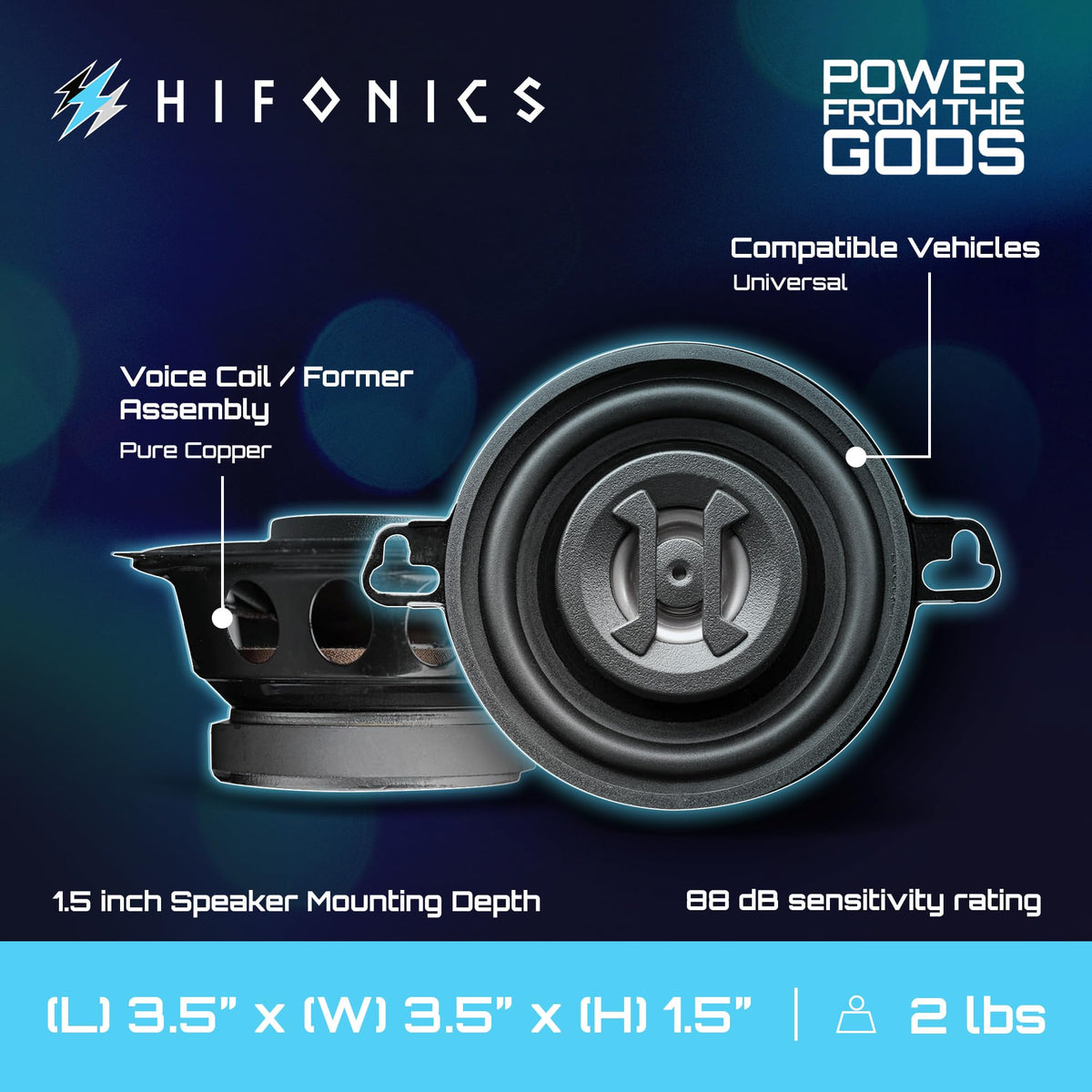

The ZS35CX uses an anti-resonant stamped-steel basket, ferrite magnet motor, Alpha-Cellulose cone, rubber surround, copper voice coil, Kapton former, and epoxy-infused natural-fiber spider. These materials support the speaker's compact coaxial construction. The pair is finished in black and does not include speaker grilles.

Confirm the vehicle's available mounting location, cutout, depth clearance, and connector polarity before purchase or installation. Published installation dimensions list a 3.1-inch cutout and 1.63-inch top-mount depth; check clearance behind the mounting surface and around moving window mechanisms where applicable. The speakers can be used with a compatible factory head unit or amplifier, provided power is kept within their 25-watt RMS rating per speaker.
