Rockford Fosgate HD14CVO-STG2 6.5"/5x7" Harley Audio Kit

The Rockford Fosgate HD14CVO-STG2 is a four-speaker motorcycle audio upgrade kit for select Harley-Davidson CVO Street Glide and CVO Road Glide models. It combines fairing speakers, saddlebag-lid speakers, a four-channel amplifier, and a vehicle-specific installation kit. The system is intended for riders who want an integrated audio upgrade while retaining the factory Harley-Davidson radio.

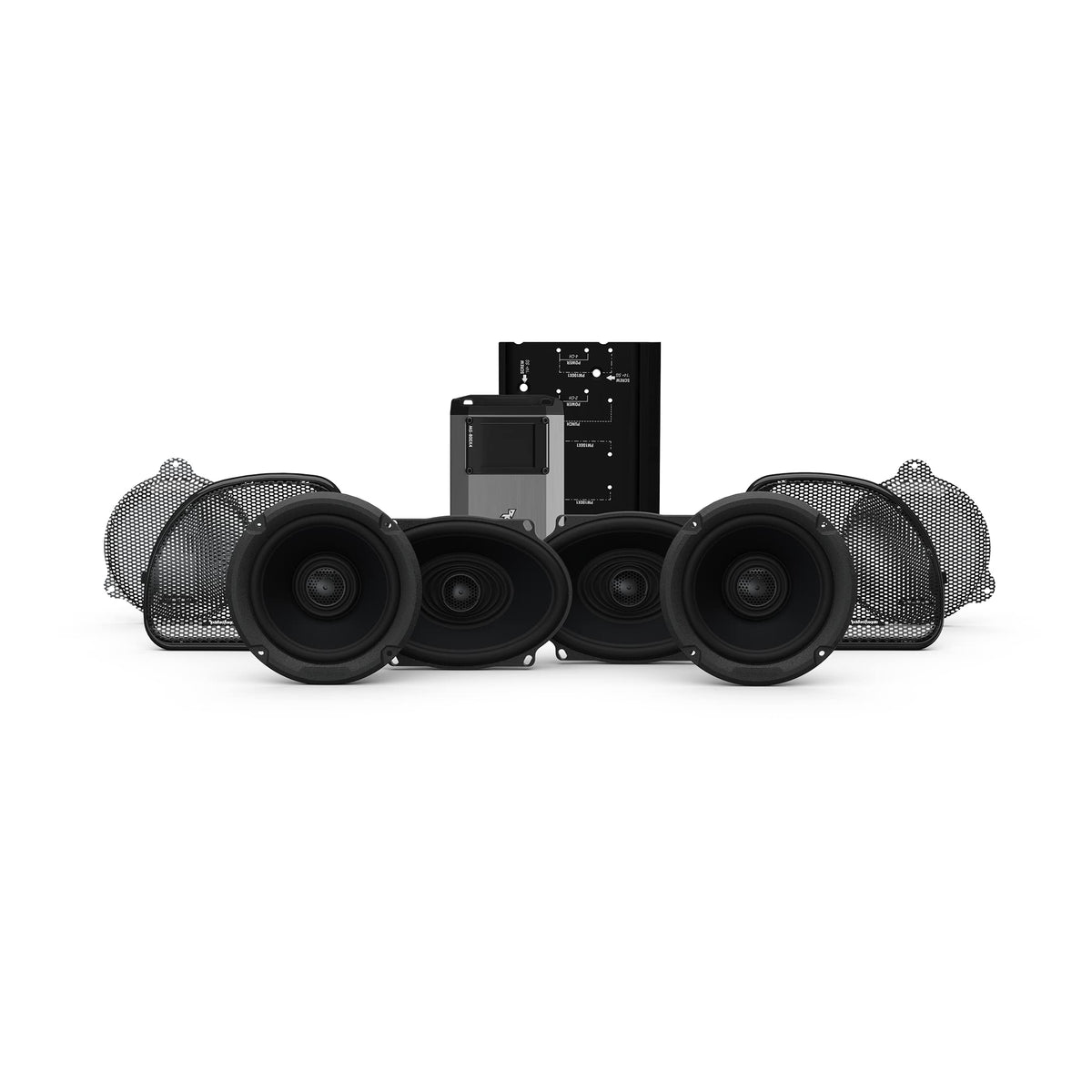

The kit includes two TMS65 6.5-inch two-way fairing speakers and two TMS57 5x7-inch two-way saddlebag speakers. Its M5-800X4 amplifier provides dedicated channels for the front and rear speaker pairs. The speaker set is engineered for motorcycle use, where wind, road, and exhaust noise can make factory audio difficult to hear.

The TMS65 fairing speakers use carbon-fiber-reinforced polypropylene cones, Santoprene surrounds, and 25 mm dome tweeters. The TMS57 bag-lid speakers use a similar weather-resistant design with 25 mm dome tweeters and 5x7-inch factory-replacement fitment. Both speaker models are 4-ohm designs with built-in tweeter crossovers.

At the center of the kit is the IPX6-rated M5-800X4 Class-AD amplifier. It is rated for 100 watts RMS per channel at either 4 or 2 ohms, with four channels available for the included speakers. Variable high-pass and low-pass filters, a Punch EQ control, and C.L.E.A.N. clip indicators support setup and tuning.

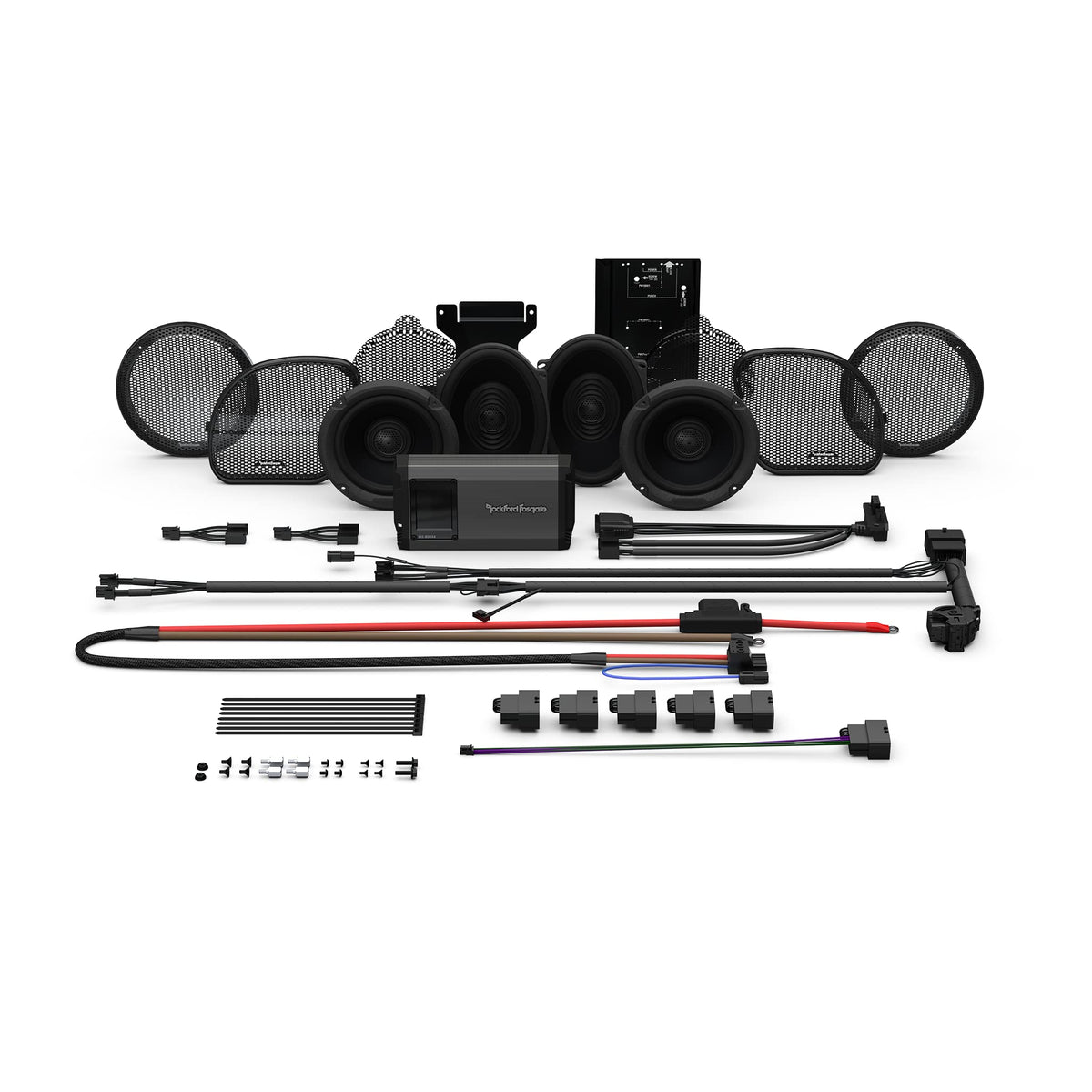

The included RFK-HD14M5 installation package is designed around select Harley-Davidson factory mounting points and wiring connections. It supplies the amplifier bracket, heatsink, vehicle-specific harnesses, power wiring, bypass plugs, and hardware. The factory Harley-Davidson radio must be flashed for use with this kit to prevent distortion and potential speaker damage.

Key Features

• Four-Speaker System: Includes two 6.5-inch fairing speakers and two 5x7-inch bag-lid speakers.
• M5-800X4 Amplifier: Four-channel Class-AD power supports separate front and rear speaker channels.
• Element Ready Construction: Speakers and amplifier are designed for motorcycle exposure to weather and vibration.
• IPX6 Amplifier Rating: The amplifier is protected against powerful water jets from any direction.
• Factory-Style Integration: Direct-connect harnesses reduce the need to cut factory wiring.
• Radio Flash Requirement: Factory radio flashing is required before operating the upgraded system.

Design & Installation

The TMS65 and TMS57 speakers use reinforced polypropylene cones, Santoprene suspension components, neodymium motor systems, and integrated tweeter assemblies. The M5-800X4 uses an Element Ready chassis, conformal-coated circuit boards, heavy-duty molded connectors, and a die-cast aluminum heatsink. These components are designed for the vibration, moisture, UV exposure, and limited installation space associated with touring motorcycles.

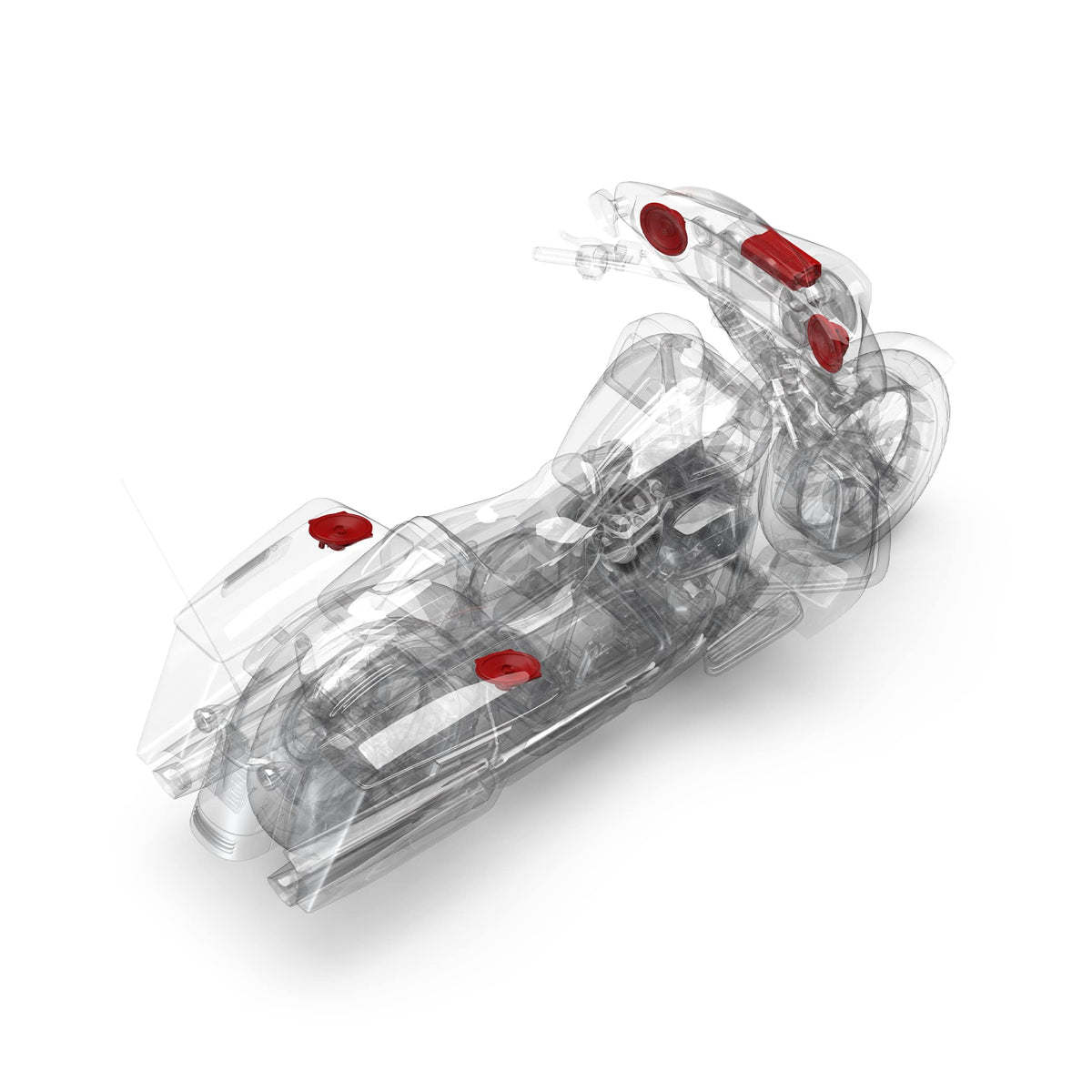

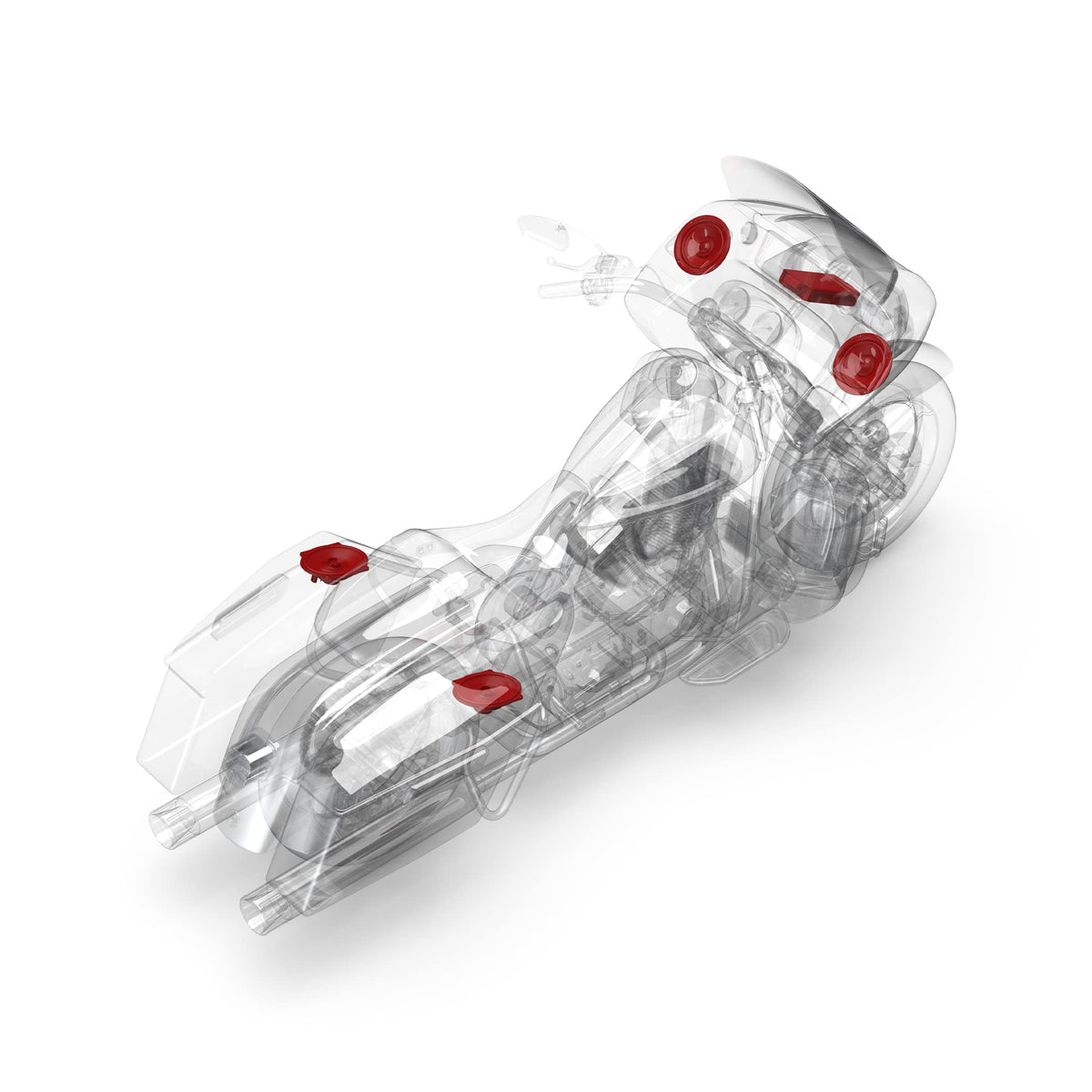

This kit is intended for compatible factory-radio Harley-Davidson CVO applications with standard-size ABS plastic saddlebags and factory 5x7-inch bag lids. The RFK-HD14M5 provides a mounting bracket, heatsink, T-harness, power harness, amplifier-output harnesses, fairing harness, Y-adapters, bypass plugs, and mounting hardware. Confirm motorcycle fitment, factory audio configuration, and radio-flashing availability before purchase; professional installation and tuning are recommended.
