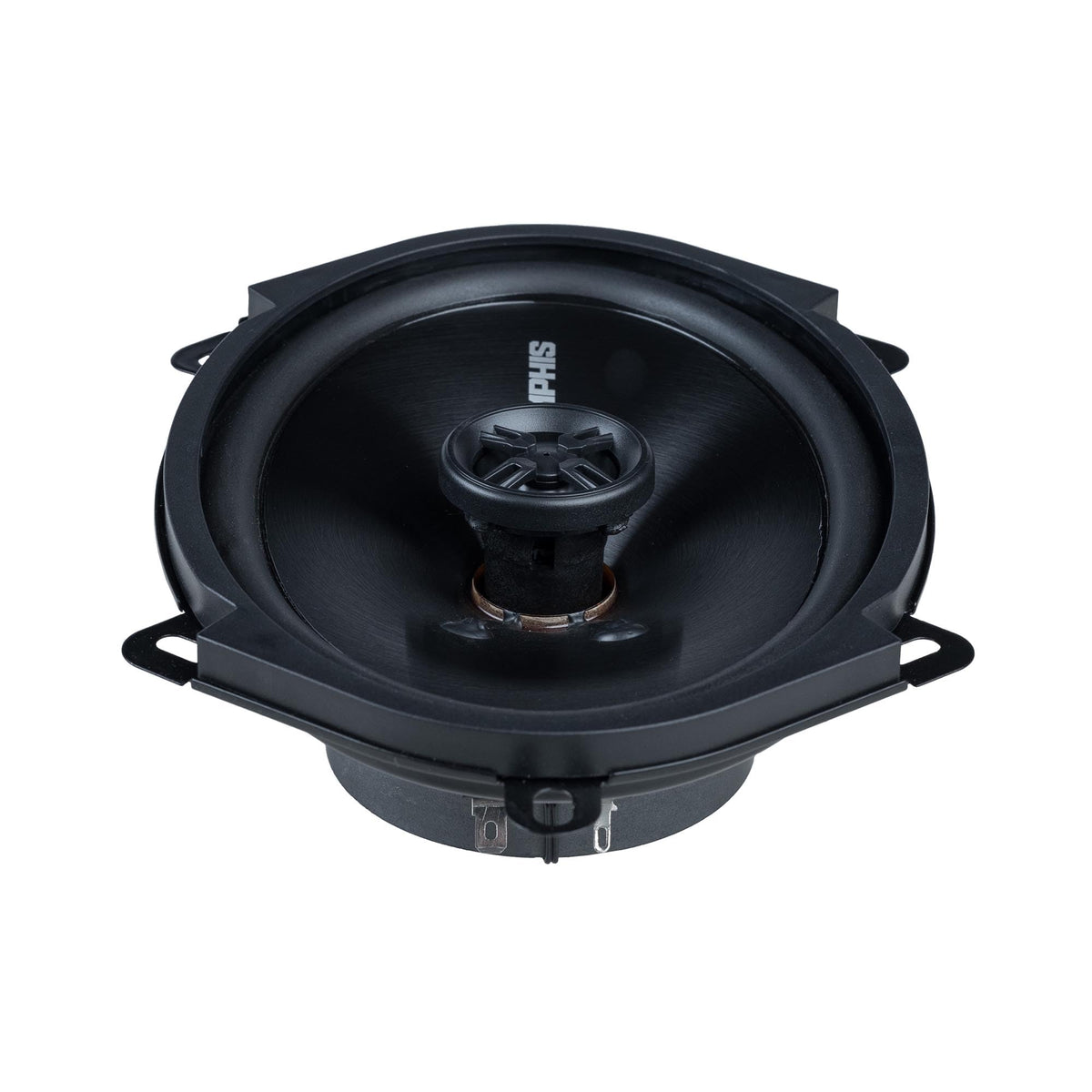

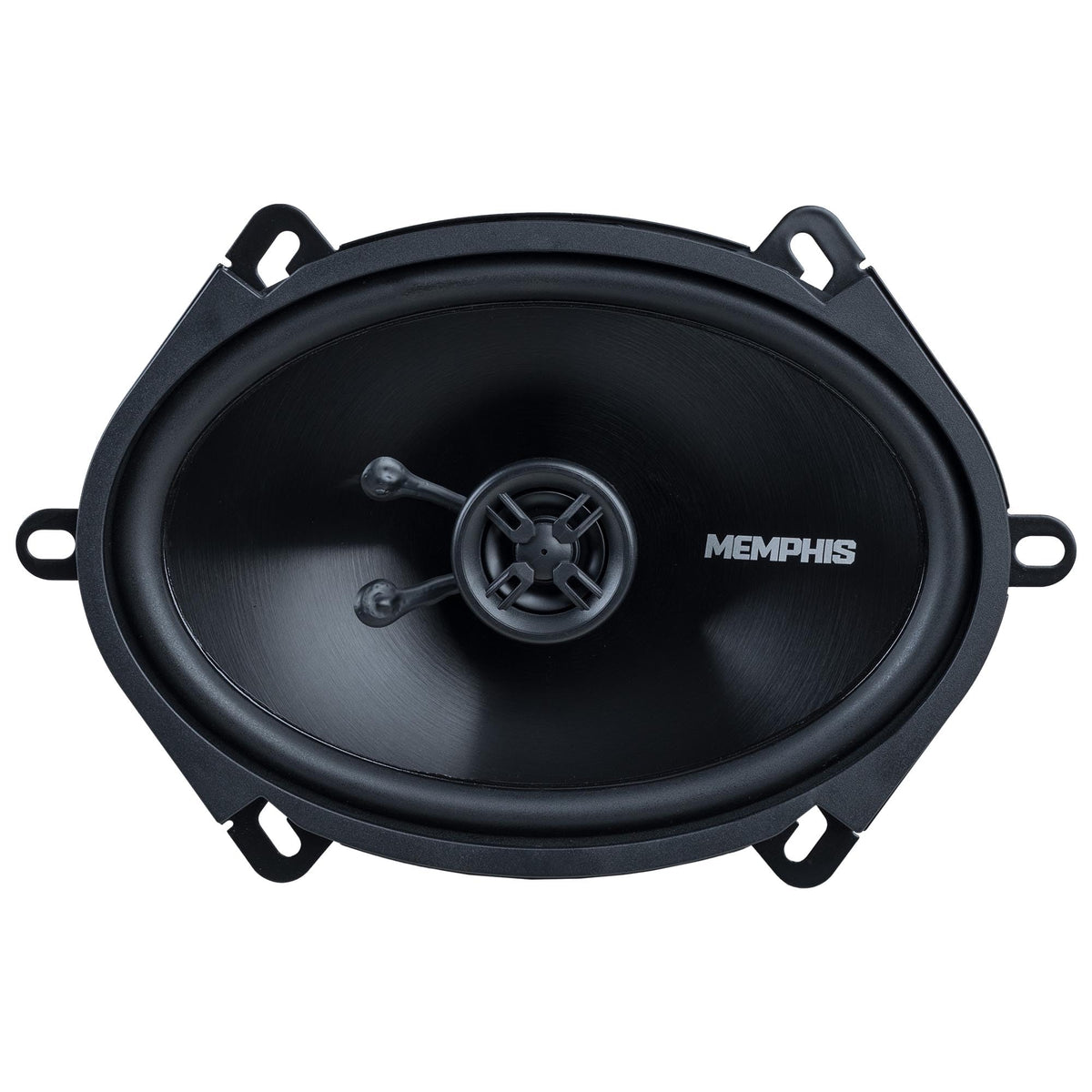

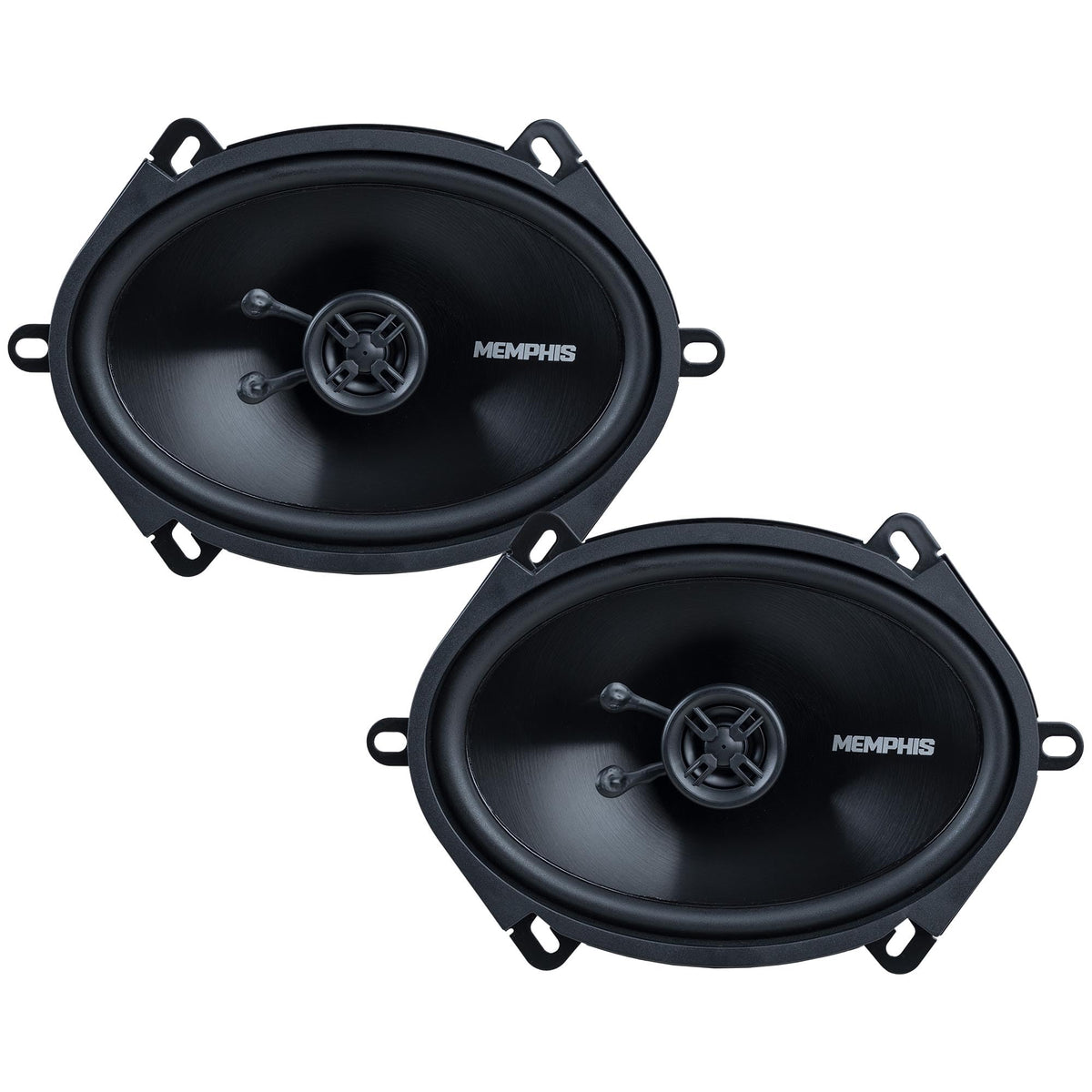

Memphis SRX572V 5x7" 2-Way Coaxial Speakers

The Memphis SRX572V is a pair of 5x7-inch, 2-way coaxial car speakers designed to replace compatible factory door or rear-deck speakers. It provides a straightforward upgrade path for vehicles using the common 5x7-inch speaker format. The coaxial layout combines the woofer and tweeter in each speaker for a compact installation.

These speakers are intended for listeners replacing worn, low-output, or basic factory speakers while retaining a practical fitment profile. Their 50-watt RMS power rating suits use with an appropriately matched aftermarket amplifier. They can also be considered for factory-system replacement where vehicle fitment, wiring, and available power are verified.

A polypropylene cone handles the main midrange and lower-frequency duties, while the integrated PEI tweeter reproduces higher frequencies. This two-way arrangement is designed to cover a broader portion of the audible range from each mounting location. The 90 dB sensitivity rating helps support useful output from modest-power car-audio systems.

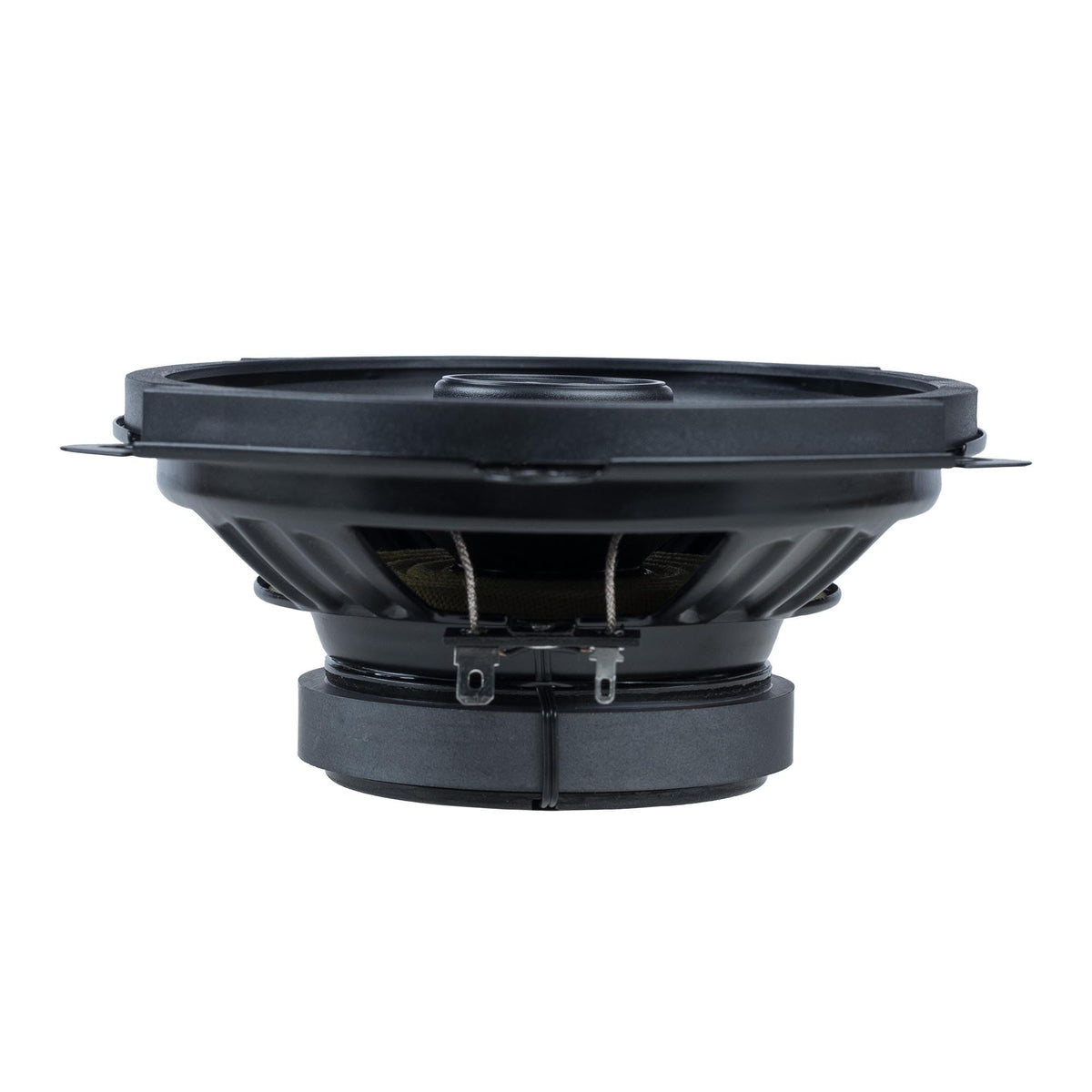

Memphis uses a rubber surround around the cone and a slim 2.15-inch mounting depth for this Street Reference model. The slim profile can be helpful where factory speaker locations have limited clearance behind the mounting surface. Its 4-ohm impedance is a conventional match for many aftermarket car-audio speaker outputs.

The SRX572V can serve as a pair upgrade in a compatible front or rear 5x7-inch location, depending on the vehicle. Confirm the factory opening, mounting-hole pattern, mounting depth, window clearance, connector style, and polarity before installation. For amplified systems, select amplifier channels that can deliver power appropriate for the speakers' 50-watt RMS rating.

Key Features

• 5x7-Inch Size: Fits compatible 5x7-inch vehicle speaker locations.
• Two-Way Coaxial Design: Integrates woofer and tweeter in each speaker.
• Polypropylene Cone: Provides the main cone structure for sound reproduction.
• PEI Tweeter: Handles high-frequency detail within the coaxial assembly.
• Rubber Surround: Supports controlled cone movement and durability.
• Slim Mounting Depth: Requires 2.15 inches of mounting depth.

Design & Installation

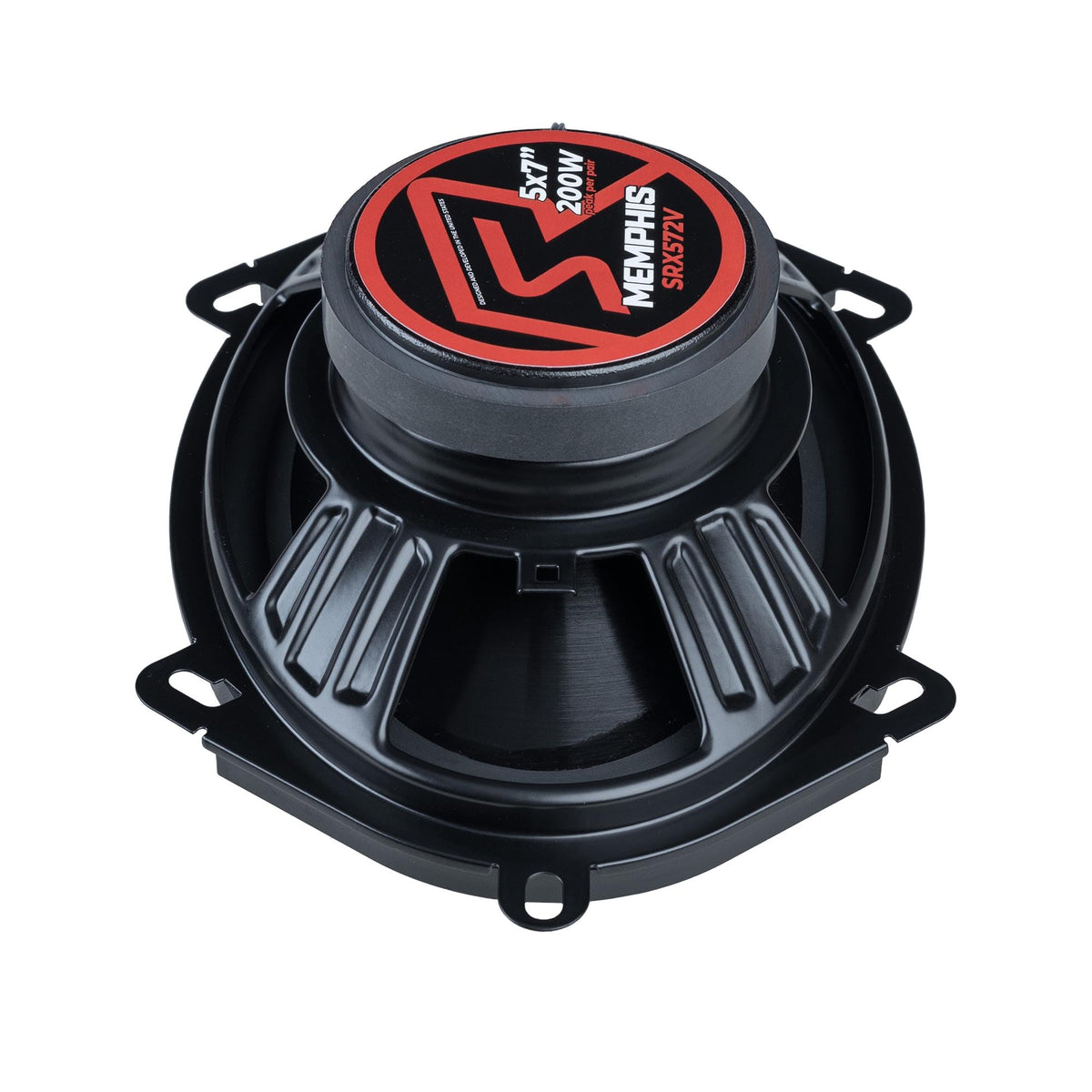

The SRX572V combines a polypropylene woofer cone, rubber surround, and PEI tweeter in a 5x7-inch coaxial speaker frame. Memphis lists a 9-ounce magnet and 4-ohm nominal impedance for the model. The pair is part of the Memphis Street Reference speaker line.

Verify that the vehicle accepts a 5x7-inch speaker and has at least 2.15 inches of mounting depth before purchasing. The listed cutout requirement is 4.9 by 7.03 inches, while the mounting template identifies a 4.94 by 7.06-inch mounting opening and a 4.17 by 4.92-inch screw-hole pitch. Use vehicle-specific adapter brackets or harnesses only when required for the installation; grilles are not included.
