Crunch CS5768CX 5x7"/6x8" 2-Way Coaxial Speakers

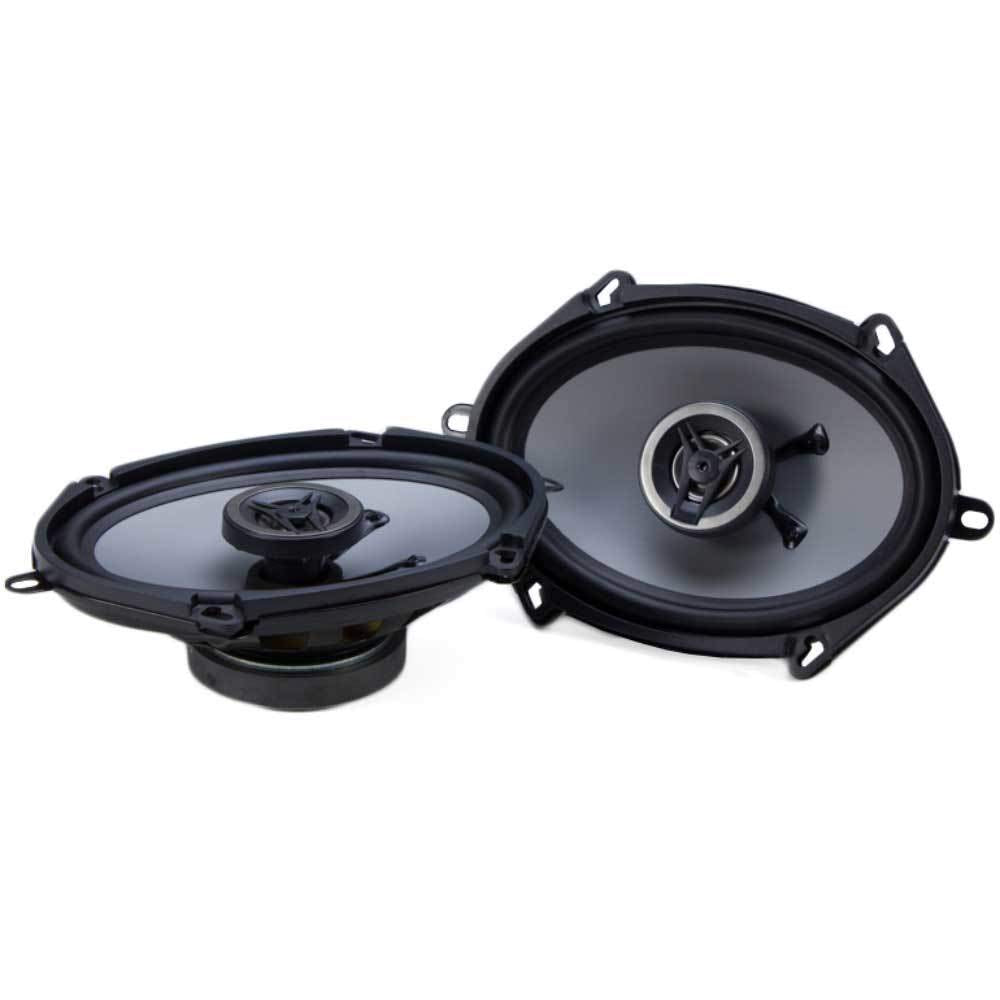

The Crunch CS5768CX is a pair of 5 x 7-inch coaxial car speakers designed to also fit many 6 x 8-inch speaker locations. It provides a practical replacement path for worn or basic factory speakers while retaining a conventional full-range coaxial layout. Each speaker combines a midrange/woofer driver and tweeter in one assembly for straightforward installation.

These speakers are intended for drivers who need to confirm both mounting space and power compatibility before upgrading. Their 4-ohm impedance suits common car-audio speaker circuits, while the 50-watt RMS rating per speaker gives an amplifier-matching reference beyond the peak-power figure. Check the vehicle's factory opening, cutout, mounting depth, and connector arrangement before installation.

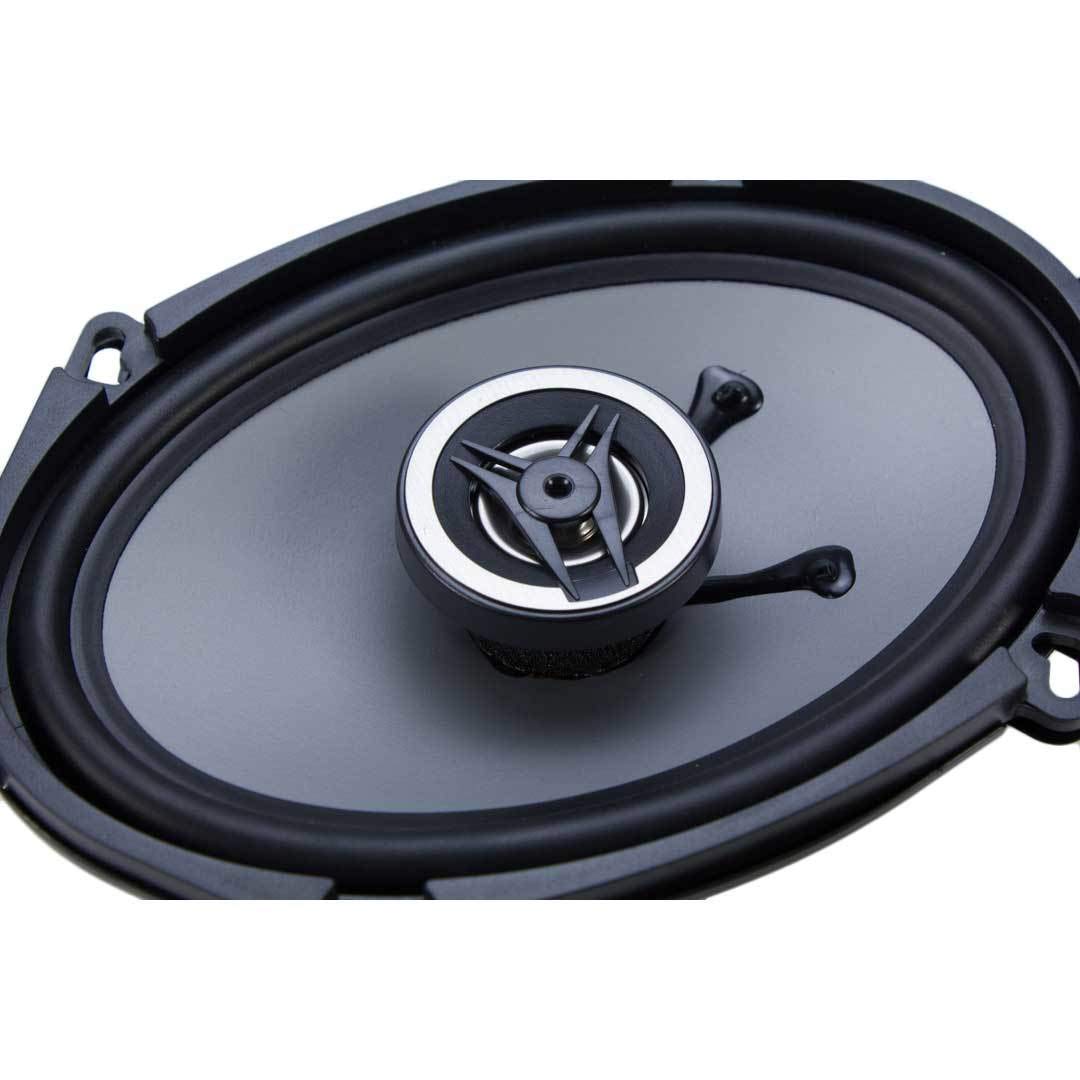

The CS5768CX uses a 1-inch Neo-Mylar soft-dome tweeter to reproduce upper-frequency detail alongside the main cone. Its published frequency response is 60 Hz to 20 kHz, covering the primary range expected from a full-range door or rear-deck speaker. For a system needing more low-frequency output, these speakers can be paired with a properly configured subwoofer and amplifier.

A silver alpha-cellulose cone works with a moisture-resistant rubber surround to support everyday automotive use. The speaker also uses an anti-resonant stamped-steel basket, a ferrite magnet motor, and a pure-copper voice coil on a Kapton former. These construction details focus on maintaining the driver's structure and managing heat during operation.

The CS5768CX is supplied as a pair, making it suited to replacing two factory speaker positions at once. It can be used with a compatible factory radio or aftermarket source unit, provided the system's power and fitment are appropriate. Spade terminals and included connection cables support conventional speaker wiring during an installation or refresh.

Key Features

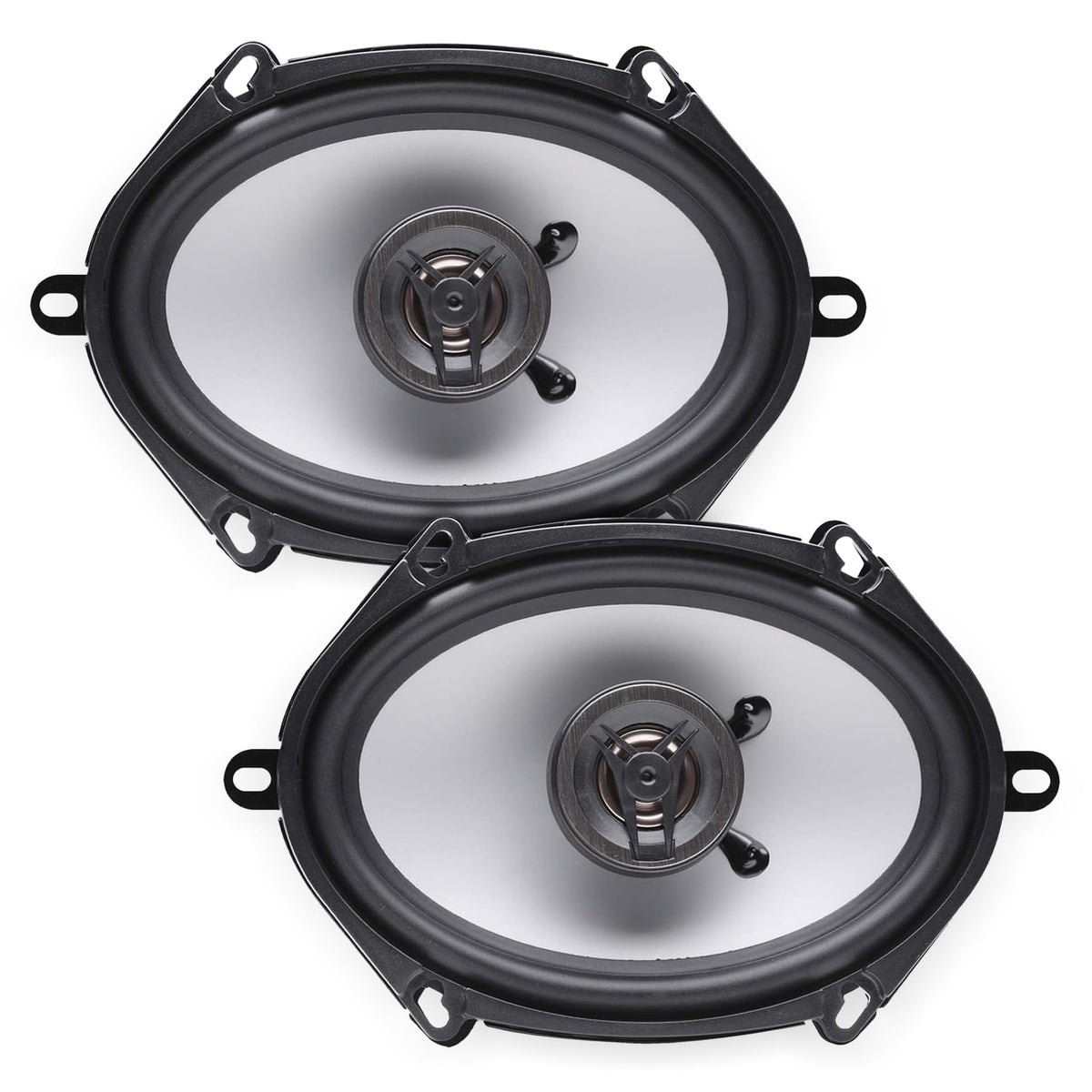

• 5x7/6x8 Fitment: Designed for 5 x 7-inch openings and many 6 x 8-inch locations.
• 2-Way Coaxial Design: Integrates the tweeter and main driver in each speaker.
• 1-Inch Neo-Mylar Tweeter: Handles high-frequency reproduction with a soft-dome design.
• Alpha-Cellulose Cone: Provides the main driver's cone structure for midrange and bass duties.
• Rubber Surround: Adds moisture resistance at the cone edge.
• 4-Ohm Impedance: Matches the standard impedance used by many car-audio systems.

Design & Installation

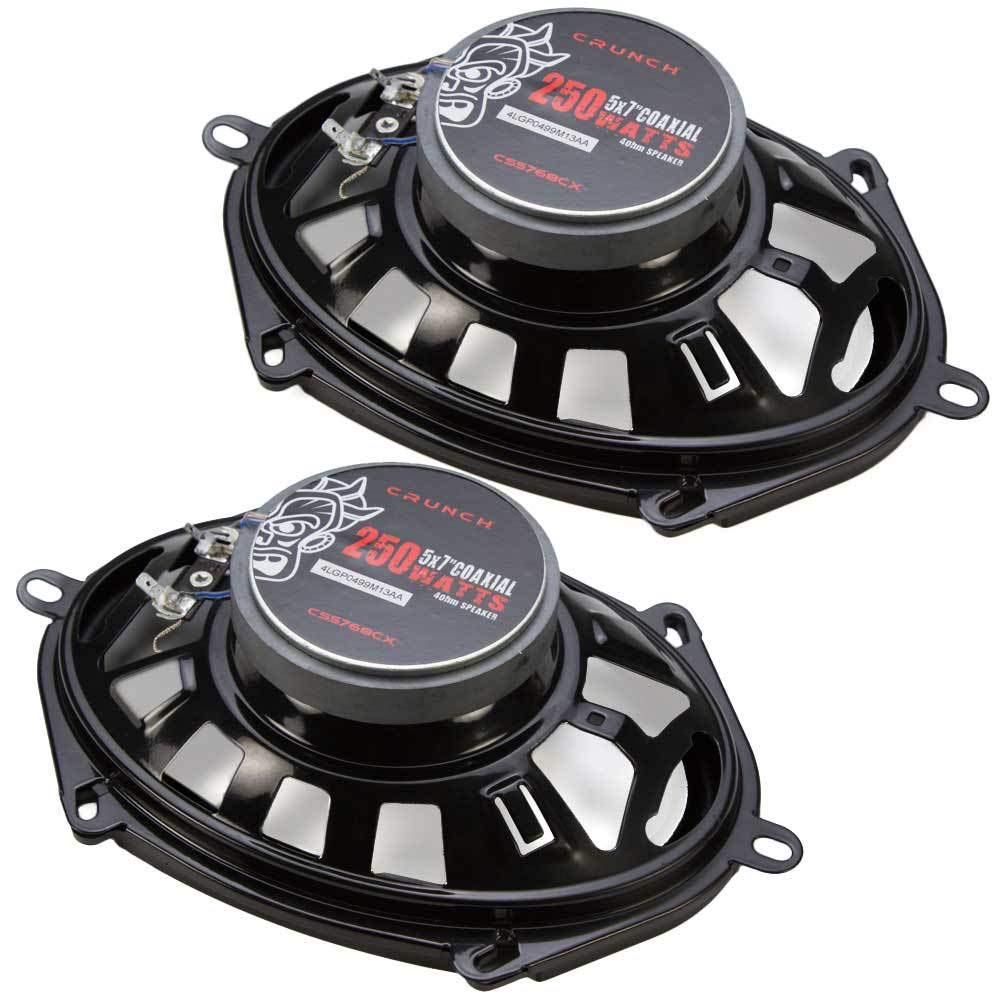

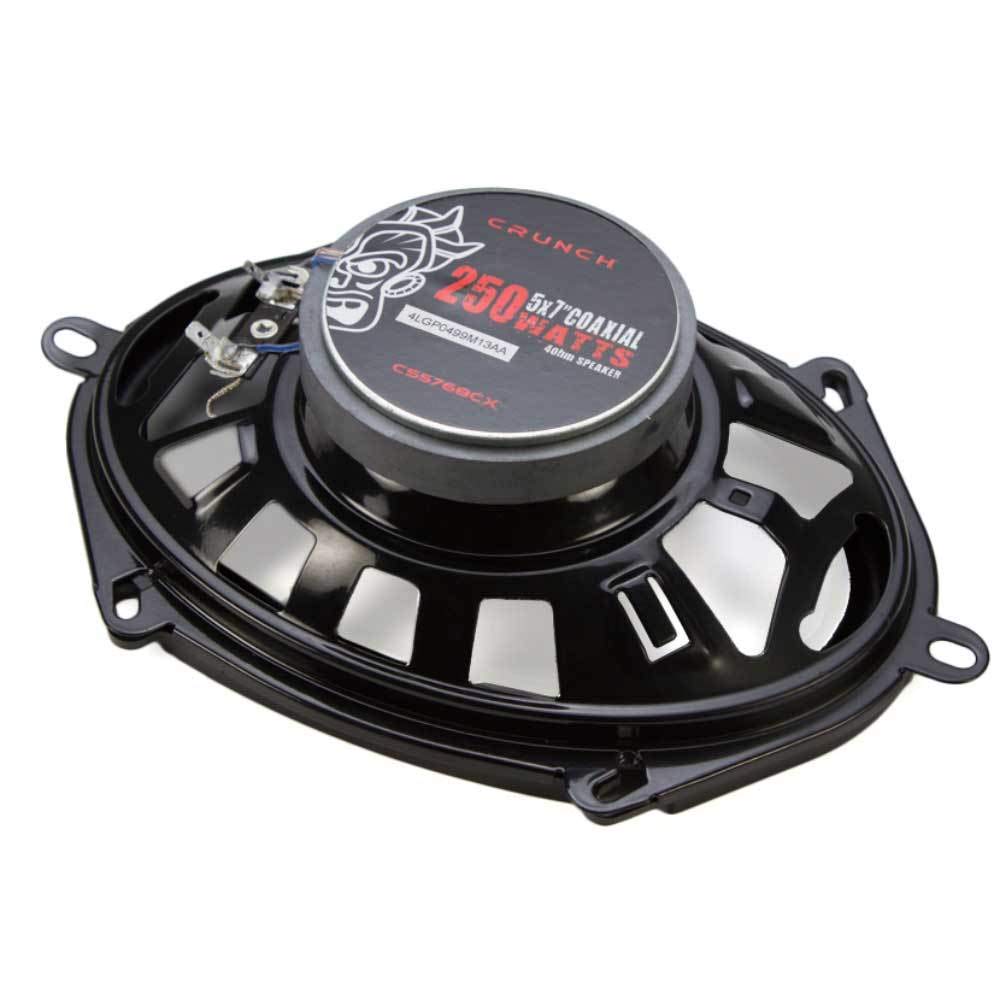

The CS5768CX uses a stamped-steel basket, ferrite magnet motor, pure-copper voice coil with Kapton former, epoxy-infused natural-fiber spider, textured ABS gasket, and over-coil cooling design. Its silver alpha-cellulose cone is paired with a moisture-resistant rubber surround, while the centrally mounted Neo-Mylar soft-dome tweeter completes the coaxial layout. Spade speaker terminals provide the primary connection point.

Measure the available installation space before purchase: the published top-mount depth is 2 inches and the published cutout dimension is 4.99 x 7.10 inches. Use the included mounting screws, clips, and speaker connection cables as applicable, and observe positive/negative polarity when connecting the red and black leads. Confirm clearance behind the panel for the speaker, window mechanism, wiring, and other moving parts before fastening it in place.
