Pioneer TS-G6820S 6x8" 2-Way Coaxial Speakers

The Pioneer TS-G6820S is a pair of 6 x 8-inch, 2-way coaxial car speakers made for replacing worn factory speakers or upgrading a compatible OEM audio system. Its 4-ohm design, 40-watt nominal power handling, and 92 dB sensitivity make it suited to many standard car stereo applications. The shallow 2-1/2-inch mounting depth supports installation where available door or rear-deck space is limited.

These speakers use a coaxial layout that places the tweeter within the woofer assembly, helping provide full-range playback from a single factory-style speaker location. A mica-reinforced Injected Molded Polypropylene (IMPP) cone handles the main midrange and bass frequencies. The result is a practical replacement format for listeners who want clearer everyday music reproduction without changing the vehicle's speaker locations.

The TS-G6820S has a frequency response of 72 Hz to 14 kHz, covering much of the range used for vocals, instruments, and upper-frequency detail. Its 30 mm PET hard-dome tweeter is designed to reproduce the higher frequencies, while the 6 x 8-inch woofer supplies the lower and middle range. This configuration is intended for balanced sound from a compact, direct-replacement speaker system.

Pioneer uses a mica-reinforced IMPP cone to combine low mass with rigidity, supporting sensitivity and helping control cone distortion. The speaker also incorporates a Conex damper and Pioneer Progressive Flex Suspension System (P.F.S.S.) spider. These suspension and damping elements support controlled cone movement during playback.

With 250 watts maximum power handling and 40 watts nominal power handling, the TS-G6820S can be used with a compatible factory radio or a properly matched aftermarket amplifier. It is a pair of coaxial speakers rather than a separate-component system, so no external crossover is specified. Confirm the vehicle's speaker opening, mounting depth, mounting pattern, and wiring connection before installation.

Key Features

• 6 x 8-Inch Coaxial Design: Combines woofer and tweeter functions in each speaker for factory-location upgrades.
• 40W Nominal Power: Provides a practical power rating for compatible OEM and aftermarket systems.
• 250W Maximum Power: Supports short-term dynamic musical peaks within the speaker's rated limits.
• Mica-Reinforced IMPP Cone: Uses a lightweight, rigid woofer cone material for controlled playback.
• 30 mm PET Tweeter: Handles upper-frequency detail with a hard-dome tweeter design.
• P.F.S.S. Spider: Supports the voice-coil assembly and helps manage cone movement.

Design & Installation

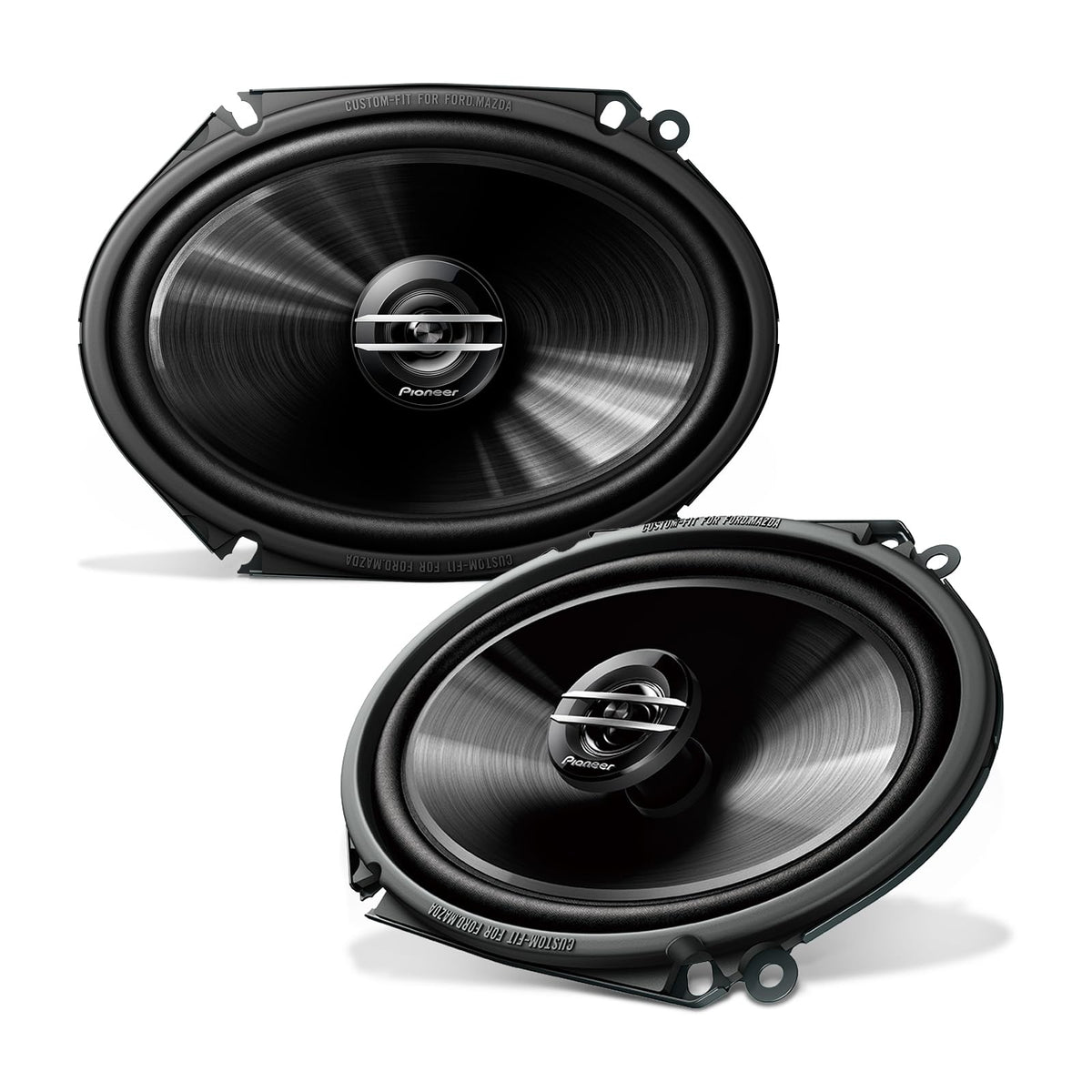

The TS-G6820S uses a 6 x 8-inch mica-reinforced IMPP woofer cone, a PET hard-dome tweeter, and a ferrite magnet structure. Its coaxial architecture keeps the system compact by integrating the tweeter with the woofer assembly. The speakers have a black finish and a 2-1/2-inch mounting depth.

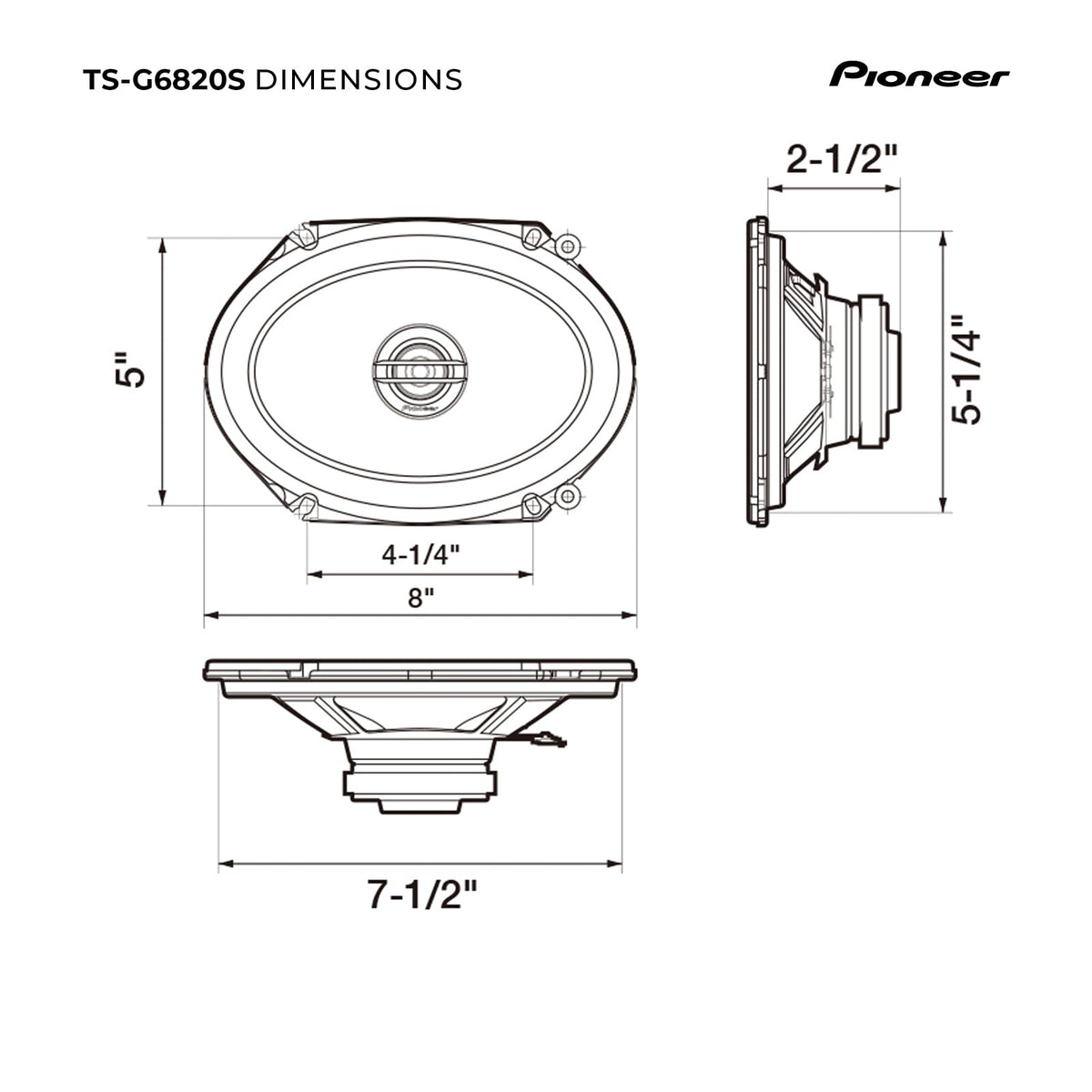

Check that the vehicle accepts a 6 x 8-inch speaker and verify the 7-1/2 x 5-1/4-inch cutout requirement along with available mounting depth before ordering. The package includes two speakers, wire extensions, mounting hardware, screws, foam packing, and warranty paperwork. Use the supplied hardware as appropriate, and follow vehicle-specific wiring polarity and mounting guidance for installation.
