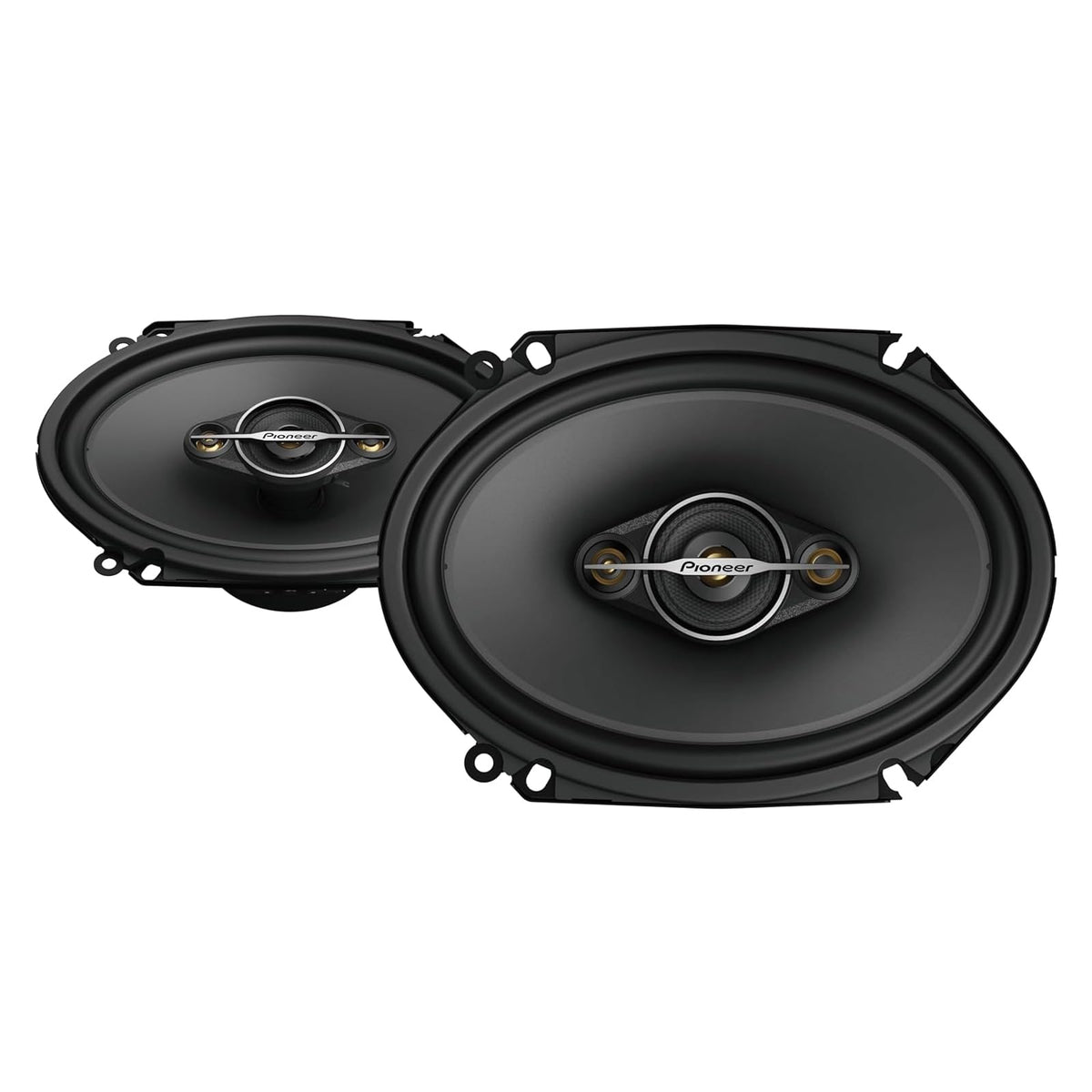

Pioneer TS-A6881F 6" x 8" 4-Way Coaxial Speakers

The Pioneer TS-A6881F is a pair of 6 x 8-inch coaxial car speakers designed as a practical replacement for factory-installed door or rear-deck speakers. Its four-way layout combines a large woofer with dedicated midrange, tweeter, and super tweeter drivers in each speaker assembly. This design gives an installer a full-range speaker solution without separately mounting external crossover components or tweeters.

With 80 watts RMS continuous power handling and 350 watts maximum music power, the TS-A6881F is suited to factory radios as well as appropriately matched aftermarket amplification. Its 4-ohm nominal impedance is common in automotive audio systems, helping it integrate with many compatible head units and amplifiers. The 90 dB sensitivity rating supports useful output from modest power levels.

The speaker uses a carbon- and mica-reinforced IMPP woofer cone, a material selected for rigidity and low weight. A 42 mm cellulose-fiber midrange helps cover the middle frequencies, while PET hard-dome high-frequency drivers handle upper detail. The stated 30 Hz to 32 kHz frequency response provides broad full-range coverage for everyday music listening.

As a coaxial four-way design, the TS-A6881F places multiple driver elements together in one 6 x 8-inch speaker location. This can simplify an upgrade where the vehicle has limited room for separate component speakers. Pioneer also lists its Open & Smooth sound concept and CarSoundFit compatibility for this A-Series model.

The TS-A6881F is intended for vehicles that can accommodate its 6 x 8-inch frame and mounting requirements. Before ordering, compare the vehicle's factory speaker opening, 133 x 191 mm cutout requirement, and available mounting depth with the speaker's measurements. For a complete system upgrade, it can be paired with compatible source electronics, wiring adapters, and amplification selected for its 4-ohm load and 80-watt RMS rating.

Key Features

• Four-Way Coaxial System: Combines woofer, midrange, tweeter, and super tweeter elements in each speaker.
• 80W RMS Power Handling: Supports continuous power handling for compatible factory or aftermarket systems.
• 350W Maximum Music Power: Provides additional short-term power-handling capacity during dynamic musical passages.
• Carbon/Mica IMPP Woofer: Uses a reinforced polypropylene cone for the 6 x 8-inch woofer.
• PET High-Frequency Drivers: Hard-dome tweeter and super tweeter elements reproduce upper-frequency detail.
• 4-Ohm Impedance: Matches the nominal impedance commonly used by car audio equipment.

Design & Installation

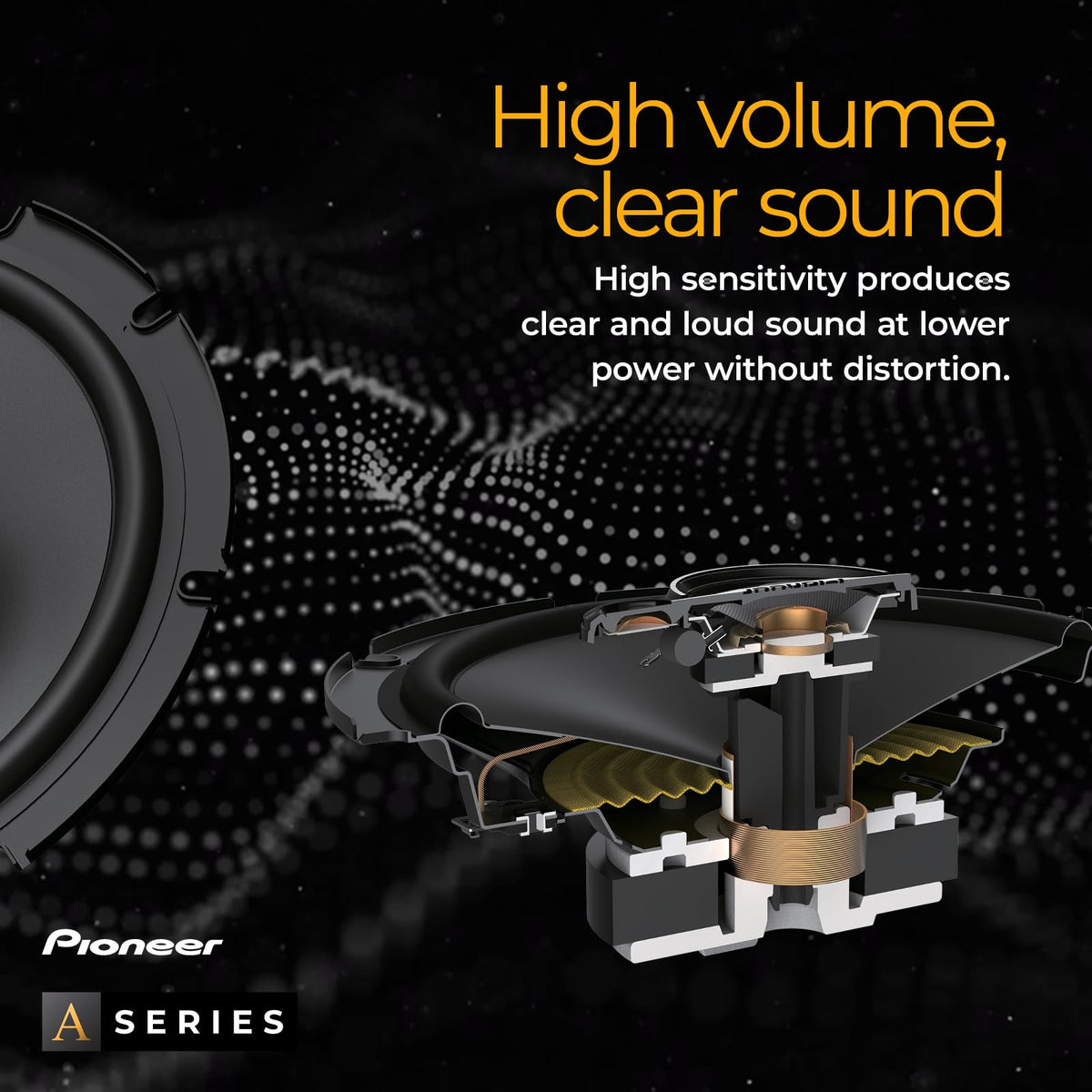

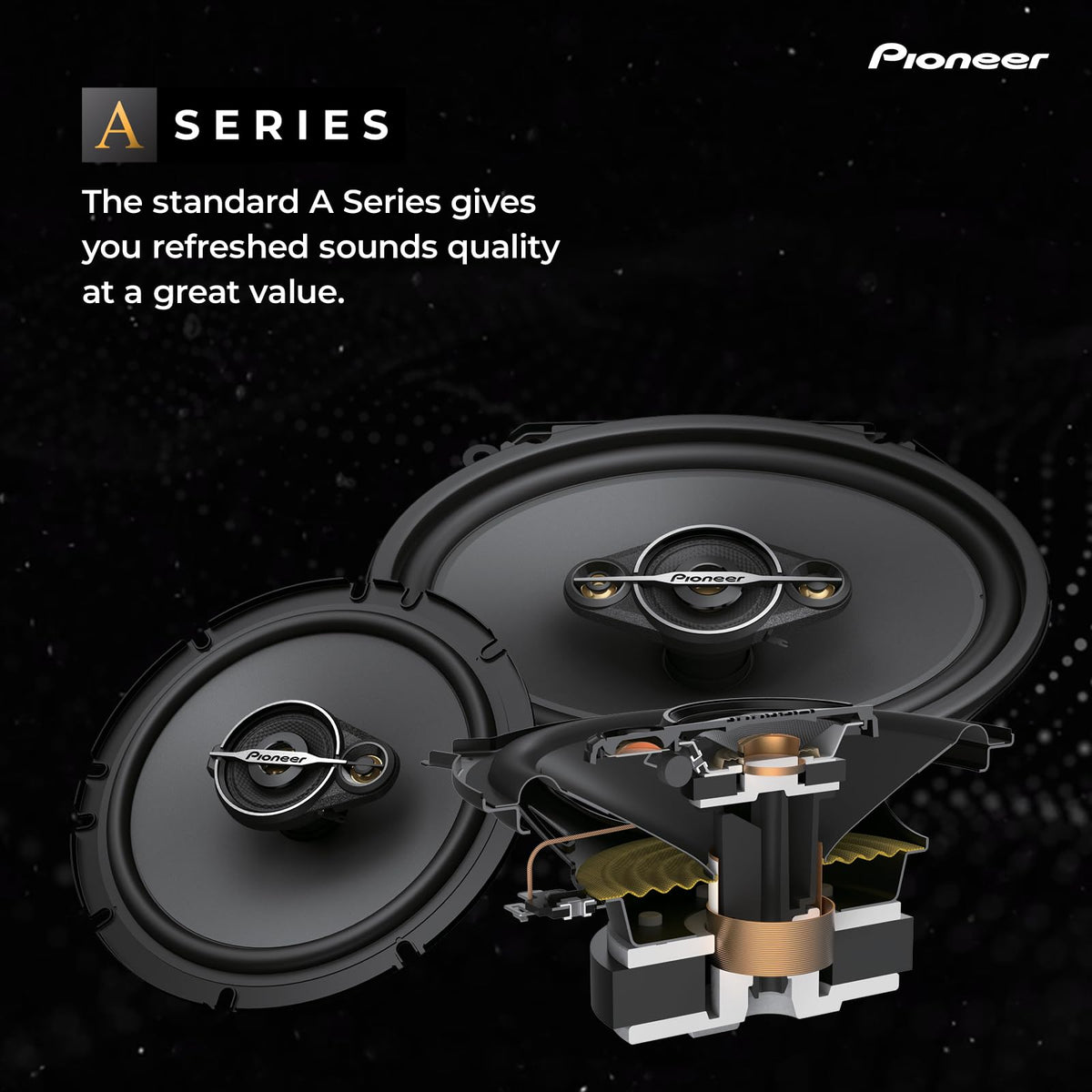

The TS-A6881F uses a carbon- and mica-reinforced injection-molded polypropylene woofer cone, elastic-polymer surround, and ferrite magnet. Its 42 mm midrange uses a cellulose-fiber cone, while the tweeter and super tweeter use PET hard domes. The speakers are supplied as a pair and do not include protective grilles.

Confirm fitment before installation by measuring the factory opening and available depth. Pioneer specifies a 133 x 191 mm cutout and 62 mm mounting depth; the manual also identifies eight included 4 x 25 mm mounting screws. Connect each speaker to a compatible 4-ohm car-audio channel, observe polarity, and ensure speaker leads and terminals cannot contact vehicle metal.
