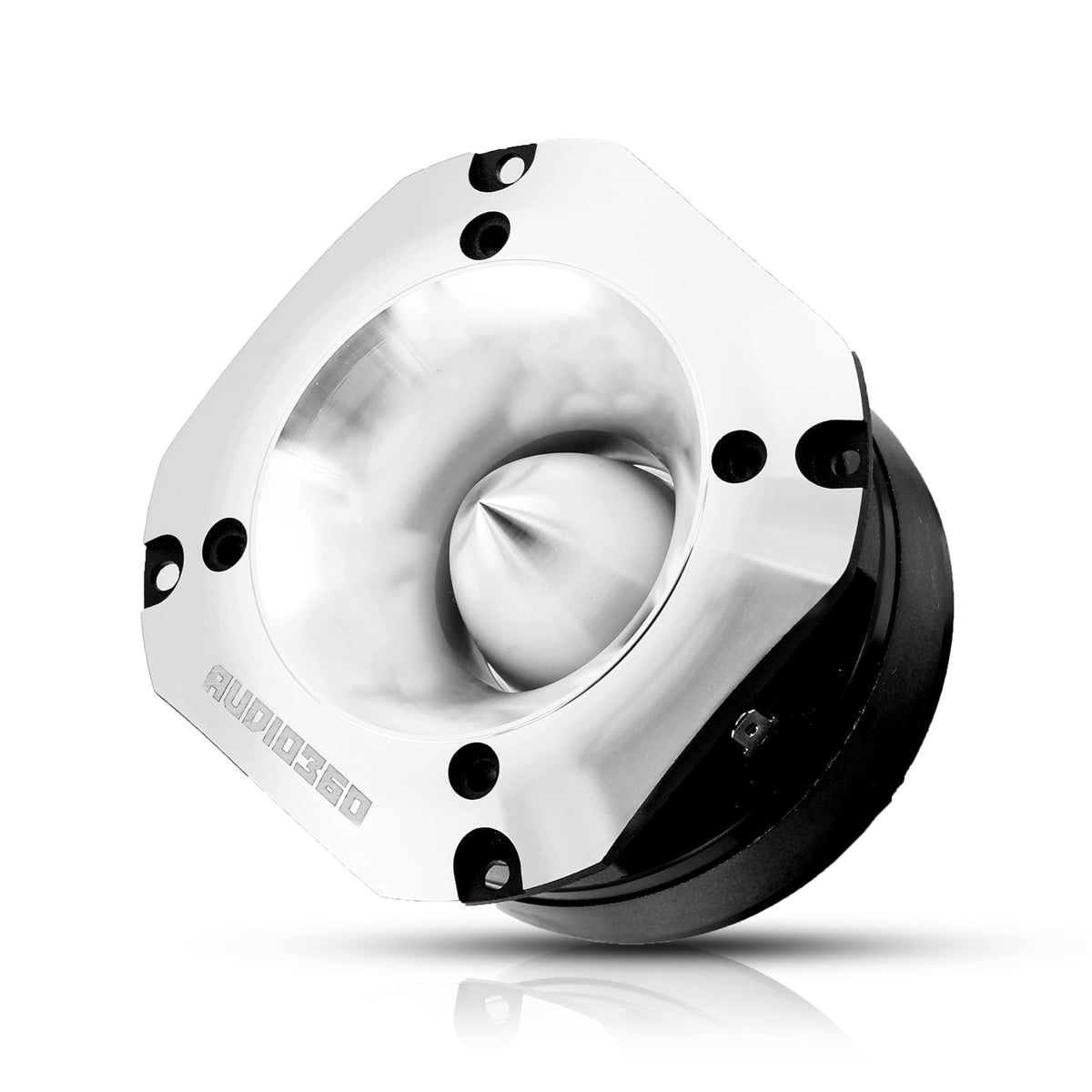

Audio360 AD36TW 4-Inch Super Tweeter Speaker

The AUDIO360 AD36TW is a 4-inch super tweeter designed to add high-frequency detail to a car-audio system. It is a 4-ohm speaker with a published frequency range of 2 kHz to 20 kHz. This makes it suited to systems that need a dedicated driver for upper-frequency reproduction alongside midrange speakers and subwoofers.

With a published sensitivity of 105 dB, the AD36TW is intended for applications where efficient high-frequency output is important. Its 1,800-watt maximum-power specification identifies it as a pro-car-audio-oriented component, while no RMS power rating is published. Match the speaker with compatible amplification and system tuning rather than selecting equipment from maximum-power figures alone.

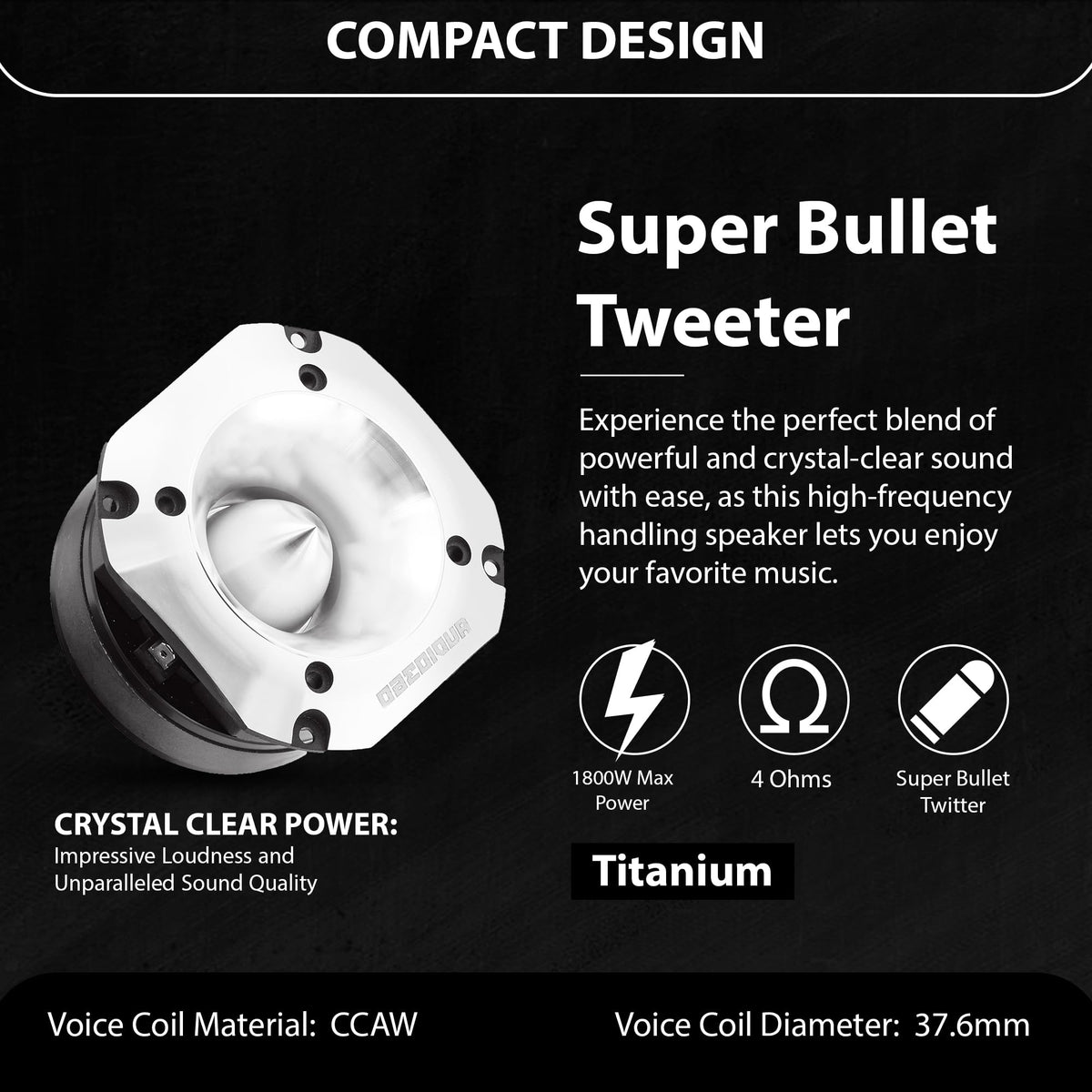

The AD36TW uses a titanium diaphragm and a CCAW voice coil. Titanium is specified for the diaphragm material, while CCAW refers to copper-clad aluminum wire in the voice coil. These published construction details distinguish the driver from basic paper- or polymer-diaphragm tweeters.

This super tweeter is a practical choice for enthusiasts building a multi-driver setup that needs more presence in the upper frequencies. Its 4-ohm nominal impedance allows it to be considered for amplifiers or passive networks designed for 4-ohm speaker loads. The published 2 kHz to 20 kHz range provides a useful starting point when planning system crossover points.

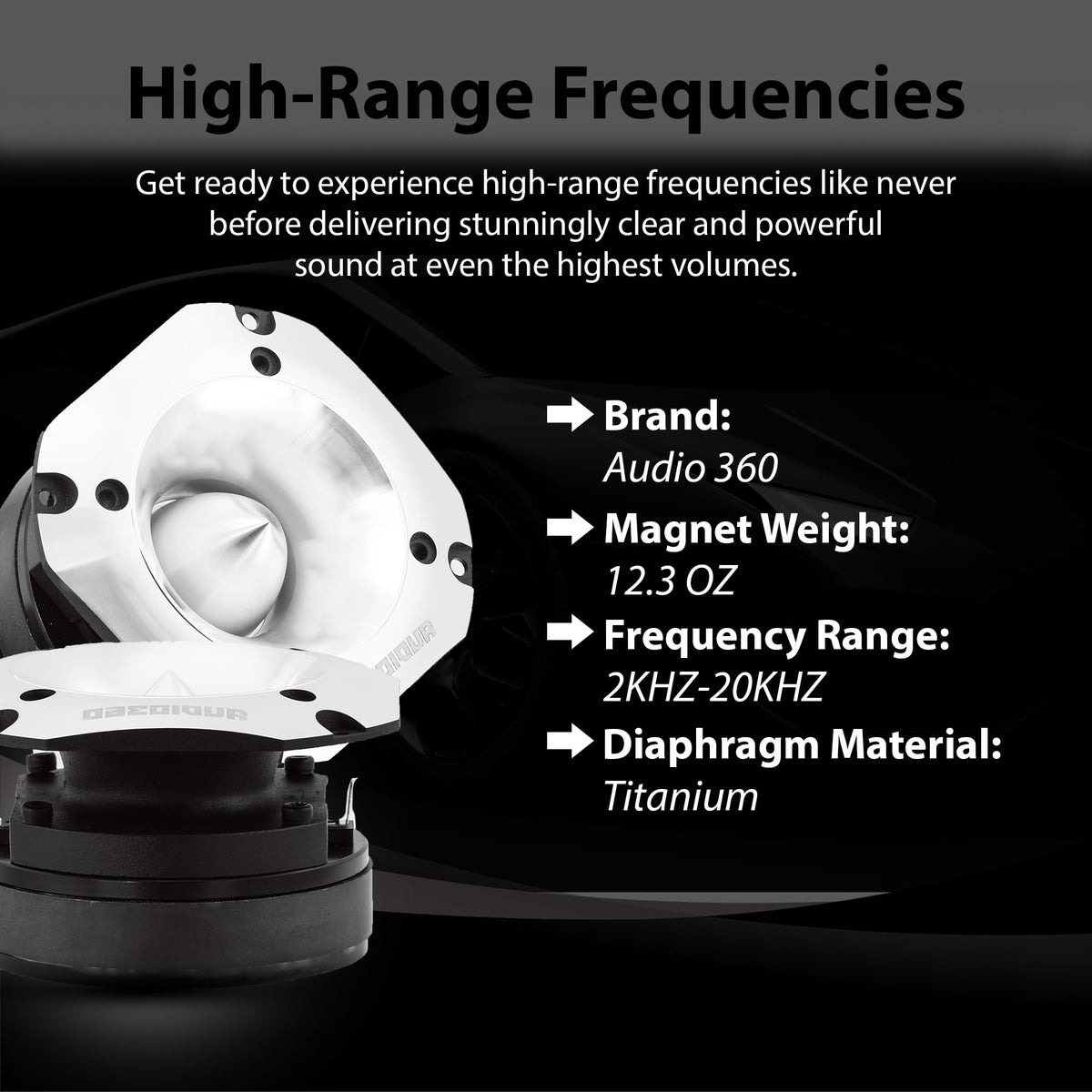

The 12.3-ounce magnet specification supports the AD36TW's dedicated high-frequency-driver design. Use it as part of a properly configured car-audio system rather than as a full-range replacement speaker. Because published mounting measurements and included accessories are not available, confirm physical fitment and installation hardware before purchase.

Key Features

• 4-Inch Super Tweeter: Adds a dedicated high-frequency driver to compatible car-audio systems.
• 4-Ohm Nominal Impedance: Supports matching with compatible 4-ohm amplifier or crossover channels.
• 1,800W Maximum Power: Published maximum-power handling for pro-car-audio system planning.

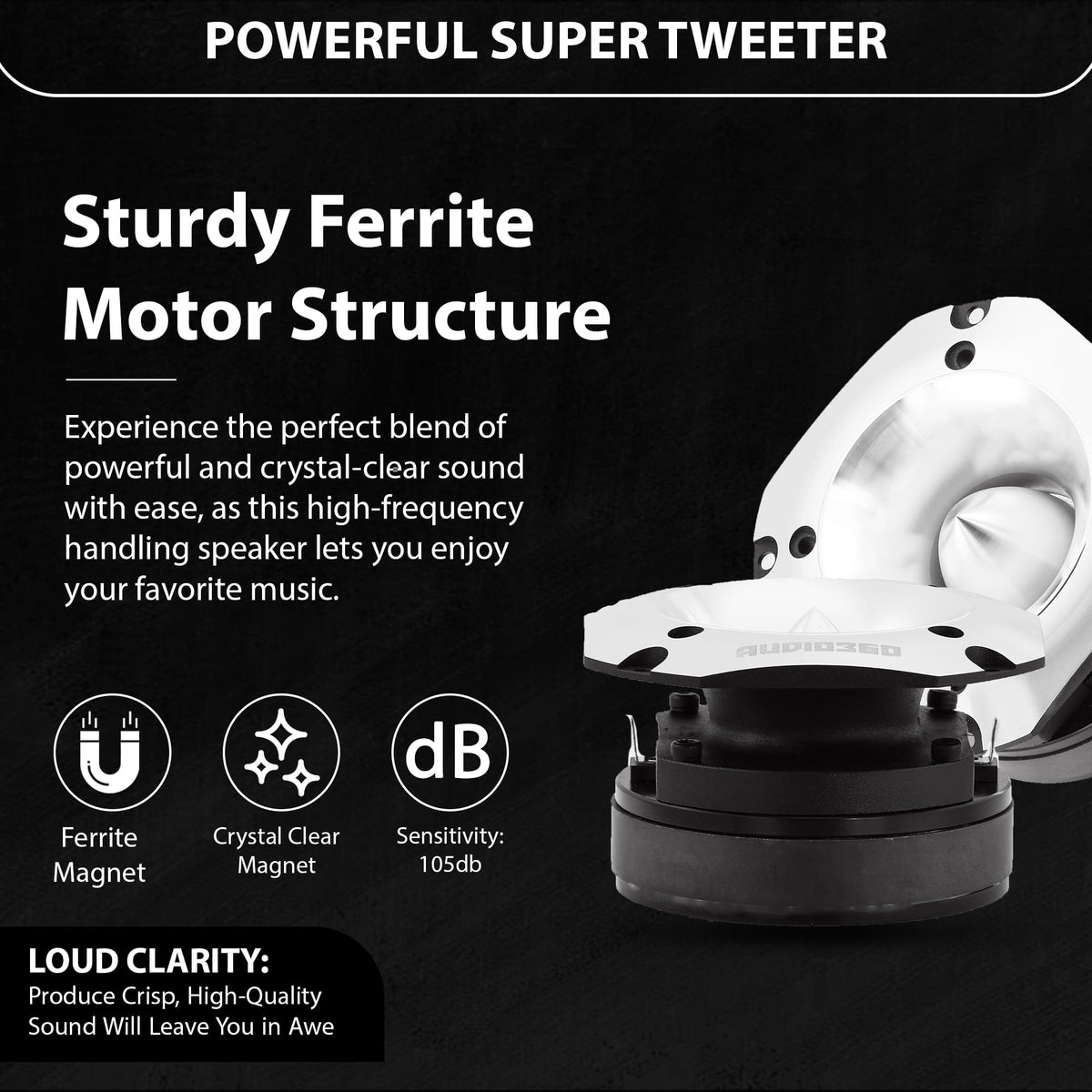

• 105 dB Sensitivity: Indicates efficient output from the rated speaker input.
• Titanium Diaphragm: Uses a titanium diaphragm for high-frequency reproduction.
• CCAW Voice Coil: Features a copper-clad aluminum wire voice coil.

Design & Installation

The AD36TW combines a titanium diaphragm, CCAW voice coil, and a published 12.3-ounce magnet. It is specified as a 4-inch tweeter with a 4-ohm nominal impedance. The design is focused on reproducing the upper portion of a multi-speaker car-audio system's frequency range.

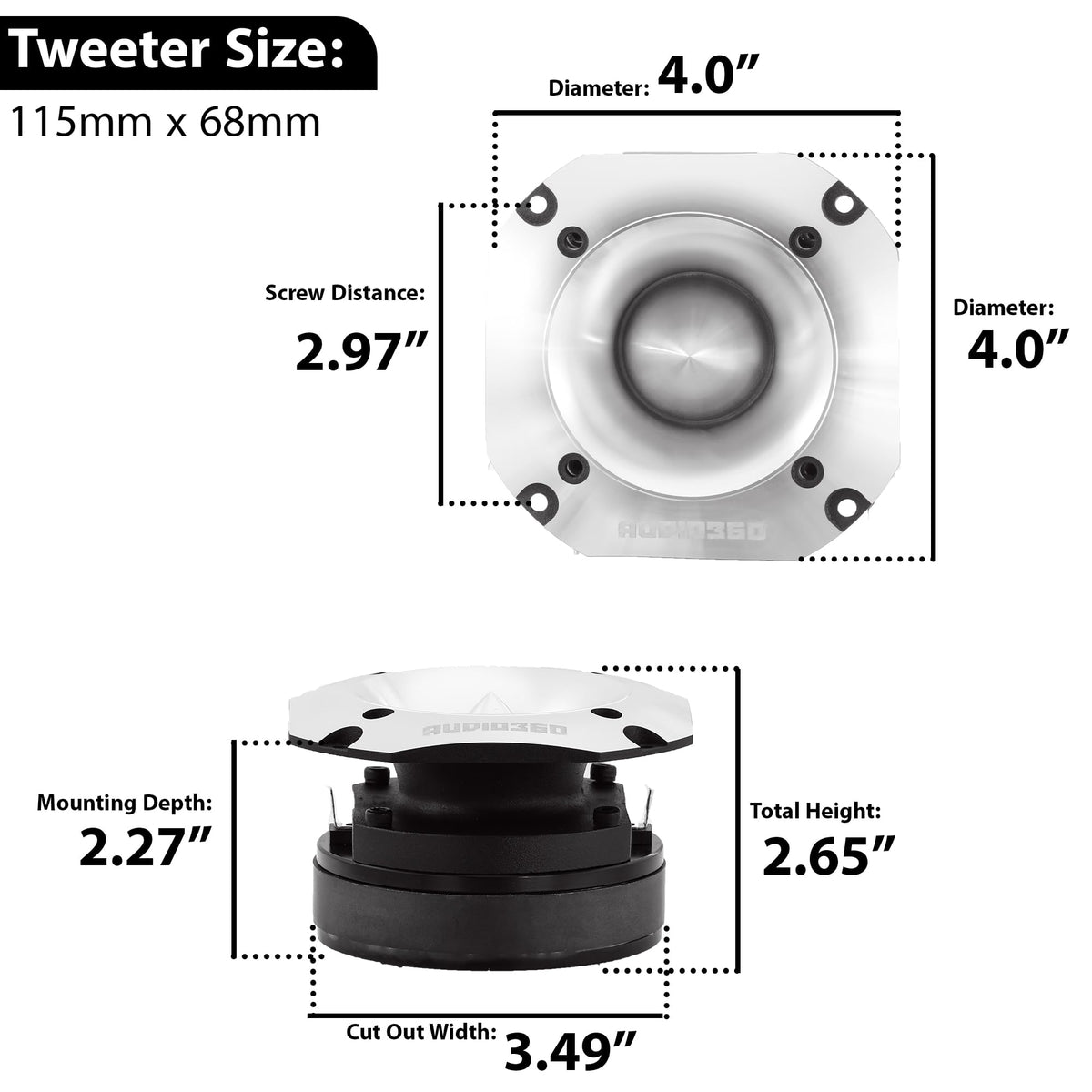

Install the AD36TW only with equipment appropriate for a 4-ohm tweeter and configure the system so the speaker is used within its published 2 kHz to 20 kHz range. An appropriate crossover or high-pass arrangement should be selected as part of the overall system design; no crossover is specified as included. Verify available mounting depth, cutout requirements, wiring hardware, and package contents with the seller or installer before installation.
