Memphis Audio SRXP10V2 10" Pro Midrange Speaker

The Memphis Audio SRXP10V2 is a 10-inch pro-audio midrange speaker designed for high-output vehicle sound systems. It is sold individually, making it suitable for custom door, panel, wall, or enclosure installations that need a dedicated midrange driver. Its 4-ohm nominal impedance supports use with compatible car-audio amplification.

With 250 watts RMS and 500 watts peak power handling, the SRXP10V2 is intended for systems that require substantial midrange output. Its 94 dB sensitivity helps it produce strong output from a properly matched amplifier. This speaker is built for listeners assembling a multi-speaker pro-audio system rather than replacing a conventional full-range factory speaker alone.

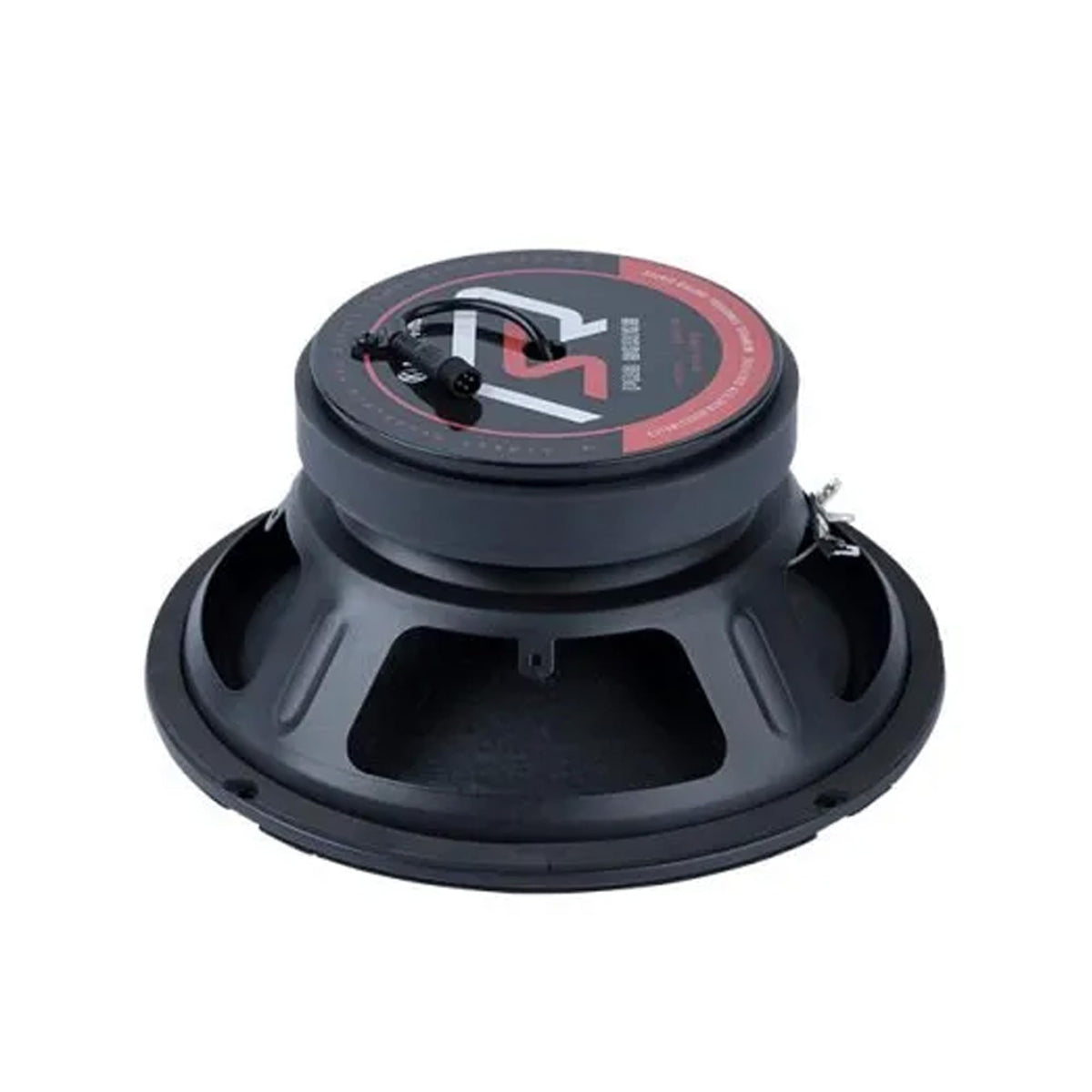

A fiberglass-filled paper cone provides the main radiating surface, while the cloth-edge surround uses an accordion profile. This surround design is intended to support increased excursion and output. A 2.5-inch voice coil and 55-ounce magnet form the speaker's motor assembly.

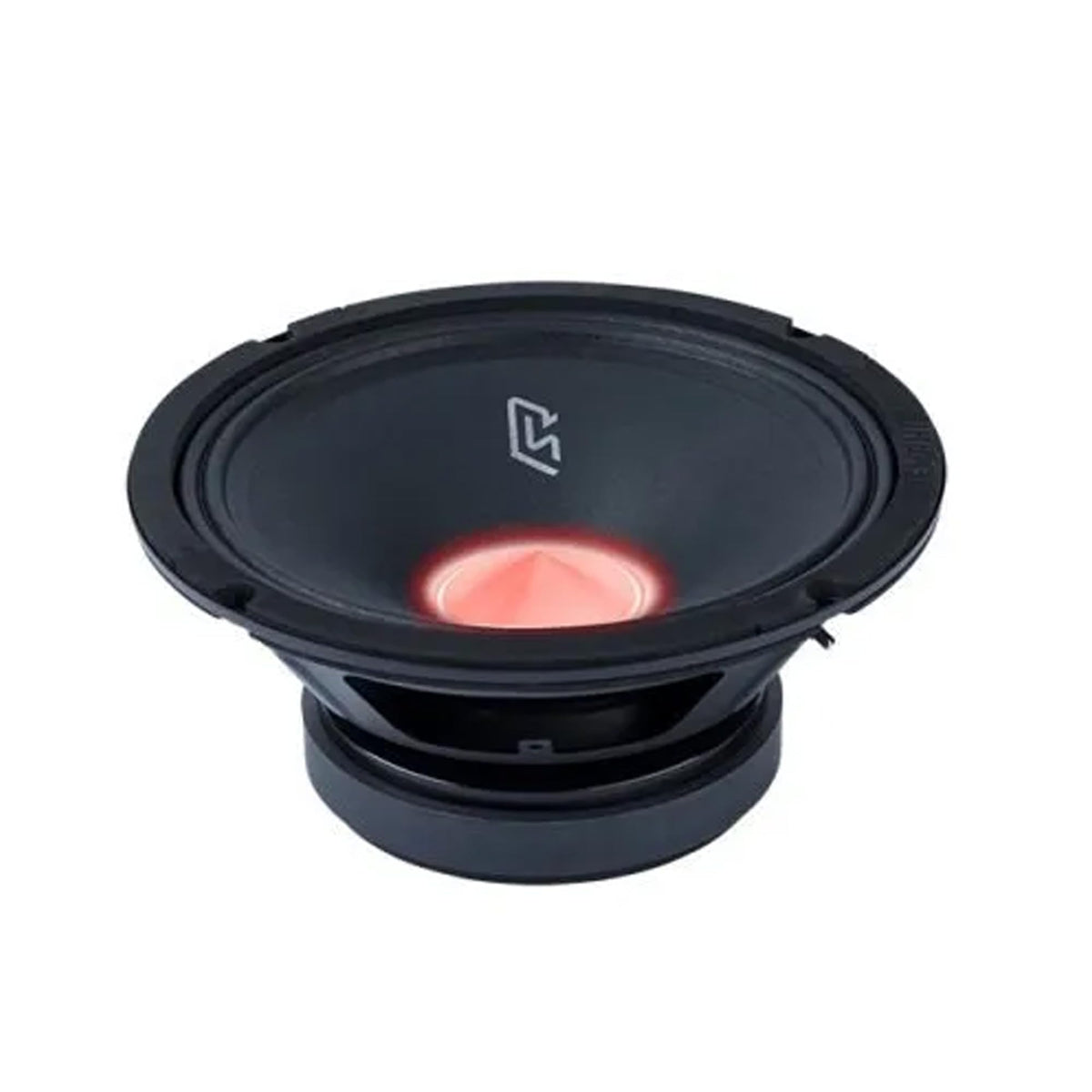

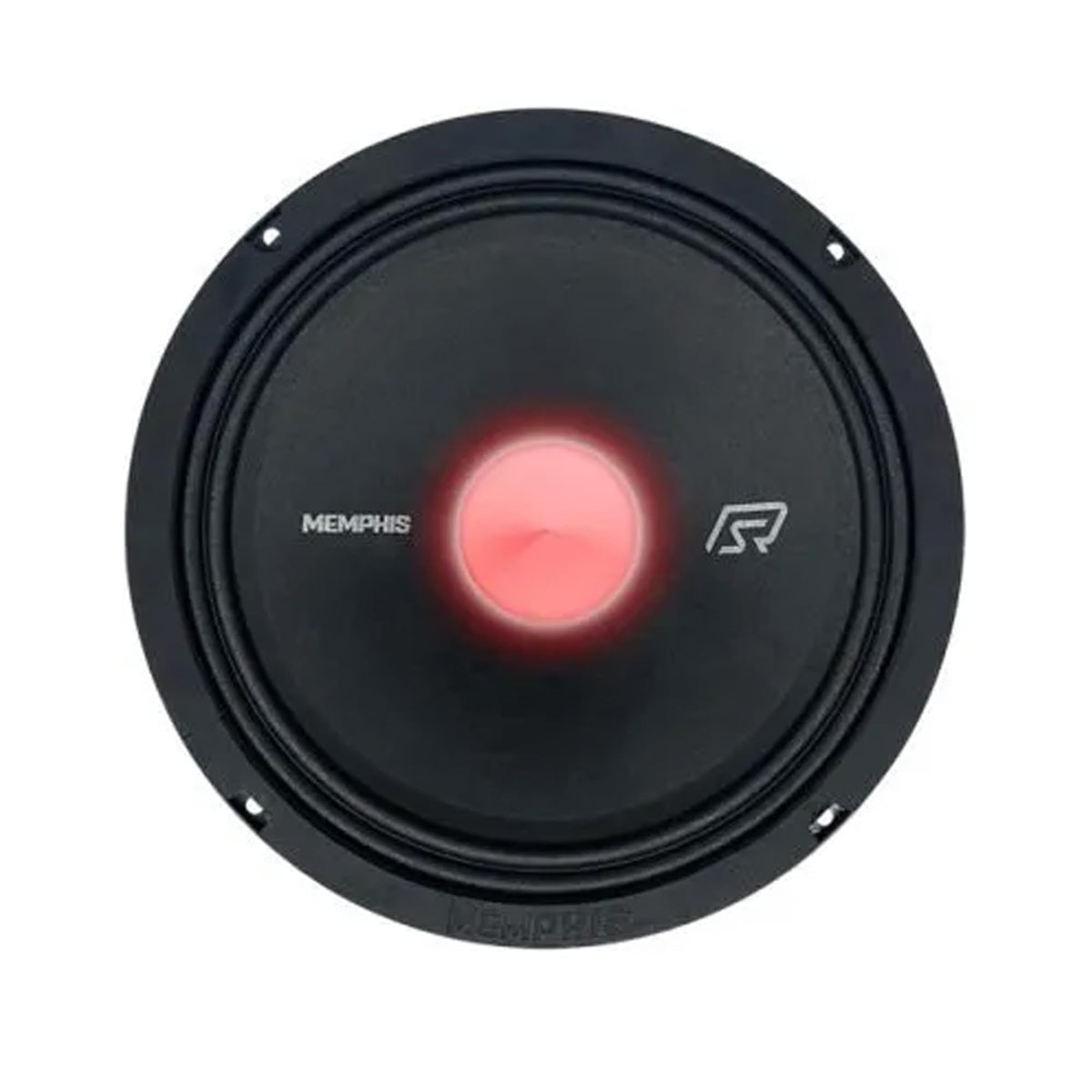

The SRXP10V2 includes RGB LED illumination at the dust cap and additional RGB LED accent lighting. These lighting elements add a visual component to installations where the speaker face is visible. A center phase plug is included to support improved high-frequency response.

For a broader pro-audio system, Memphis Audio identifies the SRXPTV2 4-inch pro tweeter as a companion product. The speaker includes a grille and has a 5-inch mounting depth, so installers should verify available mounting clearance before cutting. Use an amplifier and crossover configuration appropriate for a 4-ohm, 250-watt RMS midrange speaker.

Key Features

• 10-Inch Pro Midrange: Provides dedicated midrange output for custom car-audio systems.
• 250W RMS Handling: Supports properly matched high-output amplification.
• 4-Ohm Impedance: Works with compatible 4-ohm amplifier channels.
• RGB LED Lighting: Adds illuminated dust-cap and accent lighting.
• Accordion Cloth Surround: Supports increased cone excursion and output.
• Center Phase Plug: Helps improve high-frequency response.

Design & Installation

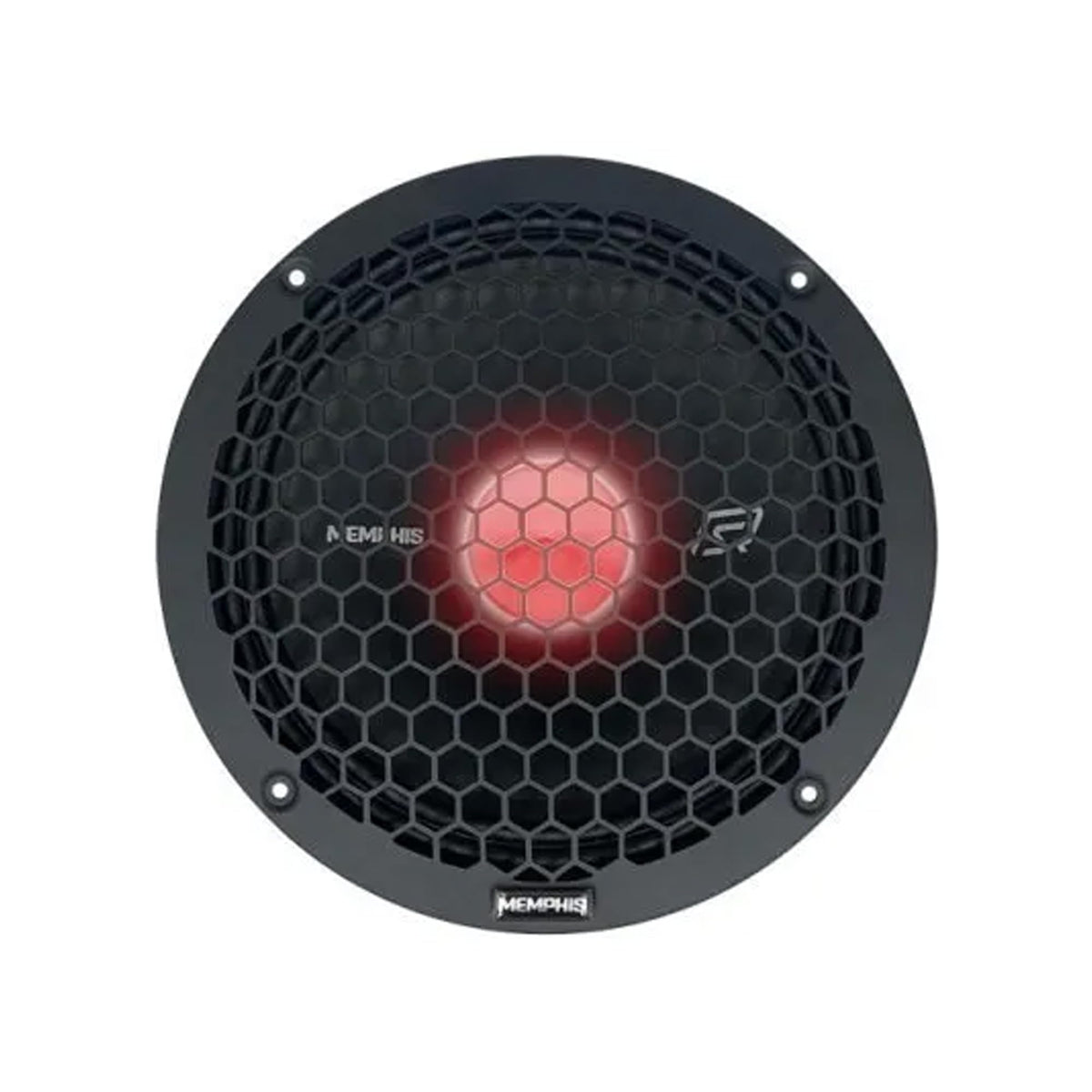

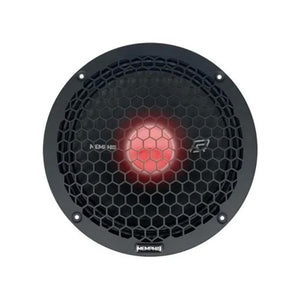

The SRXP10V2 uses a fiberglass-filled paper cone, cloth-edge surround, 2.5-inch voice coil, and 55-ounce magnet. Its accordion-style surround, center phase plug, RGB LED dust cap, and RGB LED accent lighting give it a purpose-built pro-audio appearance. A grille is included for added protection of the speaker face.

Plan for a 10-inch speaker opening and at least 5 inches of mounting depth. This is a single 4-ohm speaker, so amplifier-channel load compatibility and power ratings should be checked before installation. It can be paired with Memphis Audio SRXPTV2 4-inch pro tweeters in a multi-driver system; crossover selection and LED wiring requirements should be confirmed during system design.
