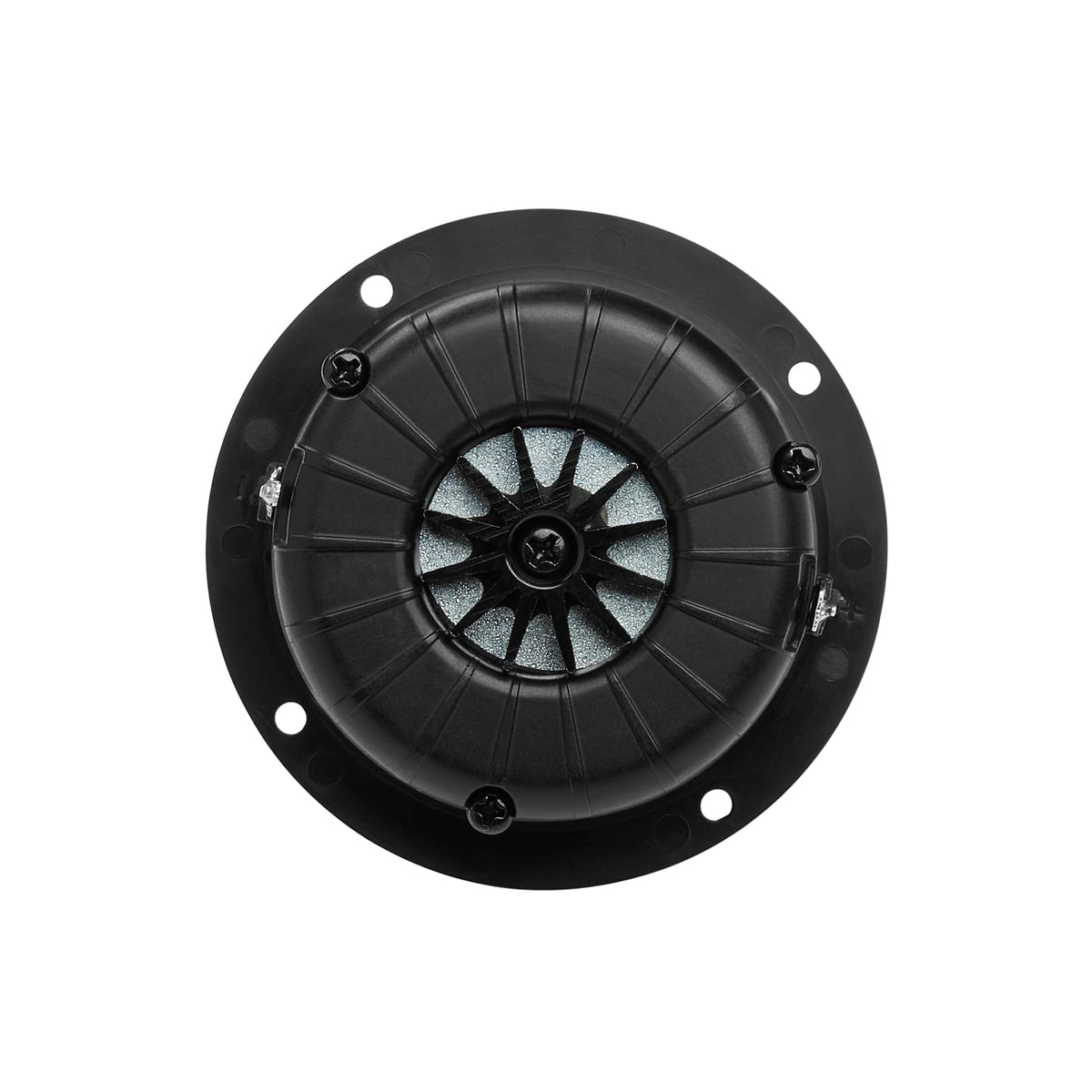

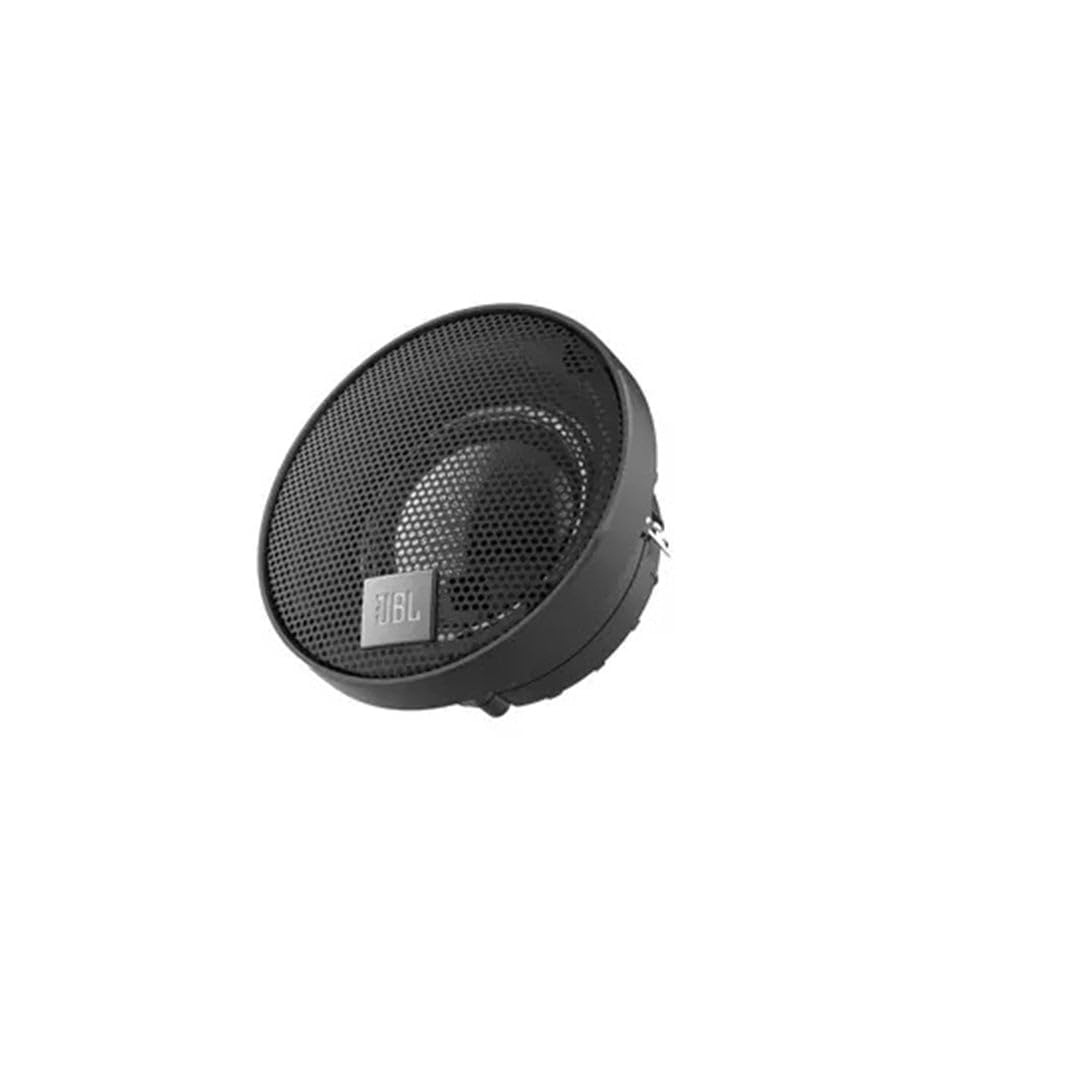

JBL Stadium 22S JBLSPKSD22SAM 2" Midrange Upgrade System

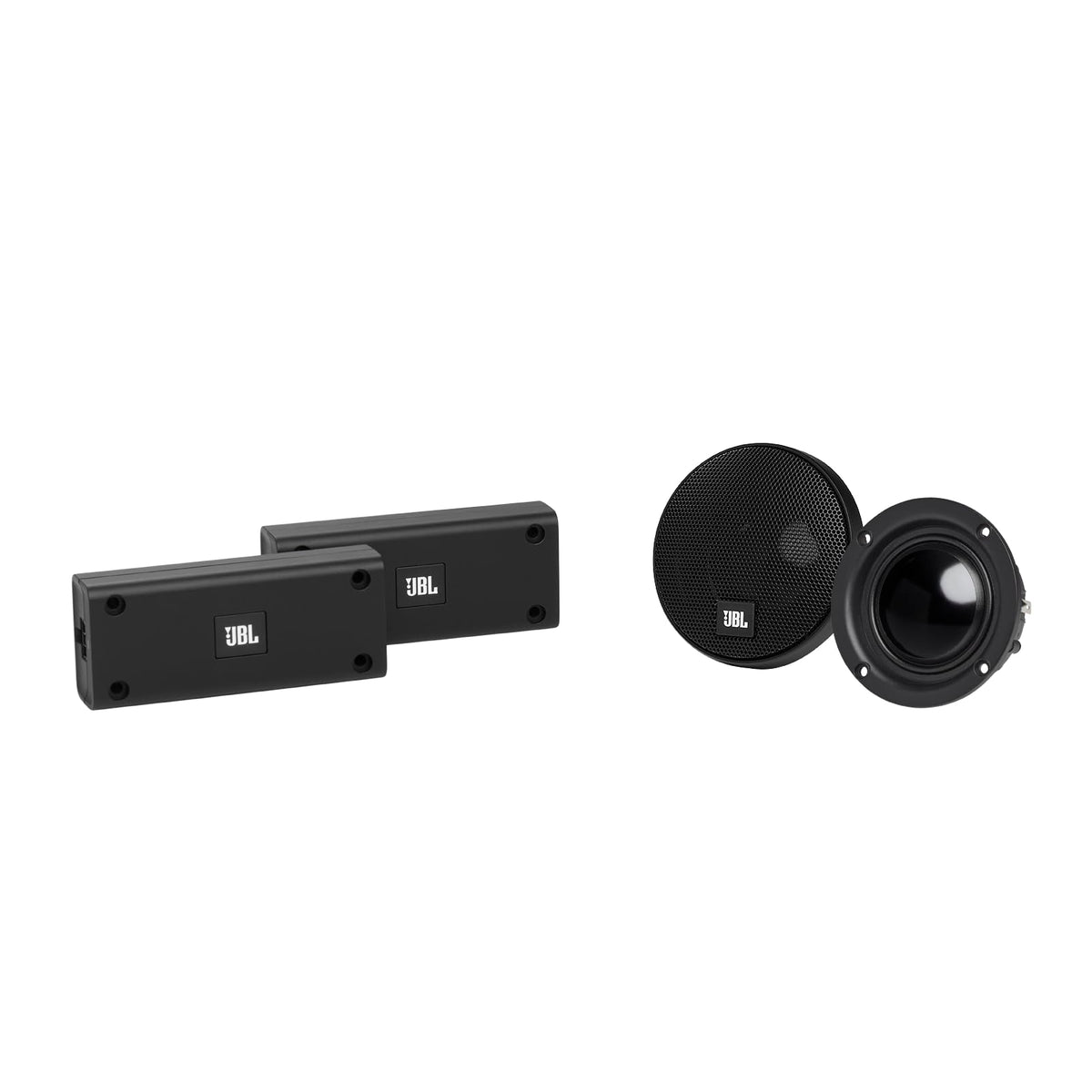

The JBL Stadium 22S is a compact 2-inch midrange upgrade system designed to add dedicated mid-frequency reproduction to a compatible car audio setup. It is intended for listeners building or expanding a multi-way speaker system rather than replacing a full-range factory speaker by itself. The pair includes midrange drivers, bandpass crossovers, mounting hardware, and connection cables.

This system is suited to installers and enthusiasts who want to move toward a three-way front-stage configuration. A dedicated midrange can help assign vocals and many instrumental frequencies to a driver built for that part of the audio spectrum. The Stadium 22S is specified for a 500Hz to 7kHz frequency range, so it should be paired with appropriate low- and high-frequency drivers.

Each Stadium 22S uses a 2-inch (50mm) PEI dome midrange design. JBL rates the system at 50 watts RMS and 150 watts peak power handling, with 94dB sensitivity measured at 2.83V. Its 3-ohm impedance should be considered when selecting an amplifier or designing the overall speaker system.

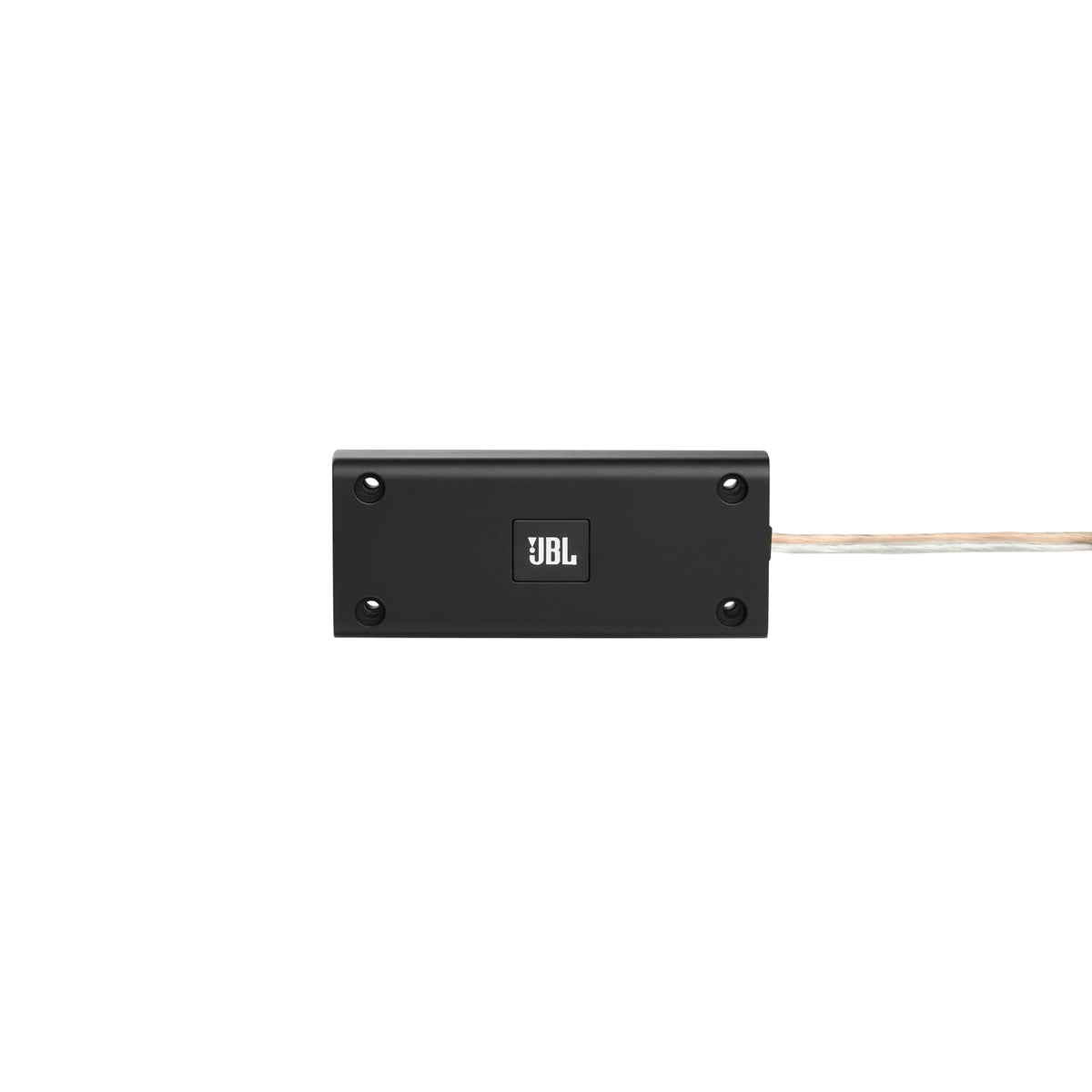

Bandpass crossover enclosures are included to support the intended operating range of the midrange drivers. This helps the drivers focus on midrange frequencies instead of receiving the full signal from an amplifier or head unit. Proper crossover integration remains important when combining the system with separate woofers and tweeters.

The Stadium 22S package is built for custom installation flexibility, supplying grilles, custom-fit mounting adapters, foam gaskets, screws, speed clips, and cables. It can be a practical addition when a vehicle has a suitable mounting location and a system plan that accommodates dedicated midrange drivers. For the most consistent result, installation should account for mounting depth, panel fitment, amplification, and crossover configuration.

Key Features

• Dedicated Midrange Drivers: Two 2-inch PEI dome drivers handle the specified midrange band.
• Bandpass Crossovers: Included crossover enclosures support the intended driver operating range.
• 50W RMS Handling: Supports up to 50 watts RMS per system specification.
• 94dB Sensitivity: Provides strong output from modest available amplifier power.
• 3-Ohm Impedance: Matches systems designed to accommodate 3-ohm speaker loads.
• Installation Hardware Included: Adapters, grilles, gaskets, cables, and fasteners are supplied.

Design & Installation

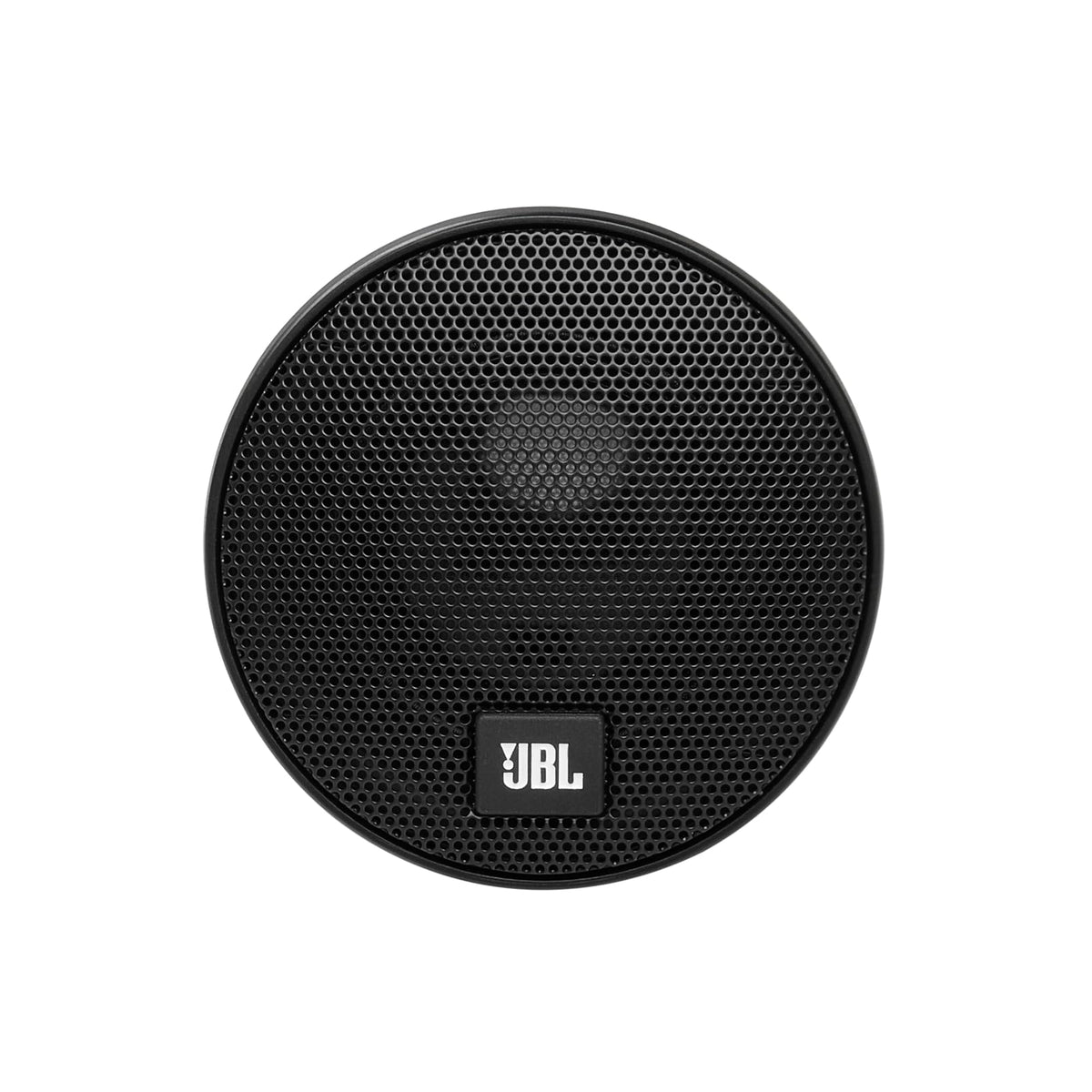

The Stadium 22S combines compact PEI dome midrange drivers with bandpass crossover enclosures in a black finish. Custom-fit mounting adapters and foam gaskets are included to assist with secure installation and help create a clean mounting interface. Protective grilles and JBL logo badges are also supplied for installations where the drivers are visible.

Use the included crossovers and cables when integrating the Stadium 22S into a compatible multi-way speaker system. Confirm available mounting space and vehicle-panel fitment before installation, since JBL does not publish vehicle-specific compatibility for this model. Match amplification and crossover settings to the 3-ohm load, 50W RMS rating, and 500Hz to 7kHz specified frequency range.
