Hertz SV200NEO 8" SPL Midrange Speakers

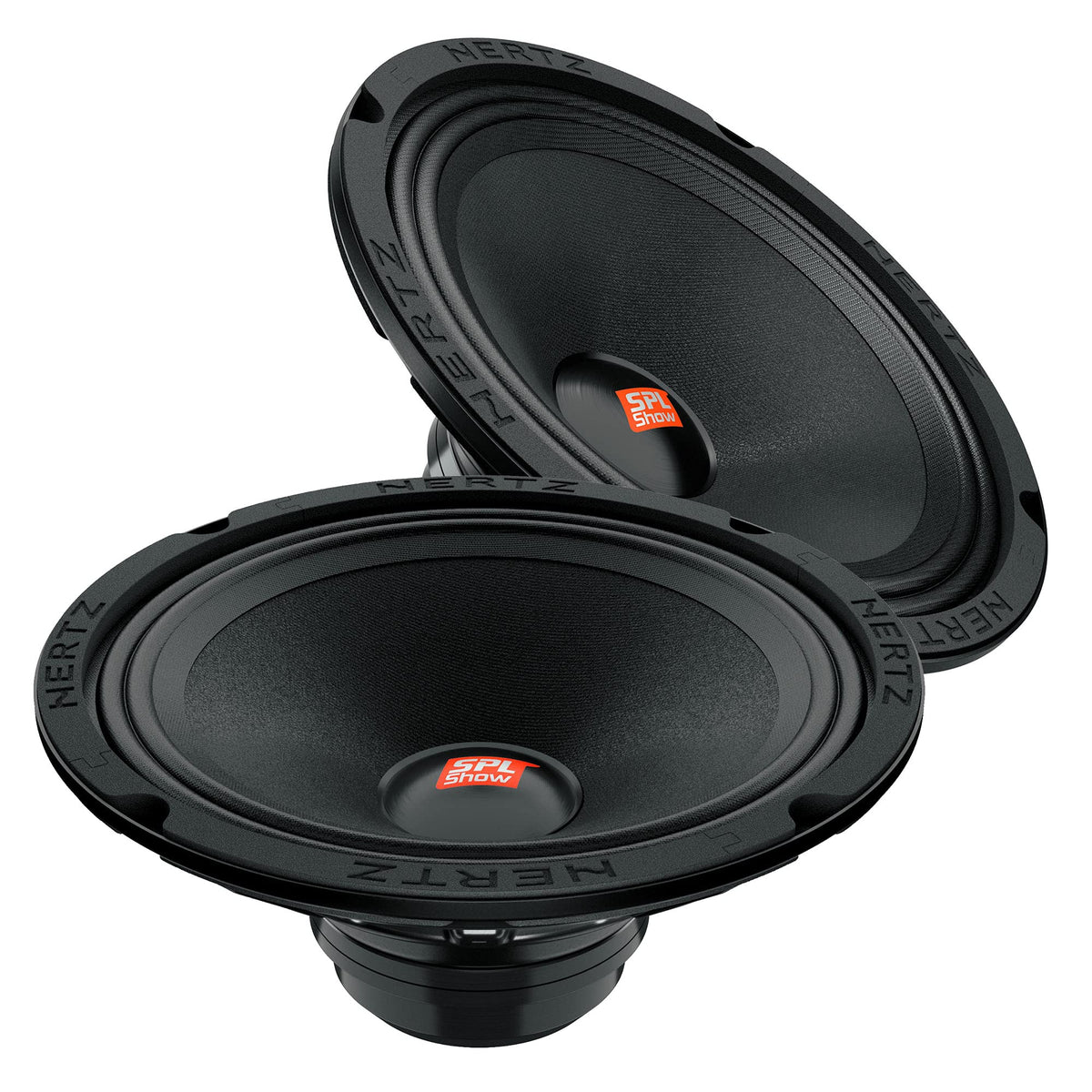

The Hertz SV 200 NEO is an 8-inch, 4-ohm SPL midrange speaker set built for high-output car and motorcycle audio systems. It is designed to reproduce the vocal and midrange frequencies that give an amplified system clarity and presence. With two speakers included, it is suited to installations requiring strong front-stage or custom-panel midrange coverage.

Each SV 200 NEO is rated for 200 watts continuous power handling and 500 watts peak power handling. Its 100 dB SPL sensitivity helps it produce substantial output with compatible amplification. The specified 100 Hz to 8 kHz frequency range makes it appropriate for use as part of a properly crossed-over multi-speaker system.

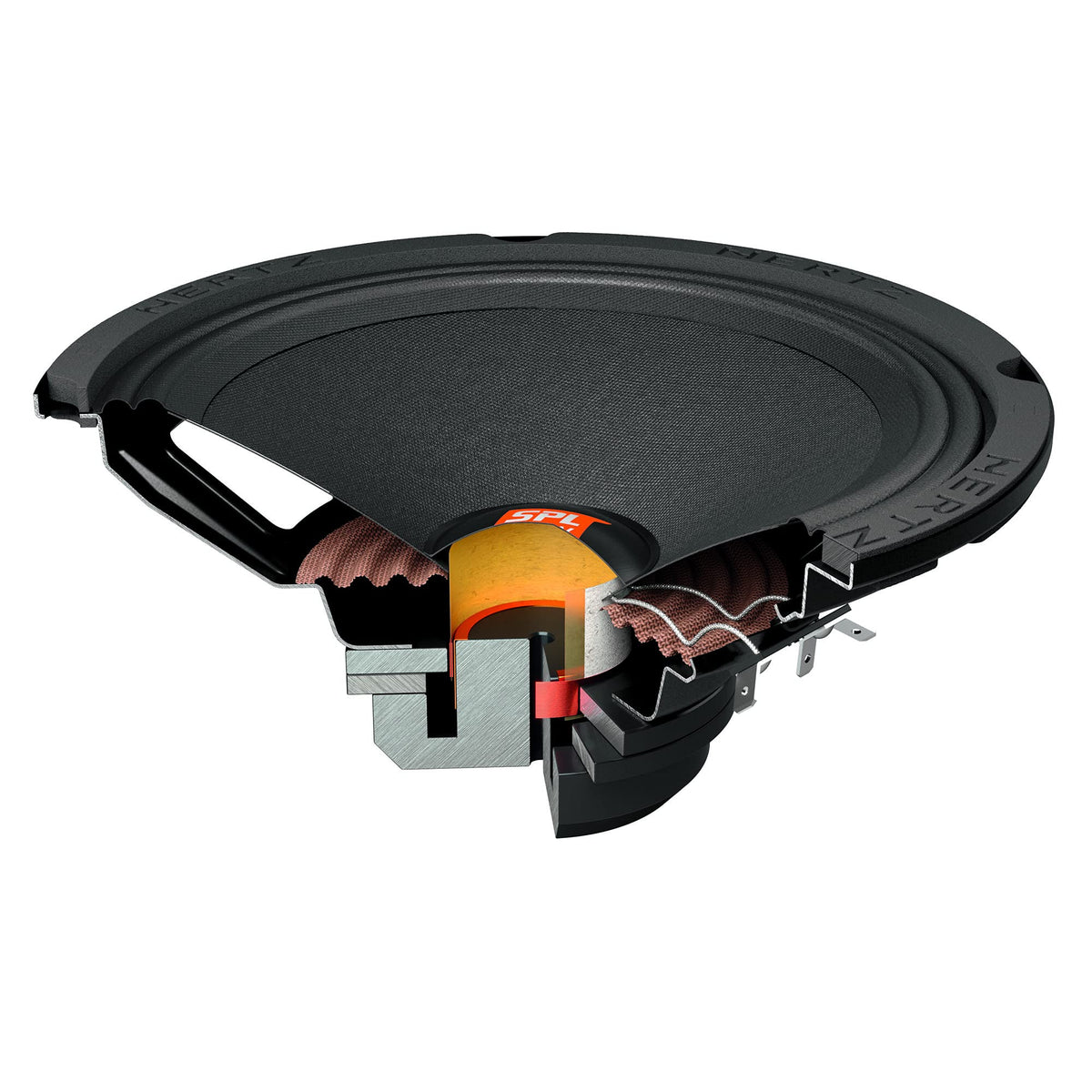

A Neodymium N38 H motor structure helps keep the speaker compact and lightweight while supporting its SPL-oriented design. The 1.5-inch voice coil and water-repellent pressed-paper cone are engineered for durable midrange reproduction. Hertz specifies a 4-ohm nominal impedance for straightforward matching with many multi-channel amplifiers.

The cone receives waterproofing and anti-UV treatment to help it withstand exposed installations and reduce discoloration over time. The motor assembly uses a cataphoresis treatment, while insulated lead wires help address oxidation concerns. These details make the SV 200 NEO a practical option for custom motorcycle and outdoor-oriented audio applications.

Its terminals and mounting-hole arrangement are compatible with Harley-Davidson motorcycle installations. The speaker can also be used in custom vehicle doors, fairings, panels, or enclosures when the mounting dimensions and depth are verified. For a complete system, pair it with appropriate high-frequency drivers, amplification, and active or passive crossover protection.

Key Features

• 8-Inch SPL Midrange: Delivers focused midrange output for high-output systems.
• 200W Continuous Rating: Supports amplifier-matched, sustained playback.
• Neodymium N38 H Motor: Keeps the motor compact and lightweight.
• Water-Repellent Paper Cone: Helps suit exposed and motorcycle installations.
• Anti-UV Cone Treatment: Helps reduce discoloration from sun exposure.
• Harley-Davidson-Compatible Mounting: Supports compatible motorcycle mounting locations.

Design & Installation

The SV 200 NEO uses a water-repellent pressed-paper cone, Neodymium magnet, and 38.6 mm voice coil. Its motor unit is treated with cataphoresis, and the lead wires are insulated to help resist oxidation. The speaker has a 208 mm overall diameter and a 96.2 mm overall depth.

Confirm the 182.7 mm mounting cutout and 83.8 mm mounting depth before cutting a panel or enclosure. Hertz specifies 4-ohm impedance, so use an amplifier channel stable at 4 ohms and set crossover protection appropriate for a midrange driver. The set includes two drivers; a crossover is recommended for use but is not included.
