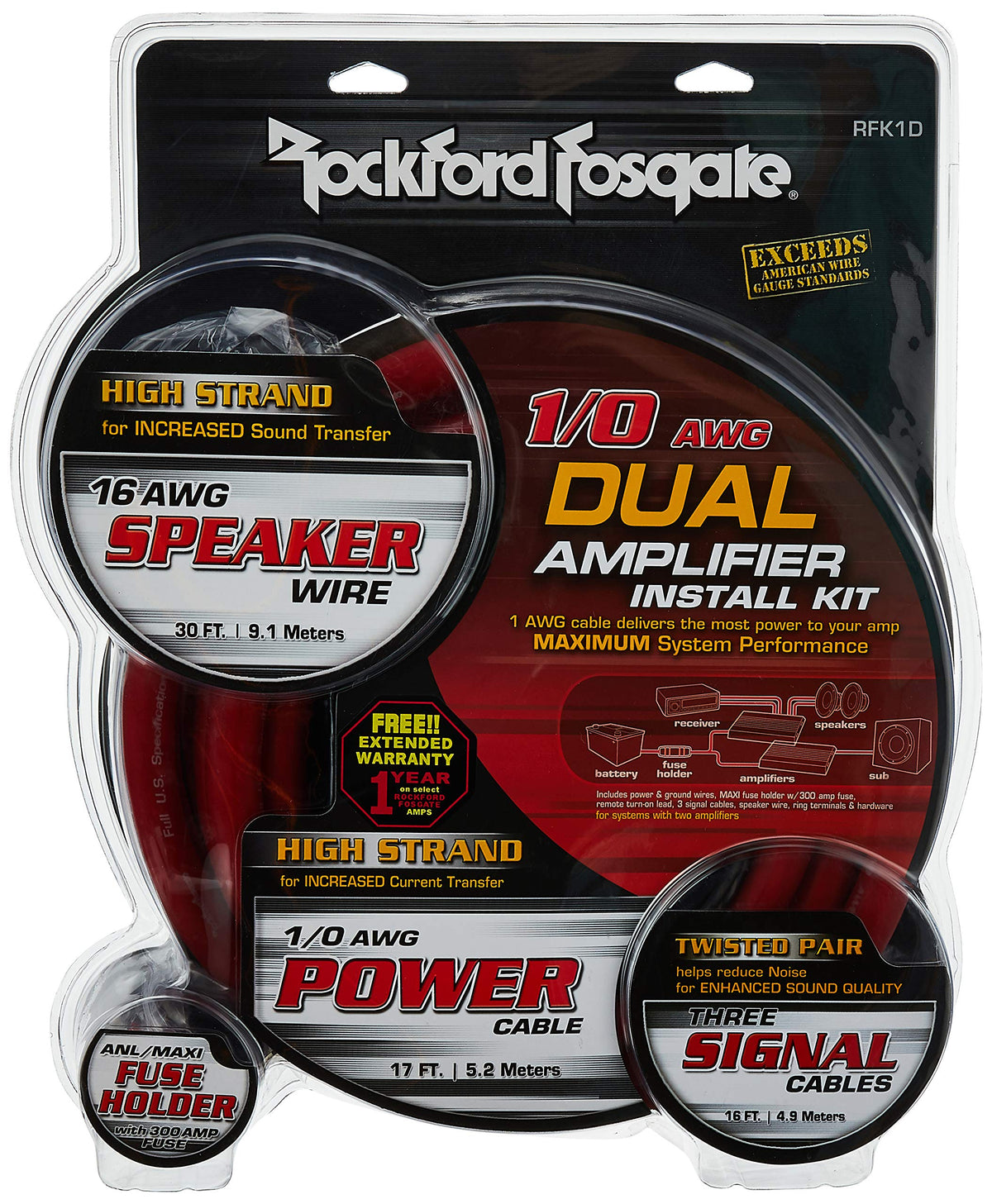

Rockford Fosgate RFK1D Dual Amp 1/0 AWG Wiring Kit

The Rockford Fosgate RFK1D is a complete wiring kit built to supply power, ground, signal, remote turn-on, and speaker connections for a two-amplifier car audio system. It provides a coordinated set of main power cable, amplifier distribution wiring, RCA cables, speaker wire, fuse protection, and installation hardware. This helps simplify the parts-selection process when building a dual-amp setup.

This kit is intended for installers adding separate amplifiers for systems such as amplified speakers plus a subwoofer. Its 1/0 AWG main power and ground wiring feeds two included distribution blocks, which then support 4 AWG connections to the amplifiers. The included 300-amp fuse and fuse holder provide circuit protection at the main power cable.

Rockford Fosgate specifies full-spec cable made with 100% Pure Crystal Oxygen-Free Copper (PC-OFC). The power and ground cable is designed to meet or exceed American Wire Gauge requirements, supporting reliable current delivery in appropriately matched systems. Three twisted-pair RCA patch cables are included to carry low-level audio signals between a compatible source unit or processor and amplifiers.

The RFK1D includes both high-current wiring and the smaller connection items needed to finish an installation. It supplies 16 AWG speaker wire, an 18 AWG remote turn-on lead, cable ties, terminals, a firewall grommet, and battery-connection hardware. These components help create an organized installation while reducing the need to source common accessories separately.

Use the RFK1D as the wiring foundation for a dual-amplifier vehicle audio upgrade whose total current demand is compatible with its 300-amp fused main connection. The distribution blocks provide one 1/0 AWG input and two 4 AWG outputs for power and ground routing to two amplifiers. Amplifiers, speakers, a compatible audio source, and vehicle-specific integration accessories are not included.

Key Features

• Dual-Amp Layout: Supplies wiring and distribution hardware for two amplifiers.
• 1/0 AWG Main Cable: Provides main battery power and ground cable runs.
• PC-OFC Conductors: Uses 100% Pure Crystal Oxygen-Free Copper cable.
• 300-Amp Protection: Includes a fuse holder and 300-amp fuse.
• Three RCA Cables: Includes three 16-foot twisted-pair signal cables.
• Installation Accessories: Includes terminals, grommet, cable ties, and battery hardware.

Design & Installation

The RFK1D combines translucent-jacket power and ground cables with brass connection components and dedicated distribution blocks. Its 1/0 AWG cable uses 4,704 copper strands, while the 4 AWG cable uses 1,862 strands. The kit also includes twisted-pair RCA cables for signal routing and a 16 AWG speaker-wire run for amplifier-to-speaker connections.

Route the 17-foot main power cable from the battery through a properly protected firewall opening, and install the included fuse holder close to the battery according to safe installation practices. Connect the two distribution blocks to split the main 1/0 AWG power and ground runs into 4 AWG amplifier connections. Confirm that the installed amplifiers, fuse requirements, wire routing, grounding points, and vehicle charging system are appropriate for the complete system before use.
