Rockford Fosgate RFK1 1/0 AWG Power Installation Kit

The Rockford Fosgate RFK1 is a power-only amplifier installation kit built for running a single car audio amplifier with substantial current demands. It supplies the primary battery power cable, chassis ground cable, remote turn-on lead, fuse protection, and termination accessories needed for the power side of an amplifier installation. It is designed for installers upgrading beyond smaller-gauge wiring or building a system that calls for 1/0 AWG cable.

This kit is intended for vehicle owners adding one compatible amplifier to a car audio system. The long red power cable supports routing from the battery to an amplifier location, while the shorter ground cable is intended for a nearby chassis-ground connection. Signal cables and speaker wire are not included, so they should be selected separately for the specific source unit and amplifier setup.

The RFK1 uses 100% Pure Crystal-Oxygen Free Copper cable and full-spec 1/0 AWG construction. Its 53.5 mm² power and ground conductors are made with 4,704 strands, providing a flexible heavy-gauge wiring foundation for high-current amplifier installations. The kit also includes an inline fuse holder and a 300-amp ANL fuse to protect the main power run.

Rather than changing the sound character of a system directly, the RFK1 provides the electrical connection required for an amplifier to operate as designed. Properly sized copper power and ground wiring helps create an appropriate supply path between the vehicle battery, chassis ground, and amplifier. Final system performance depends on the connected amplifier, speakers, source equipment, installation quality, and vehicle electrical system.

The RFK1 fits into a system upgrade path when a single amplifier needs larger 1/0 AWG power and ground cable. It can be used with compatible Rockford Fosgate amplifiers or other amplifiers that accept the supplied cable size and match the installation's power requirements. Confirm the amplifier manufacturer's fuse, wire-size, and electrical-system recommendations before installation.

Key Features

• 1/0 AWG Cable: Heavy-gauge power and ground wiring for compatible single-amplifier installations.
• PC-OFC Construction: Pure crystal-oxygen free copper conductors support efficient current transfer.
• Full-Spec Wire: Cable meets or exceeds American Wire Gauge requirements.
• 300-Amp ANL Fuse: Includes main-cable fuse protection and an inline holder.
• 17-Foot Power Cable: Provides length for routing from battery to amplifier.
• Termination Hardware: Includes rings, connectors, boots, grommet, and wire ties.

Design & Installation

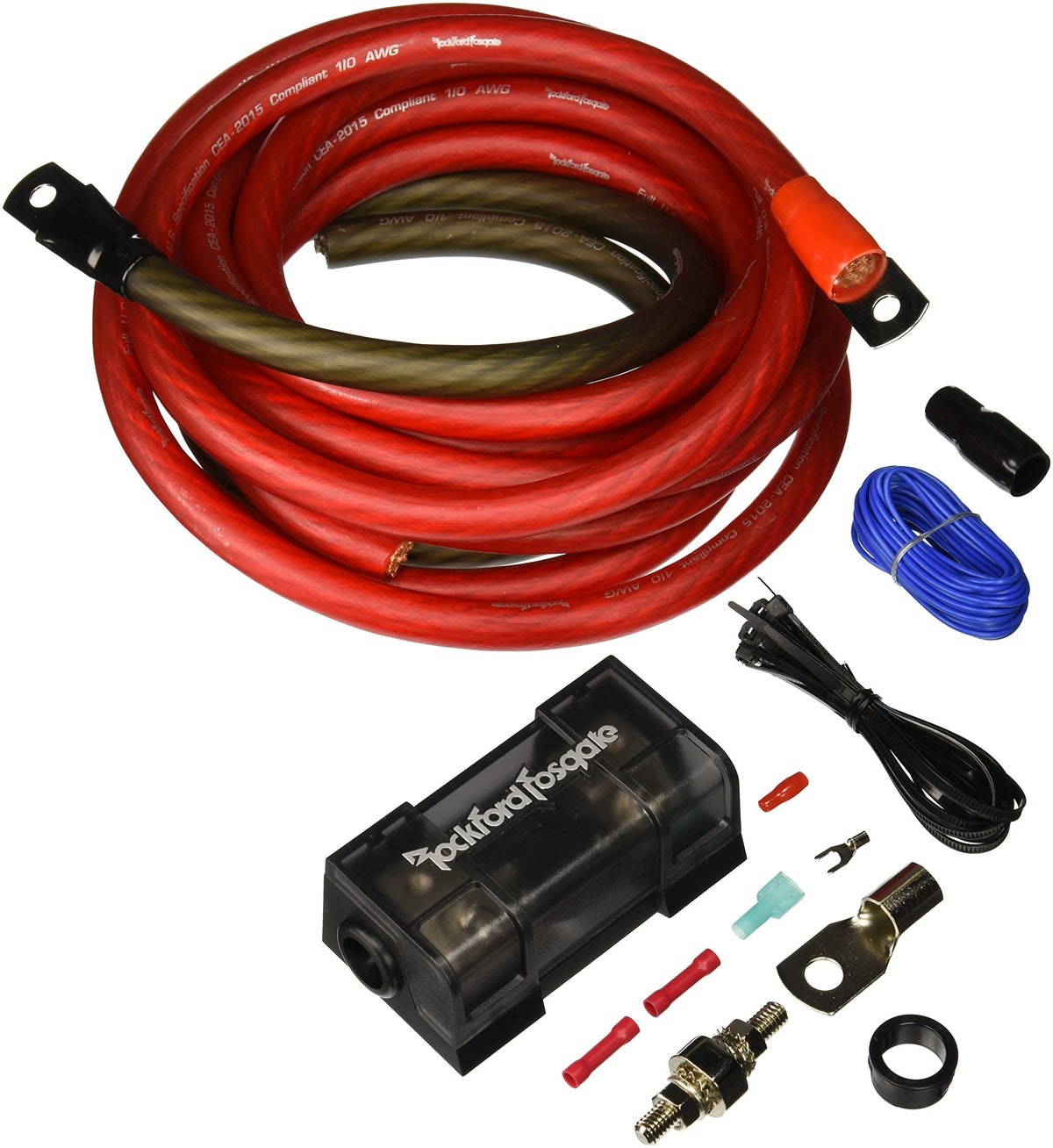

The RFK1 is organized around red 1/0 AWG power cable, translucent gray 1/0 AWG ground cable, and a blue remote lead. Both large conductors use 100% Pure Crystal-Oxygen Free Copper and 4,704-strand construction. The included ANL fuse holder, 300-amp fuse, power rings, rubber boots, connectors, grommet, and wire ties provide the accessories needed to finish the primary power wiring.

Route the 17-foot power cable from the battery to the amplifier, using the supplied fuse holder on the main power run and protecting any pass-through point with the included grommet. Keep the 3-foot ground cable as short as practical and connect it to a secure, prepared vehicle chassis grounding point. Disconnect the vehicle battery before work, verify amplifier terminal compatibility with 1/0 AWG cable, and obtain separate RCA/signal cables and speaker wire as required.
