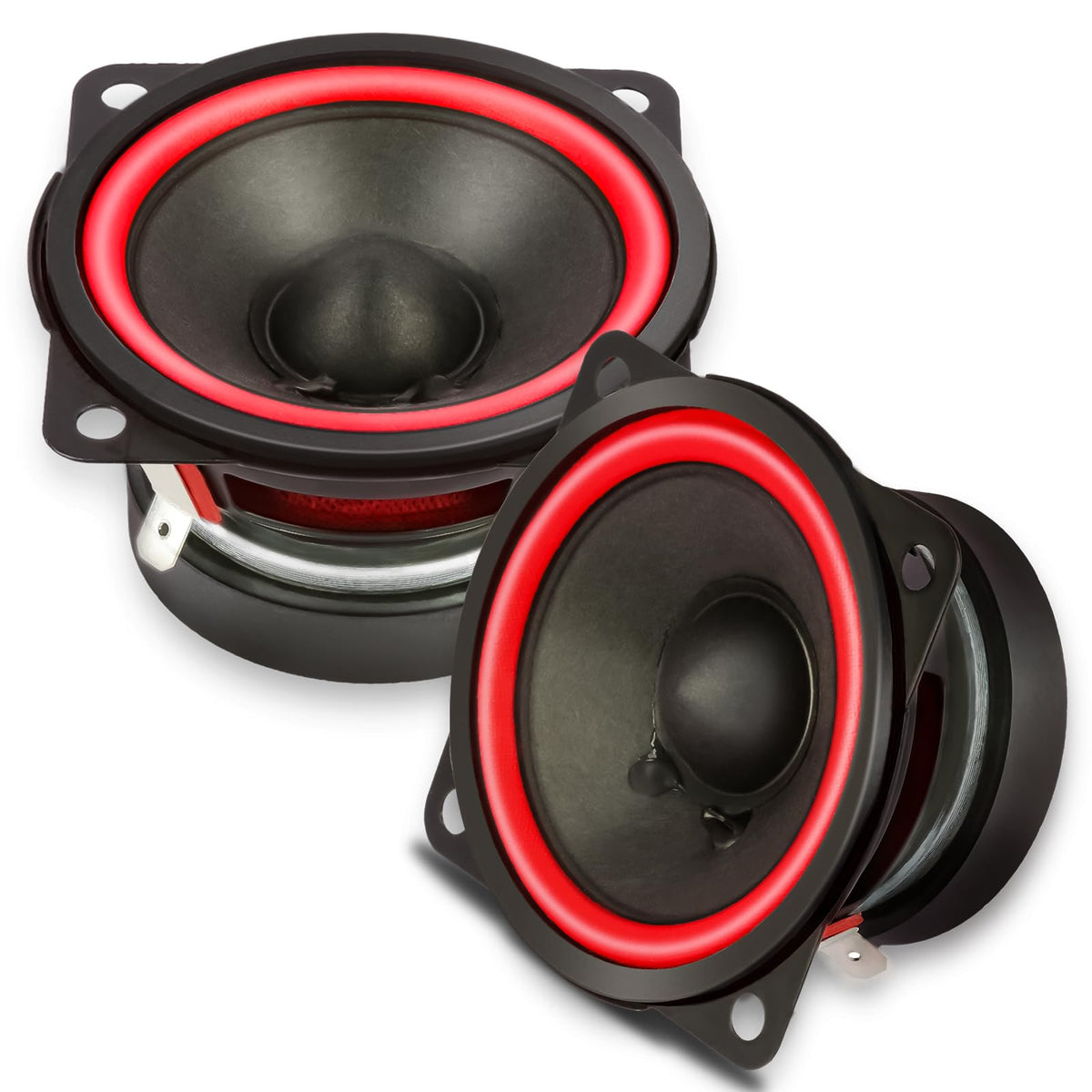

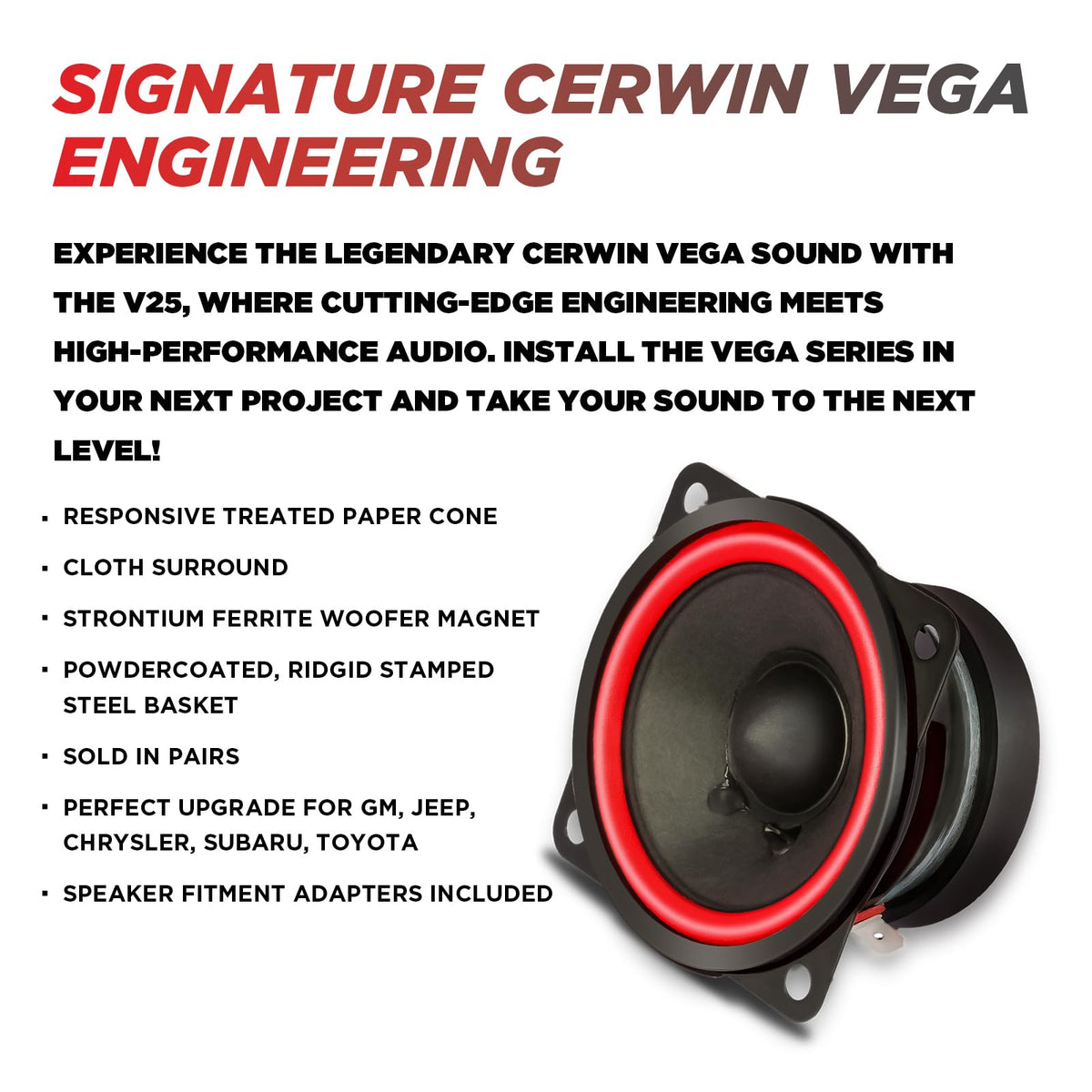

Cerwin-Vega V25 2.5" Midrange Speaker Pair

The Cerwin-Vega V25 is a compact 2.5-inch, 4-ohm midrange speaker set for vehicle audio upgrades and custom installations. It is designed for locations where a small driver is needed to add midrange detail without requiring a larger speaker opening. The pair format supports left- and right-side installation in a compatible system.

With 20 watts RMS and 60 watts peak power handling, the V25 is suited to modest-power factory-radio or amplifier-driven applications matched to its rating. Its specified 85 Hz to 20 kHz frequency response supports vocal, instrument, and detail reproduction within a multi-speaker vehicle system. The 83 dB sensitivity rating should be considered when matching output levels with other speakers.

The V25 is identified in the Vega Series documentation as a midrange speaker rather than a standalone component system. This makes it a practical choice for custom door, dash, rear-deck, or fabricated-panel applications where system design determines the final frequency division. Use appropriate filtering and amplification for the role it will serve in the vehicle.

Cerwin-Vega Vega Series construction includes a hybrid carbon fiber/polypropylene cone, Santoprene rubber surround, strontium ferrite woofer magnet, and a powder-coated stamped-steel basket. These elements are intended to provide controlled cone movement, durability, and a rigid mounting structure. The compact V25 uses a 1.26-inch mounting depth to help accommodate installations with limited behind-panel clearance.

For a focused system upgrade, the V25 can be incorporated alongside dedicated tweeters, larger midbass drivers, or subwoofers as dictated by the installation plan. Its 4-ohm nominal impedance is compatible with many conventional car-audio speaker outputs, provided the amplifier is rated for the load. Confirm physical fitment and use the published cutout and depth measurements before modifying a vehicle panel.

Key Features

• 2.5-Inch Midrange Format: Fits compact locations in custom vehicle audio installations.
• 20W RMS Power Handling: Supports appropriately matched factory or amplified power.
• 4-Ohm Nominal Impedance: Works with many standard car-audio speaker outputs.
• 85 Hz–20 kHz Response: Covers a broad specified midrange and upper-frequency range.
• Compact Mounting Depth: Requires 1.26 inches of behind-panel clearance.
• Pair Configuration: Provides two matched speakers for stereo installation.

Design & Installation

The V25 is part of Cerwin-Vega's Vega Series and is specified as a 2.5-inch midrange speaker. Vega Series materials include a hybrid carbon fiber/polypropylene cone, Santoprene rubber surround, strontium ferrite woofer magnet, and powder-coated rigid stamped-steel basket. The manufacturer does not list a grille for the V25.

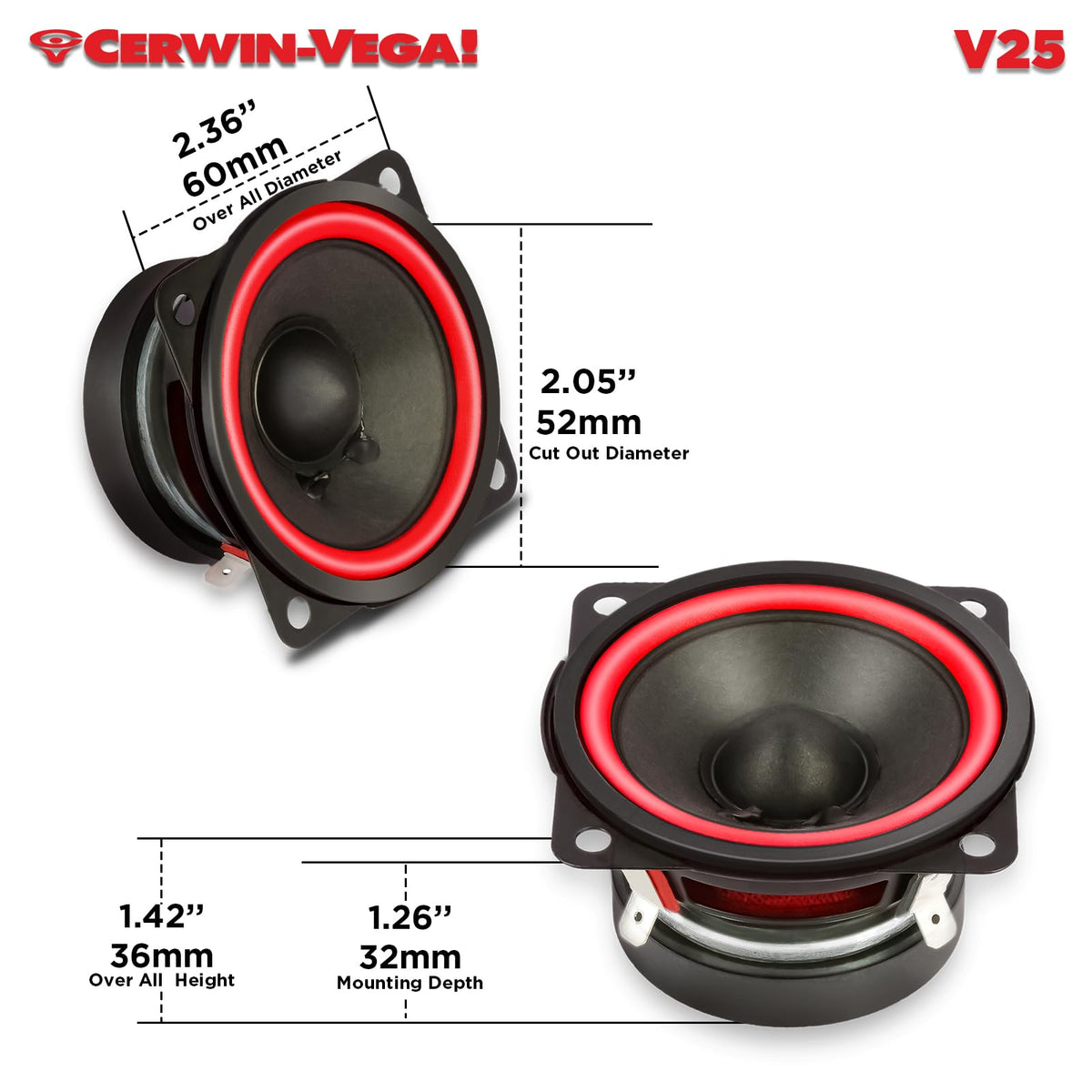

Plan for a 2.05-inch cutout, 1.26-inch mounting depth, 2.36-inch overall diameter, and 1.42-inch overall height. Mount the speaker securely to a flat baffle and seal the frame to reduce air leaks; verify clearance behind the panel, including window travel when installing in a door. Observe speaker polarity and use wiring protected from sharp metal edges.
