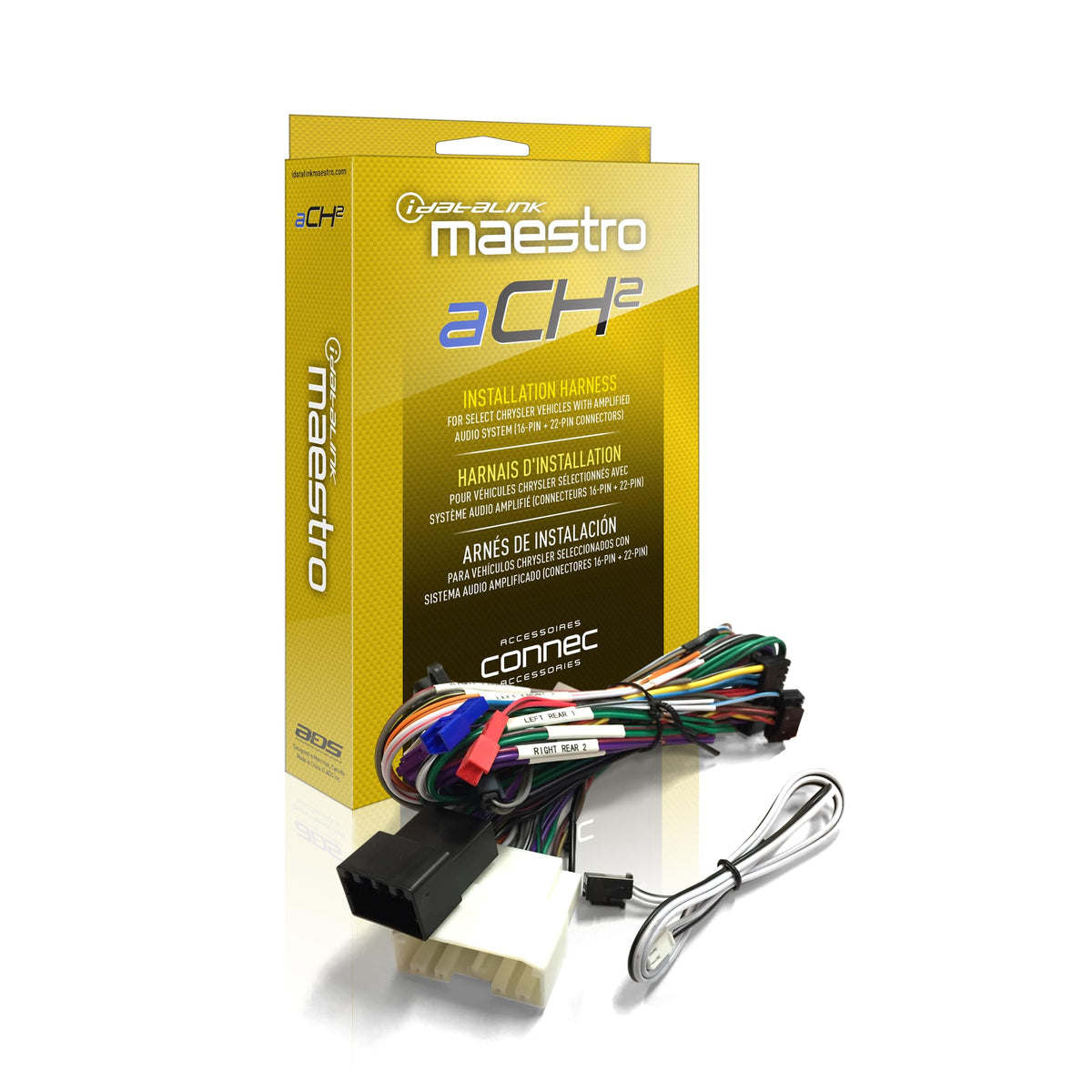

Maestro HRN-AR-CH2 Chrysler Amplifier Replacement T-Harness

The Maestro HRN-AR-CH2 is a vehicle-specific amplifier replacement T-harness for select Chrysler, Dodge, Jeep, and Ram vehicles with a factory amplifier. It is designed to connect at the original amplifier location when upgrading the factory amplified audio system. The harness provides an organized connection path for a compatible Maestro amplifier-replacement solution without replacing the factory radio.

This harness is intended for owners who want to improve their vehicle's amplification while retaining the integrated functions of the original audio system. It supports the replacement of a factory amplifier with an aftermarket amplifier setup when used with a compatible Maestro AR module. Because fitment depends on vehicle, factory audio system, and amplifier configuration, application should be confirmed before installation.

Rather than serving as an amplifier itself, the HRN-AR-CH2 acts as the vehicle-specific interface between factory wiring and the upgrade system. It helps preserve fader control, tone adjustment, and other supported factory functions through the compatible interface. This makes it a practical component for retaining the familiar operation of the factory radio while changing the amplification stage.

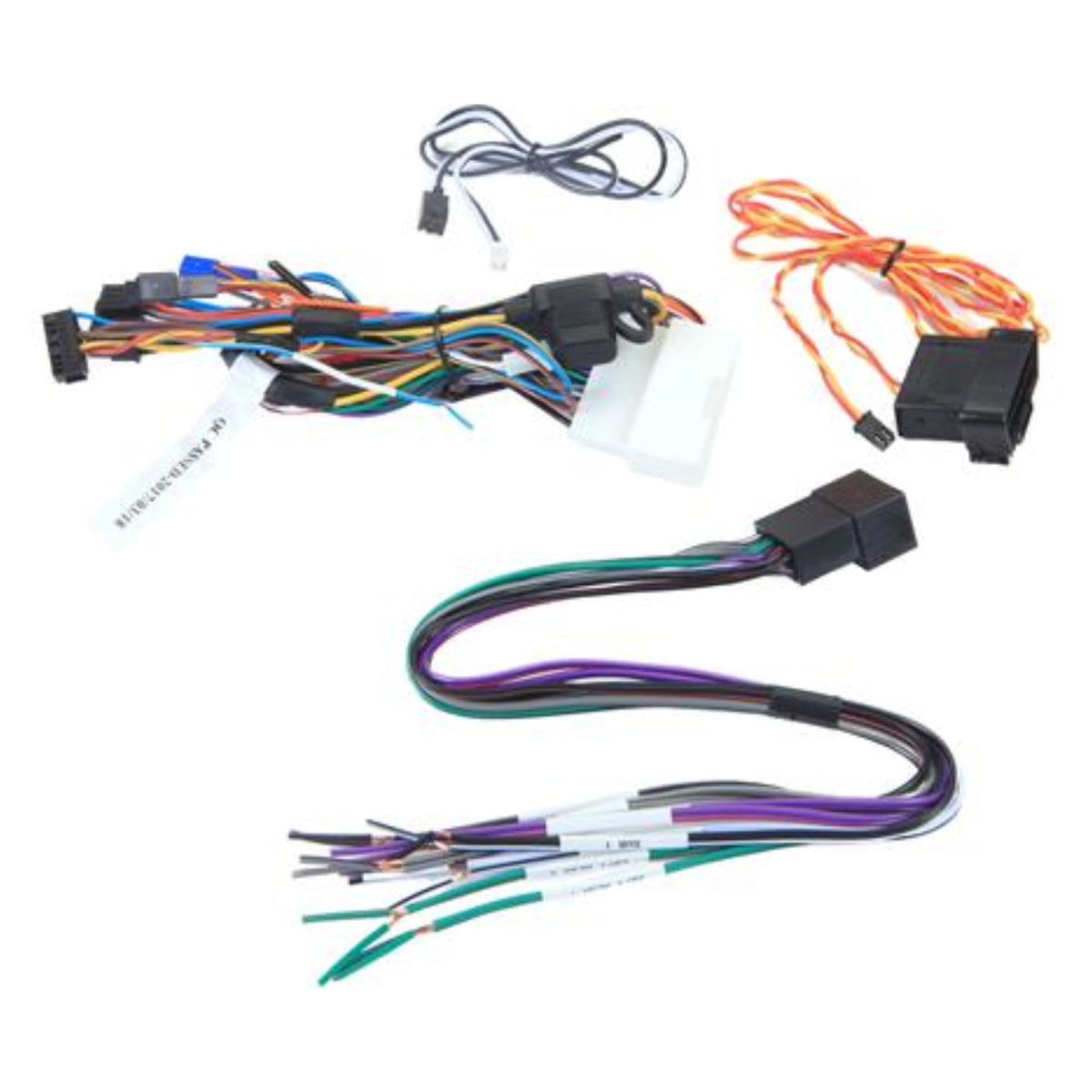

The harness connects at the factory amplifier location and includes a dedicated speaker harness adapter for connecting the vehicle speaker wiring to a new amplifier. Its T-harness approach is intended to avoid cutting or soldering factory wiring during a compatible installation. The included 2-pin harness supports the required vehicle-specific connection configuration.

HRN-AR-CH2 is compatible with Maestro AR amplifier replacement modules and Rockford Fosgate DSR1 applications where the vehicle and system are supported. It can be part of an upgrade path that keeps the factory radio in place while adding external amplification and processing capability. Professional installation is recommended because the required configuration and wiring assignments vary by vehicle.

Key Features

• Vehicle-Specific T-Harness: Connects at the factory amplifier location in supported applications.
• Factory Amplifier Replacement: Supports an aftermarket amplification upgrade with compatible Maestro equipment.
• Factory Radio Retention: Lets the original radio remain in the vehicle.
• Fader And Tone Retention: Preserves supported factory audio adjustments and functions.
• Speaker Harness Adapter: Provides a connection path for vehicle speaker wiring.
• Compatible System Integration: Works with Maestro AR and compatible DSR1 installations.

Design & Installation

The HRN-AR-CH2 uses a vehicle-specific connector-based T-harness design with separate main, speaker, and 2-pin harness sections. It is built around factory-amplifier replacement integration rather than universal amplifier wiring. Manufacturer material composition is not published, but the harness is configured for its designated vehicle applications and factory connector locations.

Install the harness at the factory amplifier location in a confirmed compatible vehicle with a factory amplified system. A Maestro AR amplifier replacement module is required for the specified Maestro AR installation, while compatible DSR1 applications should follow their vehicle-specific guide. Verify vehicle fitment, factory-system details, and the required aftermarket amplifier connections before purchasing or beginning installation.
