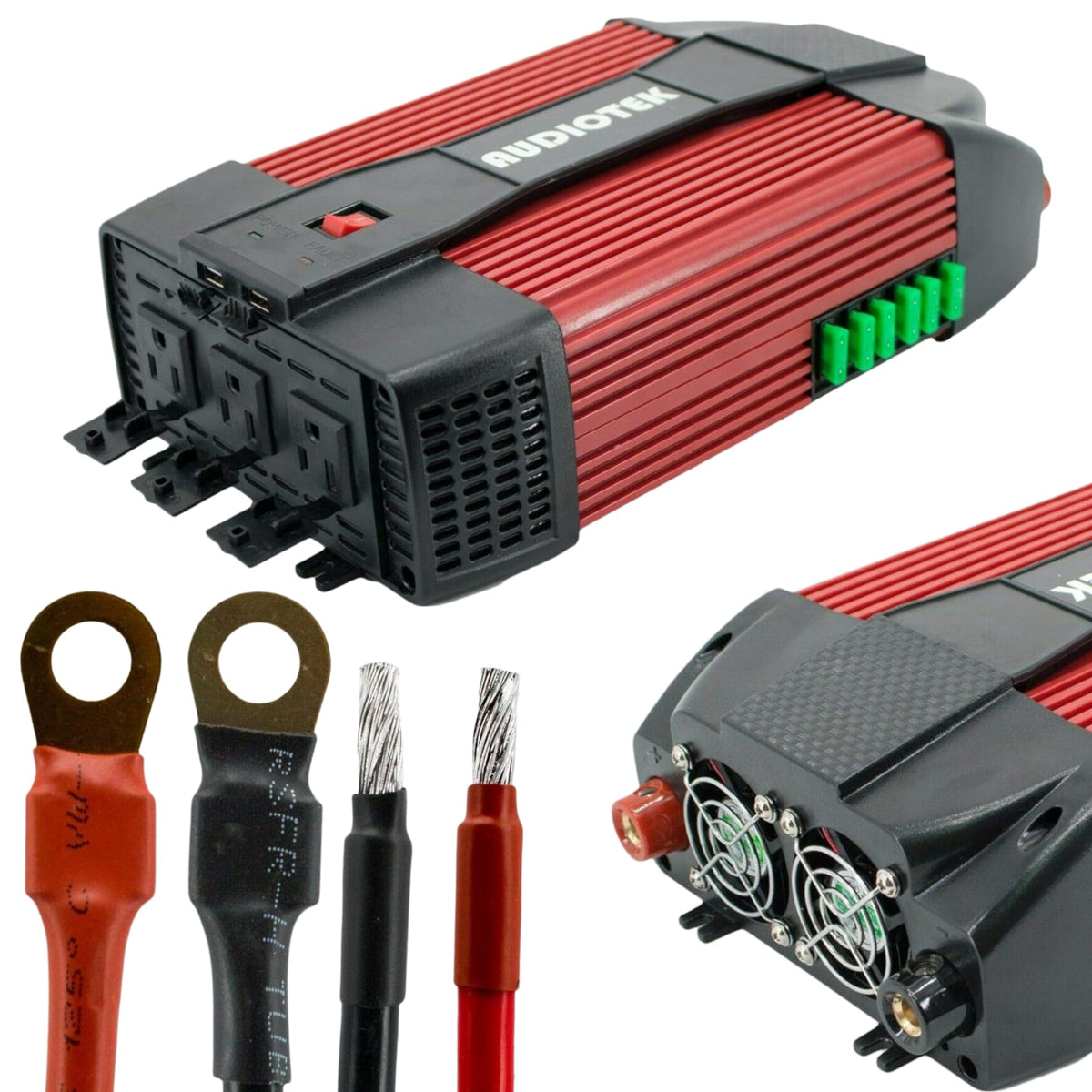

Audiotek PI3000 12V 1500W Power Inverter

The Audiotek PI3000 is a 12V DC-to-AC power inverter designed to bring household-style power to a vehicle, boat, or other compatible 12V battery system. It converts battery power into 110-120V AC output for portable electronics and other appropriately rated devices. With 1500W of continuous power and 3000W peak power, it is intended for loads that need more capacity than a basic USB charger or small accessory inverter.

This inverter is a practical option for drivers, campers, mobile work setups, and off-grid applications that need several power connection types in one unit. Three AC outlets allow multiple plug-in devices to be connected, while two USB ports provide direct charging for compatible USB-powered equipment. Total connected AC load should remain below the 1500W continuous rating.

The PI3000 uses a modified sine wave AC output and operates from a 12V DC source. Its 60 Hz output is suited to many common electronic devices and chargers when their power requirements are within the inverter's limits. The 3000W peak rating is for short-duration demand rather than sustained operation.

Integrated protection functions help monitor abnormal operating conditions, including over-voltage, under-voltage, overload, over-current, overheating, and short circuits. A cooling fan supports thermal management during use, and the fuse bank is replaceable for serviceability. A dual-color LED indicator provides operating and shutdown status at a glance.

For lower-power use, the included cigarette-lighter plug can connect to a vehicle accessory outlet. For AC devices rated above 150W, use the included red and black battery clips for a direct battery connection instead of a typical vehicle accessory socket. This makes the PI3000 a flexible power-source component for vehicle-based electronics, travel gear, and portable work equipment.

Key Features

• 1500W Continuous Output: Supports sustained loads up to its rated continuous power capacity.
• 3000W Peak Capacity: Provides short-term headroom for devices with higher startup demand.
• Three AC Outlets: Lets you connect up to three compatible 110V devices.
• Dual USB Charging: Includes two 5V/2.1A USB ports for compatible devices.
• Safety Protection Circuitry: Helps guard against voltage, current, heat, overload, and short-circuit faults.

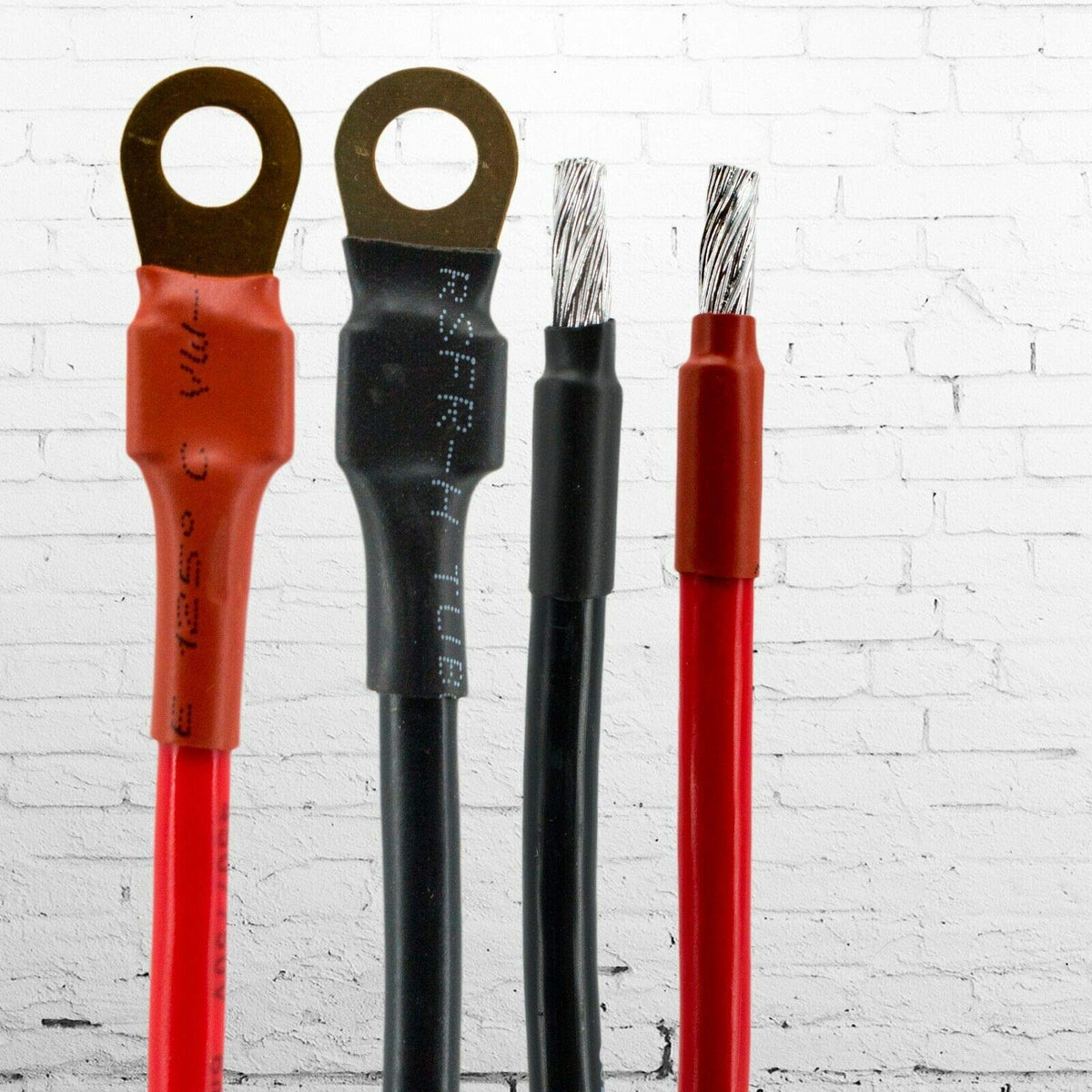

• Direct-Battery Connection Option: Includes battery clips for higher-power applications above 150W.

Design & Installation

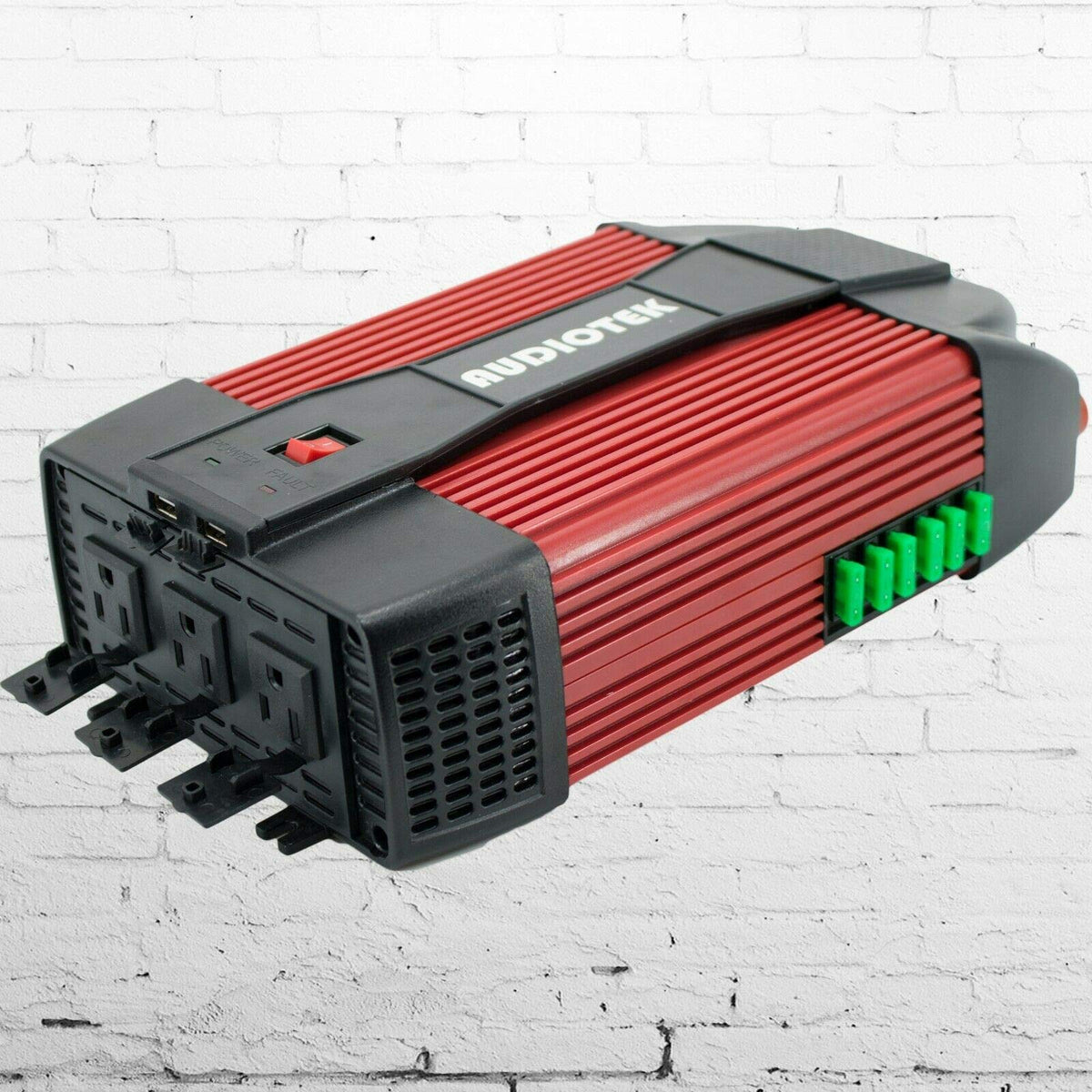

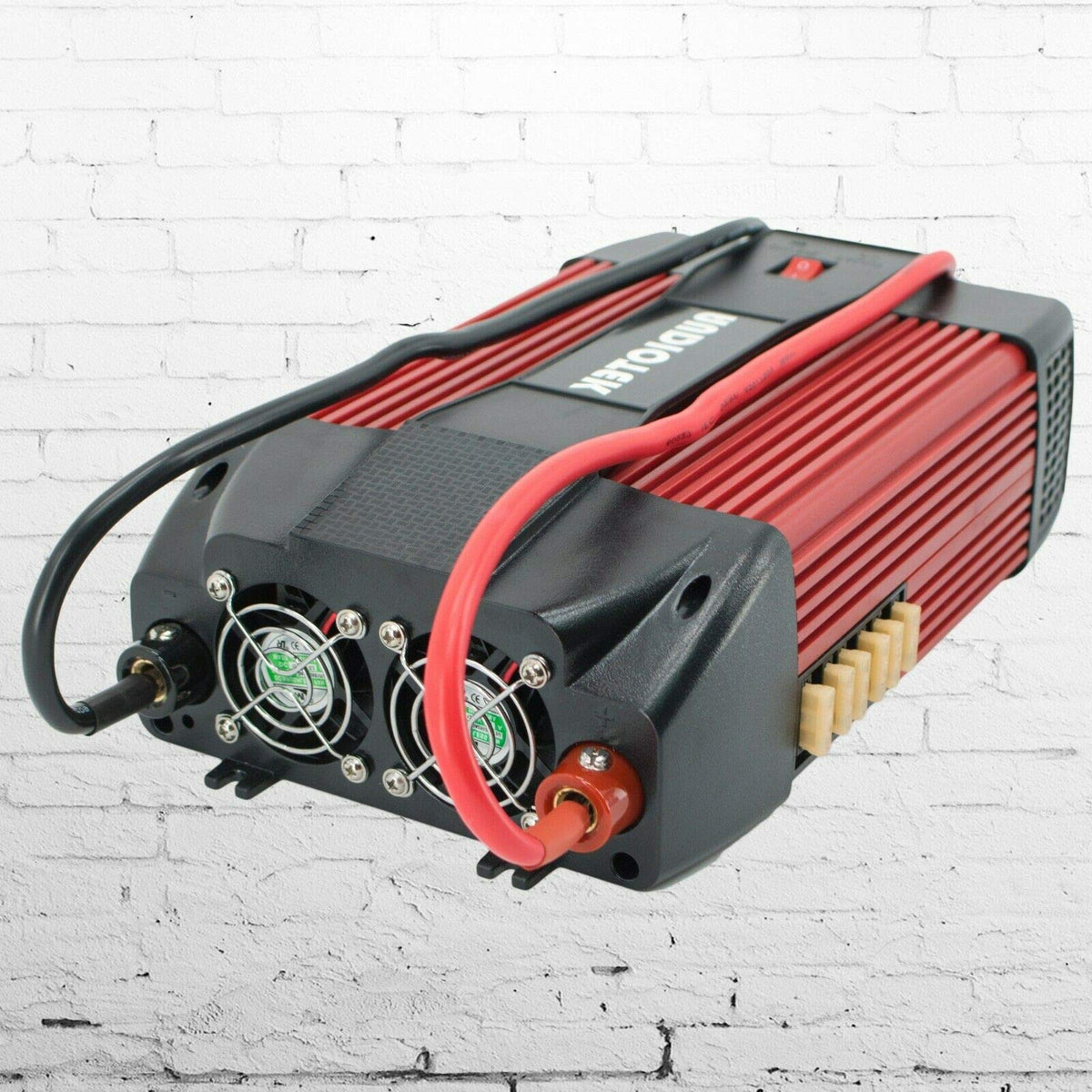

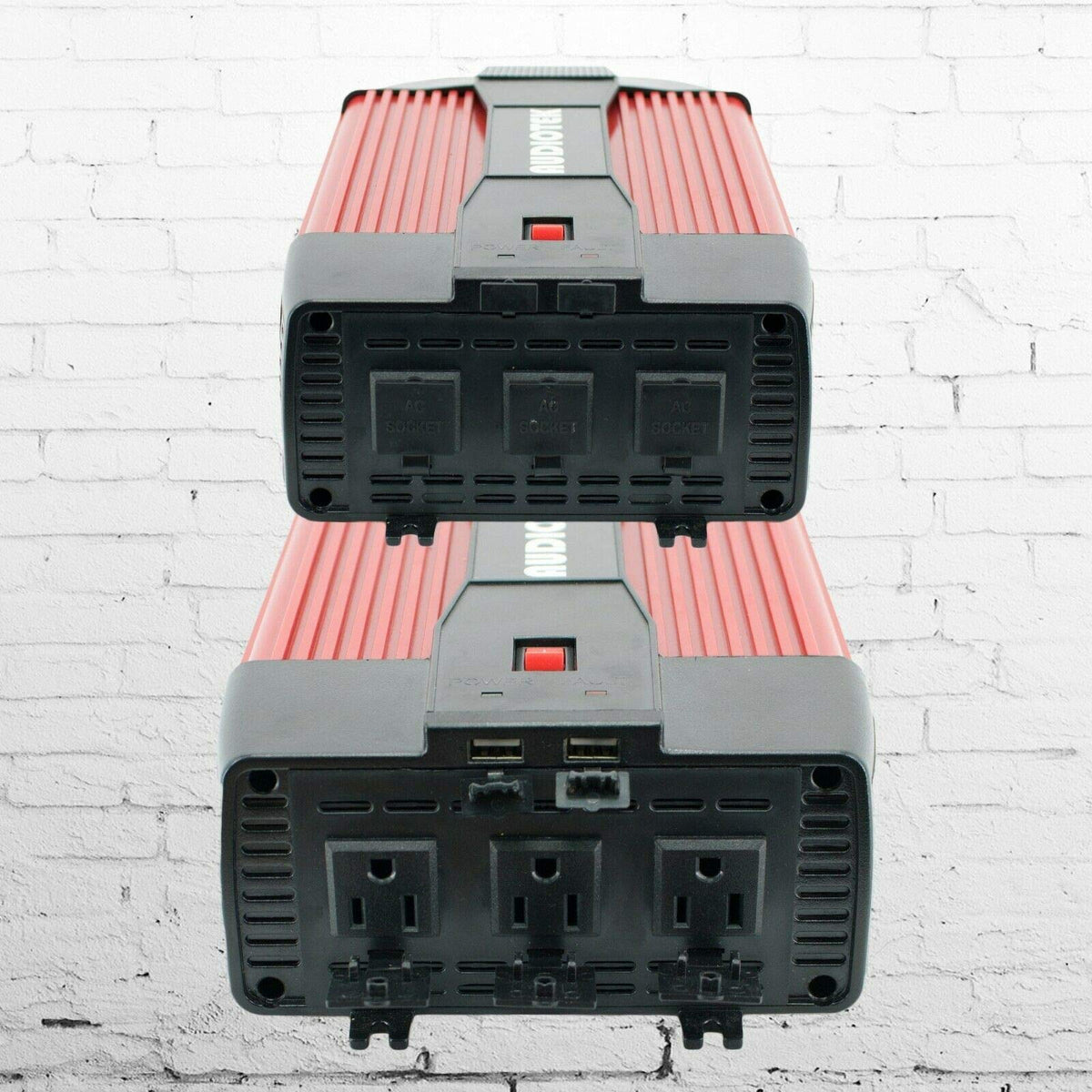

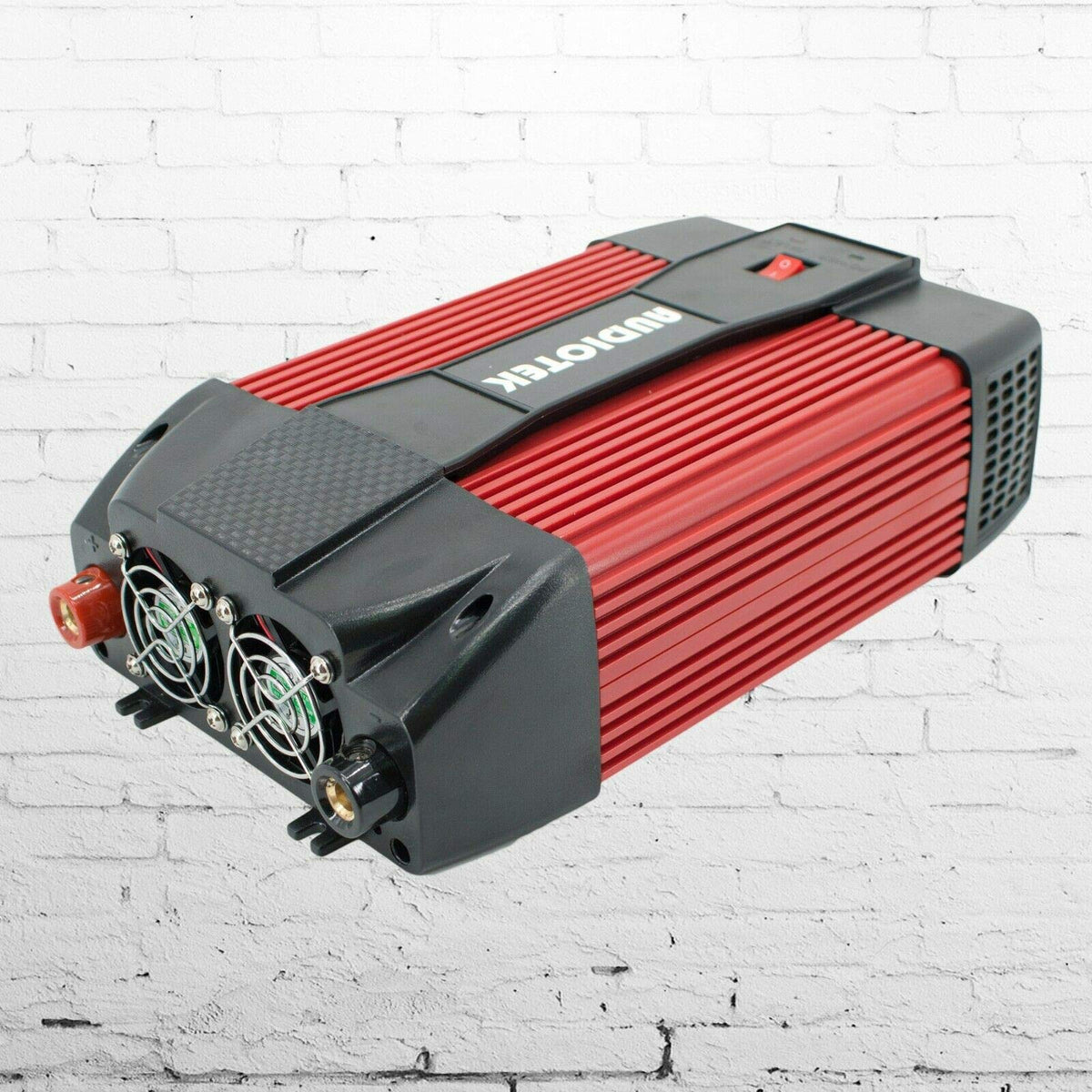

The PI3000 has a compact red enclosure measuring 12 x 7 x 3.5 inches. Its layout combines three AC outlets, two USB outputs, a power-status indicator, replaceable fuses, and an integrated cooling fan. The serviceable fuse design uses six 30A fuses.

Mount the inverter on a stable surface with clear ventilation around the fan and avoid prolonged direct sunlight or heat-sensitive surroundings. Tighten positive and negative connections securely before operation. Use the cigarette-lighter plug only for lower-power loads; for AC equipment rated above 150W, connect the included battery clips directly to a compatible 12V battery.
