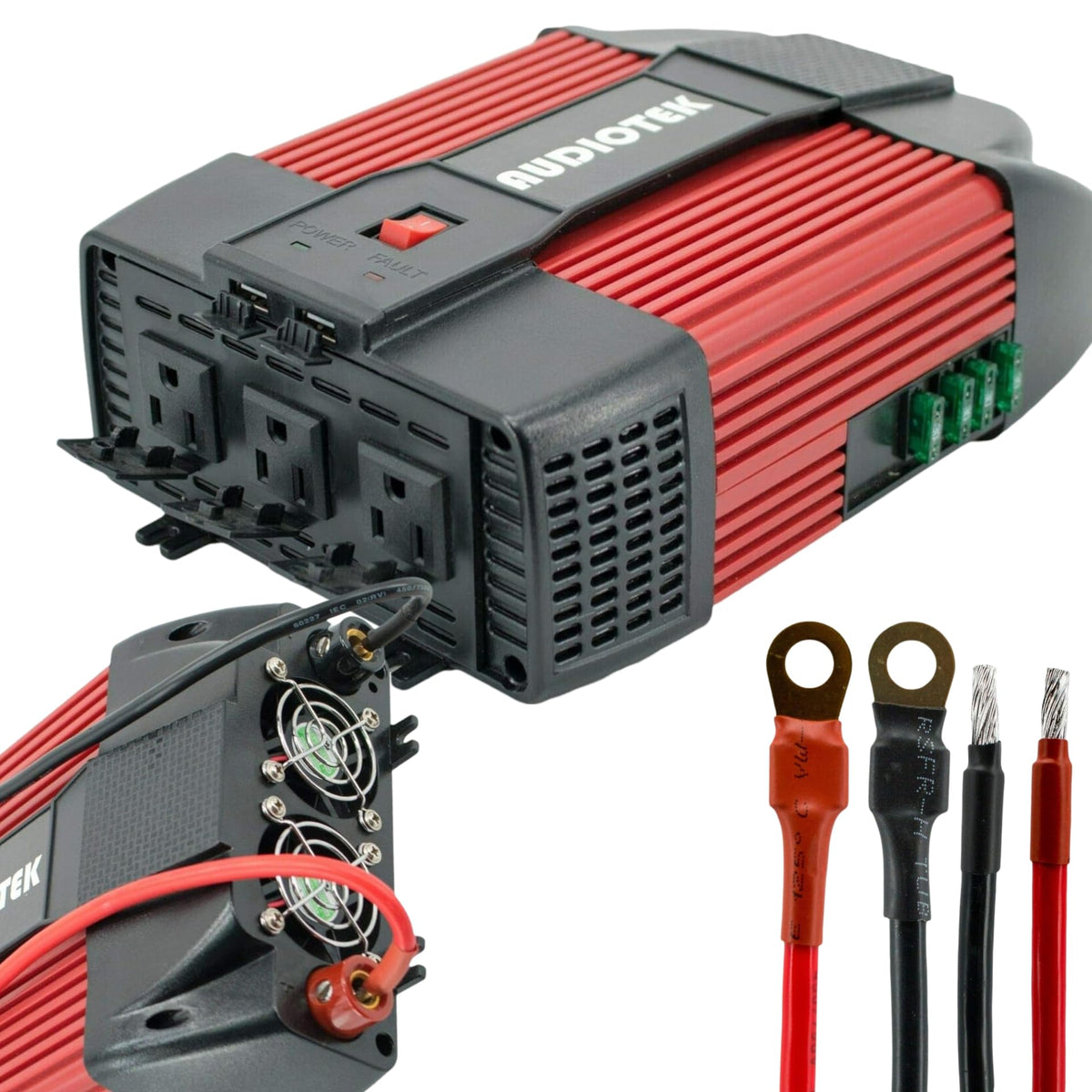

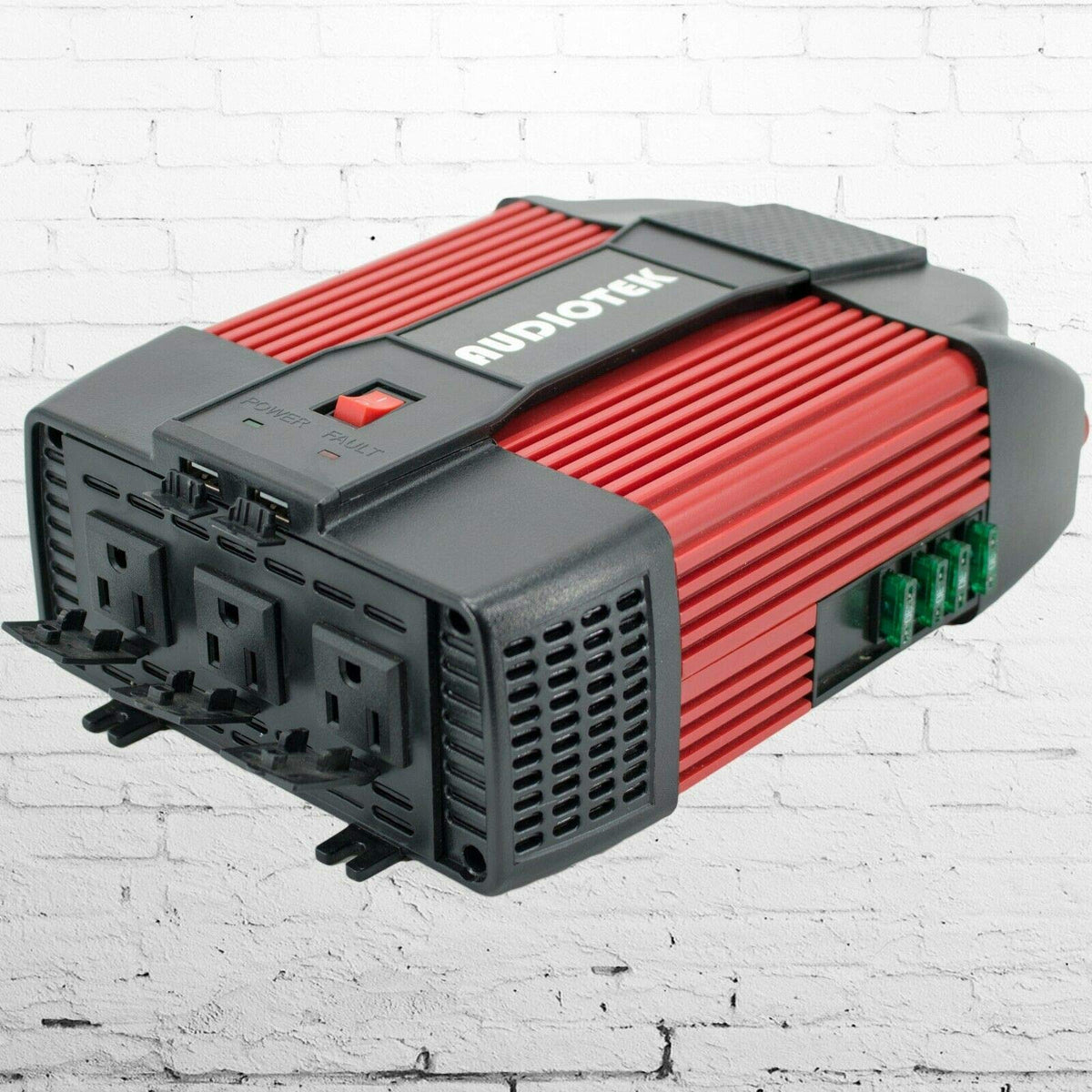

Audiotek PI2000 2000W 12V Power Inverter

The Audiotek PI2000 is a 12V DC-to-AC power inverter designed to bring household-style power to a vehicle, boat, or other compatible 12V battery source. It supplies up to 800W of continuous power, with 1600W maximum power and a 2000W peak rating for short startup demands. Three AC outlets and two USB charging ports allow multiple compatible devices to be connected from one compact power source.

This inverter is suited to drivers, campers, mobile workers, and backup-power users who need to operate lower-power AC electronics away from a wall outlet. It can support items such as laptops, cameras, TVs, game consoles, lamps, and USB-powered phones or tablets when their combined rated demand remains below 800W. It is a power-conversion accessory rather than a car audio amplifier or battery charger.

Its DC-to-AC design converts a vehicle's 12V battery power to 110-120V AC output for compatible household devices. The dual USB ports provide 5V charging output with automatic current delivery up to 2.1A per port. This combination makes the PI2000 useful for mixed loads that include both plug-in electronics and USB devices.

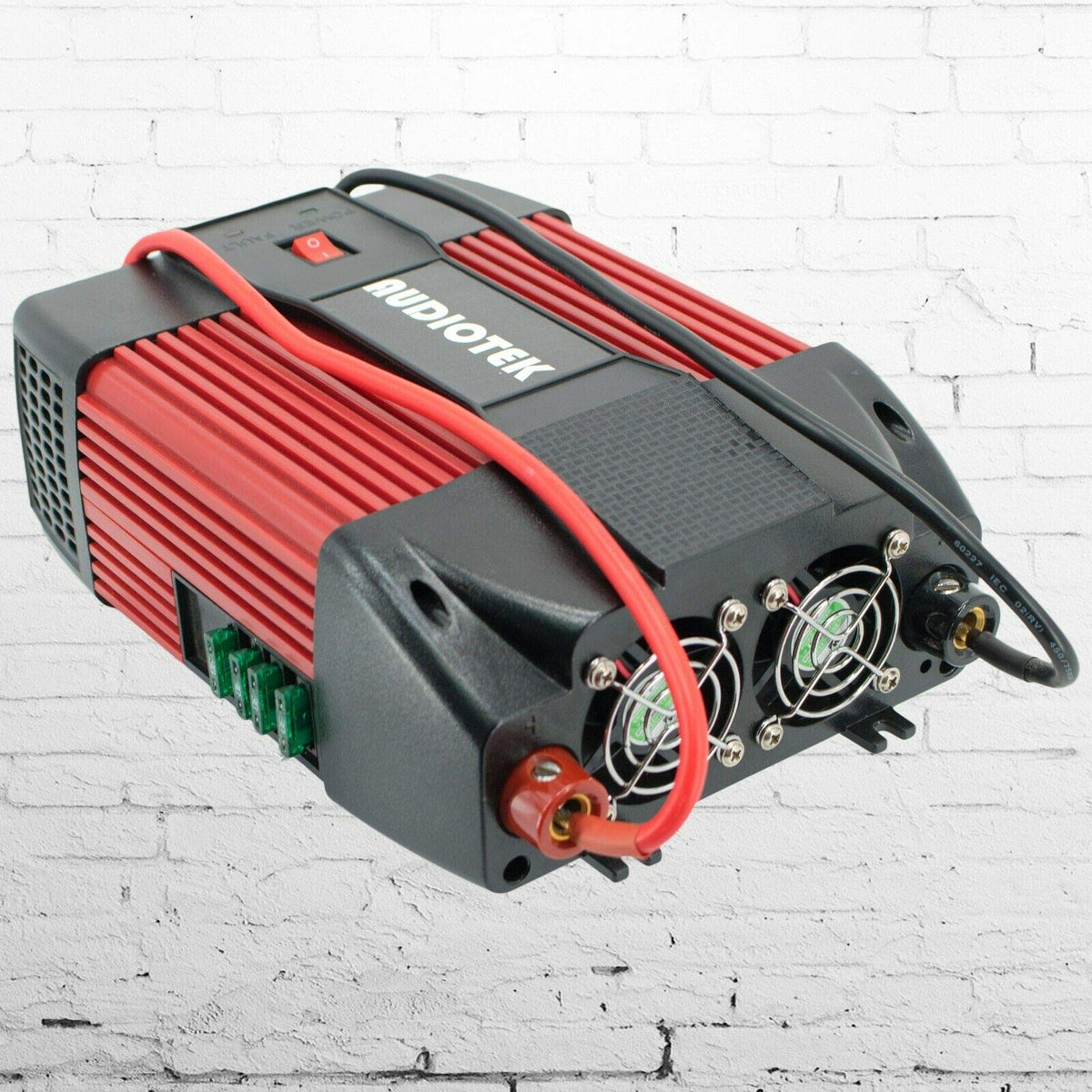

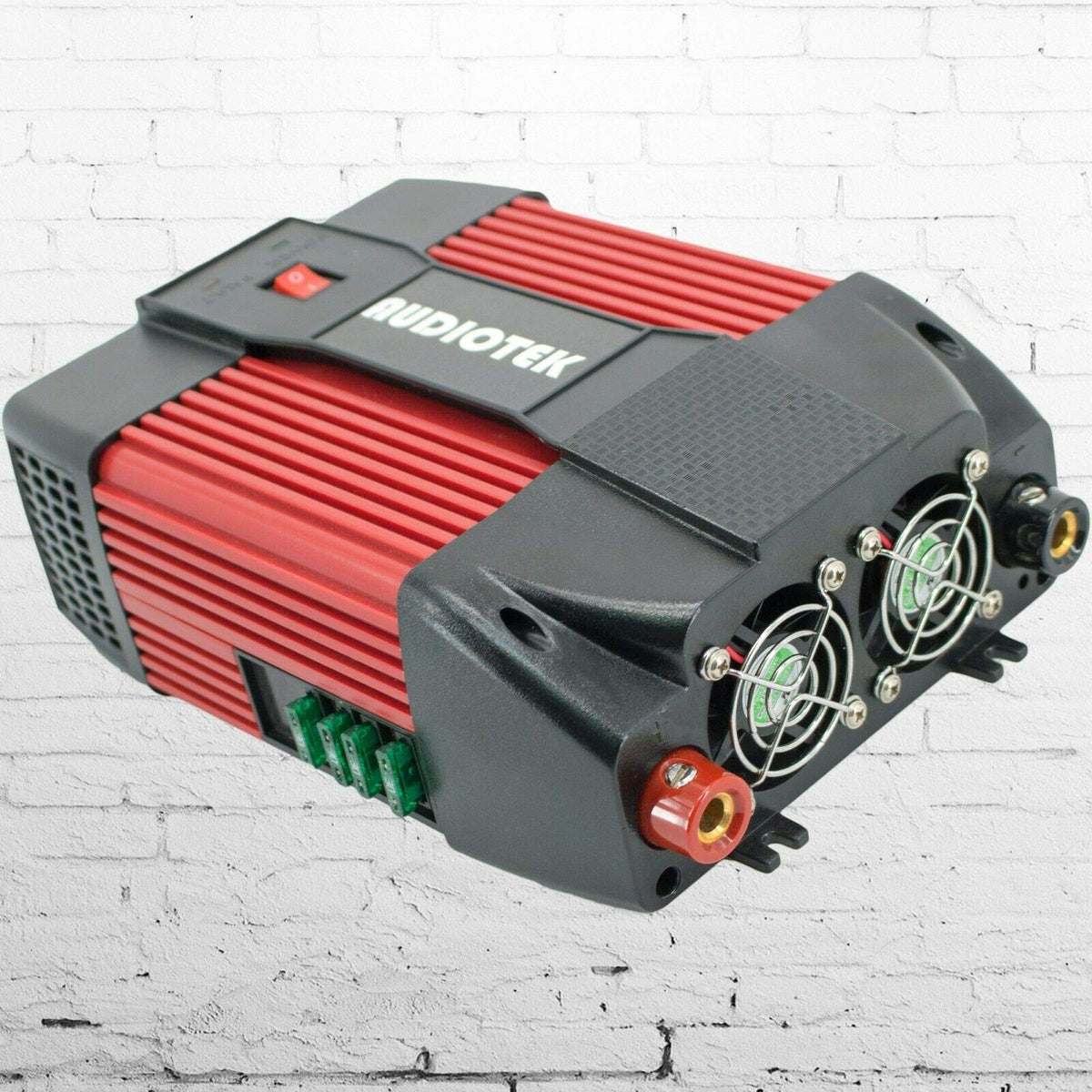

Safety-focused hardware includes four replaceable 25A fuses and an integrated cooling fan. The inverter is specified with over-voltage, overload, over-current, under-voltage, overheating, and short-circuit protection. Replaceable fuses provide a practical service feature should a fuse require replacement.

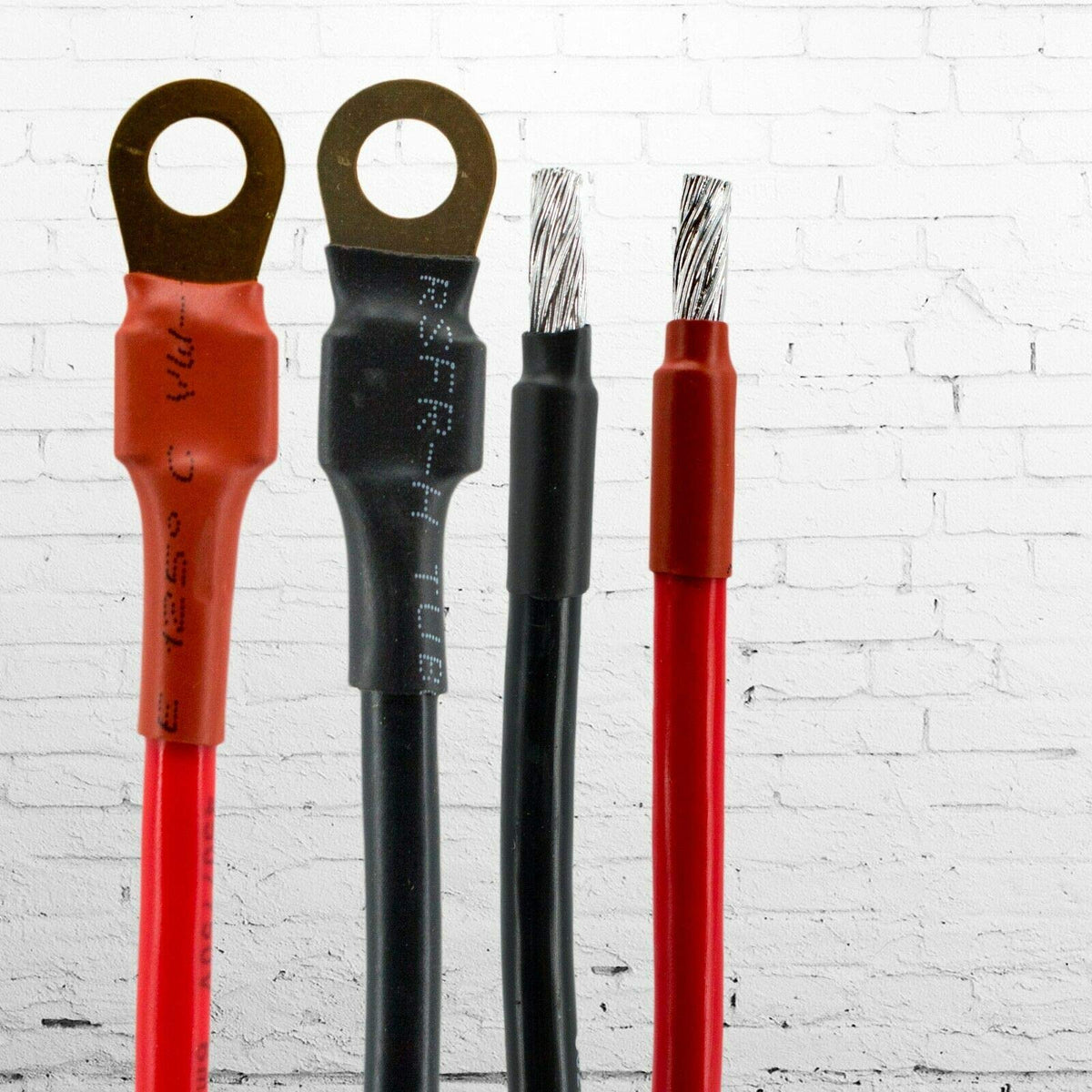

The PI2000 can be connected through its included cigarette-lighter plug for lower-power use or directly to a vehicle battery with the included black and red battery clips. For connected AC devices rated above 150W, direct battery connection is specified instead of using a typical vehicle 12V accessory outlet. This makes it a flexible addition to a vehicle electrical setup when the load and connection method are matched correctly.

Key Features

• 800W Continuous Output: Supports compatible connected loads with a combined rated demand below 800W.
• 2000W Peak Rating: Provides short-duration capacity for certain device startup demands.

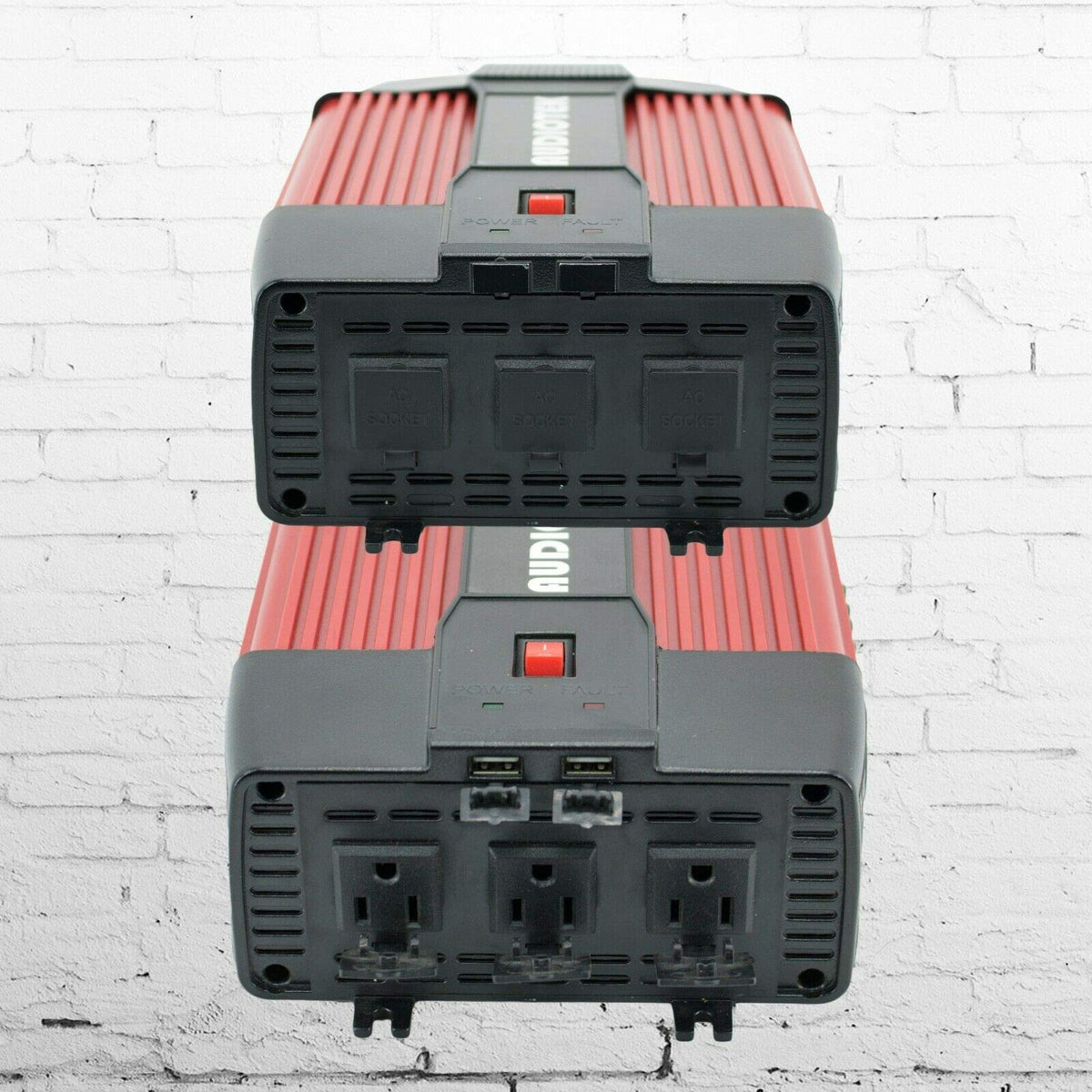

• Three AC Outlets: Connect up to three compatible 110-120V AC devices.
• Dual USB Charging: Two 5V ports provide up to 2.1A charging output each.
• Replaceable Fuse Protection: Four 25A fuses are designed for practical maintenance.
• Included Connection Accessories: Use the cigarette plug or battery clips as appropriate.

Design & Installation

The Audiotek PI2000 uses a compact black-and-red form factor measuring 10.5 x 7 x 3.5 inches. Its design incorporates an internal cooling fan and four replaceable 25A fuses. The outlet and USB layout is intended to keep AC and USB-powered accessories available from the same inverter.

Mount or place the inverter where it has ventilation and is away from prolonged direct sunlight and heat-sensitive materials. Tighten the positive and negative battery connections before use, as loose connections can overheat from poor contact. Use the included cigarette-lighter plug only for lower-power loads; for AC devices rated above 150W, connect the included battery clips directly to the vehicle battery and keep the total connected rated load below 800W.
