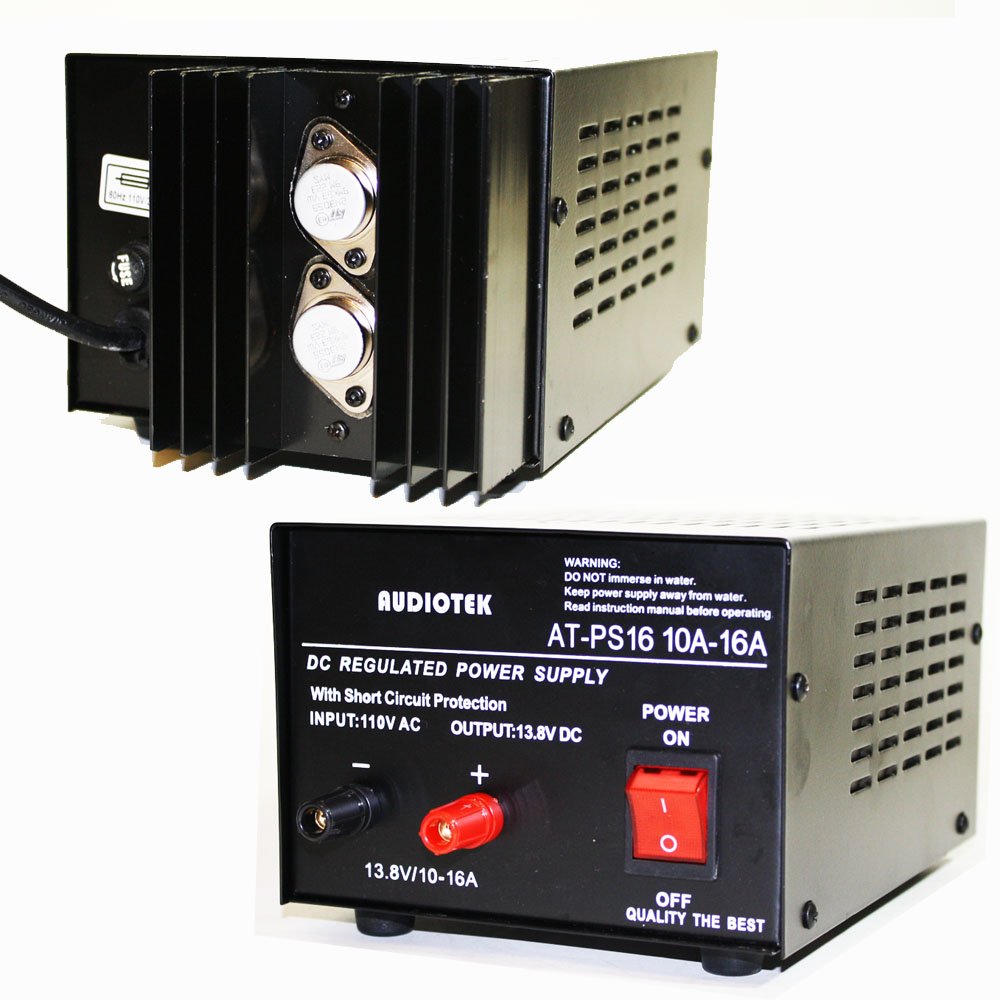

Audiotek AT-PS16 13.8V 16A DC Power Supply

The Audiotek AT-PS16 is a regulated AC-to-DC power supply designed to provide 13.8V DC power for compatible 12V equipment. With a maximum current output of 16A, it gives installers, hobbyists, and mobile-electronics users a stationary power source for supported 12V devices. It is intended for home, office, and installation environments where dependable DC power is needed from a 110V AC outlet.

This unit helps bridge the gap between standard household AC power and equipment designed around 12V automotive-style electrical systems. It is suited to compatible mobile audio equipment and other 12V devices that operate within its 13.8V, 16A output capability. Because it is a power supply rather than an audio processor or amplifier, it is designed to support connected equipment without adding a sound character of its own.

The AT-PS16 uses regulated DC output to provide stable power for supported loads. Its published protection features include over-voltage protection, over-heat protection, and short-circuit fuse protection. These provisions are intended to support more dependable operation in routine installation and bench-use settings.

A heavy-duty heatsink is part of the AT-PS16 design to help manage operating heat. The compact, straightforward format is aimed at users who need a practical power source without a complicated control interface. Its single DC output keeps the setup focused on powering one connected system or distribution point at a time.

In a mobile-electronics workflow, the AT-PS16 can serve as a 13.8V source for compatible 12V equipment used away from a vehicle battery. It can also fit an installer bench, office setup, or home workspace where compatible equipment needs AC-to-DC conversion. Confirm the connected device's voltage, current demand, polarity, and connection requirements before use.

Key Features

• 13.8V Regulated Output: Supplies DC power for compatible 12V equipment.
• 16A Maximum Output: Supports loads requiring up to 16A.
• 110V AC Input: Connects to a standard 110V AC power source.
• Over-Voltage Protection: Adds protection against excessive output-voltage conditions.
• Over-Heat Protection: Helps protect the supply during high-temperature operation.
• Heavy-Duty Heatsink: Assists with heat dissipation during use.

Design & Installation

The AT-PS16 has a black, heavy-duty regulated-power-supply design with a built-in heatsink. Its design priorities are stable performance, efficient operation, and straightforward use for compatible 12V equipment. The published configuration includes one output.

Install the power supply in a location with adequate ventilation around the heatsink and connect it only to a 110V AC source. Verify that the connected equipment is compatible with 13.8V DC and does not exceed the unit's 16A maximum current rating. Use it for home, office, or installer applications where a regulated 12V-class DC source is required.
