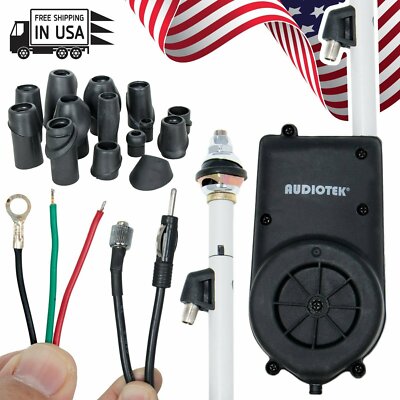

Audiotek AT-AN1P Universal Power AM/FM Antenna

The Audiotek AT-AN1P is a universal 12V power antenna designed to restore or add retractable AM/FM radio reception in compatible cars and SUVs. It is intended for vehicles using a fender- or body-mounted external antenna assembly. The powered mast extends for radio use and retracts to reduce its exposed height when not in use.

This antenna is a practical option for replacing a damaged electric antenna or completing a custom radio installation that still relies on over-the-air AM/FM reception. Its universal format gives installers flexibility compared with a vehicle-specific replacement. Fitment should be confirmed against the available mounting location, antenna lead connection, and vehicle wiring before purchase.

The AT-AN1P uses a stainless-steel mast and a powered antenna mechanism to support everyday radio listening. Its reception role is focused on AM/FM broadcast signals rather than Bluetooth, satellite radio, or streaming audio. A 75-ohm coaxial antenna lead is included for connection to a compatible radio antenna input.

Waterproof construction and a compact antenna housing support installation in exterior vehicle locations where the assembly may be exposed to weather. Multiple mounting-head options and selectable mounting angles help accommodate varied panel and fender positions. The adjustable orientation is especially useful when working around body contours and limited under-panel clearance.

For a vehicle audio upgrade, the AT-AN1P can complement an aftermarket or factory radio that needs a conventional external AM/FM antenna. It is not a head unit, amplifier, speaker, or signal processor, so it does not alter the audio system's power output. It is best used as part of a radio-reception repair or an installation retaining terrestrial AM/FM listening.

Key Features

• Powered Antenna Design: Extends and retracts the antenna mast electrically for conventional AM/FM radio use.
• AM/FM Reception: Supports broadcast-radio reception with a compatible vehicle radio.
• Stainless-Steel Mast: Provides a durable exterior mast construction for routine vehicle use.
• Waterproof Housing: Supports exterior installation where weather exposure is expected.

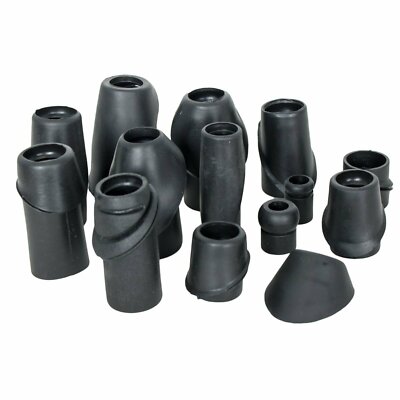

• Adjustable Mounting Angles: Offers several installation-angle settings to suit different body panels.

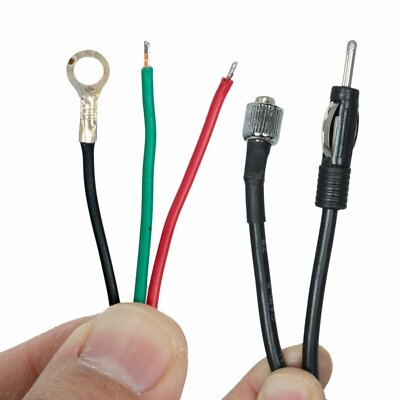

• 75-Ohm Coaxial Lead: Provides an antenna cable format used by many vehicle radio installations.

Design & Installation

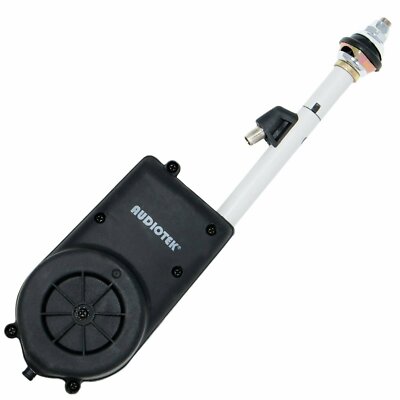

The AT-AN1P combines a compact black power-antenna housing with a stainless-steel mast. Its published housing dimensions are 13 x 3.54 x 1.97 inches, and the design is described as waterproof. The assembly uses mounting hardware with bolt-and-screw attachment and supports several vehicle placement locations.

Confirm available clearance below the intended mounting surface before installation, particularly where the mast retracts beneath a fender or panel. Connect the antenna lead to a compatible AM/FM radio input and wire the unit for a 12V vehicle electrical system according to the supplied installation instructions. Use one of the available mounting-head positions and angle settings to align the mast appropriately for the selected location.
