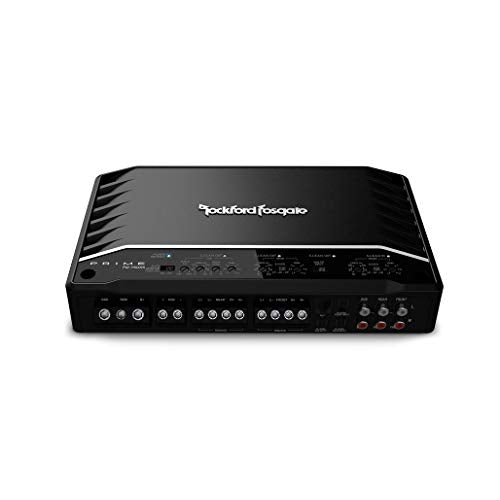

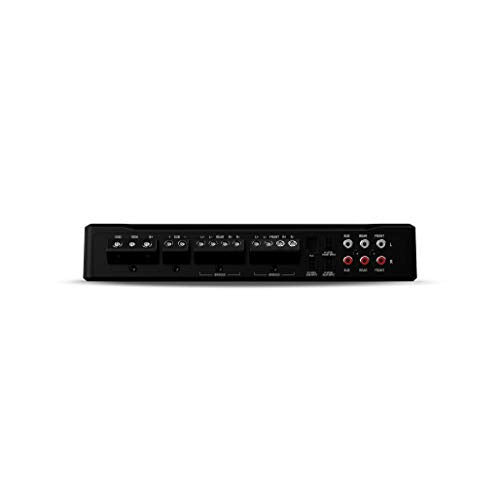

Rockford Fosgate R2-750X5 Prime 750-Watt 5-Channel Amplifier

Powerful 5-Channel Amplification

The Rockford Fosgate R2-750X5 delivers a total of 750 watts RMS power in a compact chassis (1.9" x 6.8" x 11.2"). Designed for both speakers and subwoofers, it provides flexible output: 50W x 4 + 200W x 1 at 4Ω, 100W x 4 + 350W x 1 at 2Ω, or 200W x 2 bridged for maximum performance.

Efficient & Reliable Performance

Equipped with Class-D technology, this amplifier operates with high efficiency, minimizing strain on the vehicle’s electrical system. Rockford’s P.O.W.E.R. Supply boosts output as voltage increases, while C.L.E.A.N. circuitry simplifies gain setup to prevent clipping and distortion.

Advanced Tuning & Controls

The R2-750X5 offers flexible system control with fully adjustable 12dB/octave high- and low-pass Butterworth crossovers, integrated Punch EQ for up to 3X the bass, and balanced differential inputs. RCA pass-thru outputs, high-level input capability, and a defeatable auto turn-on circuit make installation easy and versatile.

Key Highlights

• Compact 5-channel full-range Class-D amplifier

• Total RMS Power: 750 watts

• Power ratings: 50W x 4 + 200W x 1 @ 4Ω, 100W x 4 + 350W x 1 @ 2Ω, 200W x 2 bridged

• Dedicated subwoofer channel optimized for bass performance

• Class-D efficiency reduces demand on vehicle’s electrical system

• C.L.E.A.N. circuitry for easy, distortion-free gain setup

• Rockford P.O.W.E.R. Supply delivers more power with higher voltage

• Integrated Punch EQ delivers up to 3X bass boost

• Adjustable 12dB/octave high- and low-pass Butterworth crossovers

• Balanced differential inputs with RCA pass-through outputs

• High-level input capable with defeatable auto turn-on circuit

• Rockford Fosgate build quality with 1-year warranty

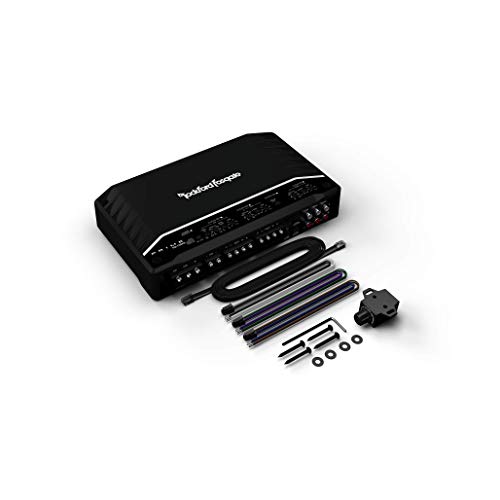

Package Contains

• Rockford Fosgate R2-750X5 5-channel amplifier

• Mounting hardware

• Power/ground/speaker terminal block connectors

• Owner’s manual & installation guide

• 1-year Rockford Fosgate warranty documentation
