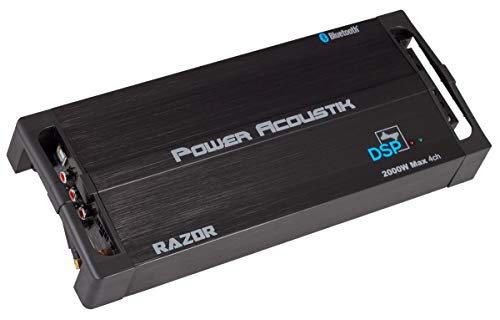

Power Acoustik RZ4‐2000DSP - 2000 Watts 4-Channel Car Audio Amplifier with DSP and Bluetooth

1. The RZ4-2000DSPB Amplifier, a pinnacle of the RAZOR Series, is a 4-channel amplifier with a built-in DSP (Digital Signal Processor), designed to provide an unparalleled audio experience for your car audio system. With a maximum power output of 2,000 Watts, this amplifier delivers a powerful and immersive sound. The integrated DSP features a 100dB dynamic range ADC (Analog-to-Digital Converter) and a 104dB dynamic range DAC (Digital-to-Analog Converter), ensuring pristine audio quality. The User-Friendly SigmaStudioTM User Interface with Response Display offers intuitive control over the DSP functionalities, allowing precise customization of your audio output.

2. The RZ4-2000DSPB's Razor DSP Features include advanced capabilities such as 30V MAX 4-ch High Level & 4V MAX RCA Input Voltage, 2-channel RCA output for seamless integration with subwoofer amplifiers, and optional high-level input from a hands-free Bluetooth module. The DSP allows independent input or channel mixing/summing, with up to +6dB / -60dB Master Input Level and -60dB Independent Channel Level Cut. It also offers up to 20ms independent channel delay with 0.05ms increments, 0/180 phase control, and high, low, or bandpass crossover options with a variable frequency setting between 20Hz-20kHz. Each channel is equipped with a 10-band graphic equalizer with 20dB boost/cut for each band, as well as variable independent band Q adjustment from 0.4 to 9.6.

3. In addition to the DSP features, the RZ4-2000DSPB incorporates high-efficiency Class D full-range technology, housed in a compact 4.75” chassis design for installation versatility. The amplifier's MOSFET Power Supply, coupled with Audiophile Grade IR Transistors, ensures a reliable and high-quality power supply. The military-grade SMT PCB maintains dynamic performance, while the die-cast aluminum alloy heatsink optimizes heat dissipation. The amplifier is equipped with advanced protection circuits, including direct short, thermal, and overload protection, ensuring longevity and reliability.

Highlights:

1. Max Power: 2,000 Watts for a powerful and immersive car audio experience.
2. Built-in DSP: Integrated Digital Signal Processor for advanced audio customization.
3. 100dB Dynamic Range ADC & 104dB Dynamic Range DAC: Ensures pristine audio quality.
4. SigmaStudioTM User Interface: User-friendly interface for intuitive DSP control.
5. 30V MAX High-Level Input Voltage: Accommodates high-level audio sources.
6. 2-Channel RCA Output: Facilitates seamless integration with subwoofer amplifiers.
7. Optional Bluetooth Module Input: Allows integration of hands-free Bluetooth audio.
8. Independent Channel Mixing/Summing: Provides flexibility in audio input configuration.
9. Variable Crossover Settings: High pass, low pass, and subsonic crossovers with variable frequency.
10. 10-Band Graphic Equalizer: Customizable equalization for each channel with boost/cut and Q adjustment.
