Hertz SPL Show S8 DSP Compact Digital Interface Processor 6 in + digital in & 8 outputs

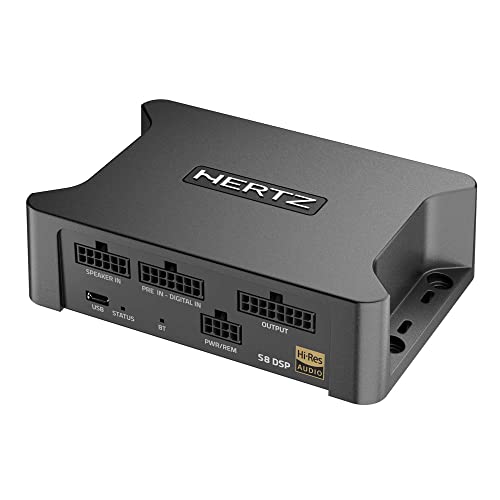

The Hertz S8 DSP is a cutting-edge digital signal processor designed to deliver the highest audio quality for your car, motorcycle, or boat. Encased in a corrosion-free metal and composite material housing, this ultra-compact DSP processes audio signals with 96 kHz / 24-bit resolution, earning Hi-Res certification from the Japan Audio Society. With its powerful 32-bit DSP managing six high/low-level analog input channels, one digital coaxial input, and eight output channels, the S8 DSP offers unparalleled configuration flexibility. The integrated Bluetooth 5.0 receiver allows for wireless control via the CONFIGURATOR App for Apple and Android devices.

Elevate your audio experience with the Hertz S8 DSP, an ultra-compact digital signal processor crafted for premium sound quality. This advanced DSP, housed in a durable corrosion-free case, processes audio at 96 kHz / 24-bit resolution, earning the prestigious Hi-Res certification. It features six high/low-level analog inputs, one SPDIF coaxial input, and eight output channels, providing extensive configuration options. The S8 DSP can be wirelessly controlled through the CONFIGURATOR App, thanks to its built-in Bluetooth 5.0 receiver, making it a versatile addition to any audio upgrade project.

The Hertz S8 DSP is a technologically advanced digital signal processor that transforms ordinary audio systems into high-performance setups. Encased in a robust metal and composite material housing, this DSP offers 96 kHz / 24-bit signal processing and Hi-Res certification for exceptional audio quality. It boasts six high/low-level analog inputs, one digital coaxial input, and eight output channels for maximum configuration flexibility. The integrated Bluetooth 5.0 receiver allows for convenient wireless control using the CONFIGURATOR App on both Apple and Android devices, ensuring easy and precise audio adjustments.

Highlights:

1. Hi-Res Certified: Achieves Hi-Res certification from the Japan Audio Society for superior audio performance.
2. High-Resolution Processing: 96 kHz / 24-bit audio signal processing for pristine sound quality.
3. Powerful 32-bit DSP: Manages six high/low-level analog input channels, one digital coaxial input, and eight output channels.
4. Durable Construction: Corrosion-free case cast in metal and composite materials for long-lasting durability.
5. Integrated Bluetooth 5.0: Wireless control via the CONFIGURATOR App for Apple and Android devices.
6. Versatile Inputs and Outputs: Six analog inputs and eight output channels offer maximum configuration freedom.
7. Digital Coaxial Input: SPDIF input ideal for digital connections with Hi-Res players.
8. Comprehensive Control: Each output channel features level control, a 15-pole parametric equalizer, time delays, and crossover filters.
9. Input Equalizer: 7-band parametric equalizer to flatten the response from OEM sources.
10. Automatic Remote Turn-On/Off: ART feature for easy integration with BTL speaker outputs.
11. Precision Tuning: Time alignment controls with fine adjustment options for precise sound staging.
12. Energy Efficient: Low idling and off-current consumption for efficient power use.
13. Nominal Power Supply: Wide operating voltage range of 7 ÷ 20 VDC.

Technical Specifications:

• Model Number: S8-DSP
• Part Number: S8-DSP
• Binding: Electronics
• Weight: Ultra-compact design
• Power Supply Voltage: 7 ÷ 20 VDC / 1A fuse
• Pulse Operating Voltage: 5 ÷ 24 VDC
• Idling Current: 0.34 A
• OFF Current (ART= OFF/ON): <80 µA
• Remote IN Voltage: 6 ÷ 20 VDC (10 mA)
• Remote OUT Voltage: 4 ÷ 20 VDC (150 mA)
• Sample Rate: 96 kHz
• Bit Depth: 24
• Output Equalizer: 15 bands per channel with adjustable Q and frequency
• Equalizer Resolution: 1/10th dB per step, ±12 dB
• Time Alignment (Distance): 0 ÷ 468.4 cm / 0 ÷ 184.4 inches
• Time Alignment (Time): 0 ÷ 13.5 ms
• Time Alignment (Step): 0.08 ms; 2.8 cm / 1.1 inch
• Time Alignment (Fine Set): 0.02 ms; 0.7 cm / 0.27 inch
• EAN: 8018823136709
