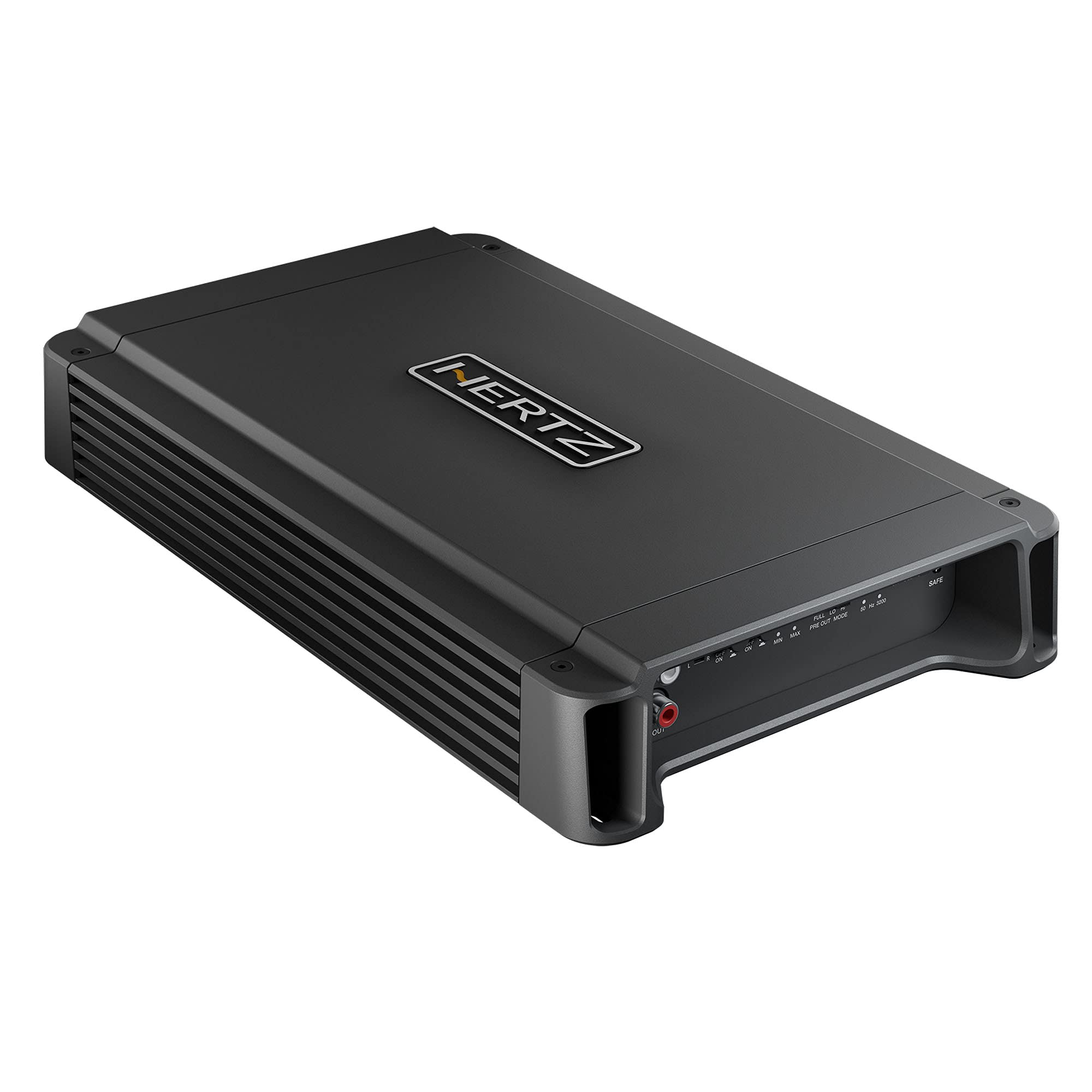

Hertz Compact Power HCP-2X High Power AB-Class Stereo Amplifier 200 WRMS X 2 at 2-Ohm

The Hertz HCP 2X is a powerful 800W stereo car audio amplifier designed to enhance or modify your factory audio system with ease. It features both pre-amplified (Pre-In) and high-level (Speaker-In) inputs for seamless integration with any head unit. The compact design, with an extruded aluminum heat sink, ensures efficient heat dissipation and reliable performance. With adjustable Bass Boost and a comprehensive set of filters, including Lo-Pass, Hi-Pass, and Band-Pass, the HCP 2X delivers customizable sound quality for a truly immersive listening experience.

The Hertz HCP 2X is engineered to deliver high-performance audio with its robust 800W output. This stereo amplifier is perfect for expanding or upgrading your car's audio system. It offers versatile connectivity with balanced input circuitry and supports both OEM and aftermarket head units. The HCP 2X includes advanced thermal management with a heat sink that efficiently transfers and dissipates heat. With an impressive signal-to-noise ratio and minimal distortion, this amplifier provides clear and powerful sound while offering the flexibility to drive complex audio setups or subwoofers.

The Hertz HCP 2X is a top-tier 800W stereo amplifier designed for optimal audio performance in automotive environments. It features a compact yet efficient extruded aluminum heat sink to manage thermal conditions effectively. The amplifier supports both pre-amplified and high-level inputs, making it versatile for various audio setups. Its Bass Boost filter (0 ÷ 12 dB) and balanced input circuitry enhance low frequencies and ensure noise-free operation. The HCP 2X also boasts high efficiency and reliability, making it an excellent choice for high-power systems and advanced audio configurations.

Highlights:

1. High Power Output: Delivers a robust 800W for superior audio performance.
2. Compact Design: Lightweight at 5.6 lbs with a space-efficient form factor.
3. Adjustable Bass Boost: Enhances low-frequency response with 0 ÷ 12 dB adjustment.
4. Balanced Input Circuitry: Ensures clean and noise-free signal transmission.
5. Versatile Inputs: Includes both pre-amplified (Pre-In) and high-level (Speaker-In) inputs for flexibility.
6. Efficient Thermal Management: Extruded aluminum heat sink effectively transfers and dissipates heat.
7. Low Distortion: THD of 0.03% at 100 Hz and 4 Ω for high-quality sound.
8. High Signal-to-Noise Ratio: S/N ratio of 105 dB for clear audio output.
9. Wide Bandwidth: 10 ÷ 65 kHz bandwidth for full-range audio reproduction.
10. High Damping Factor: Damping factor of 300 at 100 Hz and 4 Ω for precise control over speaker performance.
11. Automatic Remote Turn-On/Off (ART): Simplifies integration and power management.
12. CEA Compliant: Meets Consumer Electronics Association standards for performance and reliability.

Technical Specifications:

• Model Number: HCP2X
• Color: Black
• Weight: 5.6 lbs
• Fuse: 2 x 20 A
• Power Supply Voltage: 11 ÷ 15 VDC
• Idling Current (Power ON/OFF): 0.6 A / 0.4 mA
• Remote In Voltage: 7 ÷ 15 VDC
• Automatic Remote Turn-On/Off (ART): Yes
• Distortion (THD) @ 100 Hz, 4 Ω: 0.03%
• Bandwidth: 10 ÷ 65 kHz
• Signal-to-Noise Ratio (A weighted @ 1 V): 105 dB
• Damping Factor @ 100 Hz, 4 Ω: 300
• Pre-In Sensitivity: 0.2 ÷ 5 VRMS
• Speaker-In Sensitivity: 0.8 ÷ 20 VRMS
• EAN: 8018823114967
