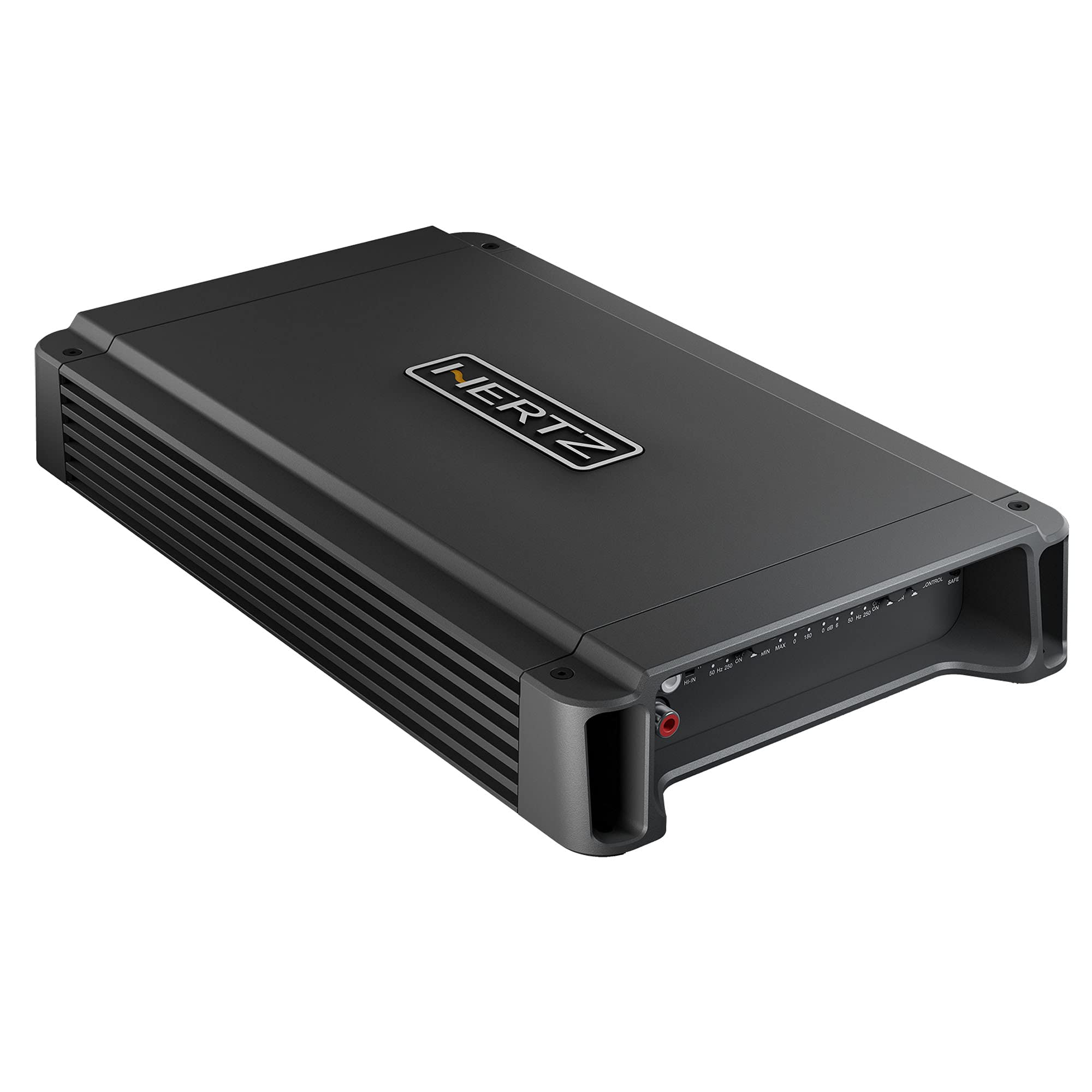

Hertz Compact Power HCP-1DK D-Class Mono Bass Amplifier 1240 WRMS x 1 at 2-Ohm

The Hertz HCP 1DK is a compact yet powerful mono amplifier designed to enhance your car audio experience with precision and efficiency. Featuring a minimized size heat sink, this amplifier utilizes high-quality components and a sophisticated thermal management system to maintain optimal performance. The HCP 1DK includes a comprehensive set of filters—Lo-Pass, Hi-Pass, Band-Pass, Full Range, Subsonic, Bass Boost, Phase, and Mono—allowing for versatile audio configurations. It also supports remote control of subwoofer volume with the optional Hertz Remote Control (HRC), ensuring precise adjustments.

Compact and efficient, the Hertz HCP 1DK mono amplifier is engineered for high-performance audio in a streamlined design. It features an advanced extruded aluminum heat sink for effective thermal management, keeping the amplifier cool even at high power levels. With its complete and customizable crossover system, including various filters like Lo-Pass, Hi-Pass, and Band-Pass, the HCP 1DK offers flexible setup options. The amplifier supports remote subwoofer volume control via the HRC accessory and boasts balanced input circuitry for superior signal quality and noise reduction.

Elevate your car audio system with the Hertz HCP 1DK, a mono amplifier that combines compact size with high-efficiency performance. The amplifier’s minimized heat sink design ensures effective heat dissipation and consistent operation. The HCP 1DK includes an extensive range of filters—such as Subsonic, Bass Boost, and Phase—enabling precise audio tuning. It also features Automatic Remote Turn-On/Off for seamless integration and can be controlled remotely with the Hertz Remote Control (HRC). CEA compliance and balanced input circuitry ensure reliable performance and high-quality sound.

Highlights:

1. Compact Design: Minimizes size while delivering robust power and performance.
2. Efficient Heat Sink: Extruded aluminum heat sink for optimal thermal management.
3. Versatile Filtering Options: Includes Lo-Pass, Hi-Pass, Band-Pass, Full Range, Subsonic, Bass Boost, Phase, and Mono filters.
4. Adjustable Bass Boost: Allows for fine-tuning of low-frequency response.
5. Balanced Input Circuitry: Provides superior signal quality and noise reduction.
6. Automatic Remote Turn-On/Off: Facilitates seamless integration with your audio system.
7. CEA Compliant: Meets Consumer Electronics Association standards for performance and reliability.
8. Remote Control Compatibility: Optional Hertz Remote Control (HRC) for precise subwoofer volume adjustments.
9. Wide Bandwidth: Handles frequencies from 10 Hz to 500 Hz for a broad audio spectrum.
10. High Signal-to-Noise Ratio: S/N ratio of 100 dB for clear and clean audio output.
11. Low Distortion: THD of 0.25% at 100 Hz and 4 Ω for high-fidelity sound.
12. Flexible Impedance Handling: Supports load impedance down to 2 Ω.

Technical Specifications:

• Model Number: HCP 1DK
• Binding: Automotive
• Color: Black
• Weight: 6.6 lb
• Fuse: 3 x 30 A
• Power Supply Voltage: 11 ÷ 15 VDC
• Idling Current (Power ON/OFF): 0.8 A / 1 mA
• Remote In Voltage: 7 ÷ 15 VDC
• Automatic Remote Turn-On/Off (ART): Yes
• Distortion (THD) @ 100 Hz, 4 Ω: 0.25%
• Bandwidth: 10 ÷ 500 Hz
• Signal-to-Noise Ratio (A weighted @ 1 V): 100 dB
• Damping Factor @ 100 Hz, 4 Ω: 100
• Pre-In Sensitivity: 0.2 ÷ 5 VRMS
• Speaker-In Sensitivity: 0.8 ÷ 20 VRMS
• Load Impedance (MIN): 2 Ω
• EAN: 8018823114950
