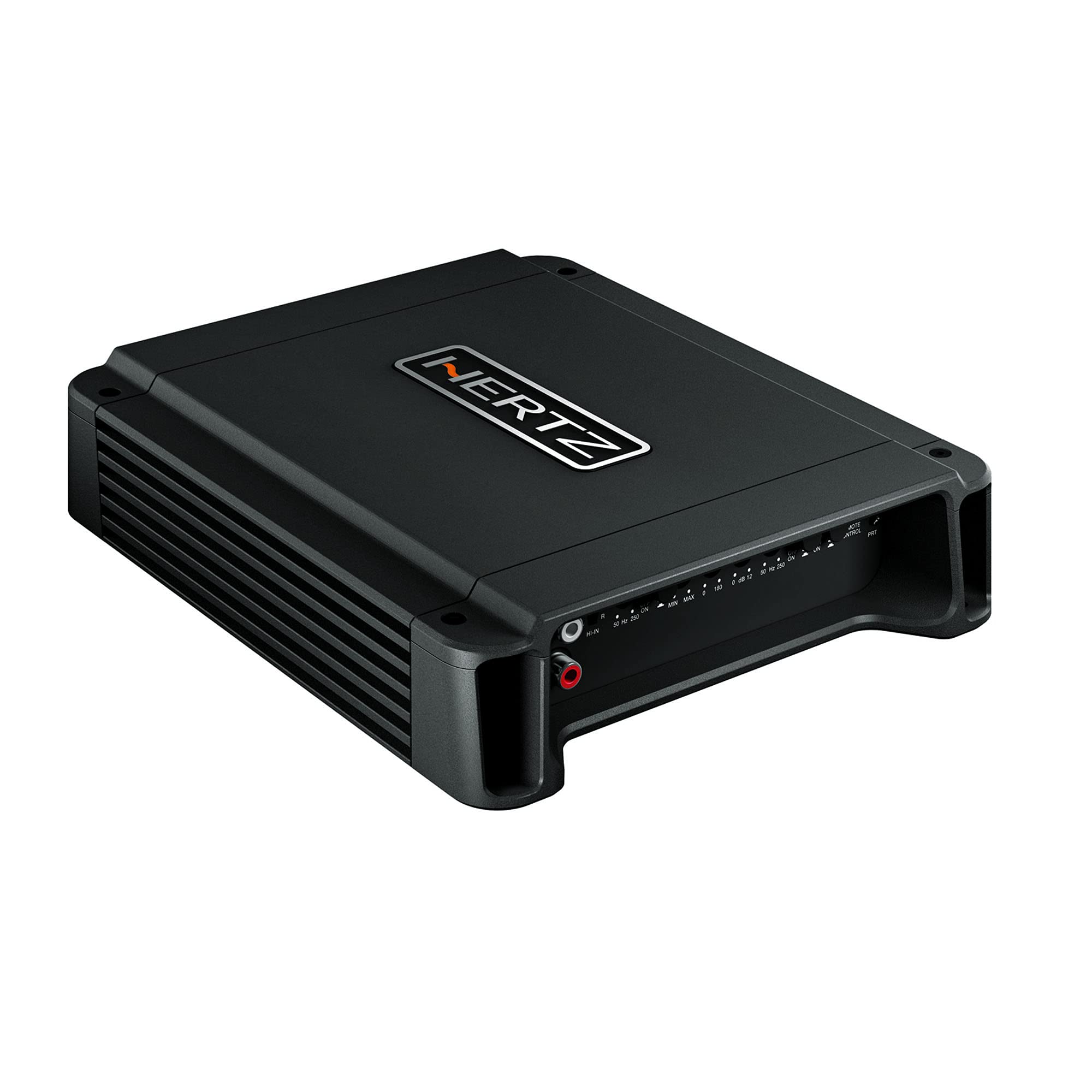

Hertz Compact Power HCP-1D D-Class Mono Bass Amplifier 700 WRMS x 1 at 2-Ohm

The Hertz HCP 1D is a compact mono D Class amplifier designed to deliver powerful and precise bass performance in your vehicle. Despite its small size, it boasts a highly efficient extruded aluminum heat sink for optimal thermal management. This amplifier features a comprehensive range of filters, including Lo-Pass, Hi-Pass, Band-Pass, and Bass Boost, allowing for versatile setup options. With its adjustable bass boost and balanced input circuitry, the HCP 1D provides exceptional control over your audio system. The Automatic Remote Turn-On/Off function and CEA compliance ensure reliability and performance consistency.

Experience powerful bass with the Hertz HCP 1D mono amplifier, engineered for high efficiency and compact design. The amplifier's extruded aluminum heat sink ensures excellent thermal performance, keeping the internal temperature stable under all conditions. The HCP 1D is equipped with a full suite of filters including Hi-Pass, Lo-Pass, and Band-Pass, and features an adjustable bass boost for fine-tuning. The balanced input circuitry and the option to control the subwoofer volume remotely via the HRC accessory offer flexibility and precision. Its CEA compliance guarantees adherence to industry standards for quality and performance.

The Hertz HCP 1D mono amplifier combines compact design with powerful performance, making it an ideal choice for enhancing your vehicle’s audio system. Its efficient aluminum heat sink manages thermal performance effectively, ensuring consistent operation. The amplifier offers a range of customizable filters, including Subsonic, Bass Boost, and Phase, for versatile audio configurations. It features Automatic Remote Turn-On/Off and balanced input circuitry, providing convenience and superior sound control. With CEA compliance and precise subwoofer volume control through the optional HRC accessory, the HCP 1D stands out in performance and reliability.

Highlights:

1. Compact Design: Minimizes size without compromising on power or performance.
2. Efficient Heat Sink: Extruded aluminum heat sink for optimal thermal management.
3. Versatile Filtering Options: Includes Lo-Pass, Hi-Pass, Band-Pass, Full Range, Subsonic, Bass Boost, Phase, and Mono filters.
4. Adjustable Bass Boost: Allows fine-tuning of low-frequency response.
5. Balanced Input Circuitry: Provides improved signal quality and noise reduction.
6. Automatic Remote Turn-On/Off: Ensures easy integration with your audio system.
7. CEA Compliant: Adheres to Consumer Electronics Association standards for performance.
8. Wide Bandwidth: Handles frequencies from 10 Hz to 22 kHz for a full audio spectrum.
9. High Signal-to-Noise Ratio: S/N ratio of 100 dB for clear and clean audio.
10. Low Distortion: THD of 0.2% at 100 Hz and 4 Ω for high-fidelity sound.
11. Flexible Impedance Handling: Supports load impedance down to 2 Ω.
12. Remote Control Compatibility: Optional HRC accessory for precise subwoofer volume control.

Technical Specifications:

• Model Number: HCP 1D
• Binding: Automotive
• Color: Black
• Weight: 4.27 lbs
• Fuse: 2 x 25 A
• Power Supply Voltage: 11 ÷ 15 VDC
• Idling Current (Power ON/OFF): 1 A / 0.04 mA
• Remote In Voltage: 7 ÷ 15 VDC
• Automatic Remote Turn-On/Off (ART): Yes
• Distortion (THD) @ 100 Hz, 4 Ω: 0.2%
• Bandwidth: 10 ÷ 22 kHz
• Signal-to-Noise Ratio (A weighted @ 1 V): 100 dB
• Damping Factor @ 100 Hz, 4 Ω: 80
• Pre-In Sensitivity: 0.2 ÷ 5 VRMS
• Speaker-In Sensitivity: 0.8 ÷ 20 VRMS
• Load Impedance (MIN): 2 Ω
• EAN: 8018823110556
