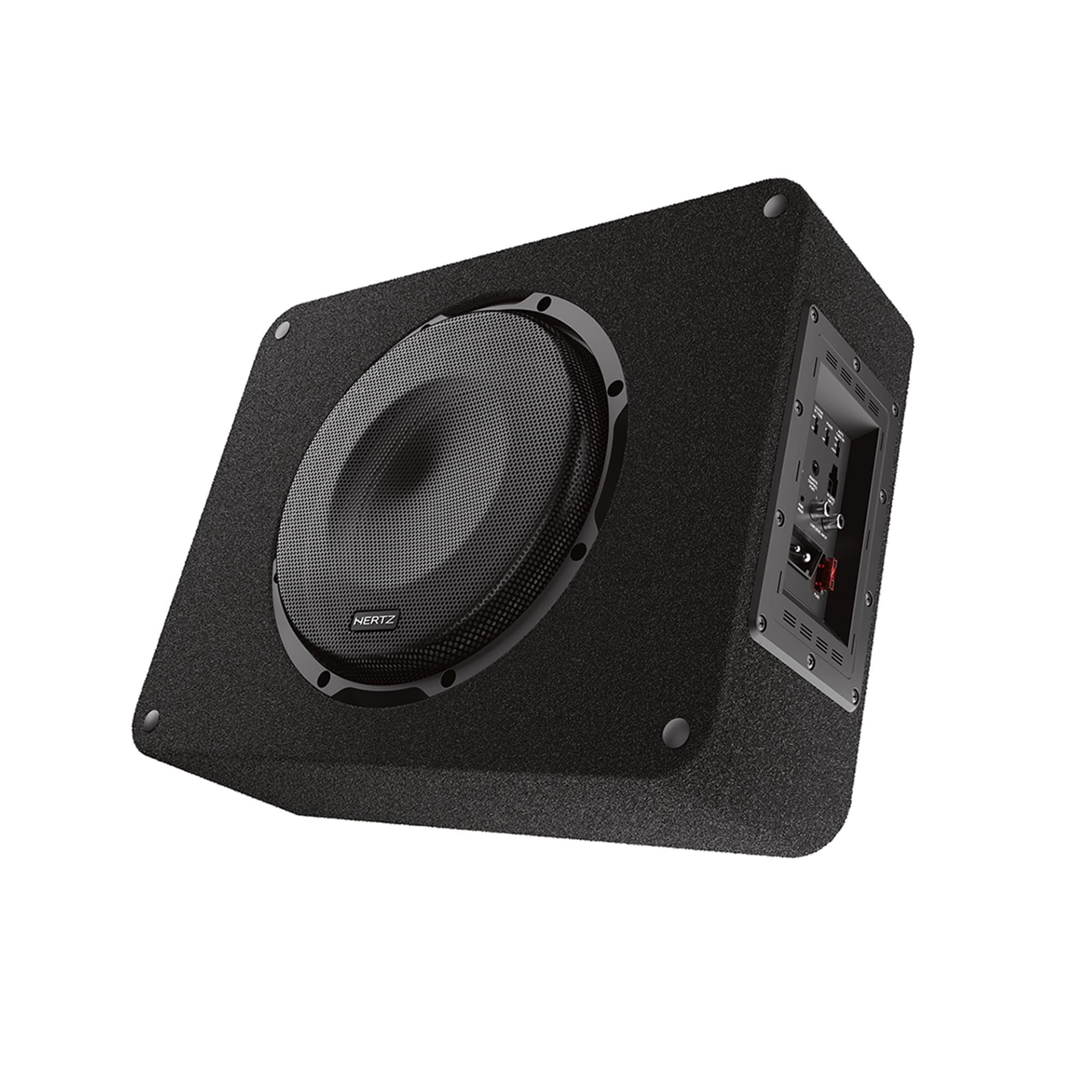

HERTZ CBA-250 10 in. Active Sealed Subwoofer Enclosure - 250 WRMS incl. HRC AP level control

Experience superior bass quality with the Hertz CBA 250 active subwoofer box. This compact unit houses a high-impedance 10-inch driver powered by a 250W RMS amplification module. Its versatile connectivity options, including high-level and low-level inputs, make it ideal for both OEM and aftermarket audio systems. With features like a variable cutting frequency Butterworth low-pass filter, phase control, and bass-boost adjustment, the CBA 250 offers exceptional sound control and performance.

The Hertz CBA 250 is a state-of-the-art active subwoofer box featuring a 10-inch driver, designed to deliver powerful and precise bass performance. Equipped with a high-performance amplification module, this subwoofer offers a robust 250W RMS output and impressive efficiency thanks to its he-li technology. The adjustable low-pass Butterworth filter and bass-boost control provide customizable sound tailoring, while the ultra-compact, air-suspension design ensures easy integration into various audio setups.

The Hertz CBA 250 is an advanced active subwoofer box featuring a dedicated 10-inch driver and a powerful 250W RMS amplifier. Designed for maximum efficiency and flexibility, it includes a defeatable low-pass filter, adjustable bass-boost, and phase control. Its ultra-low profile and air suspension design ensure seamless integration into any vehicle, while the SSP terminal block and ART turn-on function enhance ease of use and installation.

Highlights:

1. Powerful Amplification: 250W RMS output for robust bass performance.
2. High Efficiency: Achieves 90% efficiency with he-li technology, minimizing power loss.
3. Variable Low-Pass Filter: 12dB/Oct Butterworth filter with a cutting frequency range of 50-200 Hz.
4. Adjustable Bass-Boost: 0 to 6 dB boost at 45 Hz for enhanced low-frequency response.
5. Phase Control: Adjustable phase from 0 to 180° for precise sound alignment.
6. Defeatable Filter: Bypass option for use with external processors.
7. Versatile Connectivity: High-level input on multi-pin connector and low-level RCA input.
8. ART Turn-On Function: Selectable turn-on options including Remote-in, Hi-level, and Audio signal.
9. Ultra-Low Profile Design: Compact size (6.22 in. / 158 mm) for easy installation.
10. Air Suspension System: Designed to optimize the performance of the 10-inch driver.
11. SSP Terminal Block: Single Plug & Play connector for easy and safe disconnection.
12. High-Quality Construction: Features a high-density flux ferrite magnet and pressed paper cone for durability and sound quality.
13. Frequency Response: Wide range of 20 - 200 Hz for deep bass reproduction.
14. OEM Integration: High-level speaker input for seamless integration with factory audio systems.
15. Aftermarket Compatibility: Low-level RCA input for use with aftermarket audio sources.

Technical Specifications:

• Size: 250 mm (10 inches)
• Power Handling - Continuous: 250 W
• Power Handling - Peak: 500 W
• Impedance: 0.4 Ohm
• Design: Active sealed subwoofer box
• Voice Coil Diameter: 60 mm (2.36 inches)
• Frequency Response: 20 - 200 Hz
• Magnet Size: 140 x 70 x 30 mm (5.51 x 2.76 x 1.81 inches)
• Magnet Type: High-density flux ferrite
• Cone Material: Pressed paper
• Xmech: 14.75 mm
• Voice Coil Type: Copper
• EAN: 8018823139373
