d Fosgate Prime 750W 5-Channel Full Range Class D Amplifier R2-750X5 R2750X5

All-in-One Amplification Power

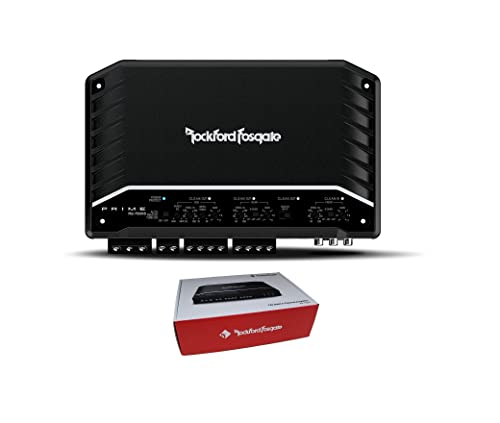

The Rockford Fosgate R2-750X5 (Model: R2750X5) is a compact, full-range 5-channel amplifier designed to power your entire audio system. Delivering up to 750 watts RMS, it drives four speakers plus a subwoofer with clean, powerful sound. Perfect for systems that need both clarity and punch without multiple amps.

Efficient Class-D Performance

Featuring advanced Class-D technology, this amplifier runs cooler and more efficiently than traditional designs. It outputs 50W x 4 + 200W x 1 at 4Ω, 100W x 4 + 350W x 1 at 2Ω, or 200W x 2 bridged. Rockford’s P.O.W.E.R. supply boosts output as voltage increases, while C.L.E.A.N. circuitry helps set gain precisely to avoid distortion.

Flexible Controls & Installation

The R2-750X5 includes top-mounted controls for easy adjustments, fully adjustable 12dB/octave high- and low-pass Butterworth crossovers, and integrated Punch EQ that delivers up to 3X the bass. Balanced differential inputs, RCA pass-through outputs, high-level input capability, and defeatable auto turn-on ensure seamless integration with factory or aftermarket systems.

Key Highlights

• Compact 5-channel full-range Class-D amplifier

• RMS Power: 750 watts total output

• Power Ratings: 50W x 4 + 200W x 1 @ 4Ω, 100W x 4 + 350W x 1 @ 2Ω, 200W x 2 bridged

• Dedicated subwoofer channel for strong bass response

• Class-D design maximizes efficiency and reduces strain on electrical system

• Rockford P.O.W.E.R. Supply delivers more power as voltage rises

• C.L.E.A.N. setup ensures distortion-free gain settings

• Integrated Punch EQ boosts bass up to 3X

• Adjustable 12dB/octave Butterworth crossovers (high & low pass)

• Balanced differential inputs with RCA pass-through outputs

• High-level input capable with defeatable auto turn-on circuit

• Rockford Fosgate build quality with a 1-year warranty

Package Contains

• Rockford Fosgate R2-750X5 (Model: R2750X5) 5-channel amplifier

• Mounting hardware

• Power/ground/speaker terminal block connectors

• Owner’s manual & installation guide

• 1-year Rockford Fosgate warranty documentation
