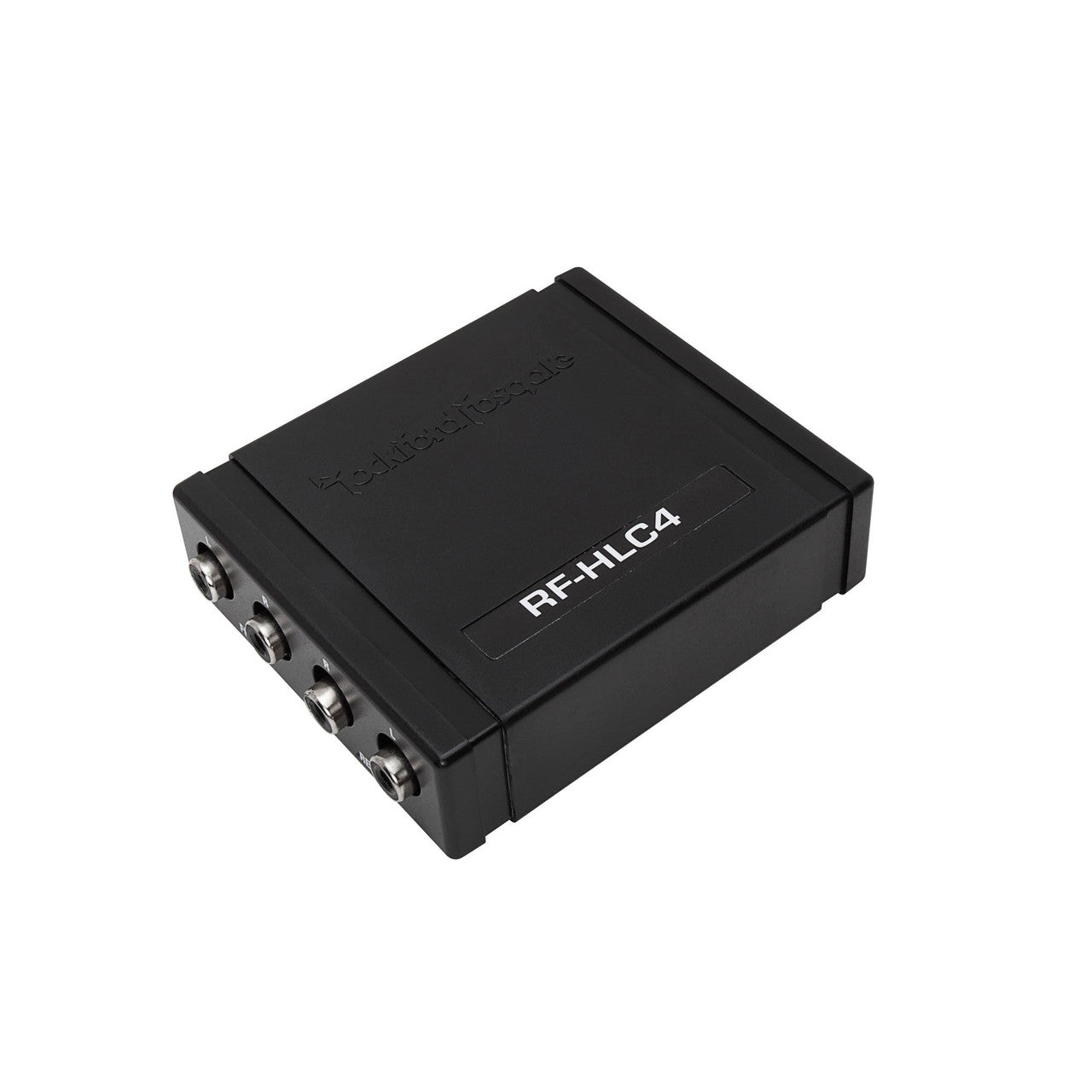

Rockford Fosgate RF-HLC4 4ch Speaker Level To Rca Output

The RF-HLC4 is a versatile 4-channel high-level to low-level signal converter tailored for factory or aftermarket radios lacking dedicated low-level RCA outputs. This adapter effectively transforms the high-level signal from the radio's speaker line into a safer low-level audio signal. By doing so, it enables the seamless integration of a 4-channel amplifier into your audio system, delivering amplified power output and significantly enhancing overall sound quality.

Features:

• Channels: 4-channel configuration
• Output Type: RCA Level Output
• Input Type: Speaker Level Input
• Warranty: Backed by a 1-Year Warranty

Specifications:

• Configuration: Line Output Converter
• Processor Type: Analog Processor

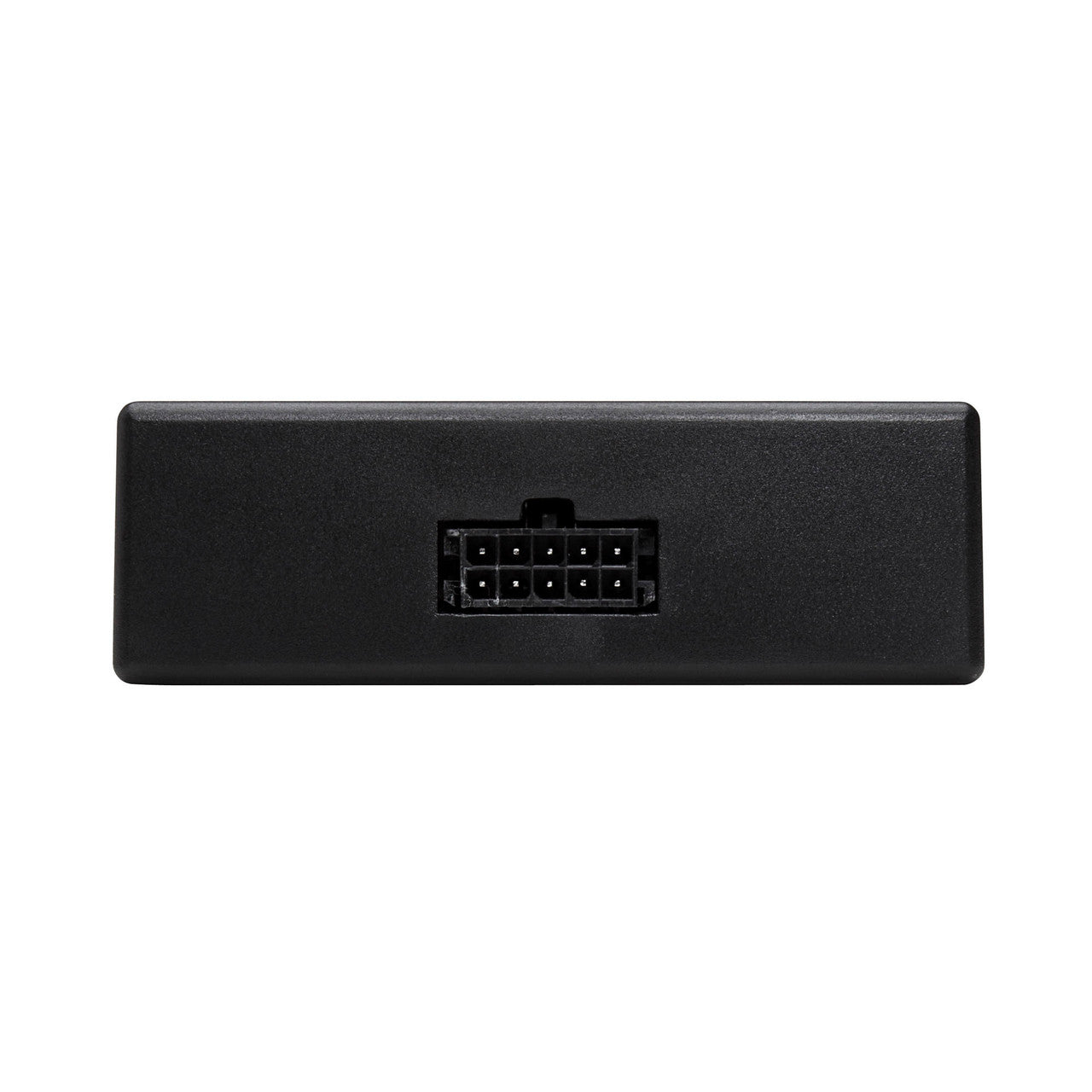

• Signal Input: Front Left & Right +/- leads, Rear Left & Right +/- leads, Front & Rear ground leads
• Mounting: Installed behind the dash for convenience

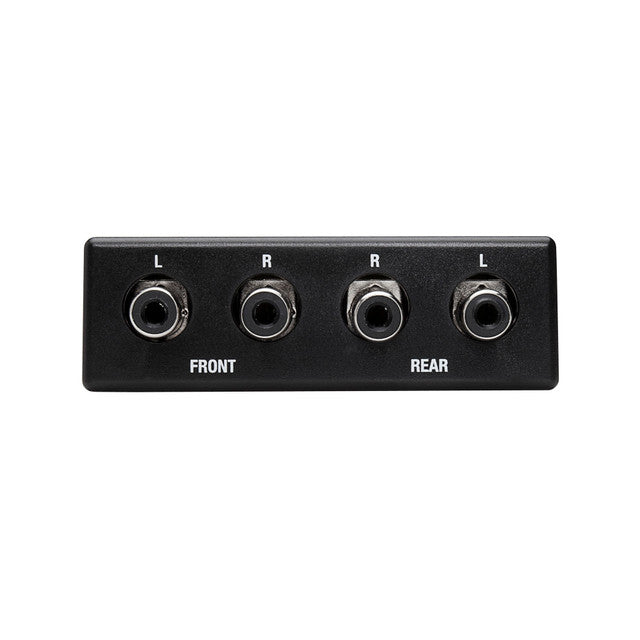

• Signal Output: Front Left & Right RCA jacks, Rear Left & Right RCA jacks
• Input Voltage: Supports up to 10.5V (high-level input)
• Output Voltage: Provides up to 3V (low-level output)
• Dimensions: 1" x 3" x 3-1/2" (2.54cm x 7.62cm x 8.89cm)

The RF-HLC4 empowers your audio system by enabling the connection of a 4-channel amplifier, ensuring a seamless transition from high-level to low-level audio signals for enhanced power output and superior sound quality, all while maintaining compatibility with various radio configurations.
